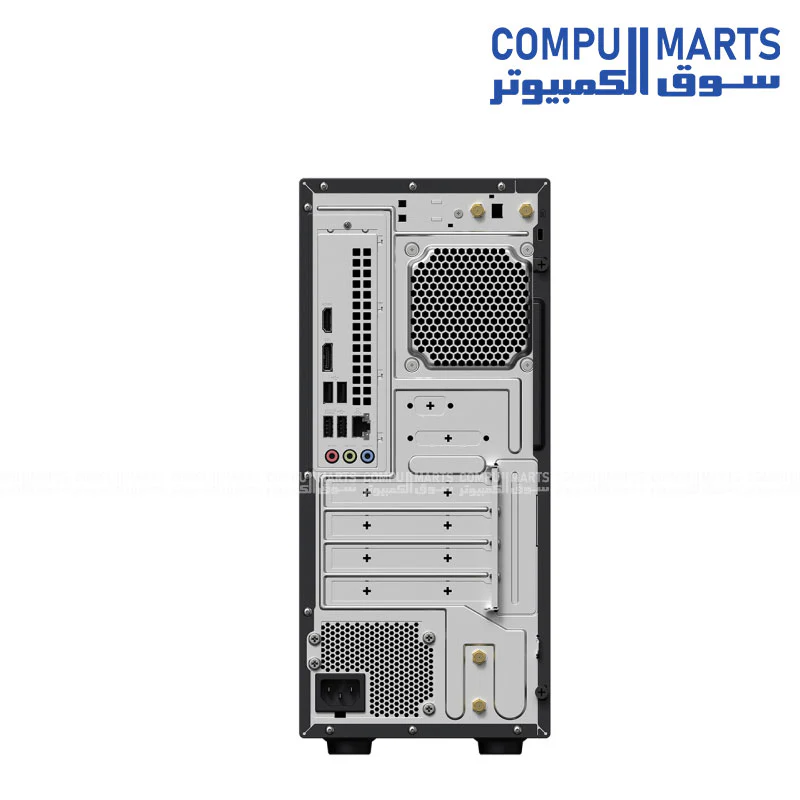

ASUS Essentials Mini Desktop PC – Core i7-13620H | 16GB RAM | 512GB SSD | WiFi 6 + Bluetooth 5.4 | Windows 11 Home—
$0.02
The Story
ASUS Essentials Mini Desktop PC – Core i7-13620H | 16GB RAM | 512GB SSD | WiFi 6 + Bluetooth 5.4 | Windows 11 Home
Specifications:
| Part No | 90PF05R2-M00NM0 |
| Sales Model Name | V500MV-13620H105W |
| EAN Code | 4711636034531 |
| UPC Code | 199291034532 |
| WEEE | 5.997 |
| BASE UNIT | VSPF05R2-BU0010 |
| Size | 15L |
| Color | Gray |
| Form Factor | Mini tower |
| Operating System | Windows 11 Home - ASUS recommends Windows 11 Pro for business |
| Office | 1-month trial for new Microsoft 365 customers. Credit card required. |
| Processor | Intel Core i7-13620H Processor 2.4 GHz (24MB Cache, up to 4.9 GHz, 10 cores, 16 Threads) |
| CPU Cooler | Air Cooler |
| DIMM Memory | 16GB DDR5 SO-DIMM |
| Memory Speed | Memory speed is 5600MHz, but run at 4800~5200MHz |
| Memory Max. | 64GB |
| Integrated GPU | Intel UHD Graphics |
| Storage | 512GB M.2 2280 NVMe PCIe 4.0 SSD |
| Optical Drive | Without optical drive |
| LAN | Intel WGI219V 10/100/1000 Mbps, non-vPro |
| Audio | High Definition 7.1 Channel Audio |
| Wireless | Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.4 Wireless Card |
| Power Supply | 330W power supply (80+ Platinum, peak 660W) |
| Rear I/O Port |
1x RJ45 Gigabit Ethernet 1x HDMI 1.4 1x Displayport 1.4 1x 7.1 channel audio (microphone, line-out, Line-in) 1x Kensington lock 4x USB 2.0 Type-A |
| Front I/O Port |
1x Headphone 1x USB 3.2 Gen 1 Type-C 2x USB 3.2 Gen 1 Type-A 1x 3.5mm combo audio jack 1x USB 3.2 Gen 1 Type-C 2x USB 3.2 Gen 1 Type-A 1x 2 in 1 card reader SD / MMC 1x Smart card reader |
| Drive Bay | 3.5" x 1 |
| Serial ATA | 2 x SATA 6.0Gb/s ports |
| Expansion Slot(includes used) |
1x PCIe 4.0 x 16 (operating at PCIe 4.0 x8) 1x M.2 connector for WiFi 2x M.2 2280 connector for storage 2x DDR5 SO-DIMM slot |
| Keyboard & Mouse |
Wired keyboard (USB) Wired optical mouse (USB) |
| Dimension (WxDxH) | 15.50 x 29.60 x 34.70 cm (6.10" x 11.65" x 13.66") |
| Weight | 06.00 kg (13.23 lbs) |
| My ASUS features |
System diagnosis Fan profile AppDeals |
| Built-in Apps |
MyASUS |
| Adobe Creative Cloud Hard Bundle |
1-month Adobe Creative Cloud Hard Bundle *Terms and exclusions apply. Offer only available in eligible markets. Eligible markets are determined at activation, and varies by region, device, and time. |
| Security |
HDD User Password Protection and Security Kensington Security Slot™(7x 3mm) |
| Antivirus | McAfee 30 days free trial |
| Ecolabels & Compliances |
EPEAT Silver Energy star 8.0 REACH RoHS |
| Base Warranty | 2Y Pick up/ return |
| Recommended Warranty Package Part number//Extension and/or upgrade service from base warran |
ACX13-006910PF//1Y Extension; 3Y OnSite Service(Next Business Day)*upgrade ACX13-006982PF//3Y Extension; 5Y OnSite Service(Next Business Day)*upgrade ACX15-032830PF//1Y Extension; 3Y OnSite Service(Next Business Day); 3Y HDD Retention*upgrade *If you would like to know the details, please contact your sales teams. |
| Sustainable Material_Front bezel | 65% (Inkwell Grey)、60% (White) PCR recycled plastic front bezel |
| Sustainable Material_I/O bezel | 65% (Inkwell Grey)、60% (White) PCR recycled plastic I/O bezel |
