$82.07

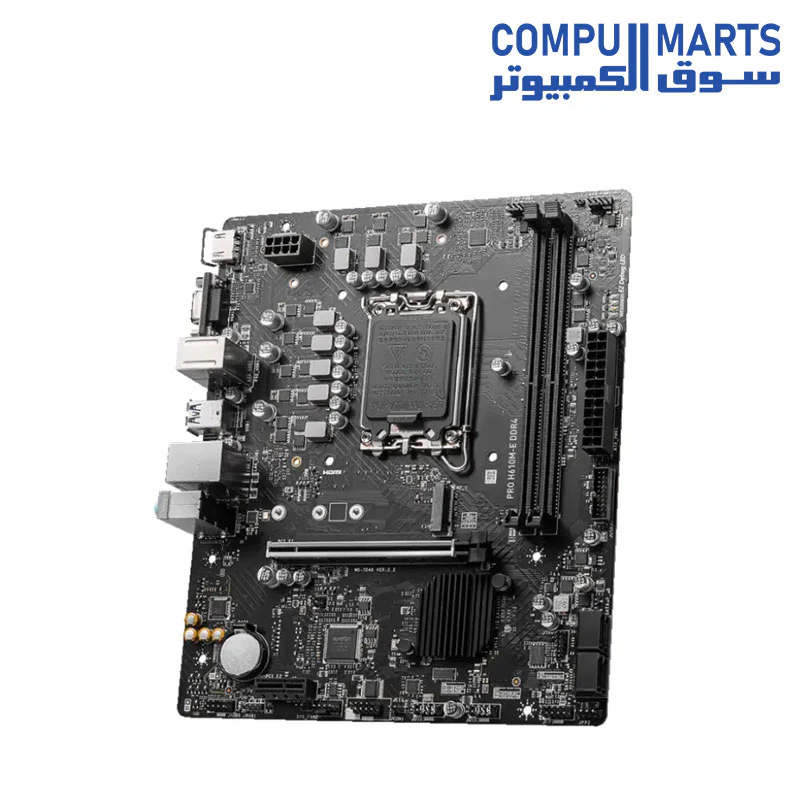

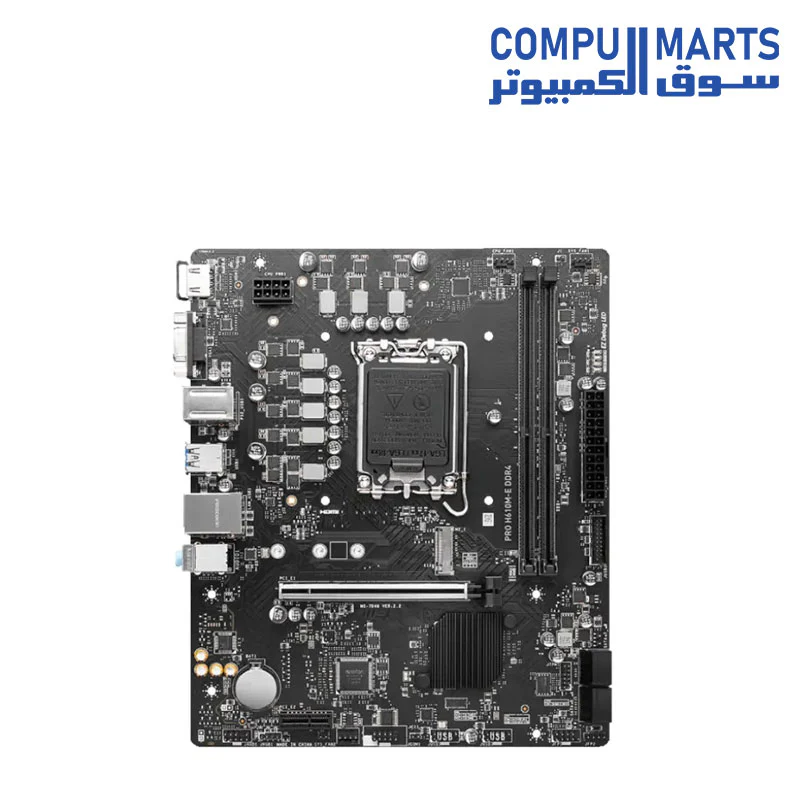

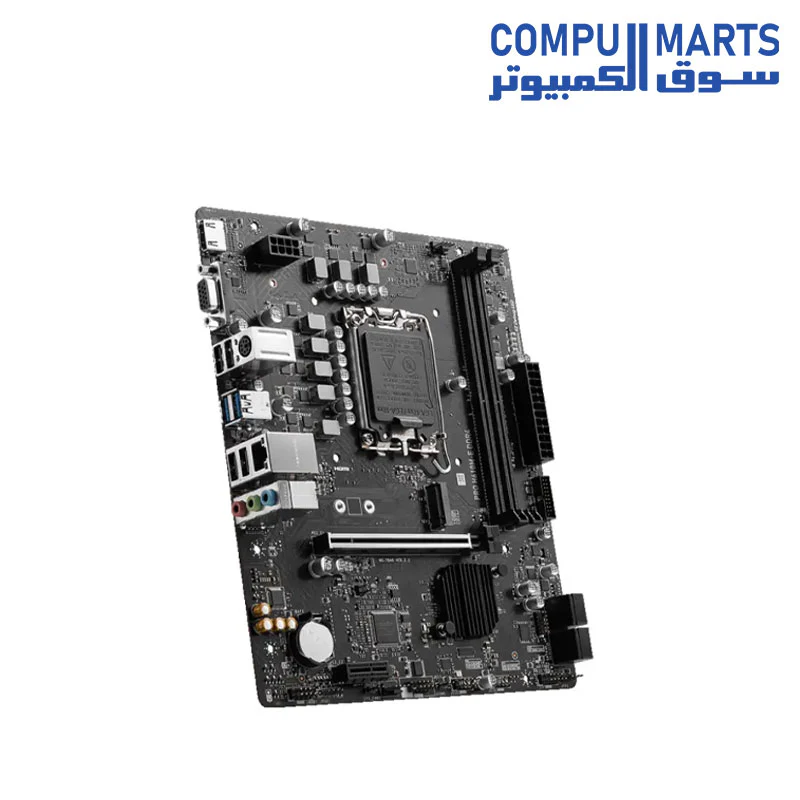

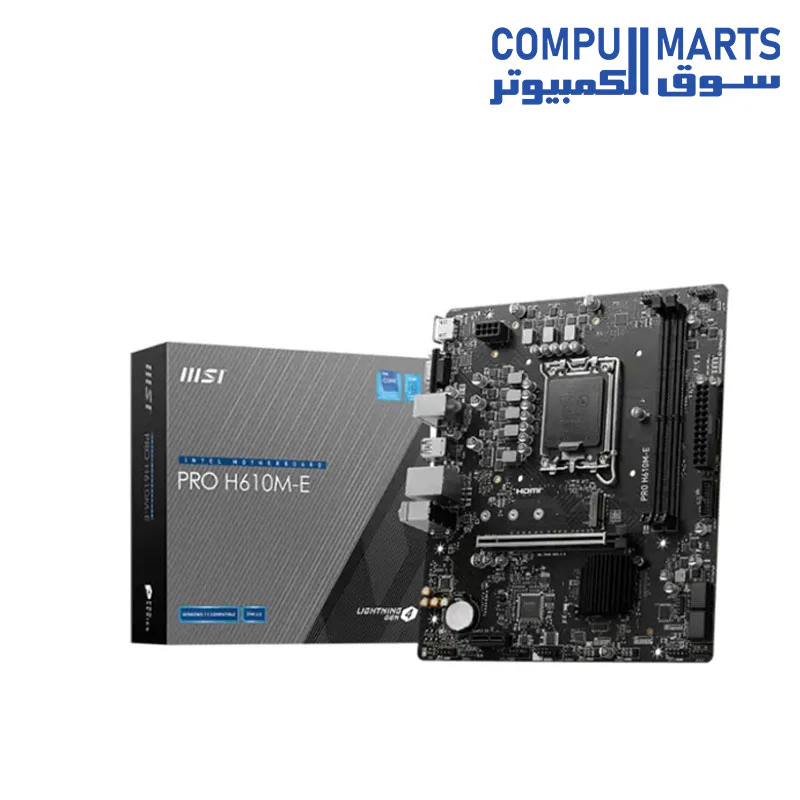

MSI Pro H610M-E DDR5 Motherboard—
$82.07
The Story
| Category | Specification Details |
|---|---|
| Product Name | MSI PRO H610M-E DDR5 |
| Chipset | Intel H610 |
| CPU Socket | LGA 1700 (Supports 12th, 13th, & 14th Gen Intel Core) |
| Memory Support | 2x DDR5 Slots, Max 96GB (Up to 5600MHz) |
| Expansion Slots | 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset) |
| Storage | 1x M.2 (PCIe 3.0 x4 & SATA), 4x SATA 6G |
| Display Output | 1x HDMI 1.4 (4K/30Hz), 1x VGA |
| Networking | Realtek RTL8111H Gigabit LAN |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| USB Ports | 4x USB 3.2 Gen 1 (2 Rear, 2 Front), 8x USB 2.0 |
| Internal Headers | 1x RGB LED, 1x TPM 2.0, 1x COM Port, 2x System Fan |
| Diagnostics | 4x EZ Debug LED |
| Dimensions | mATX Form Factor (200mm x 236.16mm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Product Name | MSI PRO H610M-E DDR5 |
| Chipset | Intel H610 |
| CPU Socket | LGA 1700 (Supports 12th, 13th, & 14th Gen Intel Core) |
| Memory Support | 2x DDR5 Slots, Max 96GB (Up to 5600MHz) |
| Expansion Slots | 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset) |
| Storage | 1x M.2 (PCIe 3.0 x4 & SATA), 4x SATA 6G |
| Display Output | 1x HDMI 1.4 (4K/30Hz), 1x VGA |
| Networking | Realtek RTL8111H Gigabit LAN |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| USB Ports | 4x USB 3.2 Gen 1 (2 Rear, 2 Front), 8x USB 2.0 |
| Internal Headers | 1x RGB LED, 1x TPM 2.0, 1x COM Port, 2x System Fan |
| Diagnostics | 4x EZ Debug LED |
| Dimensions | mATX Form Factor (200mm x 236.16mm) |
