$76.34

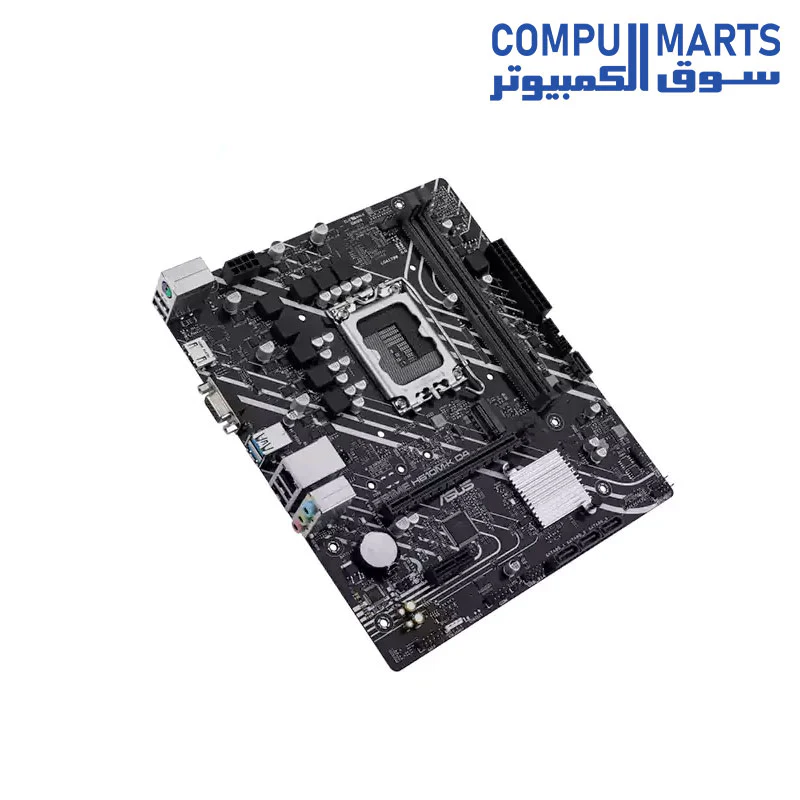

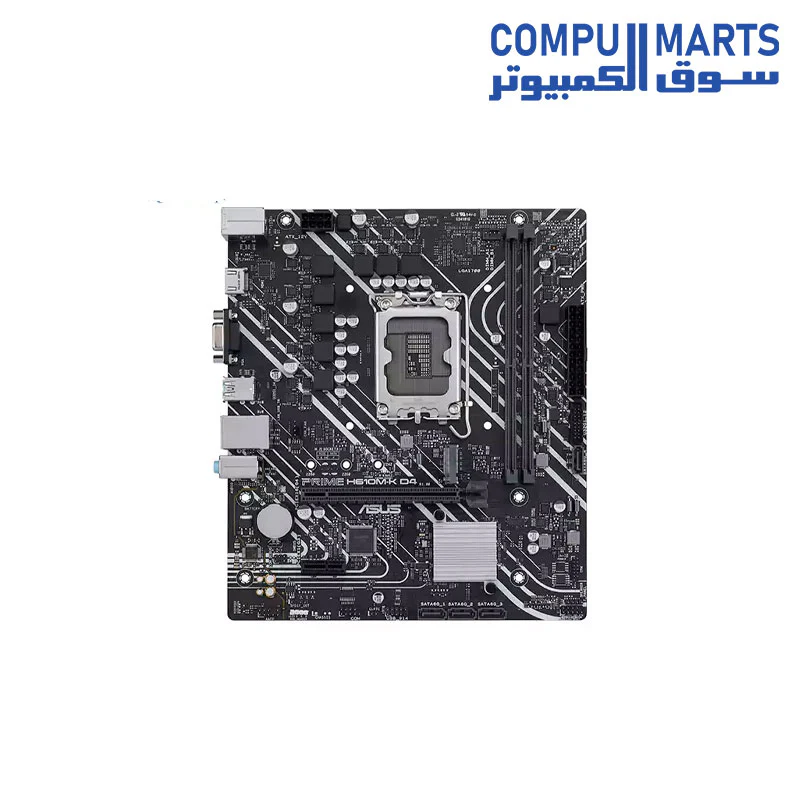

Motherboard ASUS Prime H610M-K D4 LGA 1700(Intel 12th Gen) mATX—
$76.34
The Story
Motherboard ASUS Prime H610M-K D4 LGA 1700(Intel 12th Gen) mATX
-
Intel LGA 1700 socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron Processors
-
Comprehensive cooling: PCH heatsink and Fan Xpert 2+
-
Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen
-
5X Protection III: Multiple hardware safeguards for all-round protection
-
PS/2
-
2 x USB 2.0 ports (Type-A)
-
HDMI port
-
D-Sub port
-
2 x USB 3.2 Gen 1 ports (Type-A)
-
Realtek 1Gb Ethernet
-
2 x USB 2.0 ports (Type-A)
-
3 x Audio jacks
-
Expansion Slots
・1 x PCIe 4.0 x16 SafeSlot Core
・1 x PCIe 3.0 x1
-
1 x RGB header
-
2 x DIMM
・DDR4 3200
・Dual Channel
-
Intel Socket LGA1700
・Intel 12th Gen Processors
-
1 x USB 3.2 Gen 1 header
-
1 x M.2 slot
・1 x M.2 2280 (PCIe 3.0 x4 & SATA modes)
-
Intel H610 Chipset
-
4 x SATA 6Gb/s
-
1 x USB 2.0 header
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
COOLING Prime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Cooler by Design
Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
PERFORMANCE
Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Storage
M.2 slot (up to 32 Gbps)
Prime H610M-K D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
Actual transmission speeds will be lower than the theoretical maximum speed.
Model
PRIME H610M-K D4
CPU
Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H610 Chipset
Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Graphics
1 x D-Sub port
1 x HDMI port
Supports 4K 60Hz as specified in HDMI 2.1.
Expansion Slots
Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.
Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Lighting Control
- RGB header
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 ANCHOR
Installation Media
1 x Support DVD
Documentation
1 x User Guide
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
mATX Form Factor9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Motherboard ASUS Prime H610M-K D4 LGA 1700(Intel 12th Gen) mATX
-
Intel LGA 1700 socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron Processors
-
Comprehensive cooling: PCH heatsink and Fan Xpert 2+
-
Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen
-
5X Protection III: Multiple hardware safeguards for all-round protection
-
PS/2
-
2 x USB 2.0 ports (Type-A)
-
HDMI port
-
D-Sub port
-
2 x USB 3.2 Gen 1 ports (Type-A)
-
Realtek 1Gb Ethernet
-
2 x USB 2.0 ports (Type-A)
-
3 x Audio jacks
-
Expansion Slots
・1 x PCIe 4.0 x16 SafeSlot Core
・1 x PCIe 3.0 x1
-
1 x RGB header
-
2 x DIMM
・DDR4 3200
・Dual Channel
-
Intel Socket LGA1700
・Intel 12th Gen Processors
-
1 x USB 3.2 Gen 1 header
-
1 x M.2 slot
・1 x M.2 2280 (PCIe 3.0 x4 & SATA modes)
-
Intel H610 Chipset
-
4 x SATA 6Gb/s
-
1 x USB 2.0 header
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Search Function
Quickly and easily find the option or setting you need. ASUS User Profile Port configuration settings between different BIOS versions or share them with friends.
COOLING Prime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Cooler by Design
Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
PERFORMANCE
Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Storage
M.2 slot (up to 32 Gbps)
Prime H610M-K D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
Actual transmission speeds will be lower than the theoretical maximum speed.
