$143.14

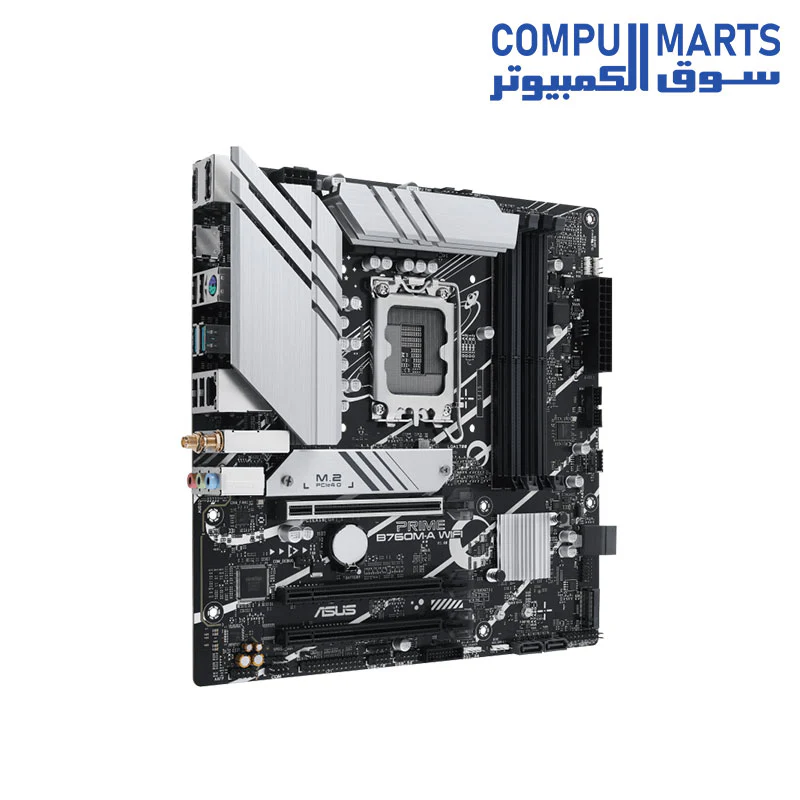

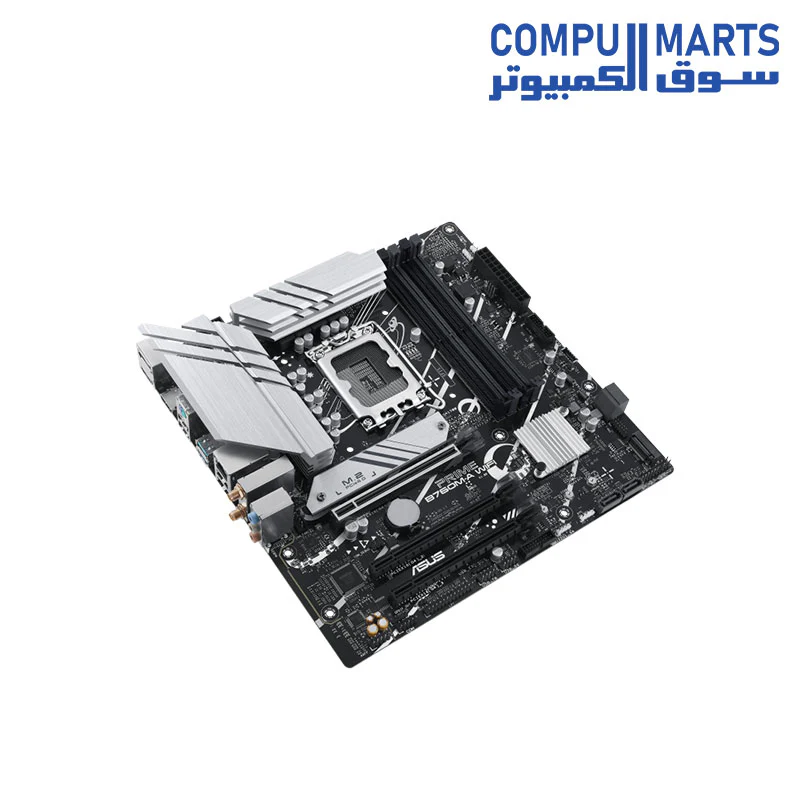

ASUS PRIME B760M-A WIFI (LGA 1700) mATX motherboard—
$143.14
The Story
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME B760M-A WIFI |
| CPU Support | Intel® Socket LGA1700 for 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 up to 7200+(OC) MHz; Non-ECC, Un-buffered; Supports Intel® XMP & OptiMem II |
| Graphics | 1 x DisplayPort; 2 x HDMI® ports |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (CPU); 1 x PCIe 4.0 x16 (x4 mode) & 1 x PCIe 4.0 x16 (x1 mode) from Chipset |
| Storage | 2 x M.2 slots (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports |
| Networking | Realtek 2.5Gb Ethernet; Wi-Fi 6 (802.11ax); Bluetooth® v5.2 |
| USB (Rear) | 2 x USB 3.2 Gen 2 (Type-A); 4 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 3.2 Gen 1 (Type-C®); 2 x USB 3.2 Gen 1 headers (4 ports); 3 x USB 2.0 headers (5 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio; Audio Shielding; Premium capacitors; Dedicated PCB layers |
| Special Features | ASUS 5X PROTECTION III; Q-Design (Q-DIMM, Q-LED Core, Q-Slot); Thermal Solution (M.2 heatsink, VRM heatsink) |
| Form Factor | mATX Form Factor (24.4 cm x 24.4 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME B760M-A WIFI |
| CPU Support | Intel® Socket LGA1700 for 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 up to 7200+(OC) MHz; Non-ECC, Un-buffered; Supports Intel® XMP & OptiMem II |
| Graphics | 1 x DisplayPort; 2 x HDMI® ports |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (CPU); 1 x PCIe 4.0 x16 (x4 mode) & 1 x PCIe 4.0 x16 (x1 mode) from Chipset |
| Storage | 2 x M.2 slots (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports |
| Networking | Realtek 2.5Gb Ethernet; Wi-Fi 6 (802.11ax); Bluetooth® v5.2 |
| USB (Rear) | 2 x USB 3.2 Gen 2 (Type-A); 4 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 3.2 Gen 1 (Type-C®); 2 x USB 3.2 Gen 1 headers (4 ports); 3 x USB 2.0 headers (5 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio; Audio Shielding; Premium capacitors; Dedicated PCB layers |
| Special Features | ASUS 5X PROTECTION III; Q-Design (Q-DIMM, Q-LED Core, Q-Slot); Thermal Solution (M.2 heatsink, VRM heatsink) |
| Form Factor | mATX Form Factor (24.4 cm x 24.4 cm) |
