-70%MSI PRO B860M-A WIFI 7 MOTHERBOARD—
$240.48
$72.14The Story
| Category | Specification Details |
|---|---|
| Chipset | Intel® B860 |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2) - LGA 1851 |
| Memory | 4x DDR5 UDIMM, Max 256GB | Supports up to 8800+ MT/s (OC) | Intel® XMP 3.0 & CUDIMM Support |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4, 1x Thunderbolt™ 4 (DP 2.1 up to 8K 60Hz) |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 2x PCIe 4.0 x1 (Chipset) |
| Storage | 3x M.2 Slots (1x PCIe 5.0 x4, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2), 4x SATA 6G |
| Thunderbolt | 1x Rear Thunderbolt™ 4 (40Gbps), Daisy-chain support, 15W Charging, 8K Display support |
| Wireless & BT | Intel® Wi-Fi 7 (Up to 5.8Gbps), Bluetooth® 5.4 |
| Ethernet | Realtek® 8126 5Gbps LAN |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |

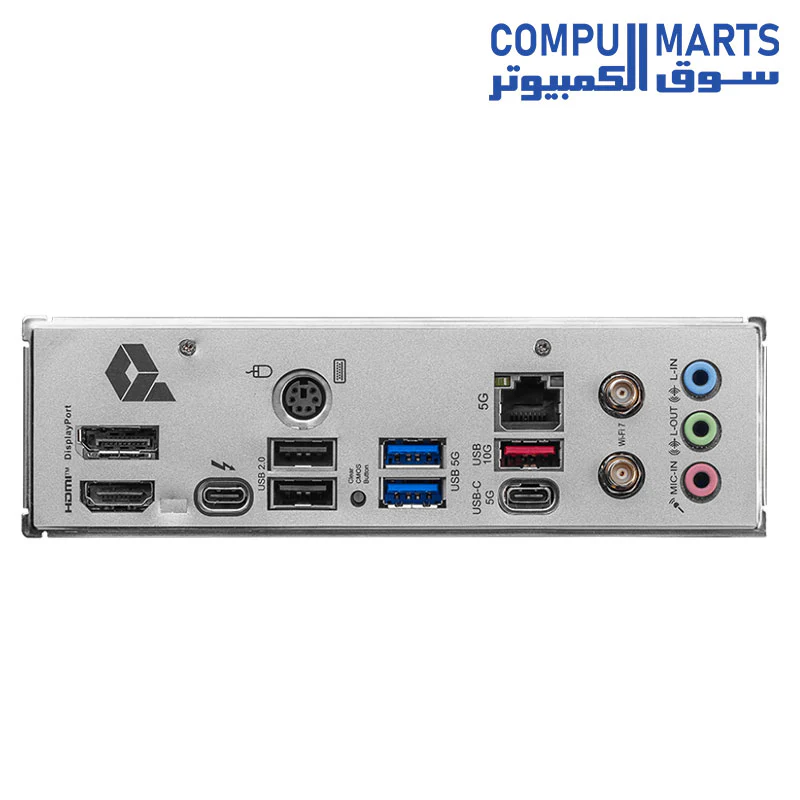

| USB (Rear) | 1x Thunderbolt™ 4 (Type-C), 1x USB 10Gbps (Type-A), 1x USB 5Gbps (Type-C), 2x USB 5Gbps (Type-A), 2x USB 2.0 |
| Internal I/O | 1x Thunderbolt™ 5 card connector, 1x USB 10Gbps (Type-C), 4x USB 5Gbps, 4x USB 2.0, 3x ARGB V2/RGB headers |
| Form Factor | mATX (243.84mm x 243.84mm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Chipset | Intel® B860 |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2) - LGA 1851 |
| Memory | 4x DDR5 UDIMM, Max 256GB | Supports up to 8800+ MT/s (OC) | Intel® XMP 3.0 & CUDIMM Support |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4, 1x Thunderbolt™ 4 (DP 2.1 up to 8K 60Hz) |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 2x PCIe 4.0 x1 (Chipset) |
| Storage | 3x M.2 Slots (1x PCIe 5.0 x4, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2), 4x SATA 6G |
| Thunderbolt | 1x Rear Thunderbolt™ 4 (40Gbps), Daisy-chain support, 15W Charging, 8K Display support |
| Wireless & BT | Intel® Wi-Fi 7 (Up to 5.8Gbps), Bluetooth® 5.4 |
| Ethernet | Realtek® 8126 5Gbps LAN |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| USB (Rear) | 1x Thunderbolt™ 4 (Type-C), 1x USB 10Gbps (Type-A), 1x USB 5Gbps (Type-C), 2x USB 5Gbps (Type-A), 2x USB 2.0 |
| Internal I/O | 1x Thunderbolt™ 5 card connector, 1x USB 10Gbps (Type-C), 4x USB 5Gbps, 4x USB 2.0, 3x ARGB V2/RGB headers |
| Form Factor | mATX (243.84mm x 243.84mm) |
