$167.96

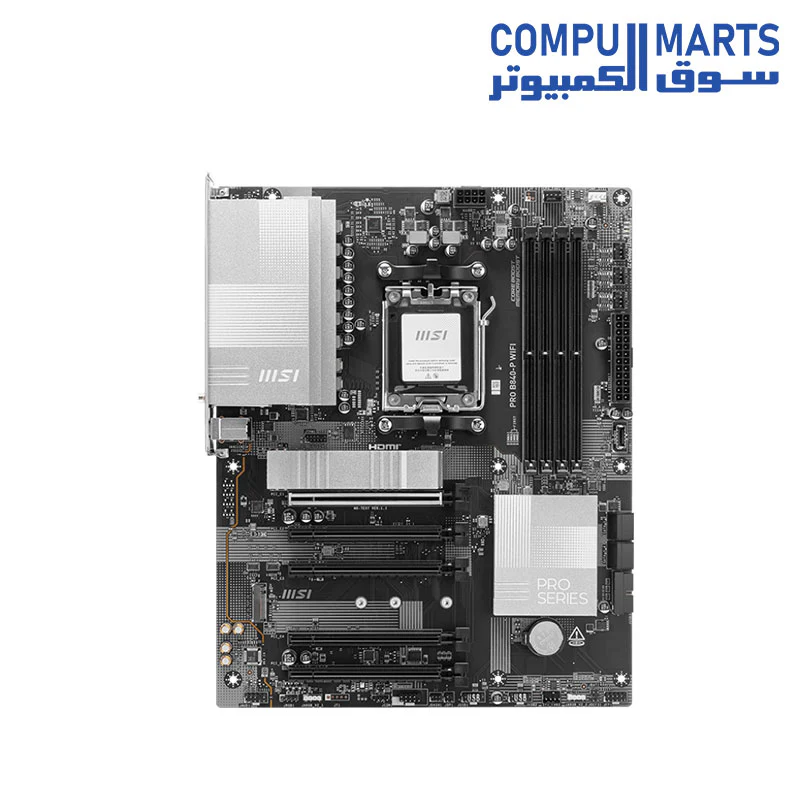

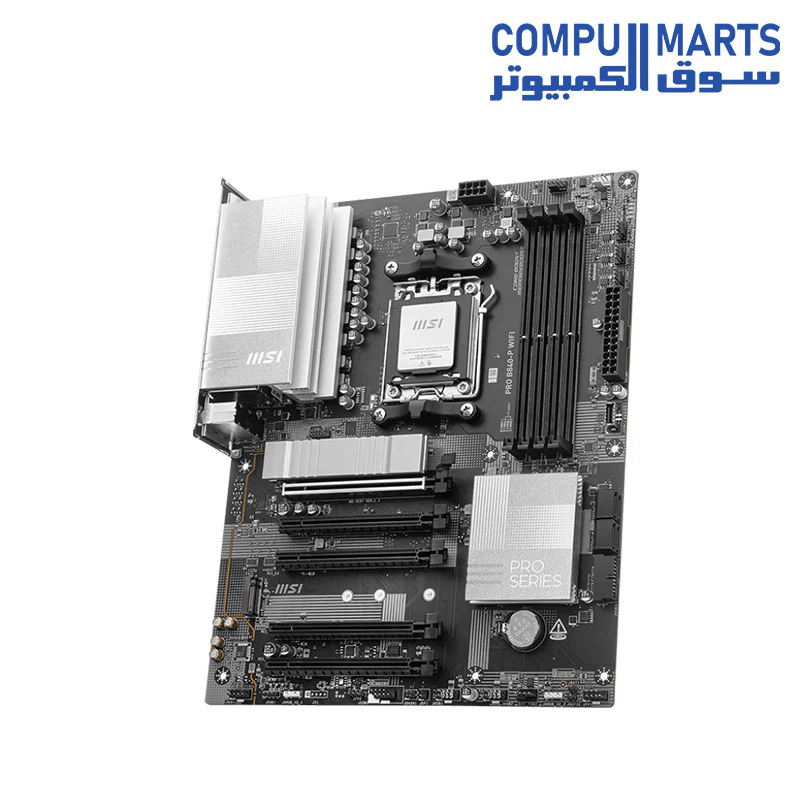

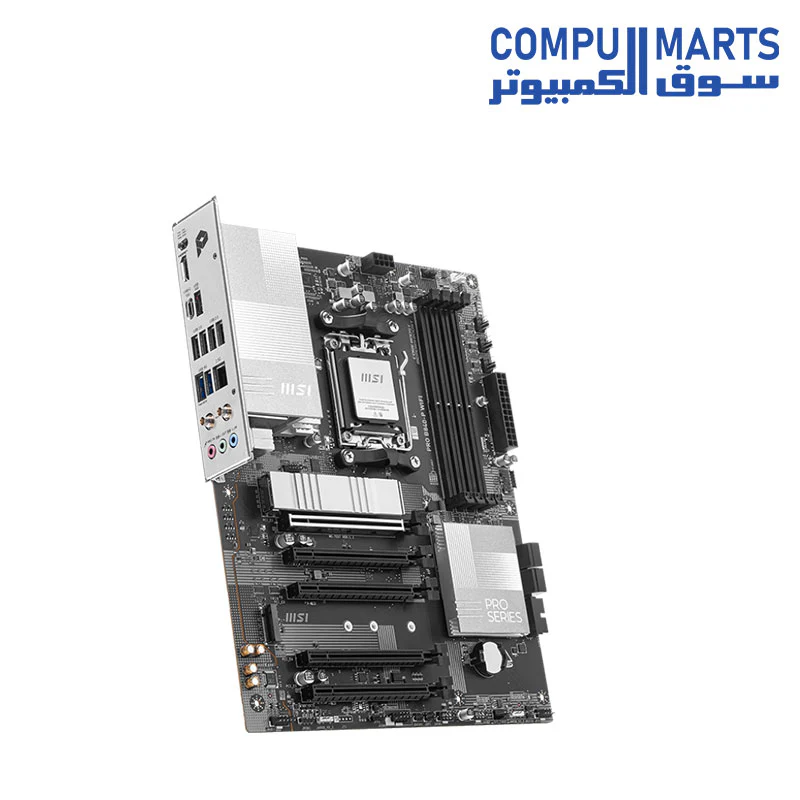

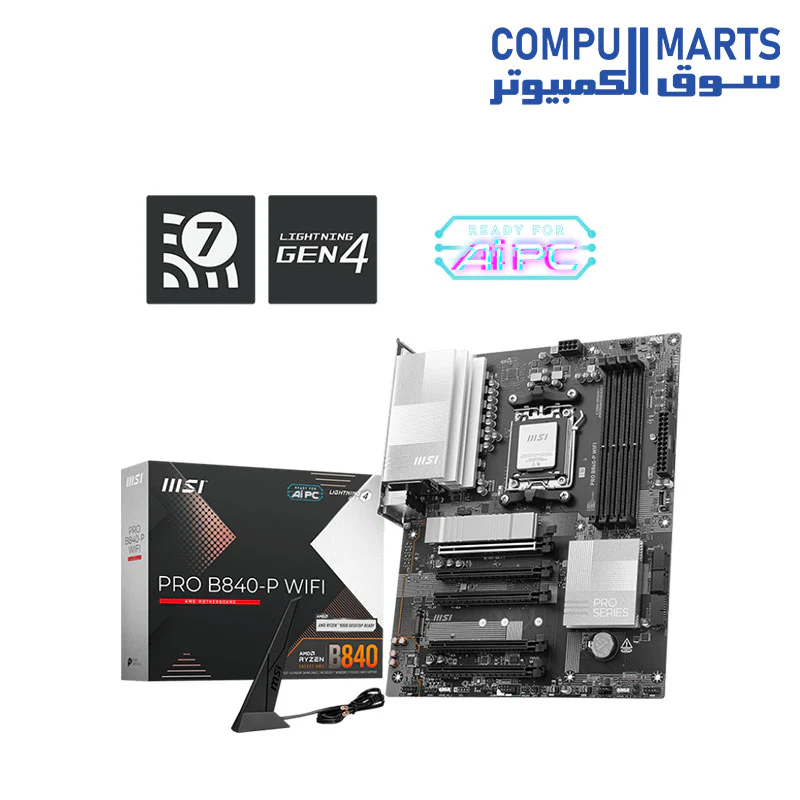

MSI PRO B840-P WiFi Motherboard—
$167.96
The Story
| Category | Specification Details |
|---|---|
| Chipset | AMD B840 |
| CPU Support | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors (Socket AM5) |
| Memory | 4x DDR5 UDIMM, Max 256GB | Supports up to 8000+ MT/s (OC) | AMD EXPO™ & CUDIMM Support |
| Onboard Graphics | 1x HDMI 2.1 (Supports 4K 60Hz) - Requires CPU with Integrated Graphics |
| Expansion Slots | 5x PCI-E slots total: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x4 (Chipset), 3x PCIe 3.0 x1 (Chipset) |
| Storage | 2x M.2 (PCIe 4.0 x4), 4x SATA 6G | Supports RAID 0, 1, 10 for SATA |
| USB Ports | Rear: 1x 10G Type-C, 1x 10G Type-A, 2x 5G Type-A, 4x USB 2.0 | Front: 1x 5G Type-C, 2x 5G Type-A, 4x USB 2.0 |
| Networking | Realtek® 8125D 2.5G LAN | Wi-Fi 7 (up to 5.8Gbps) | Bluetooth 5.4 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Internal I/O | 1x CPU Fan, 1x Pump/Sys Fan, 4x System Fan, 2x ARGB V2, 1x RGB, TPM 2.0 Header |
| Rear Panel Features | Clear CMOS & Flash BIOS Buttons, HDMI, 2.5G LAN, Wi-Fi/BT Antenna Connectors |
| Form Factor | ATX (243.84mm x 304.8mm) |
| OS Support | Windows 11 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Chipset | AMD B840 |
| CPU Support | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors (Socket AM5) |
| Memory | 4x DDR5 UDIMM, Max 256GB | Supports up to 8000+ MT/s (OC) | AMD EXPO™ & CUDIMM Support |
| Onboard Graphics | 1x HDMI 2.1 (Supports 4K 60Hz) - Requires CPU with Integrated Graphics |
| Expansion Slots | 5x PCI-E slots total: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x4 (Chipset), 3x PCIe 3.0 x1 (Chipset) |
| Storage | 2x M.2 (PCIe 4.0 x4), 4x SATA 6G | Supports RAID 0, 1, 10 for SATA |
| USB Ports | Rear: 1x 10G Type-C, 1x 10G Type-A, 2x 5G Type-A, 4x USB 2.0 | Front: 1x 5G Type-C, 2x 5G Type-A, 4x USB 2.0 |
| Networking | Realtek® 8125D 2.5G LAN | Wi-Fi 7 (up to 5.8Gbps) | Bluetooth 5.4 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Internal I/O | 1x CPU Fan, 1x Pump/Sys Fan, 4x System Fan, 2x ARGB V2, 1x RGB, TPM 2.0 Header |
| Rear Panel Features | Clear CMOS & Flash BIOS Buttons, HDMI, 2.5G LAN, Wi-Fi/BT Antenna Connectors |
| Form Factor | ATX (243.84mm x 304.8mm) |
| OS Support | Windows 11 64-bit |
