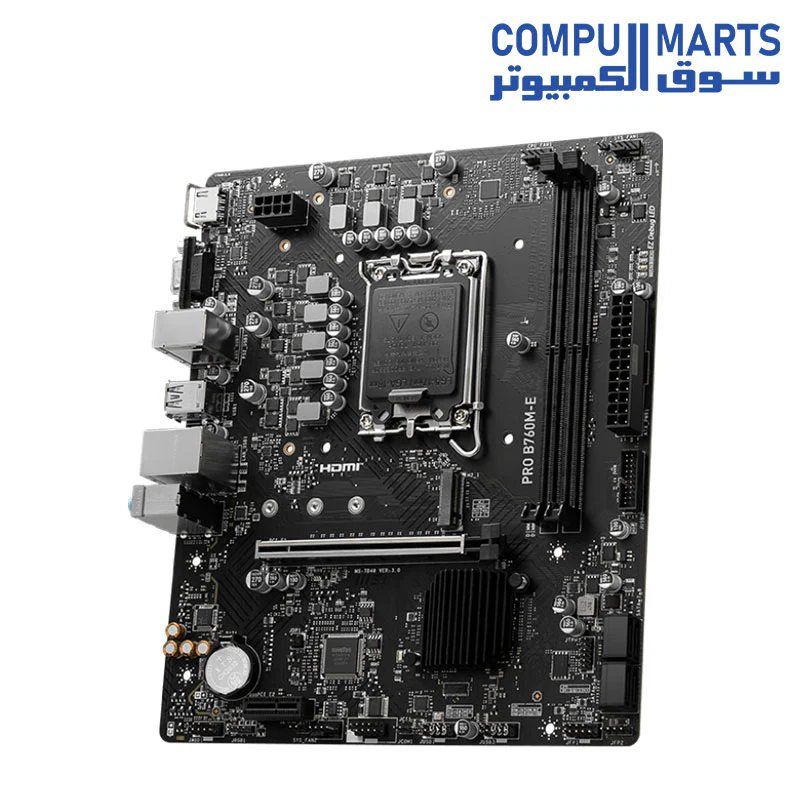

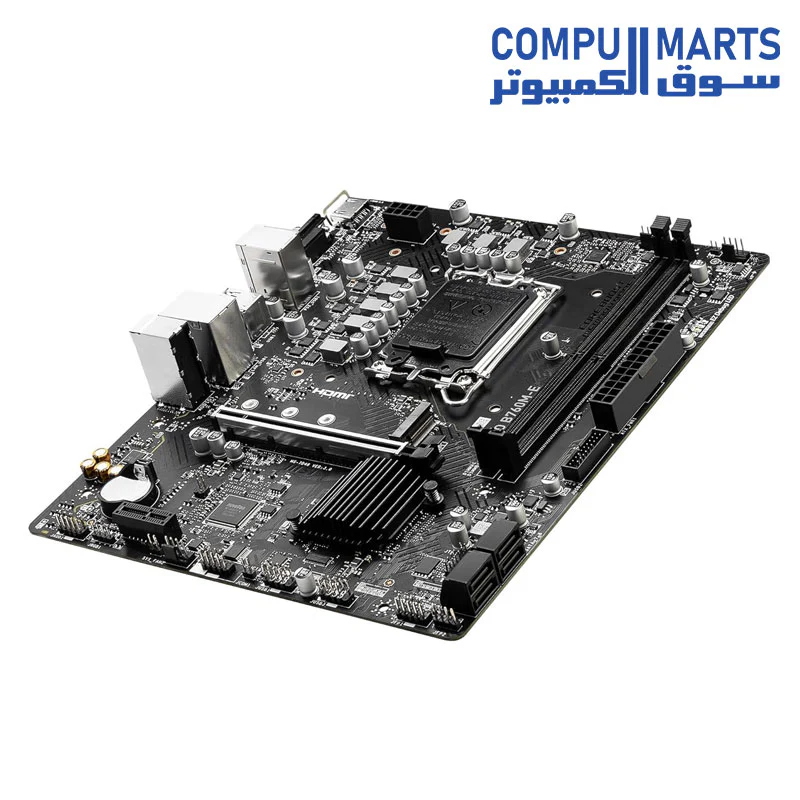

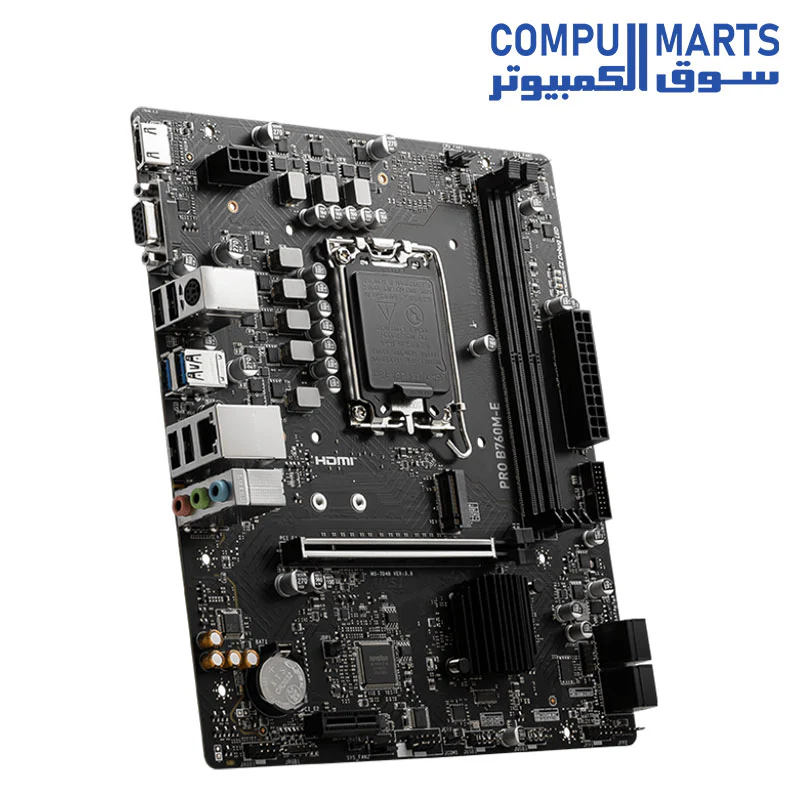

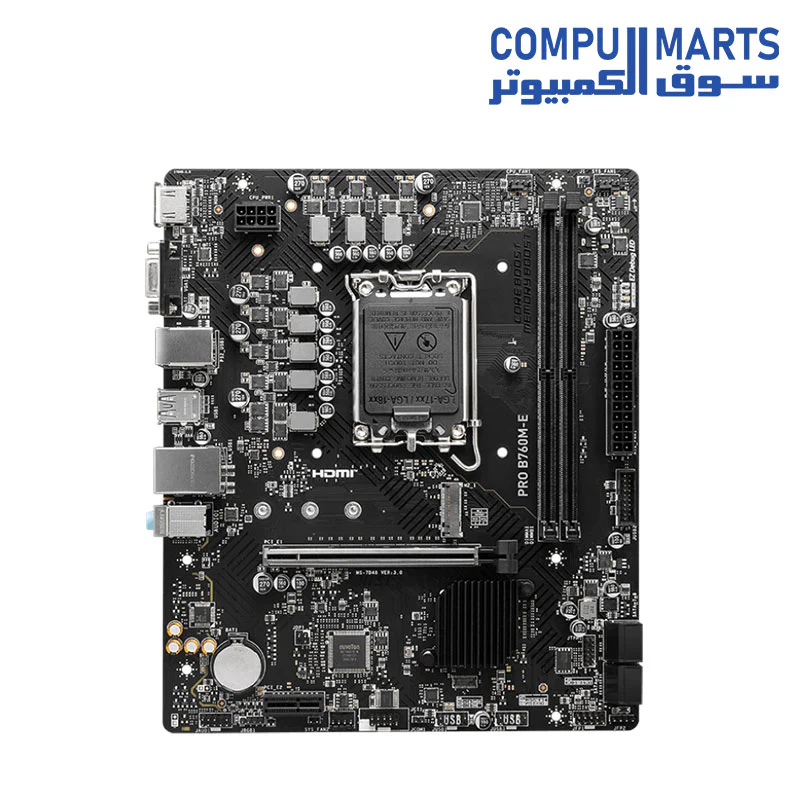

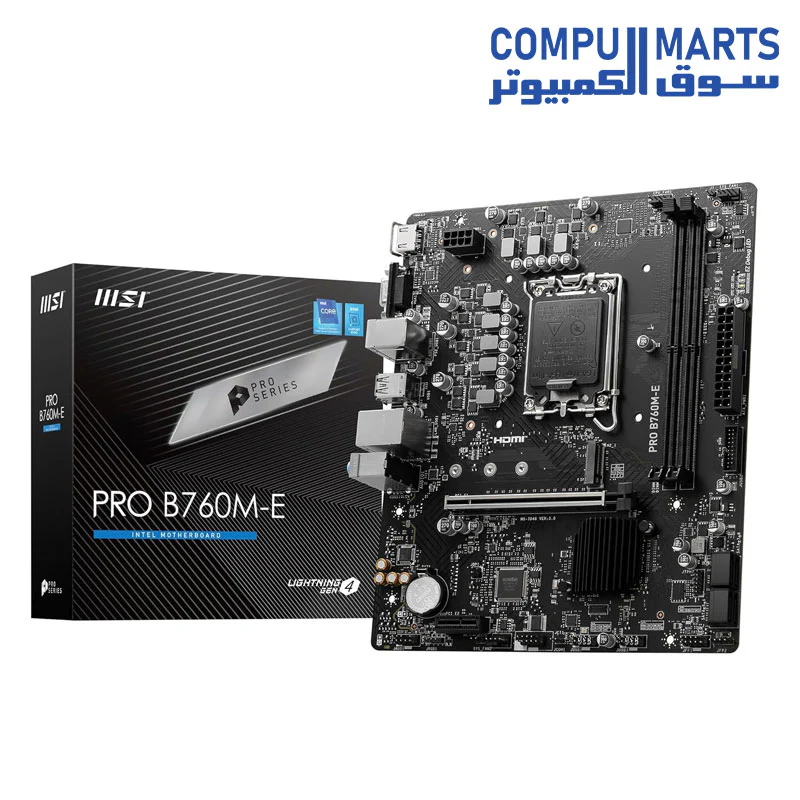

MSI PRO B760M-E Motherboard—
$88.75
The Story
| Category | Specification Details |
|---|---|
| Product | MSI PRO B760M-E Motherboard |
| Chipset | INTEL B760 |
| CPU Support | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB; Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC); Supports Intel XMP 3.0 OC; Dual-Channel mode; non-ECC, un-buffered |
| Onboard Graphics | 1x HDMI (Support HDMI 1.4 with HDR, max 4K 30Hz); 1x VGA (max 2048x1536 50Hz / 1920x1200 60Hz) |
| Expansion Slots | 1x PCI-E x16 slot (Gen PCIe 4.0 from CPU); 1x PCI-E x1 slot (Gen PCIe 3.0 from Chipset) |
| Storage | 1x M.2 (From Chipset, up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242); 4x SATA 6G (SATA5 unavailable when M.2 SATA SSD is used) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB Ports | Rear: 2x USB 5Gbps Type A, 4x USB 2.0; Front: 2x USB 5Gbps Type A, 4x USB 2.0 |
| LAN | Realtek RTL8111H Gigabit LAN |
| Audio | Realtek ALC897 Codec; 7.1-Channel High Definition Audio |
| Internal IO | 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 2x System Fan, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Com Port, 1x RGB LED, 1x TPM 2.0 pin header, 4x USB 2.0 ports, 2x USB 5Gbps Type A ports |
| LED Feature | 4x EZ Debug LED |
| Back Panel Ports | HDMI, VGA, Keyboard / Mouse, USB 3.2 Gen 1 5Gbps (Type-A), LAN port, Audio Connectors, USB 2.0 |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | mATX (200mm x 236.16mm) |
| Box Content | N/A |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Product | MSI PRO B760M-E Motherboard |
| Chipset | INTEL B760 |
| CPU Support | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB; Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC); Supports Intel XMP 3.0 OC; Dual-Channel mode; non-ECC, un-buffered |
| Onboard Graphics | 1x HDMI (Support HDMI 1.4 with HDR, max 4K 30Hz); 1x VGA (max 2048x1536 50Hz / 1920x1200 60Hz) |
| Expansion Slots | 1x PCI-E x16 slot (Gen PCIe 4.0 from CPU); 1x PCI-E x1 slot (Gen PCIe 3.0 from Chipset) |
| Storage | 1x M.2 (From Chipset, up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242); 4x SATA 6G (SATA5 unavailable when M.2 SATA SSD is used) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB Ports | Rear: 2x USB 5Gbps Type A, 4x USB 2.0; Front: 2x USB 5Gbps Type A, 4x USB 2.0 |
| LAN | Realtek RTL8111H Gigabit LAN |
| Audio | Realtek ALC897 Codec; 7.1-Channel High Definition Audio |
| Internal IO | 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 2x System Fan, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Com Port, 1x RGB LED, 1x TPM 2.0 pin header, 4x USB 2.0 ports, 2x USB 5Gbps Type A ports |
| LED Feature | 4x EZ Debug LED |
| Back Panel Ports | HDMI, VGA, Keyboard / Mouse, USB 3.2 Gen 1 5Gbps (Type-A), LAN port, Audio Connectors, USB 2.0 |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | mATX (200mm x 236.16mm) |
| Box Content | N/A |
