Select color
From $99.25

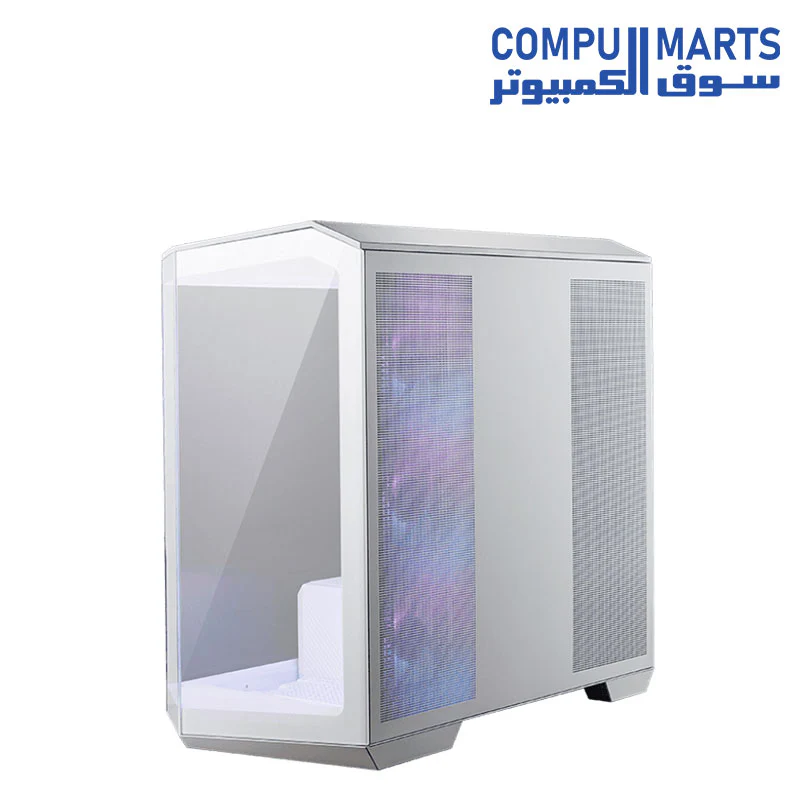

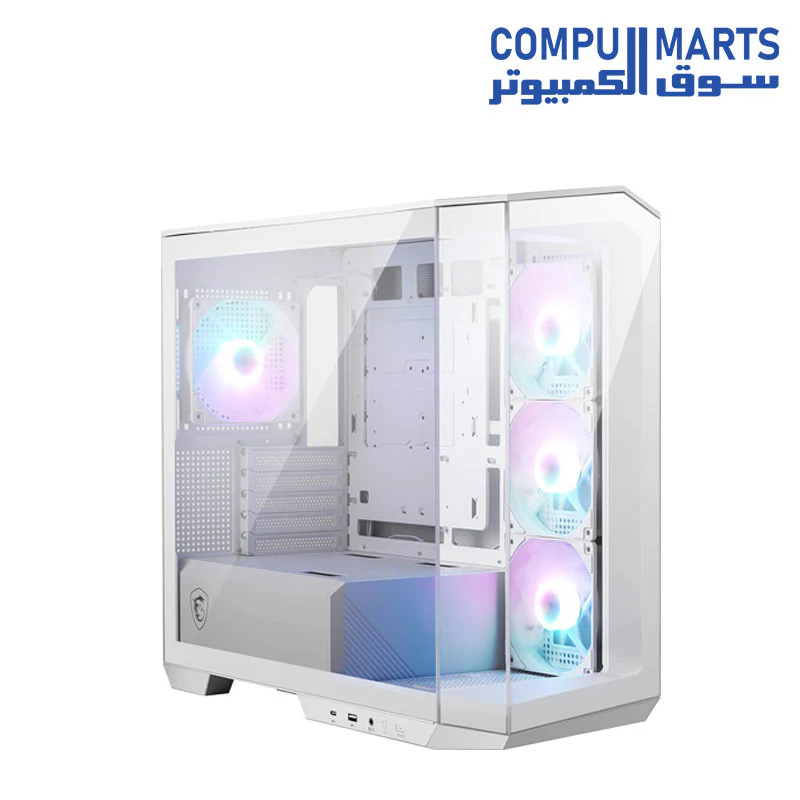

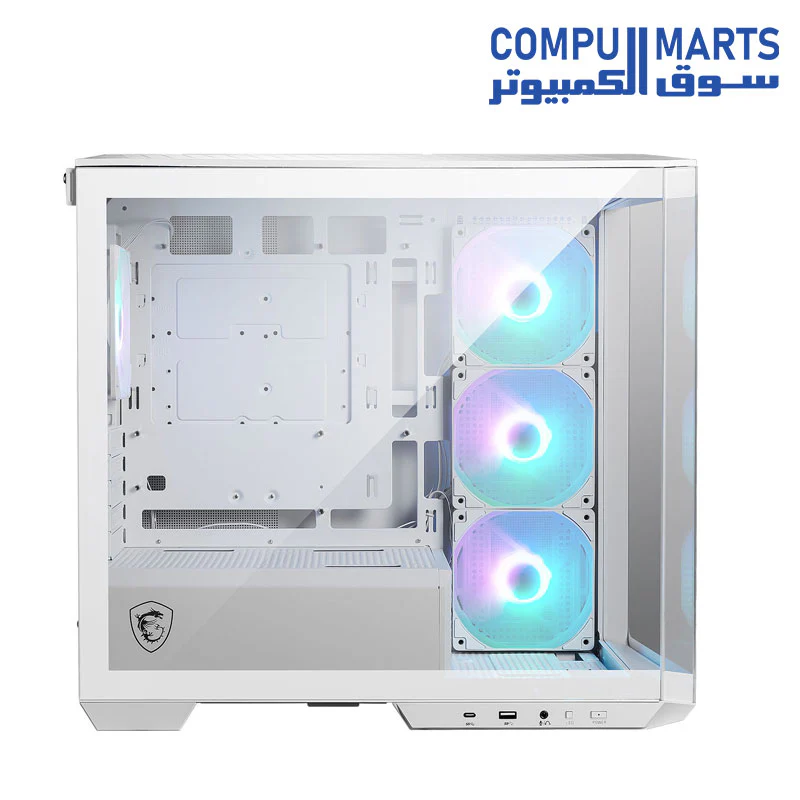

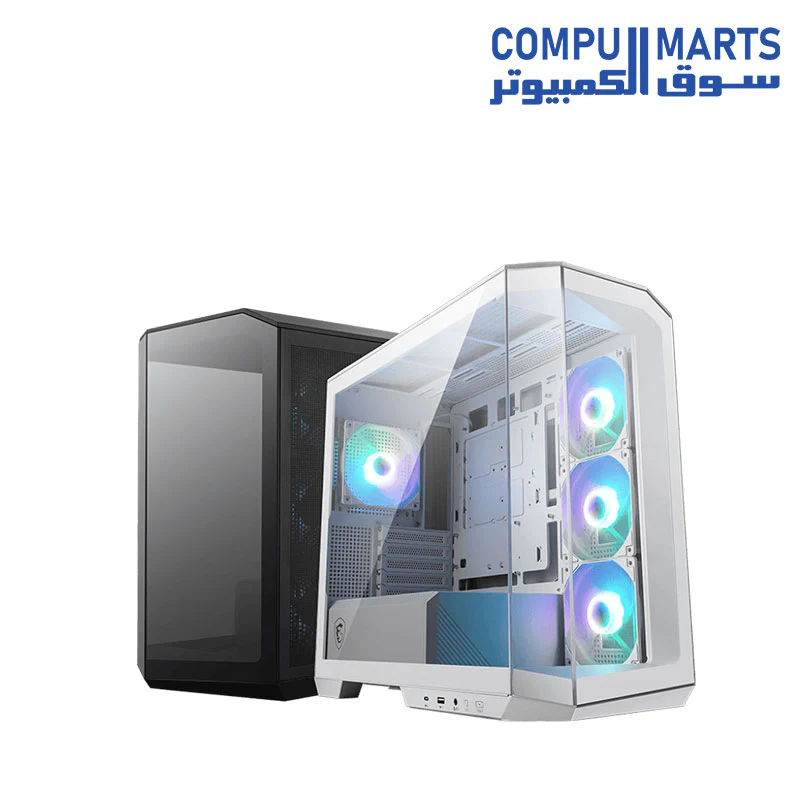

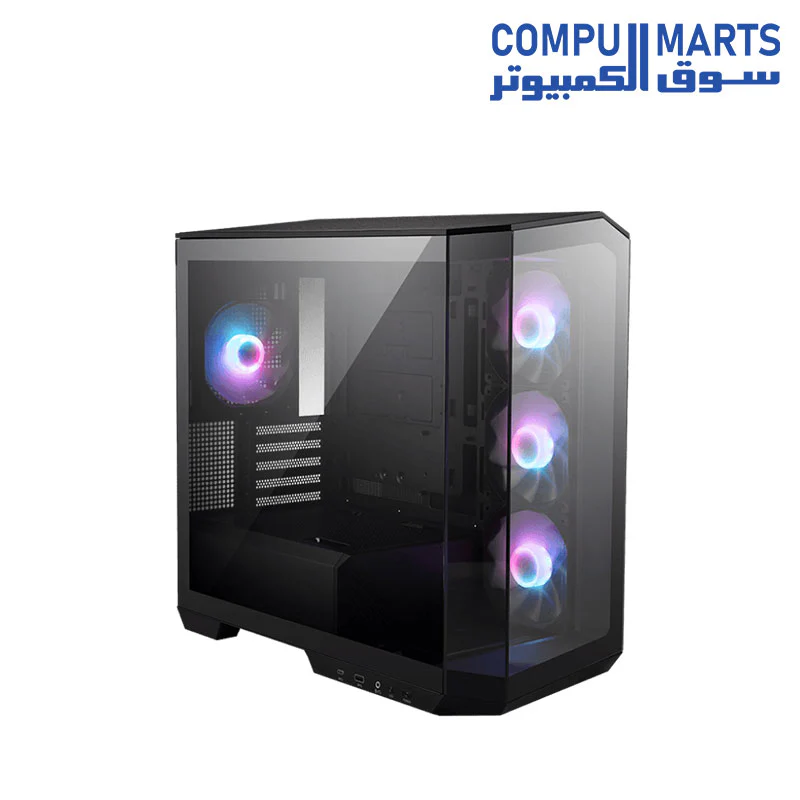

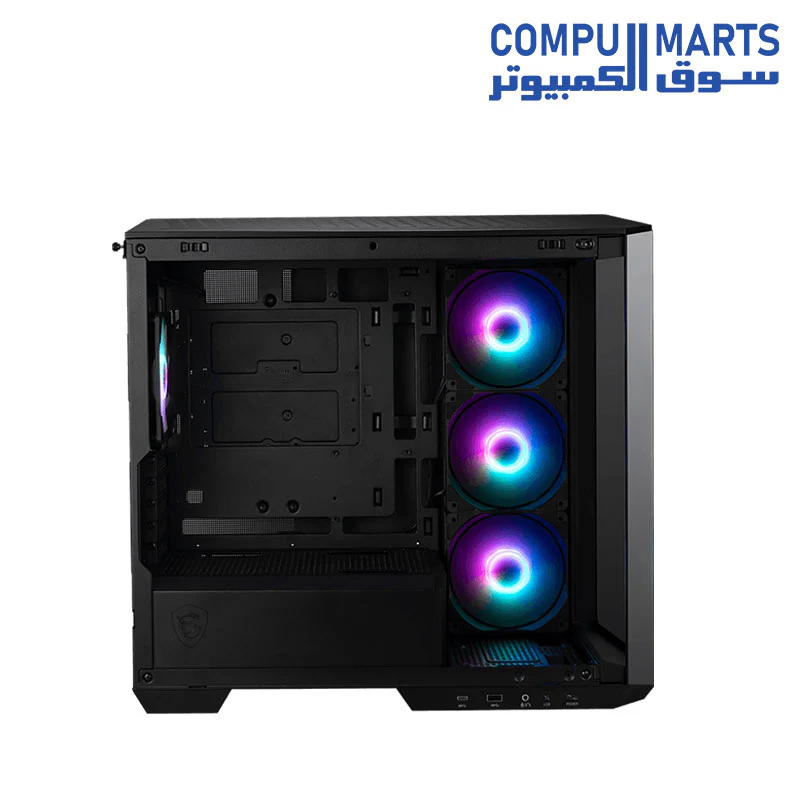

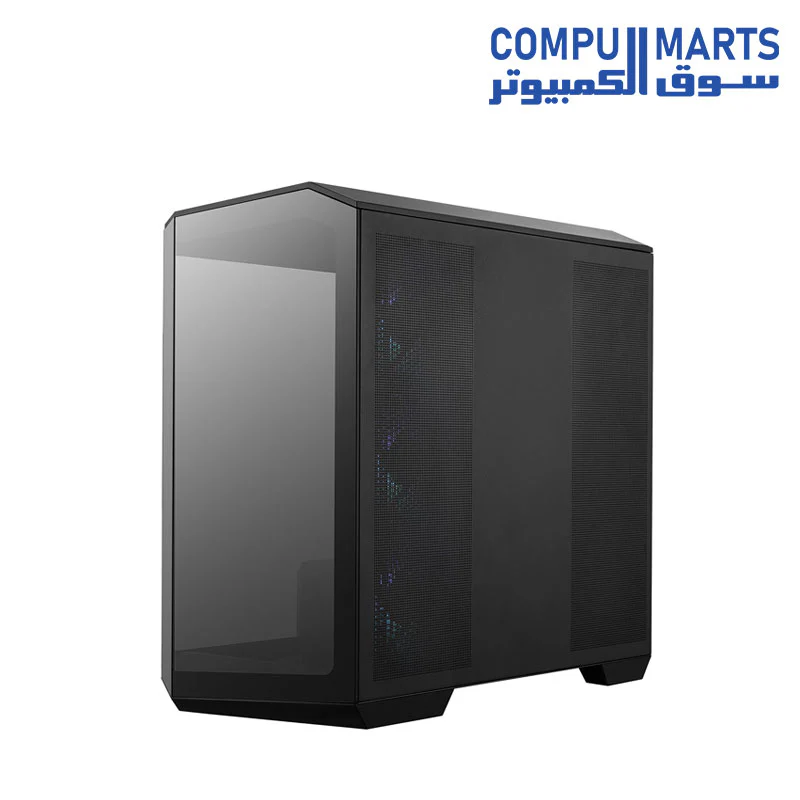

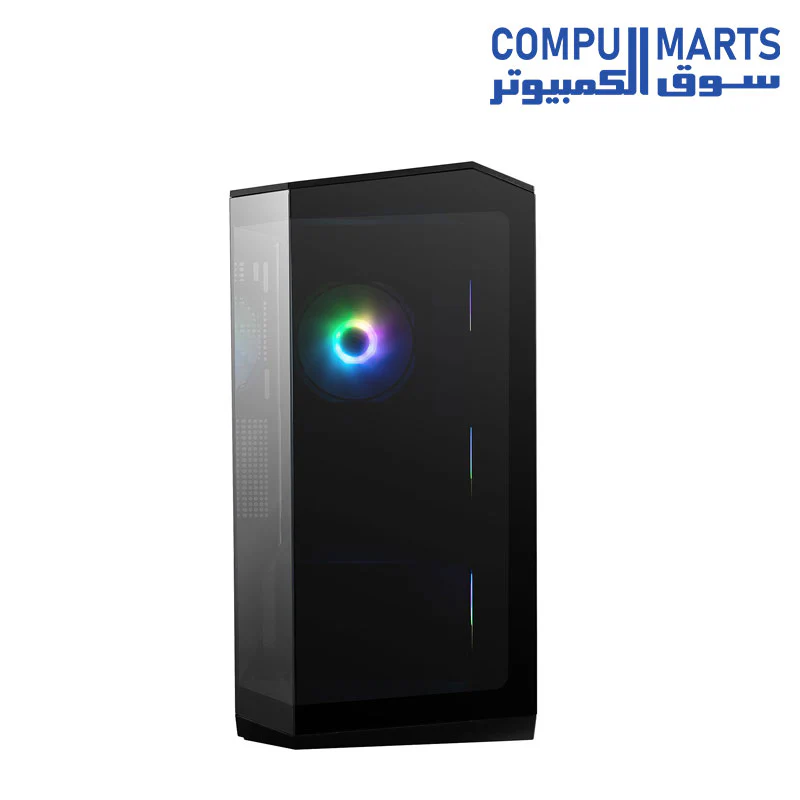

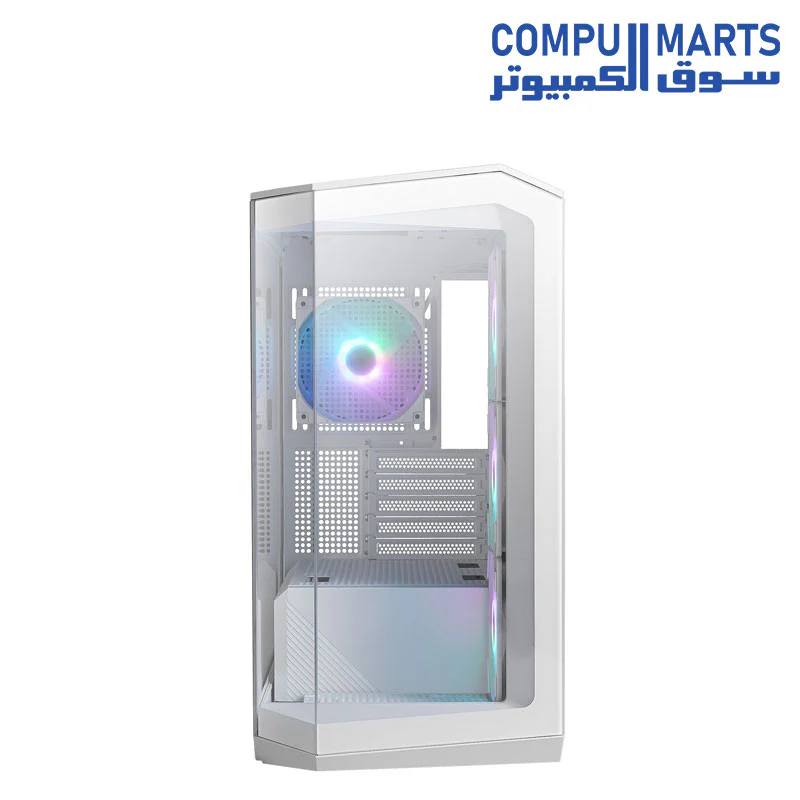

MSI MAG PANO M100R PZ- Premium Mid-Tower Gaming PC Case-ARGB120mmFans—
$99.25
The Story
| Category | Specification Details |
|---|---|
| Product Name | MAG PANO M100R PZ |
| Case Form Factor | Micro- ATX Tower |
| Motherboard Form Factor | Support M-ATX(Back-connect supported) / ITX |
| I/O Ports | 1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type-C, 1 x Audio-Out / Mic-in, 1 x LED Switch Button, 1 x Power Button |
| Drive Mount Support | 1 x 2.5”, 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”) |
| Expansion Slots | 5 |
| Maximum GPU Length | 390 mm / 15.35 inches *Support horizontal installation only. |
| Maximum CPU Cooler Height | 175 mm / 6.9 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 200 mm / 7.87 inches |
| Fan Size Support | Top: 3 x 120 mm / 2 x 140 mm, Front: NA, Rear: 1 x 120 mm / 1 x 140 mm, Side: 3 x 120 mm, Bottom: 1 x 120 mm, PSU Shroud: 2 x 120 mm |
| Pre-installed Fan Size | Side: 3 x 120 mm, Rear: 1 x 120 mm |
| Pre-installed Fan Type | Side: 3 x ARGB Fan (Reverse-blade), Rear: 1 x ARGB Fan |
| Radiator Size Support | Top: 120 / 240 / 360 mm, Front: NA, Rear: 120 / 140 mm, Side: NA, Bottom: NA |
| Dimensions (DxWxH) | 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 |
| Net Weight | 8.66 kg |
| Gross Weight | 11.29 kg |
| Pre-build with Reverse-blade Fan | Pre-installed on the side are reverse blade fans, allowing the unobstructed display of the ARGB fan's beauty without any interference from fan frames. |
| Support Back-Connect Motherboard | Supporting back-connect motherboards enables easy installation without the worry of forgetting to connect cables, which might otherwise require disassembling graphics cards and coolers. |
| 270-degree Panoramic Display | Drawing inspiration from the MAG logo, create a distinctive chassis design that embodies the unique MAG characteristics. The front interior of the chassis incorporates a space for displaying figurines, complemented by a 270-degree panoramic tempered glass, transforming it into a showcase-style chassis. |
| GPU Support Stand | Equipped with a level indicator to ensure effortless adjustment of the support height during installation, preventing sagging. Meanwhile, its magnetic base secures more stability within the chassis. |
| 1 to 4 ARGB-FAN Control Board | This fan control board supports up to 4 x ARGB fan function. Allow you to use the LED switch button to adjust the ARGB lighting intuitionally. |
