$216.63

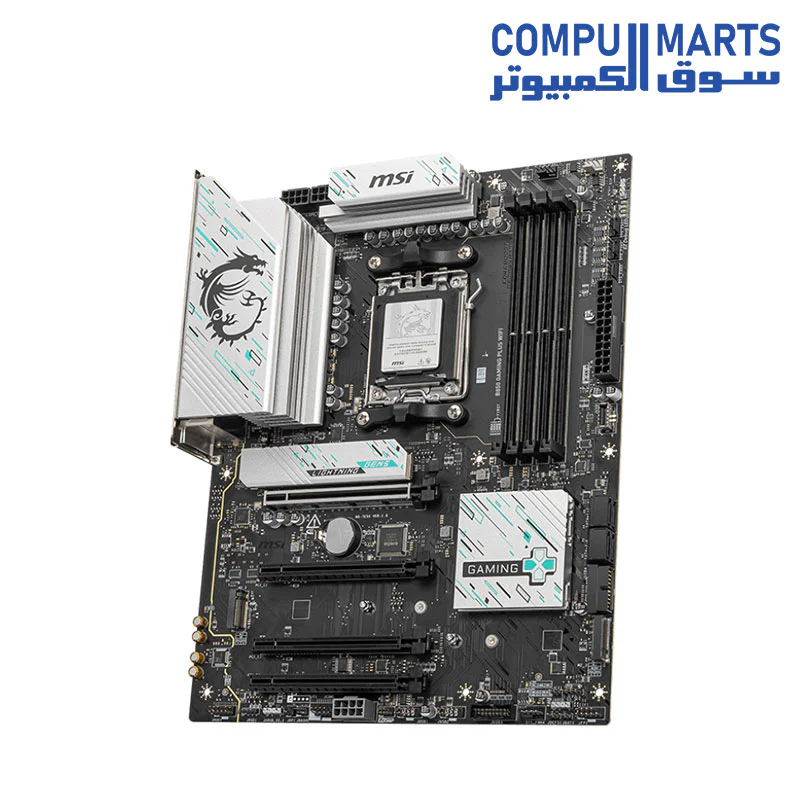

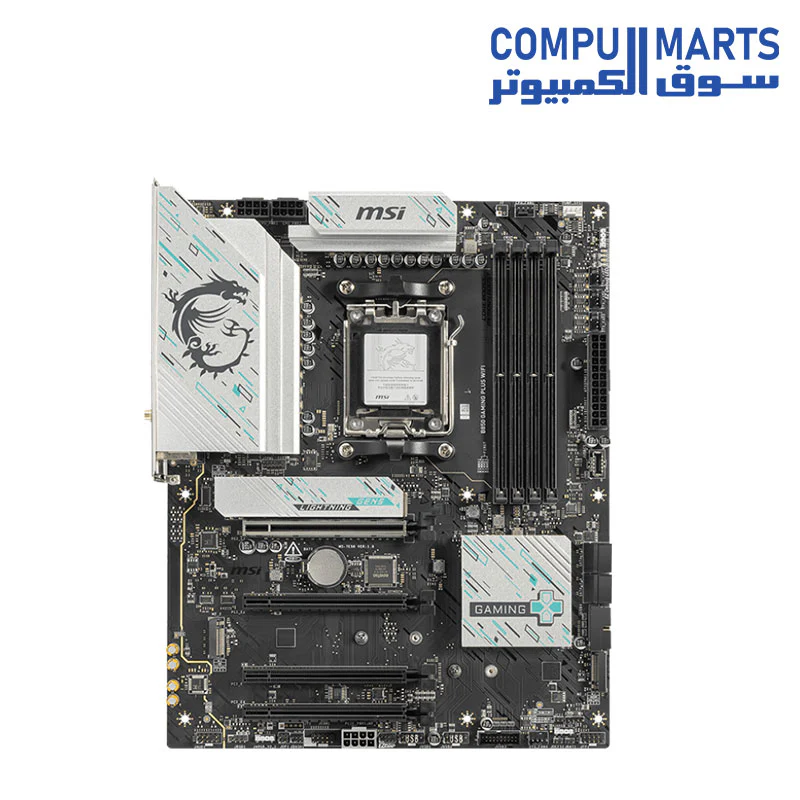

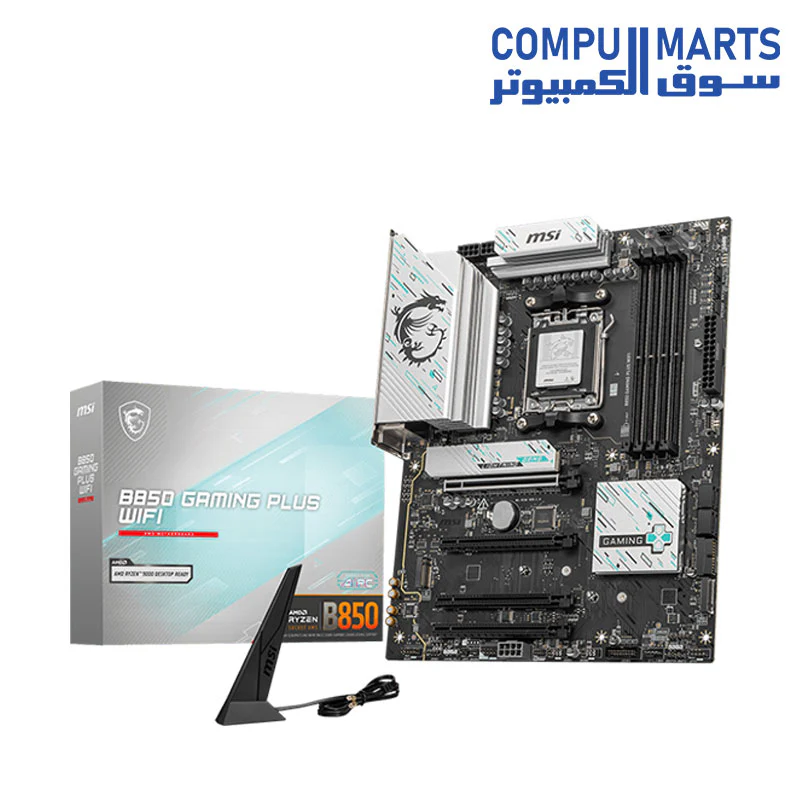

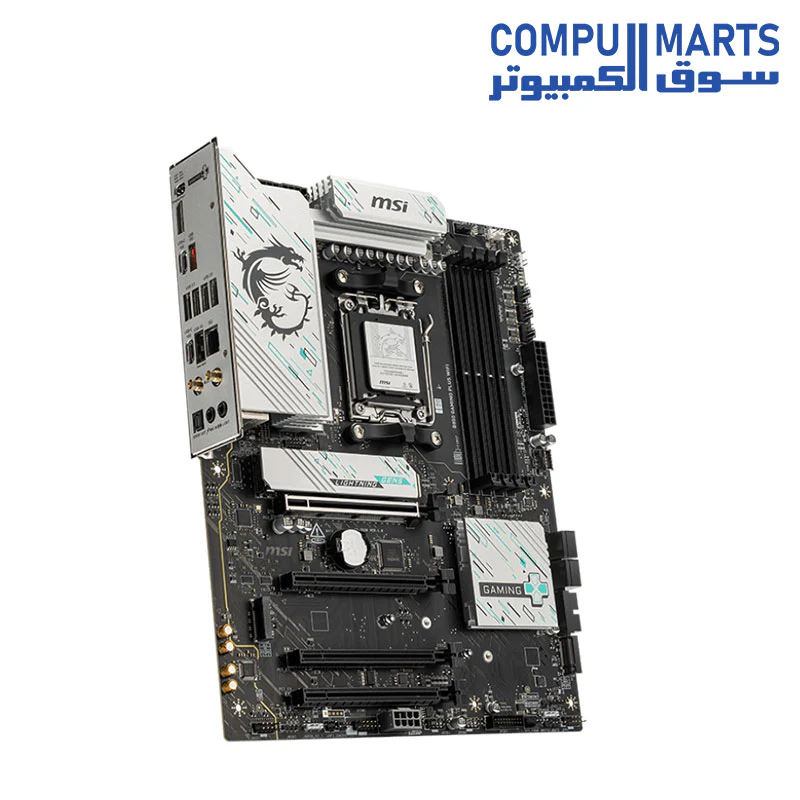

MSI B850 GAMING PLUS WIFI Motherboard, ATX - Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5 - DDR5—
$216.63
The Story
| Category | Specification Details |
|---|---|
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series (Socket AM5) |
| Chipset | AMD B850 |
| Memory | 4x DDR5 UDIMM (Up to 256GB) | Supports AMD EXPO | Up to 8200+ MT/s (OC) |
| PCI-E Slots | 1x PCIe 5.0 x16 | 1x PCIe 4.0 x4 | 2x PCIe 3.0 x1 |
| Storage | 1x M.2 Gen5 x4 | 1x M.2 Gen4 x4 | 1x M.2 Gen4 x2 | 4x SATA 6G |
| Network (LAN) | Realtek® 8126VB 5G LAN |
| Wireless & BT | Wi-Fi 7 (Up to 5.8Gbps) | Bluetooth 5.4 |

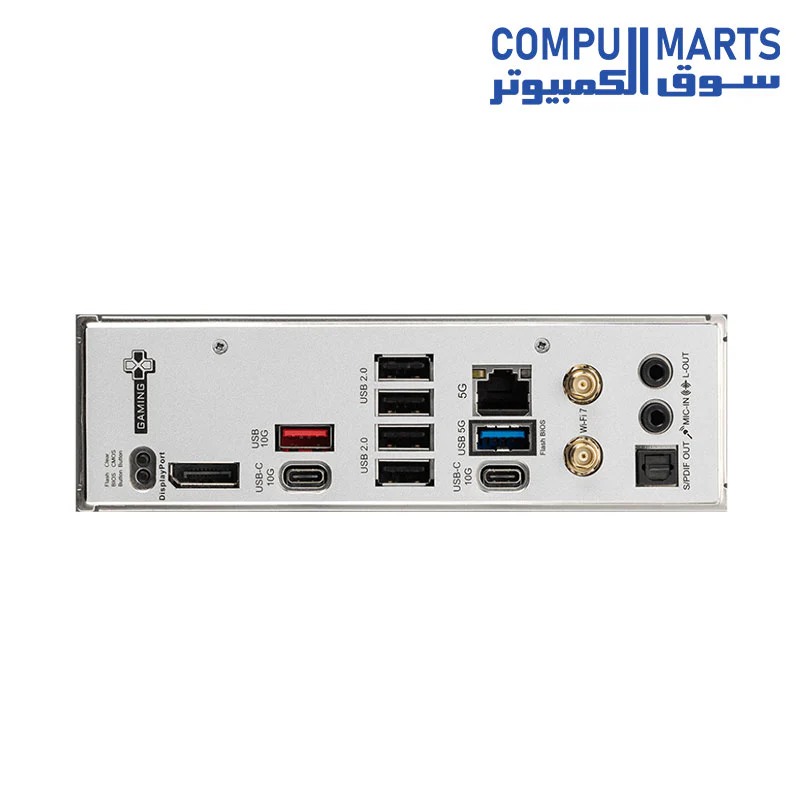

| Rear USB Ports | 2x USB 10Gbps (Type-C) | 1x USB 10Gbps (Type-A) | 1x USB 5Gbps (Type-A) | 4x USB 2.0 |
| Audio | Realtek® ALC897 7.1-Channel HD Audio | S/PDIF-OUT |
| Internal Power | 1x 24-pin ATX | 2x 8-pin CPU | 1x 8-pin PCIe Power Connector |
| Video Output | 1x DisplayPort 1.2 (4K 60Hz) |
| Design Features | Clear CMOS Button | Flash BIOS Button | 4x EZ Debug LED |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series (Socket AM5) |
| Chipset | AMD B850 |
| Memory | 4x DDR5 UDIMM (Up to 256GB) | Supports AMD EXPO | Up to 8200+ MT/s (OC) |
| PCI-E Slots | 1x PCIe 5.0 x16 | 1x PCIe 4.0 x4 | 2x PCIe 3.0 x1 |
| Storage | 1x M.2 Gen5 x4 | 1x M.2 Gen4 x4 | 1x M.2 Gen4 x2 | 4x SATA 6G |
| Network (LAN) | Realtek® 8126VB 5G LAN |
| Wireless & BT | Wi-Fi 7 (Up to 5.8Gbps) | Bluetooth 5.4 |
| Rear USB Ports | 2x USB 10Gbps (Type-C) | 1x USB 10Gbps (Type-A) | 1x USB 5Gbps (Type-A) | 4x USB 2.0 |
| Audio | Realtek® ALC897 7.1-Channel HD Audio | S/PDIF-OUT |
| Internal Power | 1x 24-pin ATX | 2x 8-pin CPU | 1x 8-pin PCIe Power Connector |
| Video Output | 1x DisplayPort 1.2 (4K 60Hz) |
| Design Features | Clear CMOS Button | Flash BIOS Button | 4x EZ Debug LED |
