$267.20
MAG B860 Tomahawk WiFi Motherboard, ATX - Supports Intel Core Ultra Processors (Series 2), LGA 1851 - DDR5—
$267.20
The Story
| Category | Specification Details |
|---|---|
| Chipset | Intel B860 |
| CPU Support | Intel Core Ultra Processors (Series 2) - LGA 1851 |
| Memory | 4x DDR5 UDIMM (Max 256GB), Up to 9200+ MT/s (OC), Supports CUDIMM & XMP 3.0 |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 1x PCIe 4.0 x1 (Chipset) |
| Storage | 3x M.2 (1x Gen5 x4, 2x Gen4 x4), 4x SATA 6G, Supports RAID 0/1/5/10 |
| Thunderbolt | 1x Thunderbolt 4 (Rear), Up to 40Gbps, 8K Display support, 15W Charging |
| Graphics Output | 1x HDMI 2.1 (8K 60Hz), 1x DisplayPort 1.4, 1x Type-C DP 2.1 (via Thunderbolt) |
| Networking | Intel Killer E5000 5Gbps LAN |
| Wireless | Intel Killer BE1750x Wi-Fi 7, Bluetooth 5.4 |

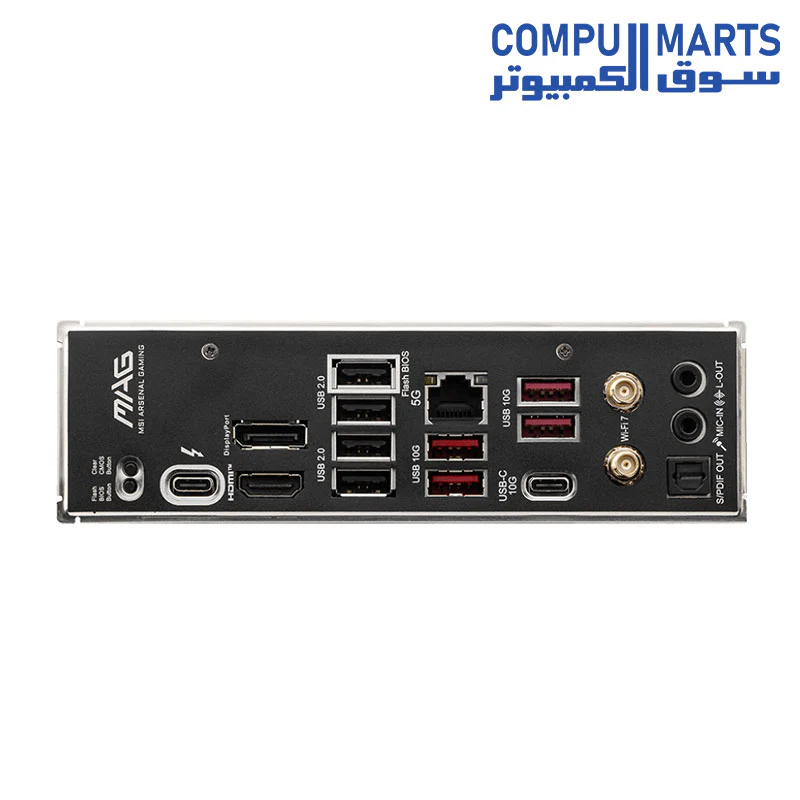

| USB (Rear) | 1x Thunderbolt 4, 1x USB 10Gbps (Type-C), 4x USB 10Gbps (Type-A), 4x USB 2.0 |
| USB (Front) | 1x USB 10Gbps (Type-C), 2x USB 5Gbps (Type-A), 4x USB 2.0 |
| Audio | Realtek ALC897 Codec, 7.1-Channel HD Audio, S/PDIF Output |
| Special Features | EZ Debug LED, Flash BIOS Button, Clear CMOS Button, 3x ARGB V2 Headers |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Chipset | Intel B860 |
| CPU Support | Intel Core Ultra Processors (Series 2) - LGA 1851 |
| Memory | 4x DDR5 UDIMM (Max 256GB), Up to 9200+ MT/s (OC), Supports CUDIMM & XMP 3.0 |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 1x PCIe 4.0 x1 (Chipset) |
| Storage | 3x M.2 (1x Gen5 x4, 2x Gen4 x4), 4x SATA 6G, Supports RAID 0/1/5/10 |
| Thunderbolt | 1x Thunderbolt 4 (Rear), Up to 40Gbps, 8K Display support, 15W Charging |
| Graphics Output | 1x HDMI 2.1 (8K 60Hz), 1x DisplayPort 1.4, 1x Type-C DP 2.1 (via Thunderbolt) |
| Networking | Intel Killer E5000 5Gbps LAN |
| Wireless | Intel Killer BE1750x Wi-Fi 7, Bluetooth 5.4 |
| USB (Rear) | 1x Thunderbolt 4, 1x USB 10Gbps (Type-C), 4x USB 10Gbps (Type-A), 4x USB 2.0 |
| USB (Front) | 1x USB 10Gbps (Type-C), 2x USB 5Gbps (Type-A), 4x USB 2.0 |
| Audio | Realtek ALC897 Codec, 7.1-Channel HD Audio, S/PDIF Output |
| Special Features | EZ Debug LED, Flash BIOS Button, Clear CMOS Button, 3x ARGB V2 Headers |
