$55.54
Original: $185.13

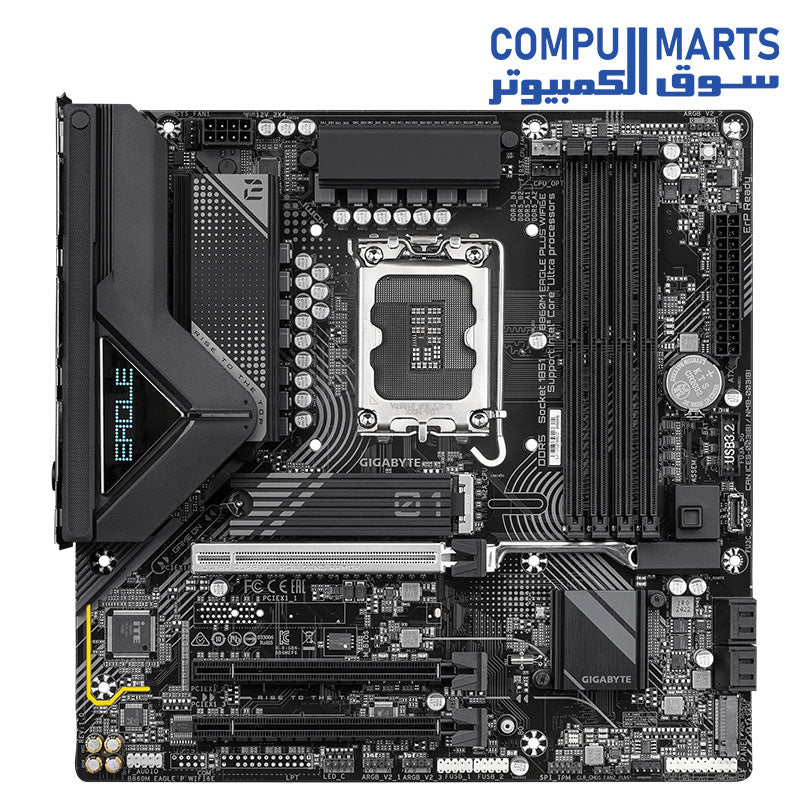

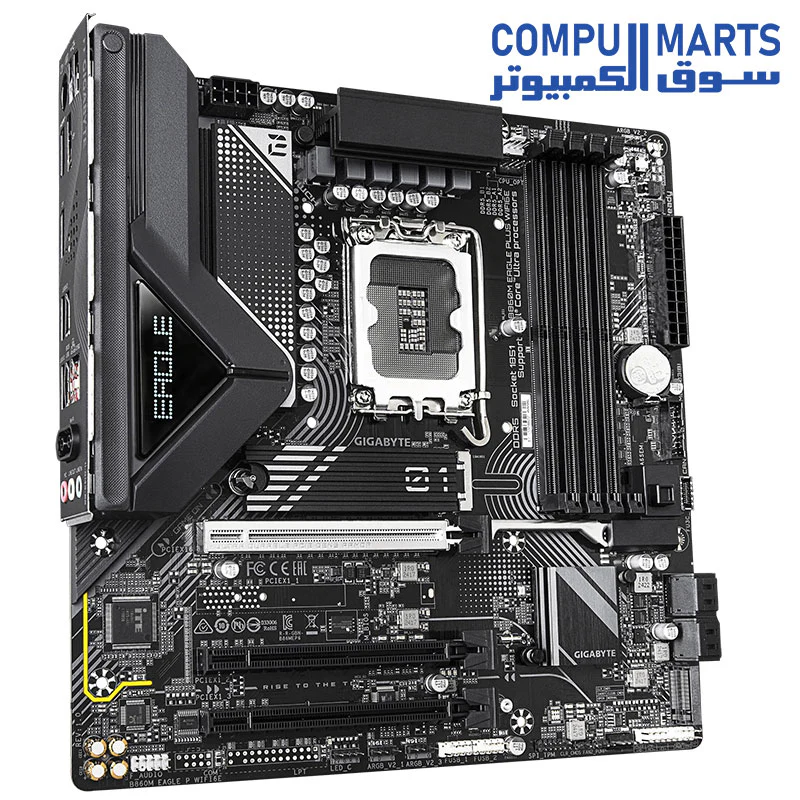

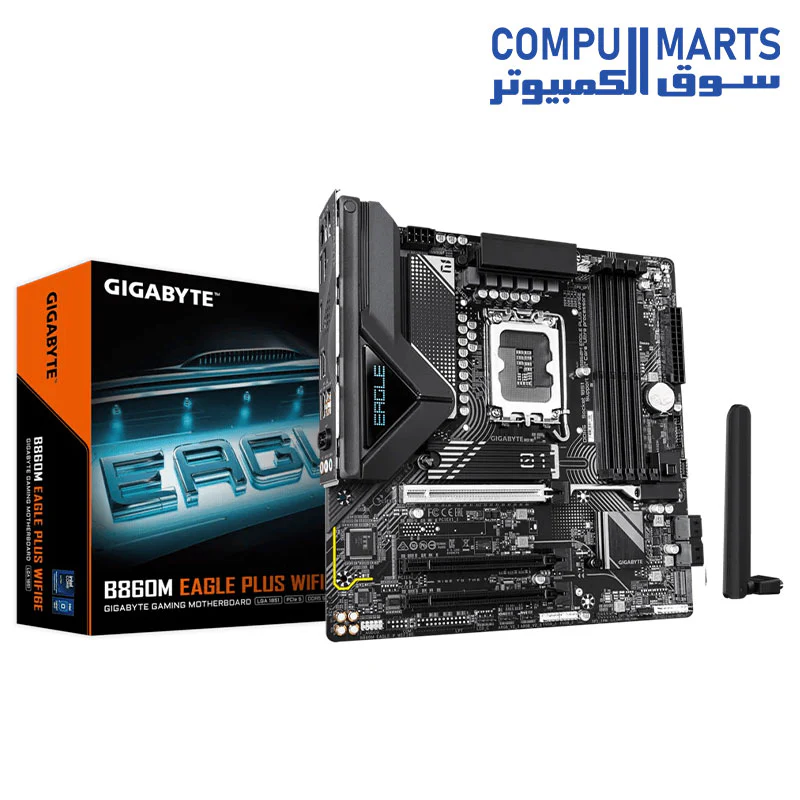

-70%GIGABYTE B860M EAGLE PLUS WIFI6E MOTHERBOARD—
$185.13
$55.54The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket, supports Intel® Core™ Ultra Processors |
| Chipset | Intel® B860 Express Chipset |
| Memory | 4 x DIMM, Max. 256GB, DDR5 up to 9066MT/s (OC), XMP & ECC Support |
| Onboard Graphics | 1x HDMI 2.1 (4K@60Hz), 2x DisplayPort 2.1 (4K@144Hz), Triple-Display support |
| Audio | Realtek® Audio CODEC, 7.1-channel High Definition Audio, S/PDIF Out |
| Networking | Realtek® 2.5GbE LAN, Wi-Fi 6E & Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 2 x PCIe 4.0 x1 (Chipset) |
| Storage | 1 x M.2 PCIe 5.0 x4, 1 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s (RAID 0/1/5/10) |

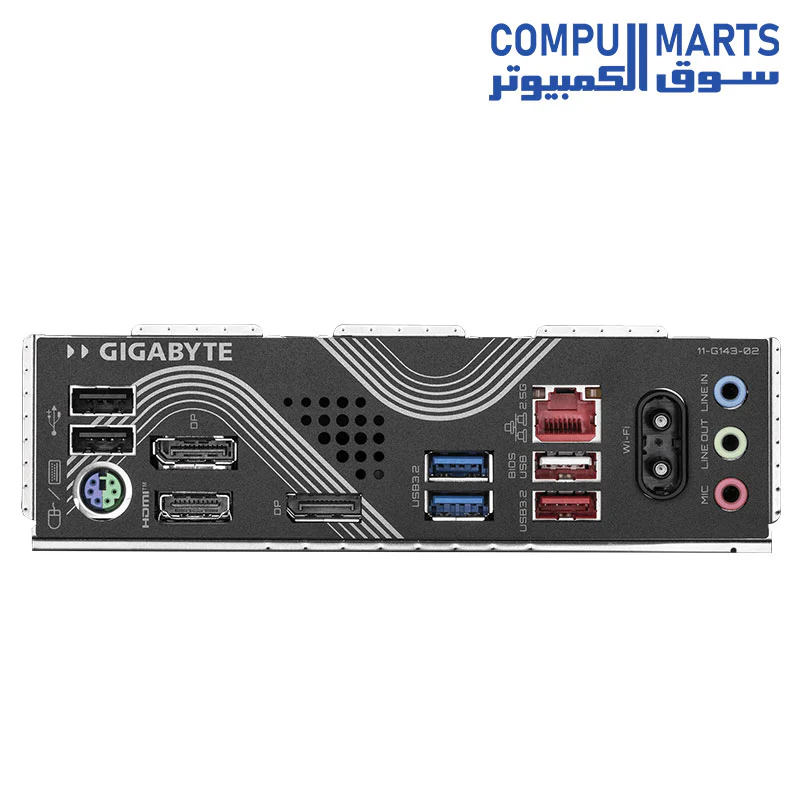

| Rear USB Ports | 1x USB 3.2 Gen 2 (Type-A), 2x USB 3.2 Gen 1, 3x USB 2.0/1.1 |
| Internal I/O | 1x USB-C® 3.2 Gen 1, 1x USB 3.2 Gen 1 header, 2x USB 2.0 headers, 3x ARGB Gen2 |
| Special Features | Q-Flash Plus Button, Reset Jumper, Clear CMOS Jumper |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket, supports Intel® Core™ Ultra Processors |
| Chipset | Intel® B860 Express Chipset |
| Memory | 4 x DIMM, Max. 256GB, DDR5 up to 9066MT/s (OC), XMP & ECC Support |
| Onboard Graphics | 1x HDMI 2.1 (4K@60Hz), 2x DisplayPort 2.1 (4K@144Hz), Triple-Display support |
| Audio | Realtek® Audio CODEC, 7.1-channel High Definition Audio, S/PDIF Out |
| Networking | Realtek® 2.5GbE LAN, Wi-Fi 6E & Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 2 x PCIe 4.0 x1 (Chipset) |
| Storage | 1 x M.2 PCIe 5.0 x4, 1 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| Rear USB Ports | 1x USB 3.2 Gen 2 (Type-A), 2x USB 3.2 Gen 1, 3x USB 2.0/1.1 |
| Internal I/O | 1x USB-C® 3.2 Gen 1, 1x USB 3.2 Gen 1 header, 2x USB 2.0 headers, 3x ARGB Gen2 |
| Special Features | Q-Flash Plus Button, Reset Jumper, Clear CMOS Jumper |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
