$47.52
Original: $158.41

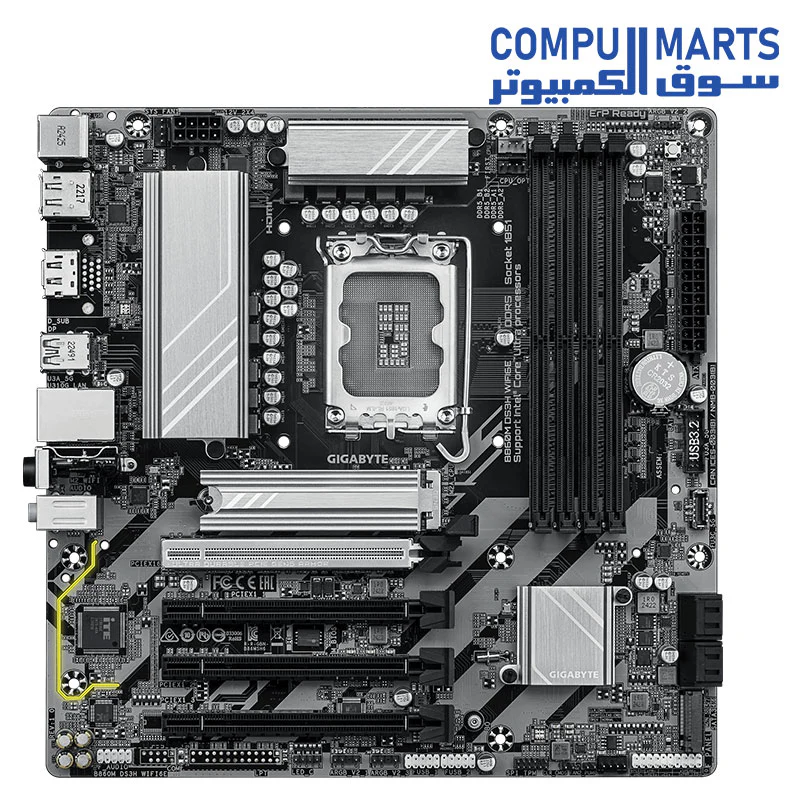

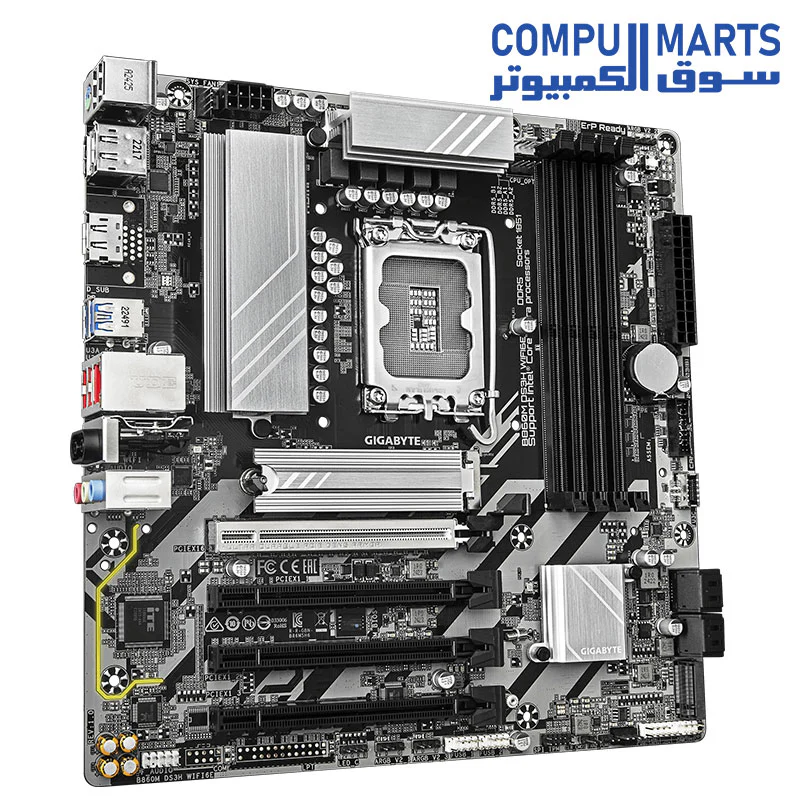

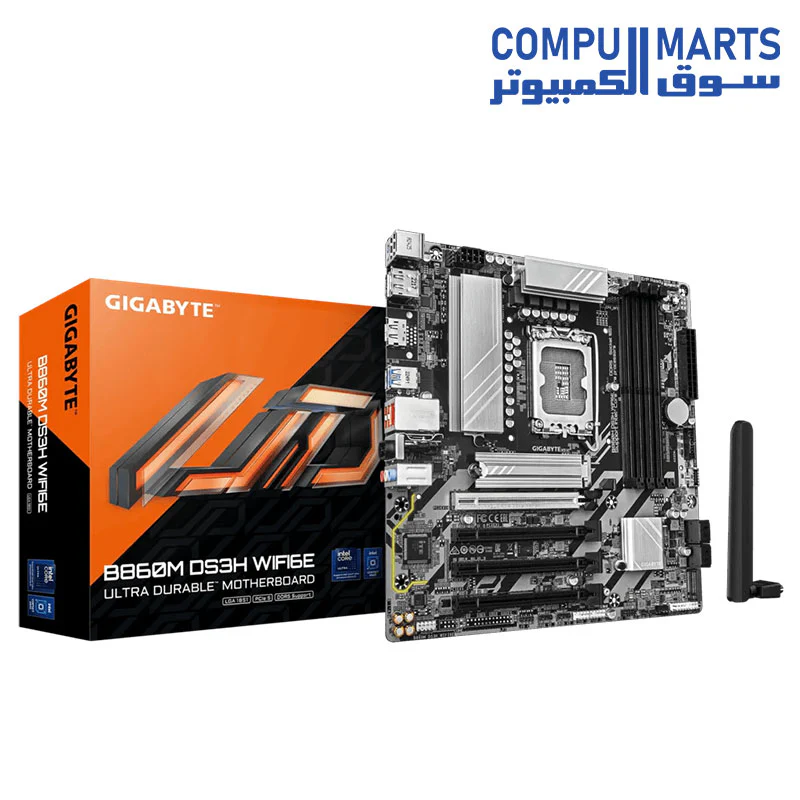

-70%GIGABYTE B860M DS3H WIFI6E MOTHERBOARD—
$158.41
$47.52The Story
| Category | Specification Details |
|---|---|
| CPU Socket | LGA1851 (Supports Intel® Core™ Ultra Processors) |
| Chipset | Intel® B860 Express Chipset |
| Memory Support | 4x DIMM Slots, DDR5 up to 9066MT/s (OC), Max 256GB, Dual-channel, XMP |
| Integrated Graphics | 1x HDMI 2.1 (4K@60Hz), 2x DisplayPort 2.1 (4K@144Hz), Triple-display support |
| Audio | Realtek® High Definition Audio (2/4/5.1/7.1-channel) |
| Connectivity | Realtek® 2.5GbE LAN, Wi-Fi 6E (802.11ax), Bluetooth 5.3 |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 3x PCIe 4.0 x1 (Chipset) |
| Storage Interface | 1x M.2 (PCIe 5.0 x4), 1x M.2 (PCIe 4.0 x4), 4x SATA 6Gb/s, RAID 0/1/5/10 |

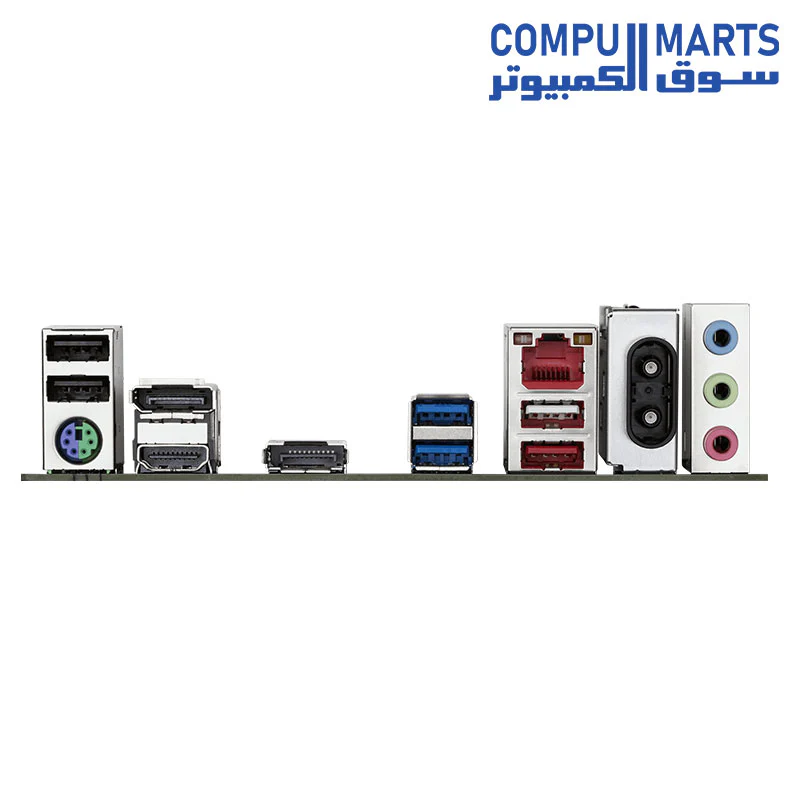

| USB (Rear) | 1x USB 3.2 Gen 2 (Type-A), 2x USB 3.2 Gen 1, 3x USB 2.0/1.1 |
| USB (Internal) | 1x USB Type-C® (Gen 1), 2x USB 3.2 Gen 1, 4x USB 2.0/1.1 |
| Internal Features | Q-Flash Plus, 3x ARGB Gen2 headers, 1x RGB header, TPM header, Reset/CMOS jumpers |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Socket | LGA1851 (Supports Intel® Core™ Ultra Processors) |
| Chipset | Intel® B860 Express Chipset |
| Memory Support | 4x DIMM Slots, DDR5 up to 9066MT/s (OC), Max 256GB, Dual-channel, XMP |
| Integrated Graphics | 1x HDMI 2.1 (4K@60Hz), 2x DisplayPort 2.1 (4K@144Hz), Triple-display support |
| Audio | Realtek® High Definition Audio (2/4/5.1/7.1-channel) |
| Connectivity | Realtek® 2.5GbE LAN, Wi-Fi 6E (802.11ax), Bluetooth 5.3 |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 3x PCIe 4.0 x1 (Chipset) |
| Storage Interface | 1x M.2 (PCIe 5.0 x4), 1x M.2 (PCIe 4.0 x4), 4x SATA 6Gb/s, RAID 0/1/5/10 |
| USB (Rear) | 1x USB 3.2 Gen 2 (Type-A), 2x USB 3.2 Gen 1, 3x USB 2.0/1.1 |
| USB (Internal) | 1x USB Type-C® (Gen 1), 2x USB 3.2 Gen 1, 4x USB 2.0/1.1 |
| Internal Features | Q-Flash Plus, 3x ARGB Gen2 headers, 1x RGB header, TPM header, Reset/CMOS jumpers |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
