-70%GIGABYTE B760M DS3H AX Motherboards—
$148.87
$44.66The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express Chipset |
| Memory | 4 x DDR5 DIMM (up to 256 GB); Support for up to DDR5 7600(O.C.), Dual Channel, XMP support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60Hz), 2 x DisplayPort (4096x2304@60Hz); Support for triple-display |
| Audio | Realtek Audio CODEC, 2/4/5.1/7.1-channel, High Definition Audio, S/PDIF Out support |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & Bluetooth | Wi-Fi 6E (802.11ax) 2.4/5/6 GHz; Bluetooth 5.2/5.3 (varies by PCB revision) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU); 2 x PCIe 3.0 x1 (Chipset) |
| Storage Interface | 2 x M.2 PCIe 4.0 x4/x2 SSD connectors; 4 x SATA 6Gb/s; RAID 0/1/5/10 support |

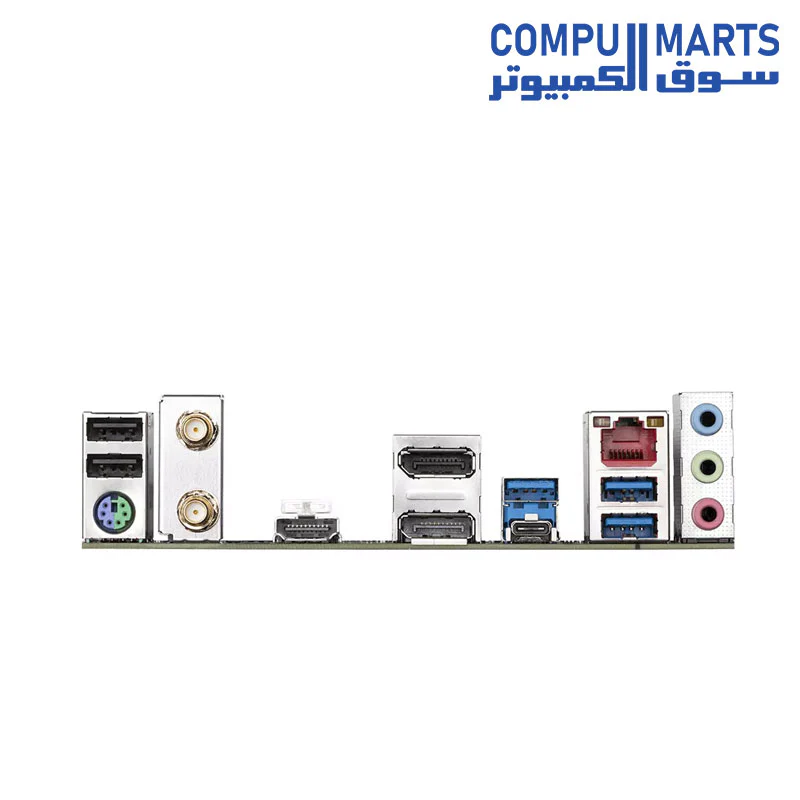

| USB Back Panel | 1 x USB Type-C (USB 3.2 Gen 2), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Internal I/O | 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 1 x Addressable LED, 1 x RGB LED, 1 x Q-Flash Plus button |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express Chipset |
| Memory | 4 x DDR5 DIMM (up to 256 GB); Support for up to DDR5 7600(O.C.), Dual Channel, XMP support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60Hz), 2 x DisplayPort (4096x2304@60Hz); Support for triple-display |
| Audio | Realtek Audio CODEC, 2/4/5.1/7.1-channel, High Definition Audio, S/PDIF Out support |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & Bluetooth | Wi-Fi 6E (802.11ax) 2.4/5/6 GHz; Bluetooth 5.2/5.3 (varies by PCB revision) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU); 2 x PCIe 3.0 x1 (Chipset) |
| Storage Interface | 2 x M.2 PCIe 4.0 x4/x2 SSD connectors; 4 x SATA 6Gb/s; RAID 0/1/5/10 support |
| USB Back Panel | 1 x USB Type-C (USB 3.2 Gen 2), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Internal I/O | 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 1 x Addressable LED, 1 x RGB LED, 1 x Q-Flash Plus button |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
