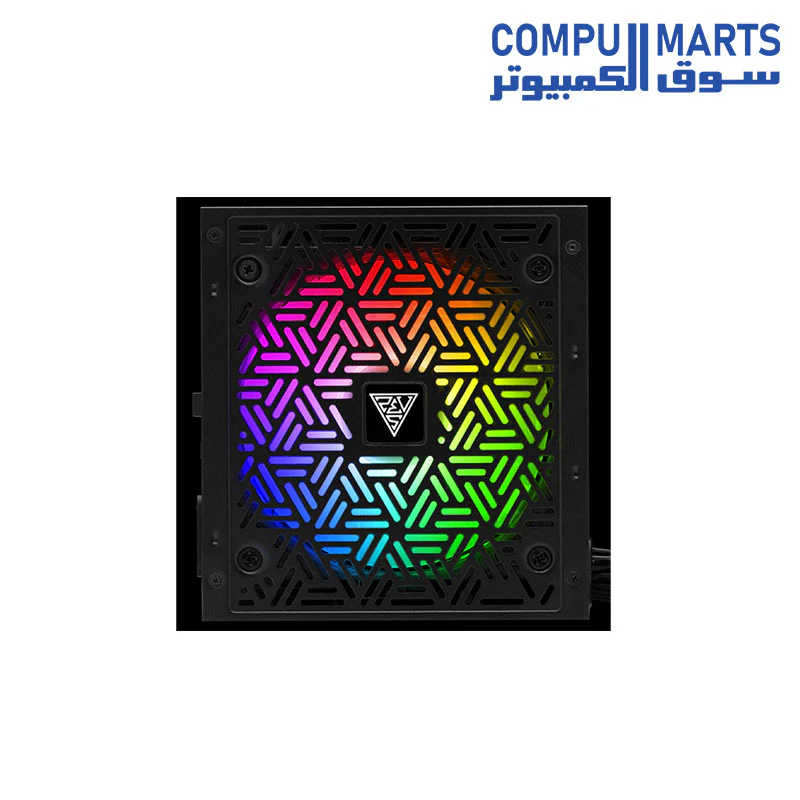

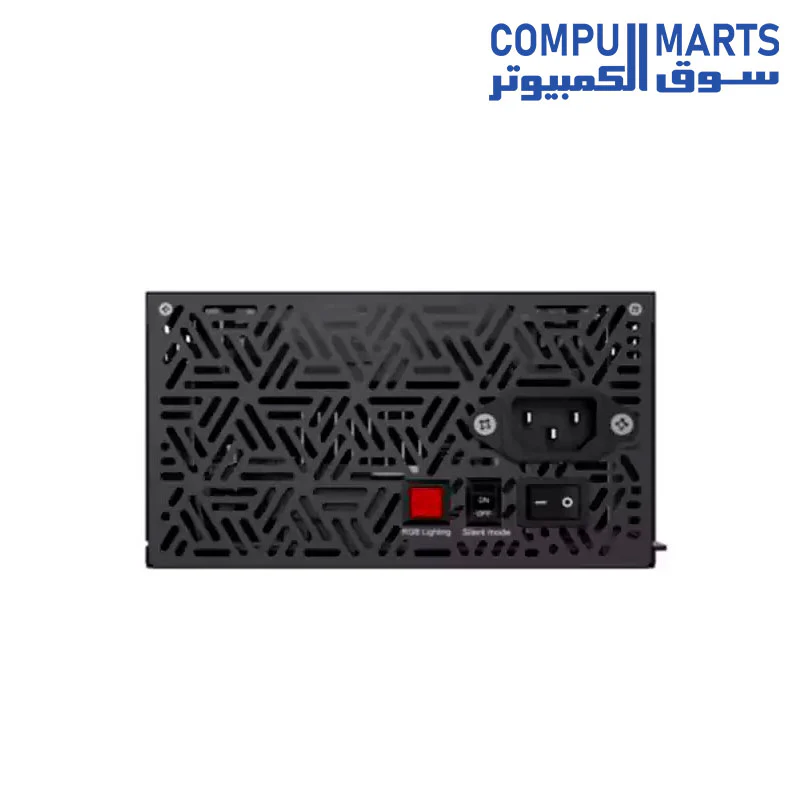

Gamdias KRATOS M1-600B 80PLUS Power Supply

Gamdias KRATOS M1-600B 80PLUS Power Supply

Brand	GAMDIAS
Model	KRATOS M1-600B
Type	ATX12V v2.2
Efficiency	Meet 80 PLUS Bronze efficiency
Power Factor Correction	APFC with PF value of 0.99
Support MB Sync	5V 3-pin Addressable (Digital) RGB Header Only
Support C6/C7 power state	No
AC Input	100-240V / 4.5-9.5A / 47-63Hz
DC Output	+3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current	20A / 20A / 47A / 0.3A / 2.5A
Max. Output Power	120W / 564W / 3.6W / 12.5W
Total Power	600W
Protection	OVP / UVP / OPP / SCP / SP / ICP
Lighting Effect	30 Neon-Flex RGB
Silent Mode	Yes
DC to DC	No
Dimension (L x W x H)	140 x 150 x 86 mm

Type ATX12V v2.4

Efficiency Meet 80 PLUS Bronze efficiency

Power Factor Correction APFC with PF value of 0.99

Support Motherboard RGB Sync Connectors 5V 3-pin Addressable (Digital) LED RGB Header Only

Support C6/C7 power state Yes

Output

AC Input 100-240V, 4.5-9.5A, 47-63Hz

DC Output +3.3V +5V +12V -12V +5Vsb

Max. Output Current 20A 20A 47A 0.3A 2.5A

Max. Output Power 120W 564W 3.6W 12.5W

Total Power 600W

Protection

Protection OVP/ UVP/ OPP/ SCP

Connector

Main Power 1 (20+4 Pin)

CPU 1 (4+4 Pin)

PCI-E 2 (6+2 Pin)

SATA 5 (5 Pin)

Molex 2 (4 Pin)

Floppy 1 (4 Pin)
