GAMDIAS HELIOS M1-750B 80 Plus Bronze
HomeStore

GAMDIAS HELIOS M1-750B 80 Plus Bronze

GAMDIAS HELIOS M1-750B 80 Plus Bronze

$57.26
GAMDIAS HELIOS M1-750B 80 Plus Bronze
$57.26

The Story

Category Specification Details
Model GAMDIAS HELIOS M1-750B
Total Power 750W (80 Plus Bronze Certified)
Efficiency Up to 85% Efficiency | APFC with 0.99 PF Value
Form Factor ATX12V v2.4 (Supports C6/C7 Power States)
Dimensions 140 x 150 x 86 mm
Cooling System 120mm Hydraulic Bearing Fan (Automatic Speed Optimization)
Protection Suite OVP, UVP, OPP, SCP, OCP
Main Connectors 1x 24-Pin (20+4) | 1x CPU 8-Pin (4+4)
GPU & Storage Connectors 4x PCI-E 8-Pin (6+2) | 5x SATA | 3x Molex
Cable Design Non-Modular | Black Flat Cables
AC Input 100-240V / 5.5-11A / 47-63Hz
DC Output (+12V Rail) 56A / 672W Max Output
GAMDIAS HELIOS M1-750B 80 Plus Bronze - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

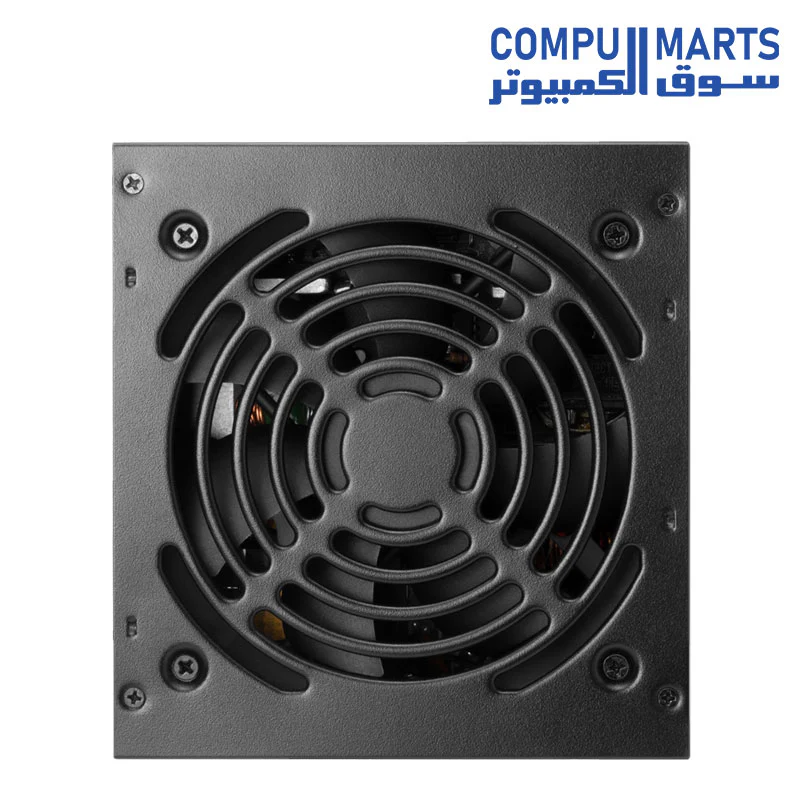

GAMDIAS HELIOS M1-750B 80 Plus Bronze - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

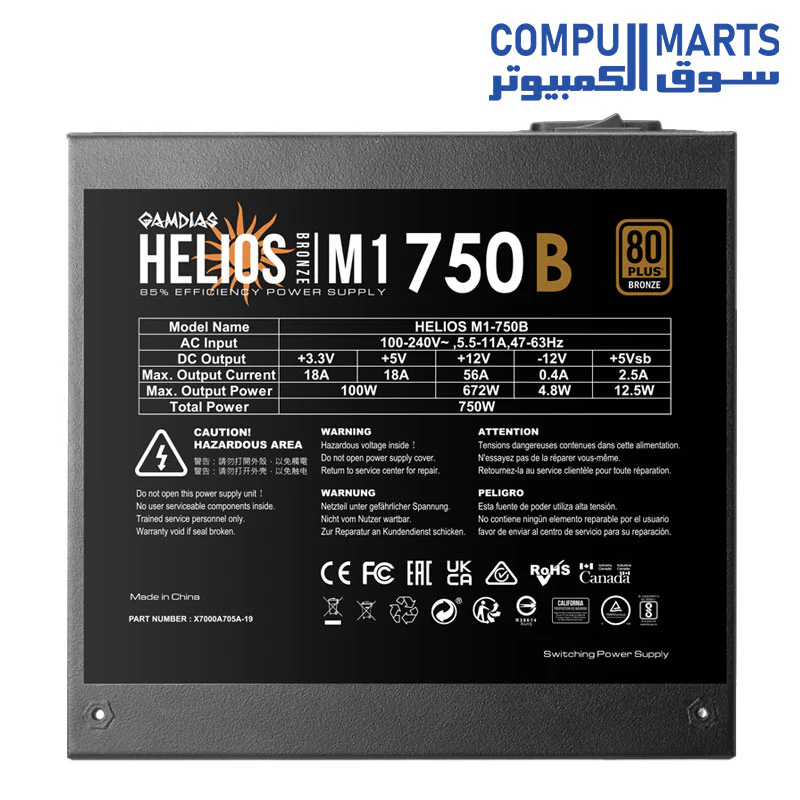

GAMDIAS HELIOS M1-750B 80 Plus Bronze - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Category Specification Details
Model GAMDIAS HELIOS M1-750B
Total Power 750W (80 Plus Bronze Certified)
Efficiency Up to 85% Efficiency | APFC with 0.99 PF Value
Form Factor ATX12V v2.4 (Supports C6/C7 Power States)
Dimensions 140 x 150 x 86 mm
Cooling System 120mm Hydraulic Bearing Fan (Automatic Speed Optimization)
Protection Suite OVP, UVP, OPP, SCP, OCP
Main Connectors 1x 24-Pin (20+4) | 1x CPU 8-Pin (4+4)
GPU & Storage Connectors 4x PCI-E 8-Pin (6+2) | 5x SATA | 3x Molex
Cable Design Non-Modular | Black Flat Cables
AC Input 100-240V / 5.5-11A / 47-63Hz
DC Output (+12V Rail) 56A / 672W Max Output
