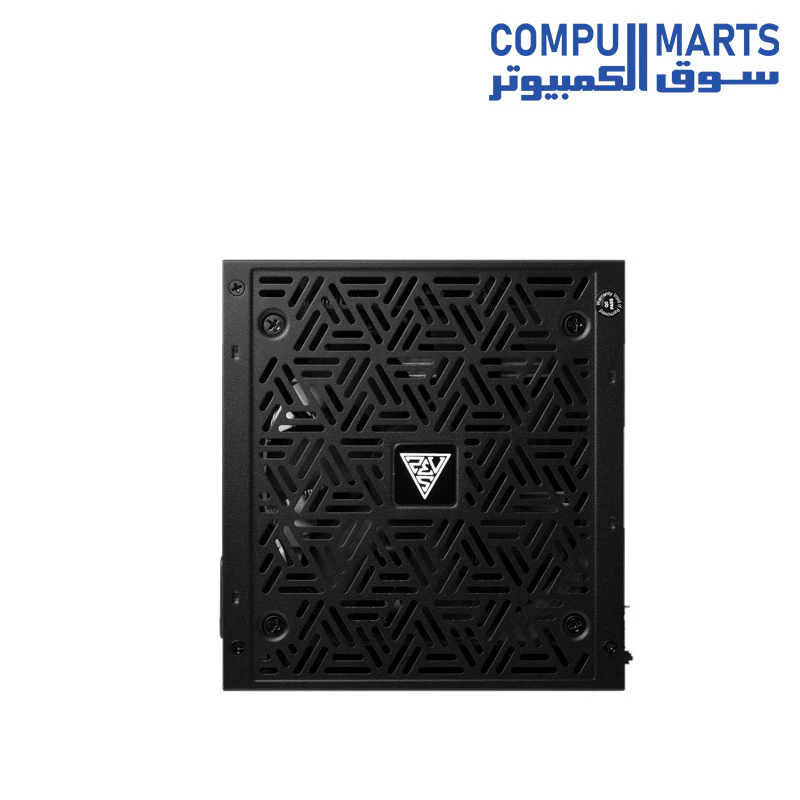

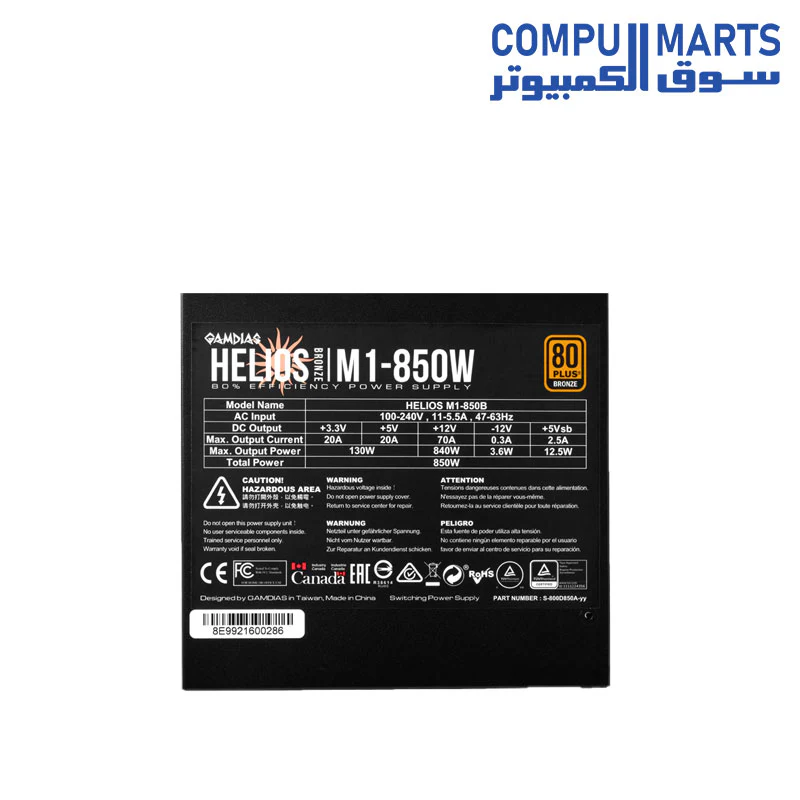

GAMDIAS HELIOS M1-850B 80% Plus Bronze PSU—
$71.57
The Story
| Category | Specification Details |
|---|---|
| Model | HELIOS M1-850B |
| Type | ATX12V v2.4 |
| Total Power | 850W |
| Efficiency | 80 PLUS Bronze |
| Power Factor Correction | APFC with PF value of 0.99 |
| DC to DC Design | Yes |
| Dimensions | 140 x 150 x 86 mm |
| AC Input | 100-240V / 5.5-11A / 47-63Hz |
| Protection | OVP / UVP / OPP / OCP / SCP / SP / ICP |
| Main Power Connector | 1 (20+4 Pin) |
| CPU Connectors | 2 (4+4 Pin) |
| PCI-E Connectors | 4 (6+2 Pin) |
| SATA Connectors | 6 (5 Pin) |
| Molex Connectors | 4 (4 Pin) |
| Cables | Black Flat Cables (Non-Modular) |
| Support C6/C7 Power States | Yes |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | HELIOS M1-850B |
| Type | ATX12V v2.4 |
| Total Power | 850W |
| Efficiency | 80 PLUS Bronze |
| Power Factor Correction | APFC with PF value of 0.99 |
| DC to DC Design | Yes |
| Dimensions | 140 x 150 x 86 mm |
| AC Input | 100-240V / 5.5-11A / 47-63Hz |
| Protection | OVP / UVP / OPP / OCP / SCP / SP / ICP |
| Main Power Connector | 1 (20+4 Pin) |
| CPU Connectors | 2 (4+4 Pin) |
| PCI-E Connectors | 4 (6+2 Pin) |
| SATA Connectors | 6 (5 Pin) |
| Molex Connectors | 4 (4 Pin) |
| Cables | Black Flat Cables (Non-Modular) |
| Support C6/C7 Power States | Yes |
