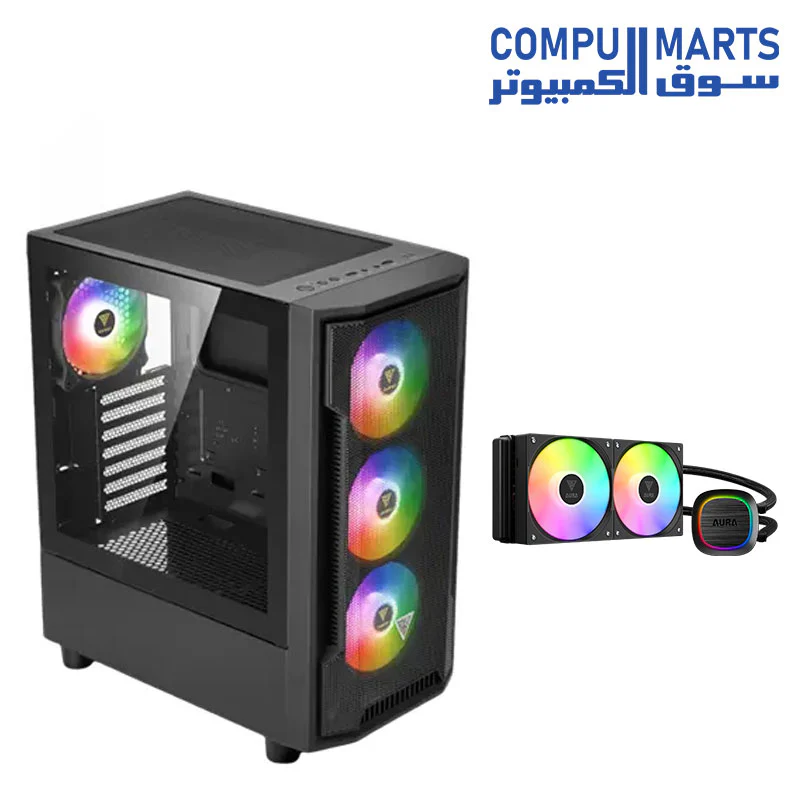

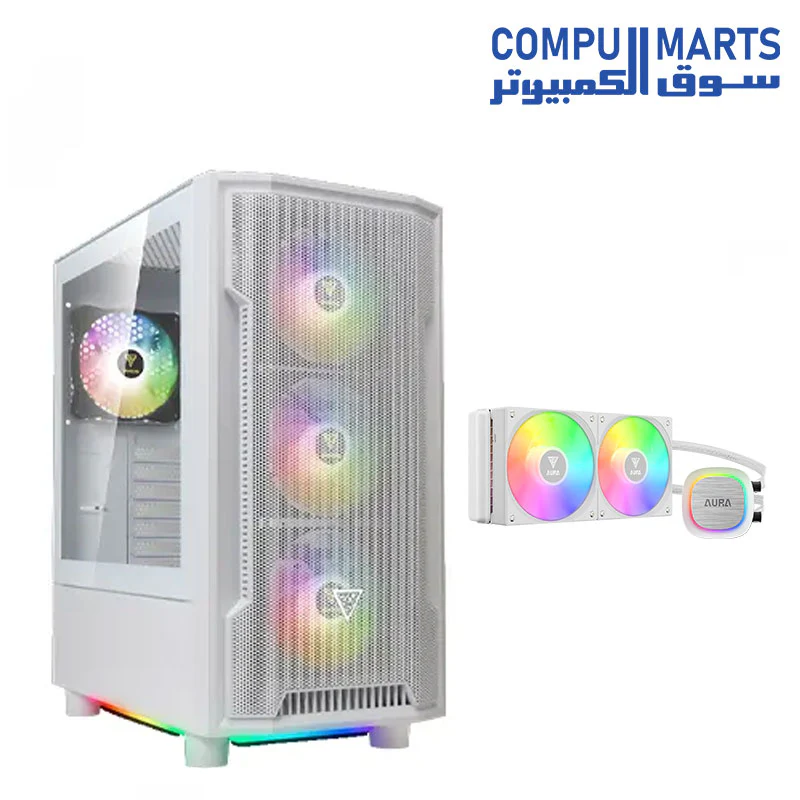

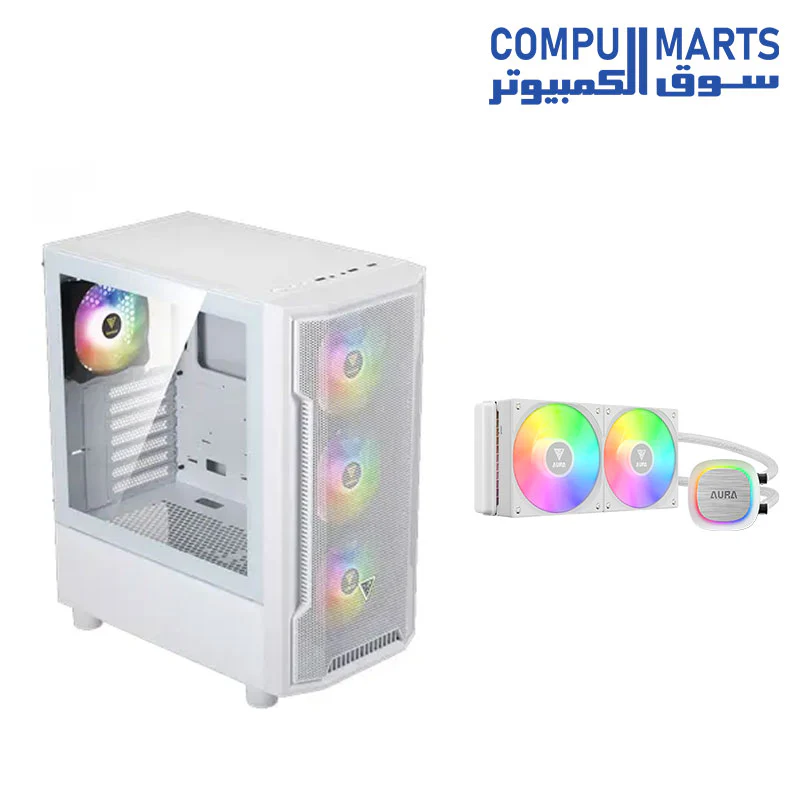

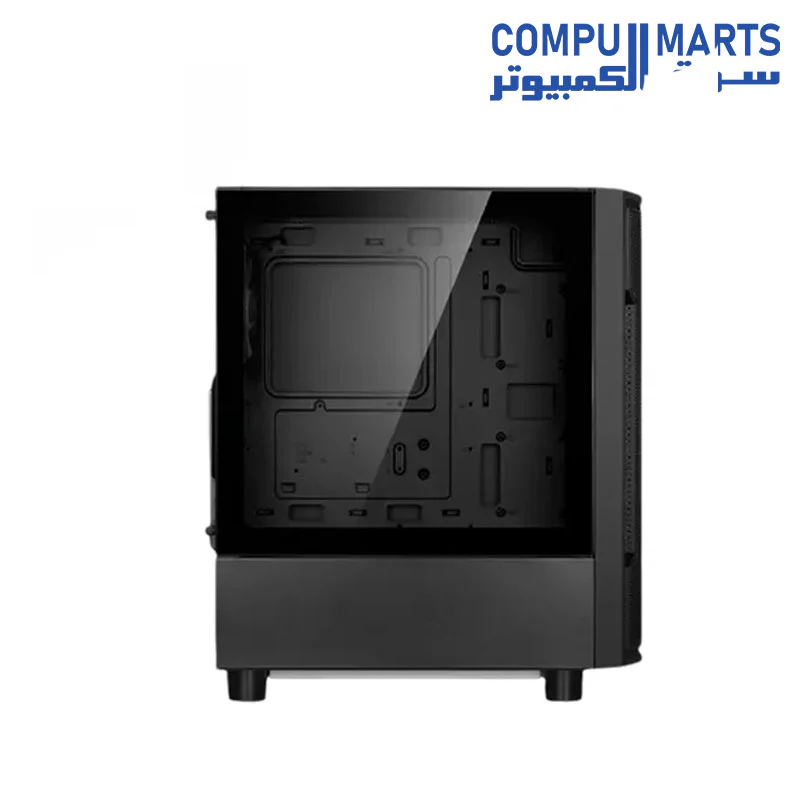

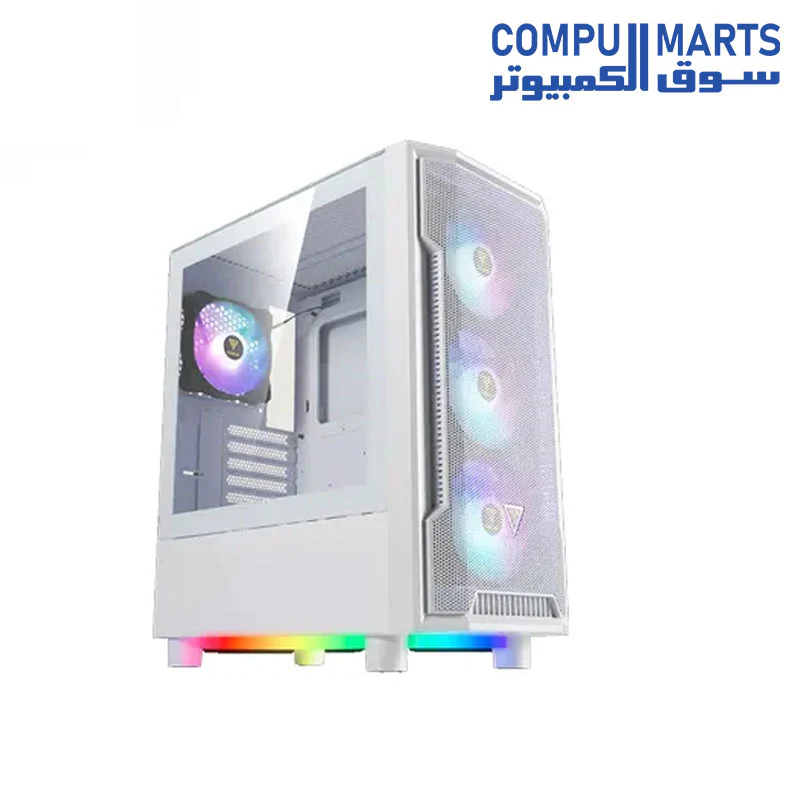

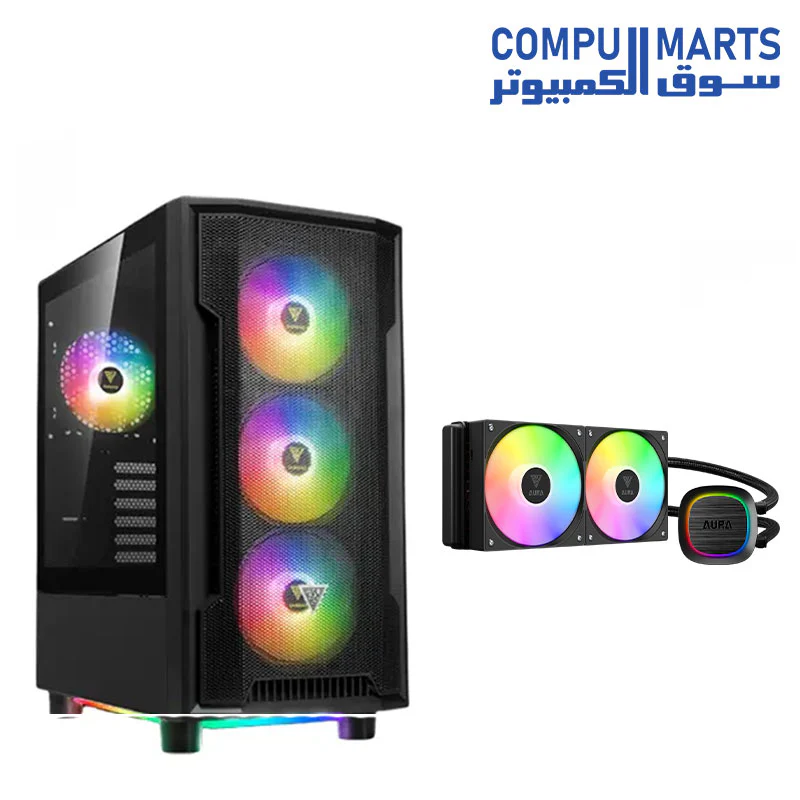

GAMDIAS ATHENA M6 LITE Case + Aura GL240 V2 Cooler

Case TypeMID Tower

MB SupportATX、Micro-ATX、Mini-ITX

Synchronization5V 3-Pin Addressable Header

CASE ColorBlack

Expansion Slots7

MaterialSPCC & ABS & Tempered glass

WindowLeft

Radiator SupportTop: 240mm / Front: 360mm、280mm、240mm / Rear: 120mm、140mm

Fan SupportTop: 2 x 120mm 、2 x 140mm / Front: 3 x 120mm、2 x 140mm/ Rear: 1 x 120mm / 1 x 140mm

Pre-installed FansFront: 3 x 120mm ARGB Fans/ Rear: 1 x 120mm ARGB Fan

Drive Bays2 x 3.5" or 1 x 2.5"+1 x 3.5"(HDD Cage) / 2 x 2.5"

I/O PortUSB 3.0 x1、USB 2.0 x2、HD Audio x1、LED control x1

ClearanceCPU cooler height limitation: 190mm
VGA length limitation: 340mm
PSU length limitation: 180mm

Dimension (L x W x H)410 x 230 x 477 mm

Net Weight5.89 kg / 12.99 lb



Aura GL240 V2 Cooler

• New Fluid Running System for Better Thermal Dissipation

  Upgraded Copper Base & 12-slot 10-pole Motor to improve Cooling Performance

  Hidden Cable Routing

  30 Built-in Lighting Effects and Motherboard Sync ARGB

  Hydraulic PWM Fans

  Fully Rotatable Pump Housing with Brushed Plating

  Easy Installation of Universal Mounting Kits

  Support LGA 1700/AM5

• Model : AURA GL240 V2 - AURA GL240 V2 WH

  Cooler : 1

  Fan : 2

  Thermal grease : 1

  Switch button : Yes

  Mounting Kit  : Yes

  Dimensions : 120 x 120 x 25 mm

  Speed : 800 - 1800 RPM±10%

  Noise Level : 33.8 dBA

  Air Flow : 73.6 CFM

  Air Pressure : 2.12 mmH2O

  Bearing : Hydraulic

  Rated Voltage : 12V(Fan) / 5V(LED)

  Connector : PWM

  Support PWM Control : Yes

  Radiator Dimensions : 276 x 120 x 27 mm

  Tube Material : EPDM

  Base Plate Material : Copper

  Radiator Material : Aluminum

  Sleeved Tube : Yes

  Pump Rated Voltage : 12V (Pump)

  Pump Connector : 3Pin

  Compatibility : LGA2066 / 2011-v3 / 2011 / 1700 / 1151 / 1150 / 1155 / 1156 / 1200 / AM5 /AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1

  Support Motherboard RGB Sync Connectors : 5V 3-pin addressable (digital) RGB header Only
