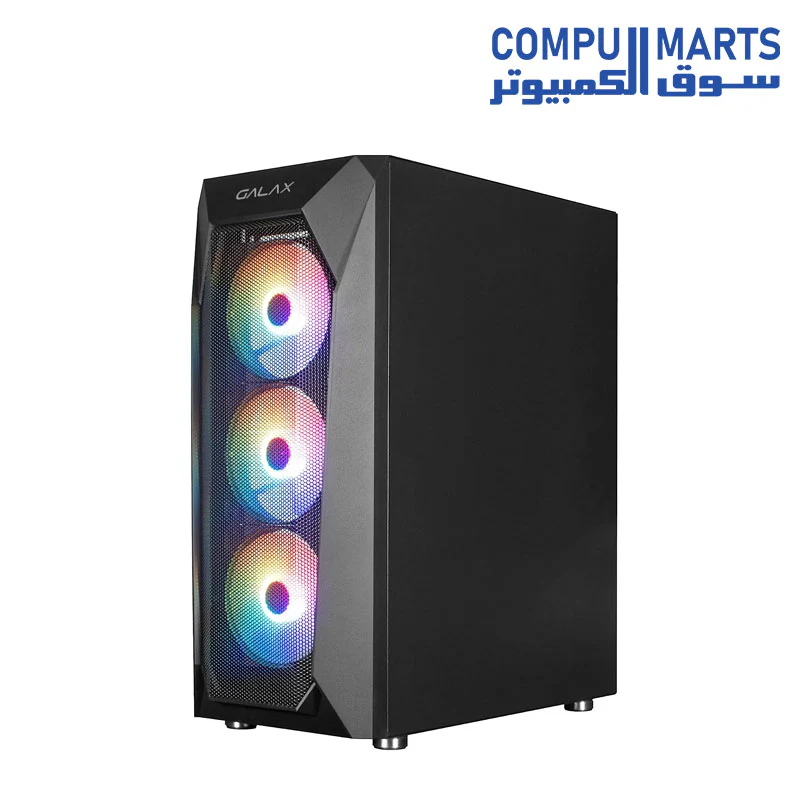

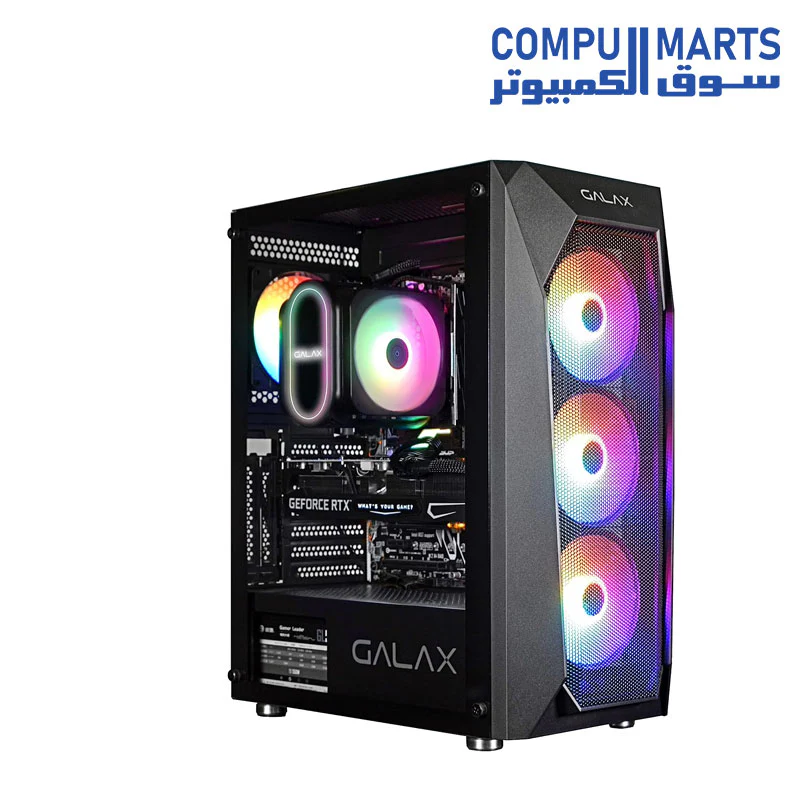

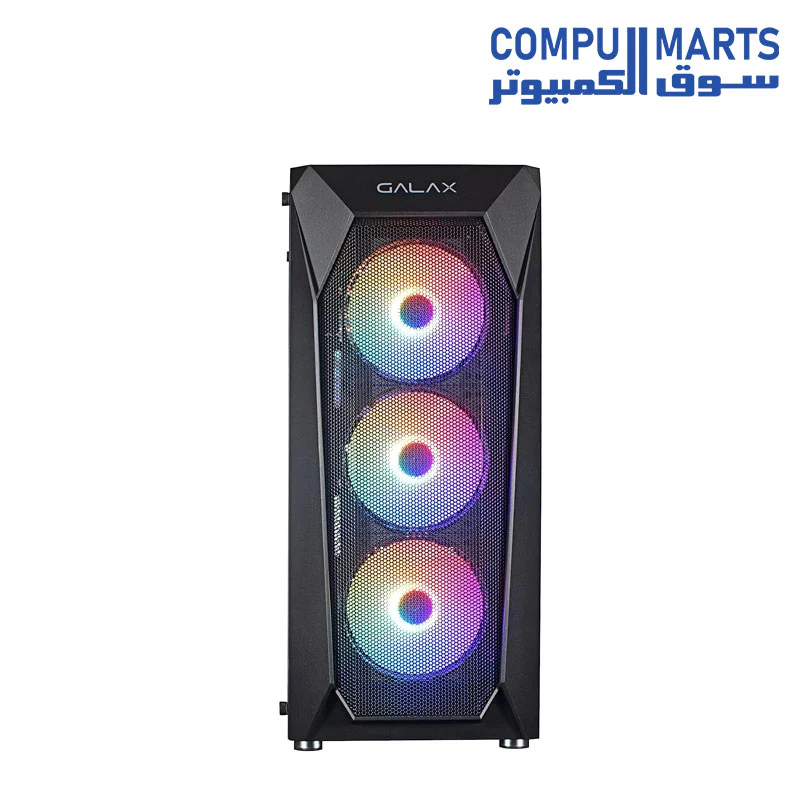

-70%GALAX PC Case (REV-05) ATX, M-ATX, ITX—
$43.90
$13.17The Story
| Category | Specification Details |
|---|---|
| Product Name | GALAX PC Case (REV-05) |
| Description | Revolution-05 is Compatible with ATX, M-ATX, ITX motherboards. Standing tall at 470mm, it provides a spacious interior for customization, allowing vertical or horizontal mounting for graphics cards. |
| Product Code | CGG5ANBA4B0 |
| EAN | 4895147147970 |
| Form Factor | ATX, M-ATX, ITX |
| Chassis | SPCC + Tempered Glass |
| PSU Form Factor | ATX |
| M/B Form Factor | ATX, M-ATX, ITX |
| Front Panel | ABS, Mesh cover |
| Top Panel | Metal cover |

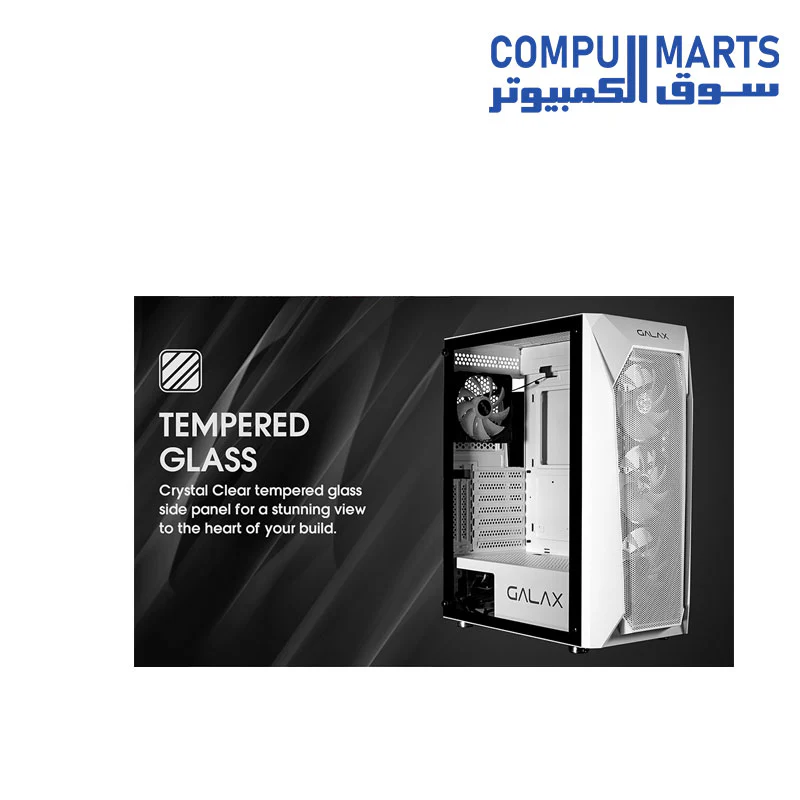

| Side Panel (Left) | Tempered Glass |
| Side Panel (Right) | Metal cover |
| External Drive Bay 5.25″ (ODD) | 0 |
| External Drive Bay 3.5″ | 0 |
| Internal Drive Bay 3.5″ (HDD) | 2 |
| Internal Drive Bay 2.5″ (SSD) | 3 |
| I/O Buttons | 2 |
| USB 1.1 Port(s) | 0 |
| USB 2.0 Port(s) | 2 |
| USB 3.0 Port(s) | 1 |
| USB 3.1 Port(s) | 0 |
| HD Audio Support | 1 |
| Card Reader Support | 0 |
| P-Lock | 0 |
| RGB Controller | 0 |
| Controller Max Fans | 0 |
| Remote (IR or RF) | 0 |
| Cooling Fan Support (Front) | 3x120mm (Fan optional) |

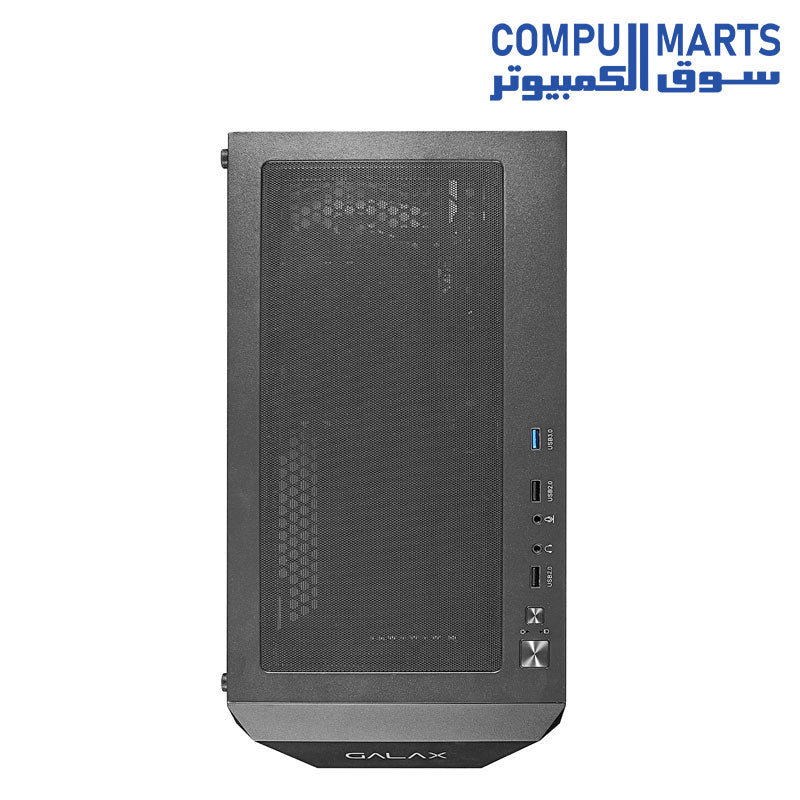

| Cooling Fan Support (Top) | 2x120mm, 2x140mm (Fan optional) |
| Cooling Fan Support (Rear) | 1x120mm (Fan optional) |
| Cooling Fan Support (Bottom) | 2x120mm (Fan optional) |
| Water Cooling Support (Front) | 240mm / 280mm / 360mm |
| Water Cooling Support (Top) | 240mm / 280mm |
| Water Cooling Support (Rear) | 120mm |
| Chassis Dimensions | (L)350 * (W)205 * (H)470mm |
| Full Case Dimensions | (L)400.6 * (W)205 * (H)481.5mm |
| Carton Dimensions | (L)532 * (W)258 * (H)465mm |
| Net Weight | 4.3KG |
| Gross Weight | 4.95KG |
| VGA Card Length | up to 330mm |
| CPU Cooler Height | 160mm |
| Cable Management Depth | 18mm |
