EVGA SuperNOVA 550 GA 80 Plus Gold 550W Fully Modular Compact 150mm Size Power Supply 220-GA-0550-X2

 EVGA SuperNOVA 550 GA 80 Plus Gold 550W Fully Modular Compact 150mm Size Power Supply 220-GA-0550-X2

• Brand : EVGA

• Model  :  220-GA-0550-X2

• CABLE LENGTH

• ATX Cable 1x 600mm (m)

• EPS Cable 1x 700mm (m)

• PCIe Cable 1x 700mm, 1x 700mm, 850mm (m)

• SATA Cable 2x 550mm, 650mm, 750mm (m)

• Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m)

• Floppy Adapter 1x Molex to FDD Adapter

• AC Power 1x 1500mm (m)

• Modular Cable Type Full

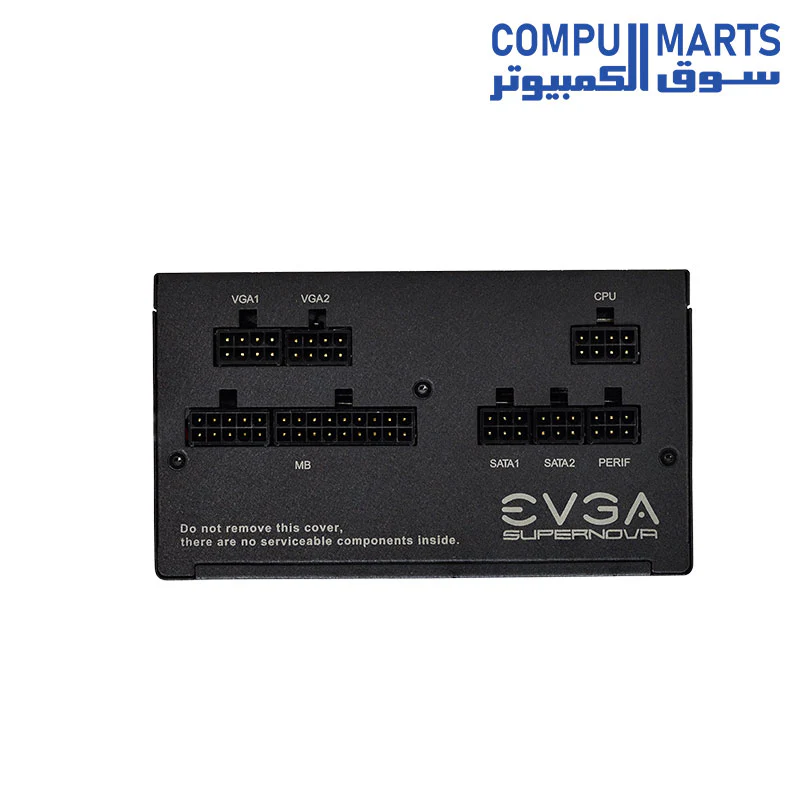

• CONNECTOR QUANTITY

• 24 Pin ATX 1x

• EPS (CPU) 1x 8pin(4+4)

• PCIe 3x 8pin(6+2)

• SATA 6x

• Four-Pin Peripheral 4x

• Floppy 1x

• INPUT

• Input Voltage 100-240 VAC

• AC Input 8-4A

• Input Frequency Range 50/60 Hz

• Efficiency 90% or Higher Typical

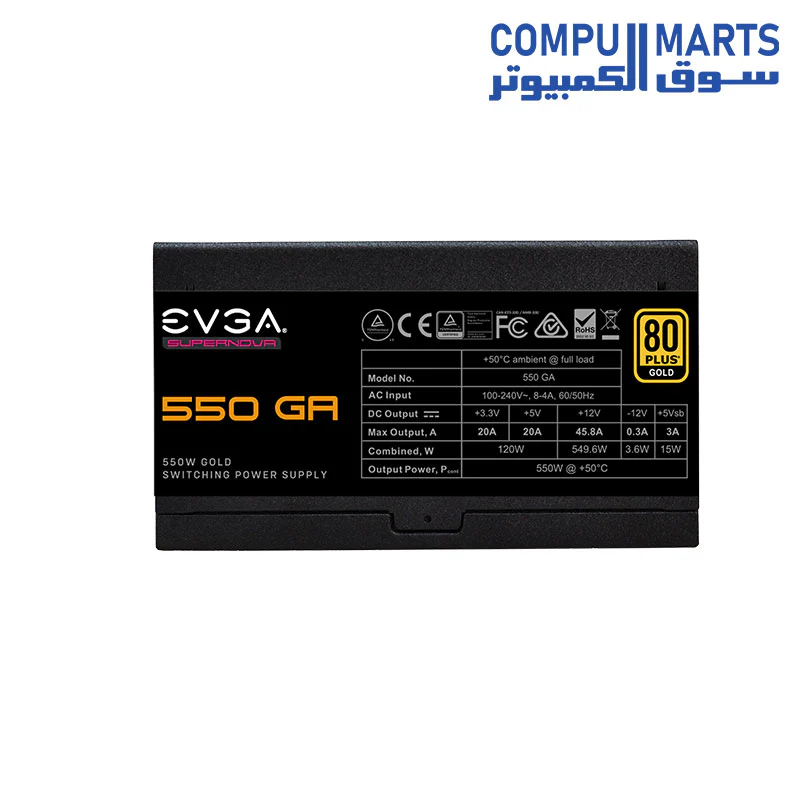

• OUTPUT

• Rail +3.3V +5V +12V -12V +5Vsb

• Max output 20A 20A 45.8A 0.3A 3.0A

• 549.6W

• 120W 549.6W 3.6W 15W

• Total 550W@50°C

• ADDITIONAL DETAILS

• Operating Temperature 0° to 50° C

• Japanese Capacitors 100%

• ECO Mode Yes

• MTBF 100,000 Hours

• Net Weight 5 lbs

• Size 86mm (H) x 150mm (W) x 150mm (L)

• Approvals TUV, CB, CE, FCC, RCM, cTUVus, CCC, WEEE, RoHS

• Compliance with ErP Lot 3 2014 Requirement

• Fan Size / Bearing 135mm Double Ball Bearing

• UPC 843368061845

• EAN 4250812433060
