EVGA 550 B5 80 Plus BRONZE 550W Fully Modular Power Supply 220-B5-0550-V2

EVGA 550 B5 80 Plus BRONZE 550W Fully Modular Power Supply 220-B5-0550-V2

80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
Fully Modular to reduce clutter and improve airflow
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
Heavy-duty protections, including OVP (Over Voltage Protection),

UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

CABLE LENGTH

ATX Cable 1x 600mm (m)

EPS Cable 1x 600mm (m)

PCIe Cable 1x 550mm, 700mm (m)

SATA Cable 2x 500mm, 600mm, 700mm (m)

Four-Pin Peripheral Cable 1x 500mm, 600mm, 700mm (m)

Floppy Adapter 1x Molex to FDD Adapter

AC Power 1x 1500mm (m)

Modular Cable Type Full

CONNECTOR QUANTITY

24 Pin ATX 1x 24pin (20+4)

EPS (CPU) 1x 8pin (4+4)

PCIe 2x 8pin (6+2)

SATA 6x

Four-Pin Peripheral 3x

Floppy 1x

INPUT

Input Voltage 100-240V~

AC Input 10-5A

Input Frequency Range 60/50Hz

Efficiency 85% or Higher Typical

OUTPUT

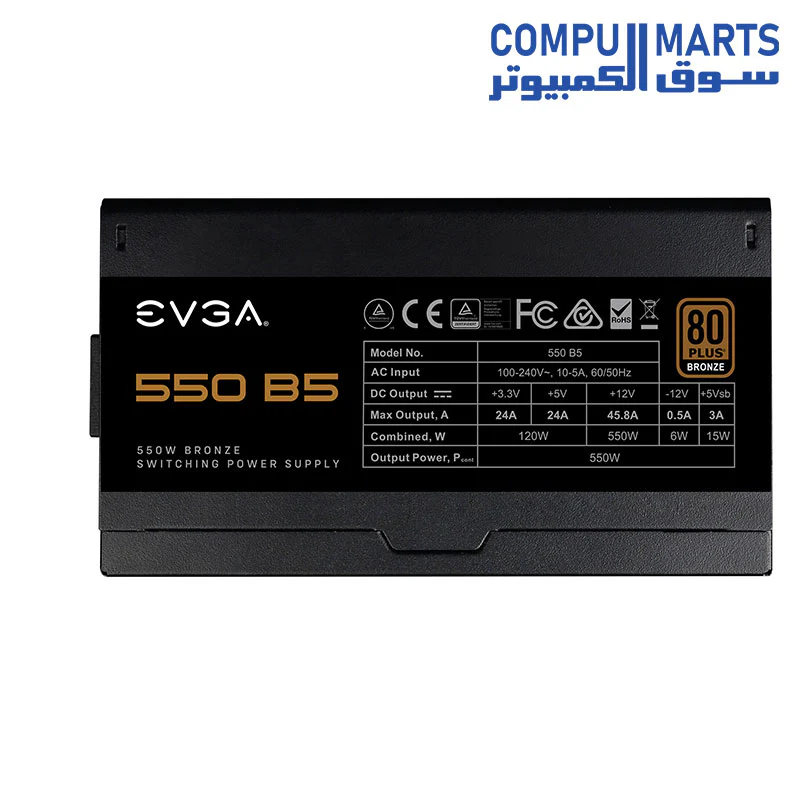

Rail +3.3V +5V +12V -12V +5Vsb

Max output 24A 24A 45.8A 0.5A 3.0A

550W

120W 550W 6W 15W

Total 550W

ADDITIONAL DETAILS

Japanese Capacitors Main

ECO Mode Yes

MTBF 100,000 Hours

Net Weight 4 lbs

Size 86mm (H) x 150mm (W) x 150mm (L)

Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS

Compliance with ErP Lot 3 2014 Requirement

Fan Size / Bearing 135mm Fluid Dynamic Bearing

UPC 843368064174

EAN 4250812435156
