$104.97
Cooler Master QUBE 500 Flatpack Mid Tower Case Black + PSU Bronze 750W V3 ATX PSU, 365mm GPU, USB-C, ATX/E-ATX Support—
$104.97
The Story
| Category | Specification Details |
|---|---|

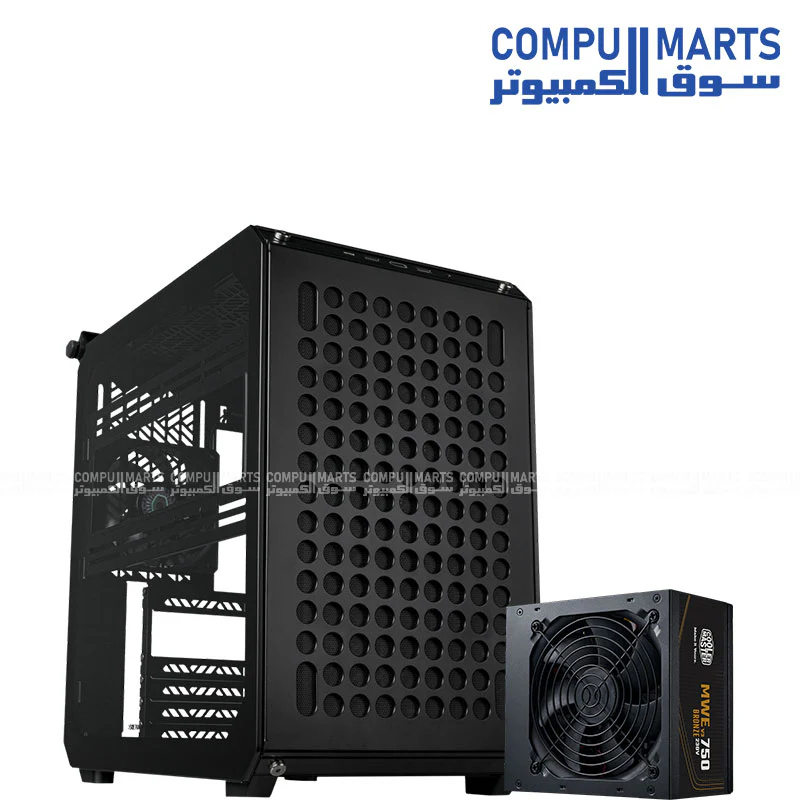

| Product | CASE COOLER MASTER Qube 500 Flatpack BLACK + PSU COOLER MASTER MWE BRONZE 750 V3 230V A EU Cable |

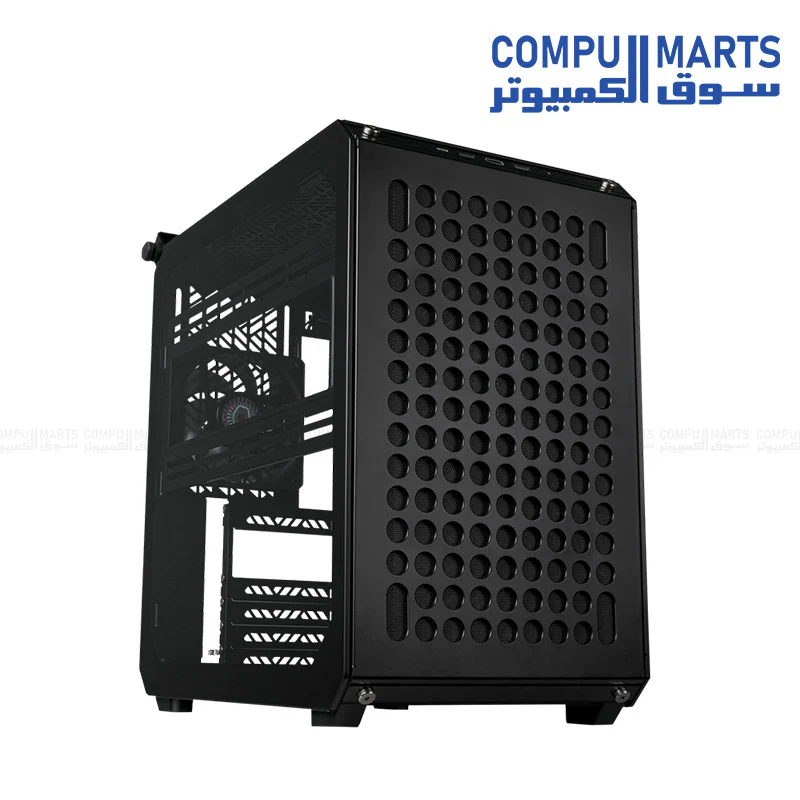

| Case Model | QUBE 500 Flatpack: Q500-KGNN-S00 |
| Exterior Color | Black |
| Materials - Exterior | Steel, Plastic, TG |
| Materials - Left Side Panel | Grey TG + Steel |
| Dimensions (L x W x H) | 406 x 231 x 415mm (Incl. Protrusions), 380 x 231 x 381mm (excl. Protrusions) |
| Volume | 33.44L (excl. Protrusions) |
| Motherboard Support | ITX / Micro ATX / ATX / E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU) |
| Expansion Slots | 7 |
| 3.5" Drive Bays | 4 |
| 2.5" Drive Bays | 3 |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Pre-installed Fans - Rear | QUBE 500 Flatpack: 1x 120mm (1800 RPM) SF Black PWM, QUBE 500 Flatpack White: 1x 120mm (1800 RPM) SF White PWM |
| Fan Support - Front | 1x 120/140mm (x2 if PSU is mounted in bottom) |
| Fan Support - Top | 2x 120/140mm |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Bottom | 2x 120/140mm |
| Fan Support - Left side | 2x 120/140mm |
| Radiator Support - Front | 120/140 mm (240/280mm w/ PSU in bottom) |
| Radiator Support - Top | 120 / 140 / 240 / 280mm (280mm can be used within 53mm thickness) |
| Radiator Support - Rear | 120mm |
| Radiator Support - Bottom | 120 / 140 / 240 / 280mm |
| Radiator Support - Left side | 120 / 140 / 240 / 280mm |
| Clearance - CPU Cooler | 164mm-172mm (Remove the water cooling bracket) |
| Clearance - PSU | 173mm to first GPU slot, 216 maximum space (w/o cable management space), 332mm space mounted in bottom (w/o cable management space) |
| Clearance - GFX | 365mm |
| Cable Routing - Behind Motherboard Tray | 29-32mm |
| Handle | QUBE 500 Flatpack: Black x 1, QUBE 500 Flatpack White: Grey x 1 |
| Gem Mini | QUBE 500 Flatpack: Black x 1, QUBE 500 Flatpack White: Grey x 1 |
| Dust Filters | Front, Top, Bottom, Right side |
| Power Supply Support | SFX / SFX-L / ATX |
| Case Warranty | 2 years |
| Case Size | Mid Tower |
| Case Series | QUBE Series |
| Back Connector Motherboard Support | No |

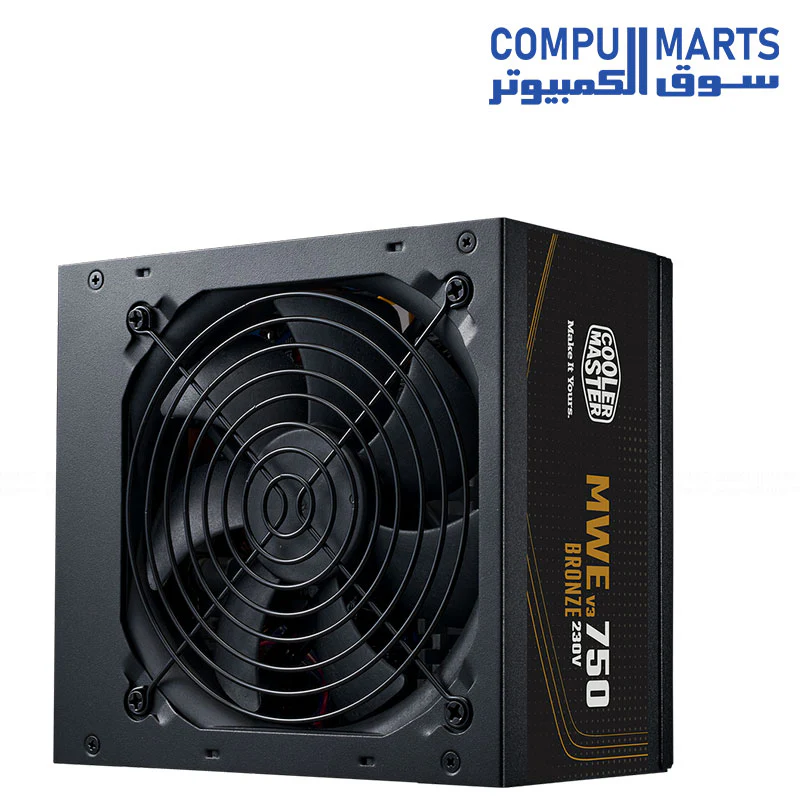

| PSU Model | MPE-7501-ACABW-3B |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 200-240V |
| Input Current | 6A |
| Input Frequency | 50-60Hz |
| PSU Dimensions (L x W x H) | 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Efficiency | >88% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Bronze EU 230V |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | >16ms |
| MTBF | >100,000 Hours |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.) |
| ATX 24 Pin Connectors | 1 |
| EPS 8 Pin / 4+4 Pin Connectors | 2 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| PCI-e 6+2 Pin Connectors | 4 |
| PSU Warranty | 5 Years |
| PSU Series | MWE Bronze Series |
| Category | 500 to 750W |
| Modular | Non Modular |
| 80 Plus Efficiency | Bronze |
| Form Factor | ATX |
| Watts | 750W |
