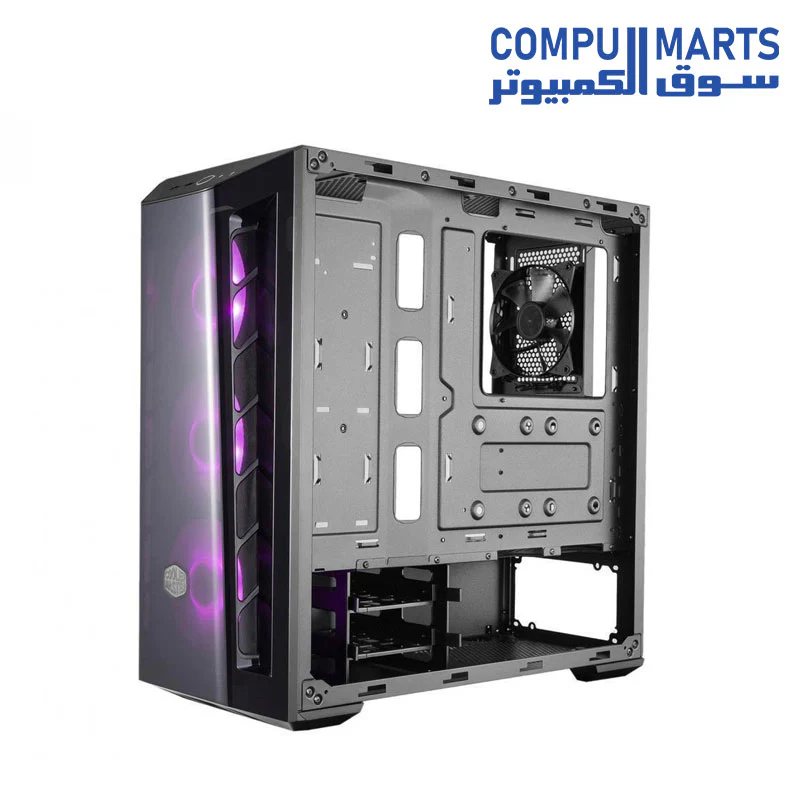

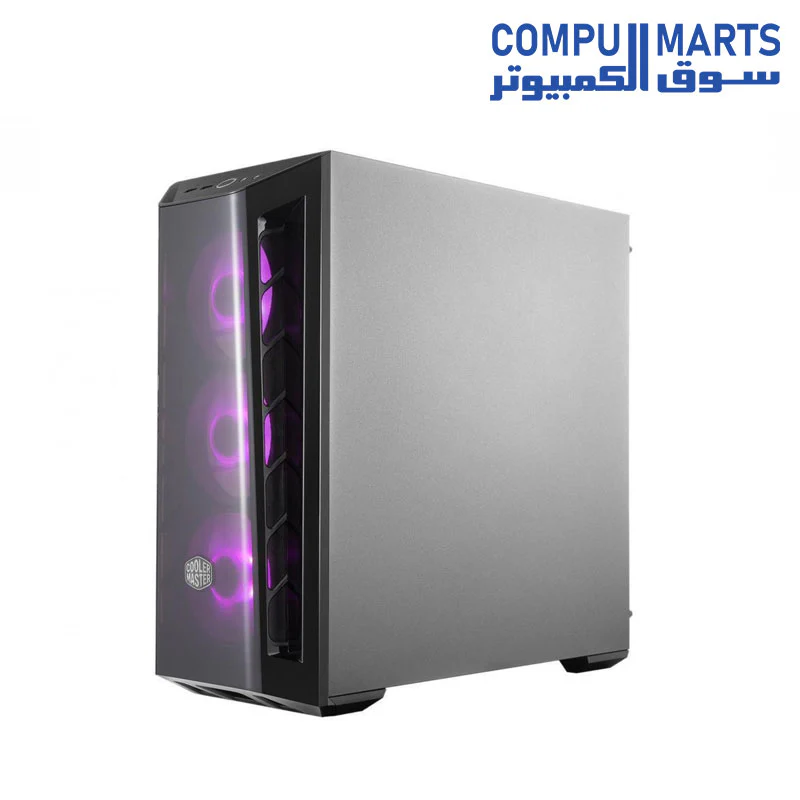

Cooler Master MasterBox MB520 ARGB Mid Tower Case
A LOOK THROUGH THE DARKMIRROR
Showing off your rig through a smoked front panel is something you didn’t know you needed. The DarkMirror front panel enriches the contrast from hardware lighting, creating a picturesque display of the internal components. To cool gaming systems built inside, mesh ventilation is found on the entire length of the front panel’s sides, ensuring that the three included ARGB fans are fed with a considerable amount of air.
If you’re thinking about thermal upgrades, the MasterBox MB520 ARGB supports up to seven fans and front and rear liquid cooling for high-demand builds. Paired with a tempered glass side panel and additional top ventilation, your build can look, and play, exactly as you dreamed it would.

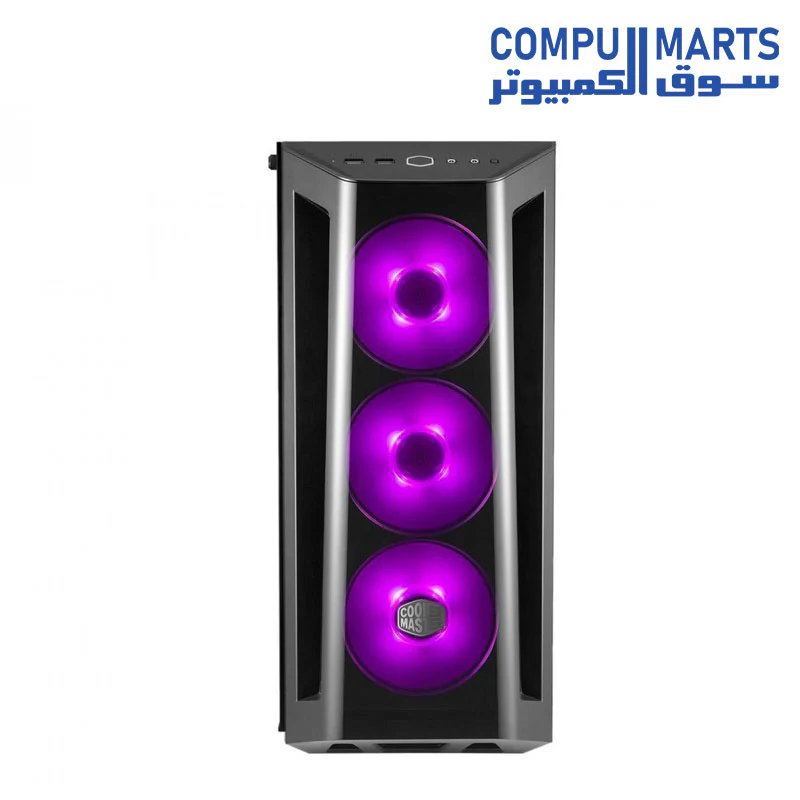

DARKMIRROR FRONT PANEL
Shade light through the DarkMirror front panel for a sharper contrast of the ARGB fans.
MESH INTAKES
Large, mesh intakes on each side of the front panel provide considerable airflow to system.
ARGB LIGHTING SYSTEM
Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

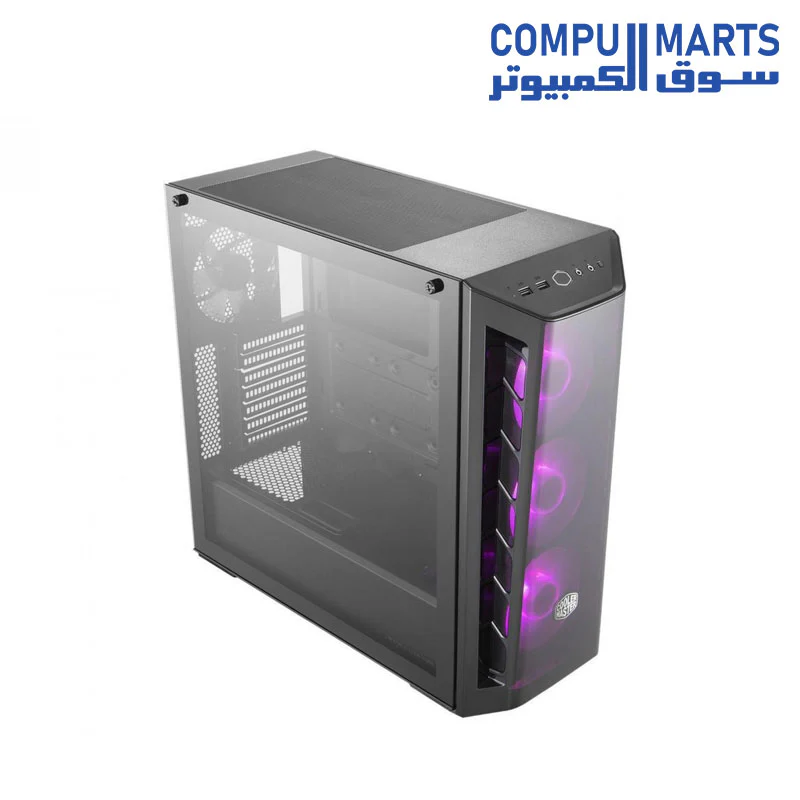

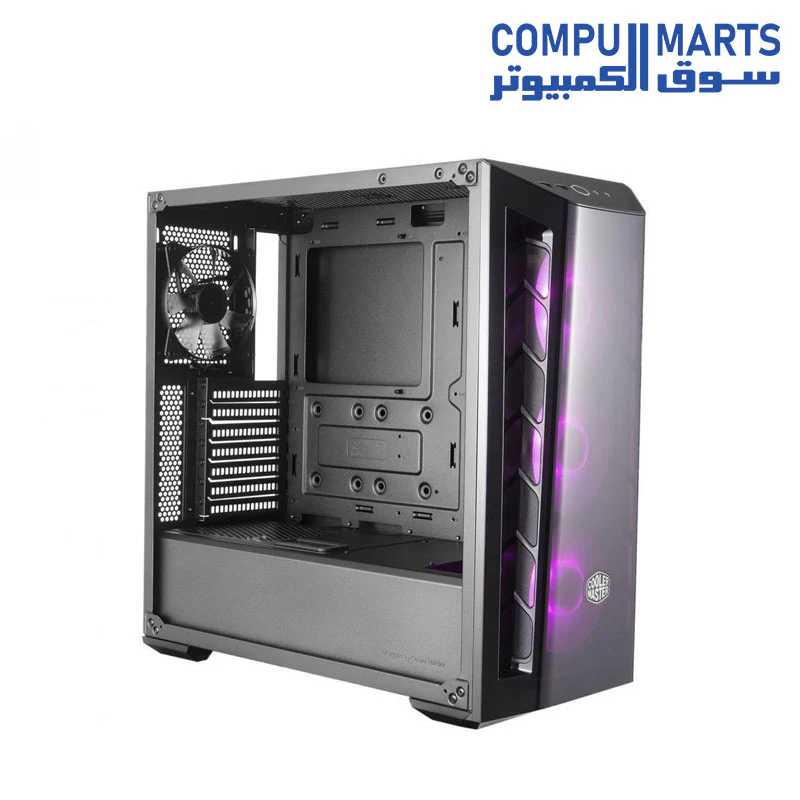

TEMPERED GLASS SIDE PANEL
Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.

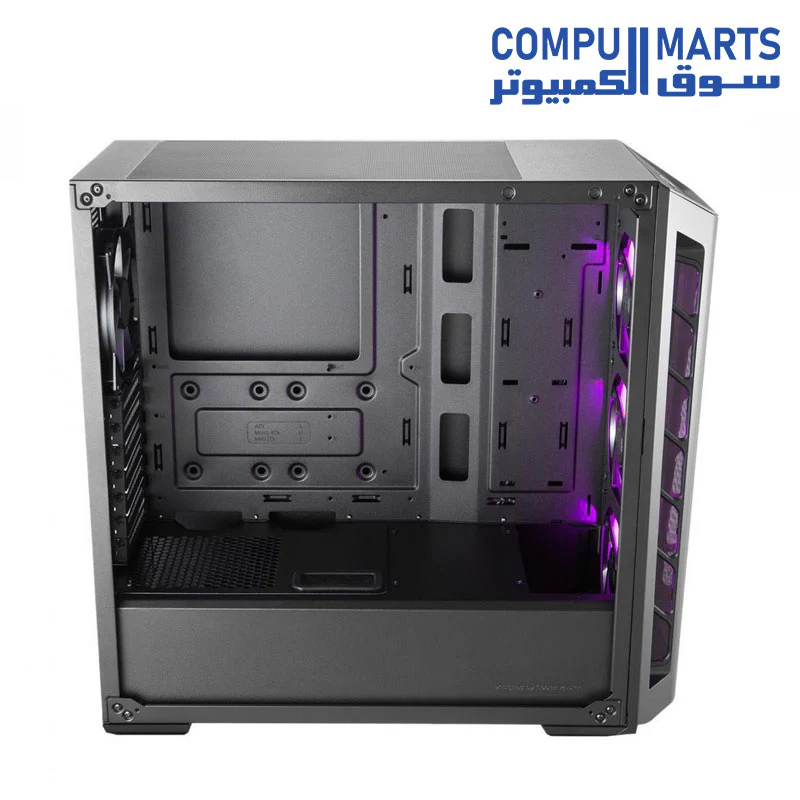

VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.
SICKLEFLOW PWM FANS INCLUDEDNewly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence
|
|
|
|
|
|
Materials
|
Steel, Plastic, Tempered Glass
|
|
Dimensions (L x W x H)
|
496 x 217 x 469 mm
|
|
|
|
Motherboard Support
|
Mini ITX, Micro ATX, ATX, SSI CEB*, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature)
|
|
|
|
|
|
2.5" / 3.5" Drive Bays (Combo)
|
2 (Max.2)
|
|
2.5" Drive Bays
|
4 (Max.6)
|
|
I/O Panel
|
2 x USB 3.2 Gen 1 (USB 3.0), 1 x 3.5mm Audio Jack,1 x 3.5mm Mic Jack, 1x ARGB/PWM Hub (may depend on region and model)
|
|
Pre-installed Fans - Front
|
3x 120mm 650~1800RPM SickleFlow PWM ARGB
|
|
Pre-installed Fans - Rear
|
1x 120mm 1000-1400RPM MasterFan Lite
|
|
Fan Support - Top
|
3x 120mm, 2x 140mm
|
|
Fan Support - Front
|
3x 120mm, 2x 140mm
|
|
Fan Support - Rear
|
1x 120mm
|
|
Radiator Support - Top
|
120mm, 240mm, 360mm, (44mm max motherboard component height)
|
|
Radiator Support - Front
|
120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance)
|
|
Radiator Support - Rear
|
120mm
|
|
Clearance - CPU Cooler
|
165mm / 6.49"
|
|
Clearance - PSU
|
180mm/7.08"
|
|
Clearance - GFX
|
410mm/16.1"
|
|
|
|
Dust Filters
|
Top, Front, Bottom
|
|
Power Supply Support
|
Bottom Mount, ATX
|
|
Model Number
|
MCB-B520-KGNN-RGA
|

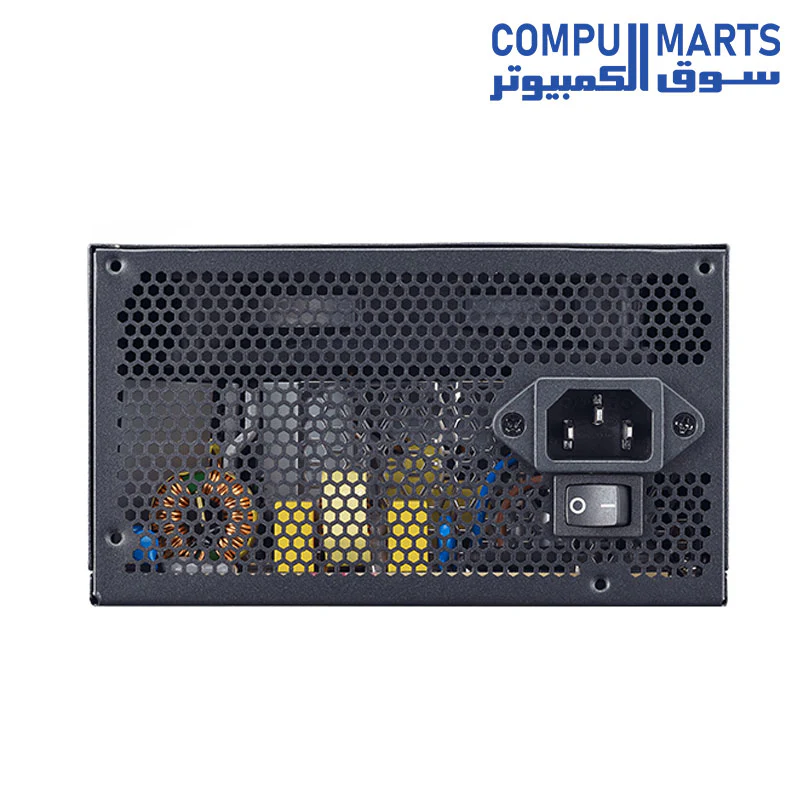

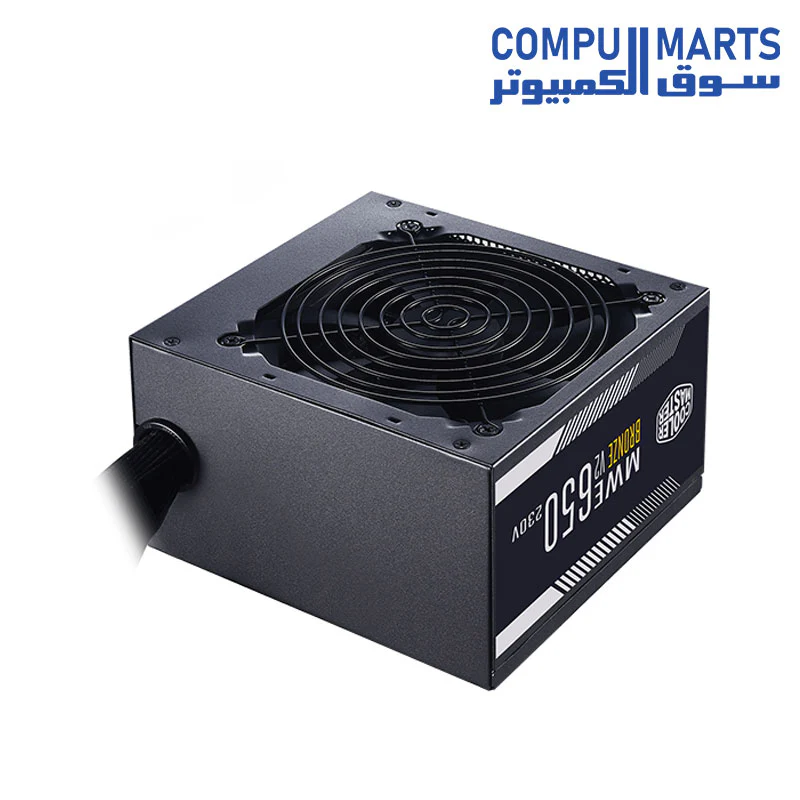

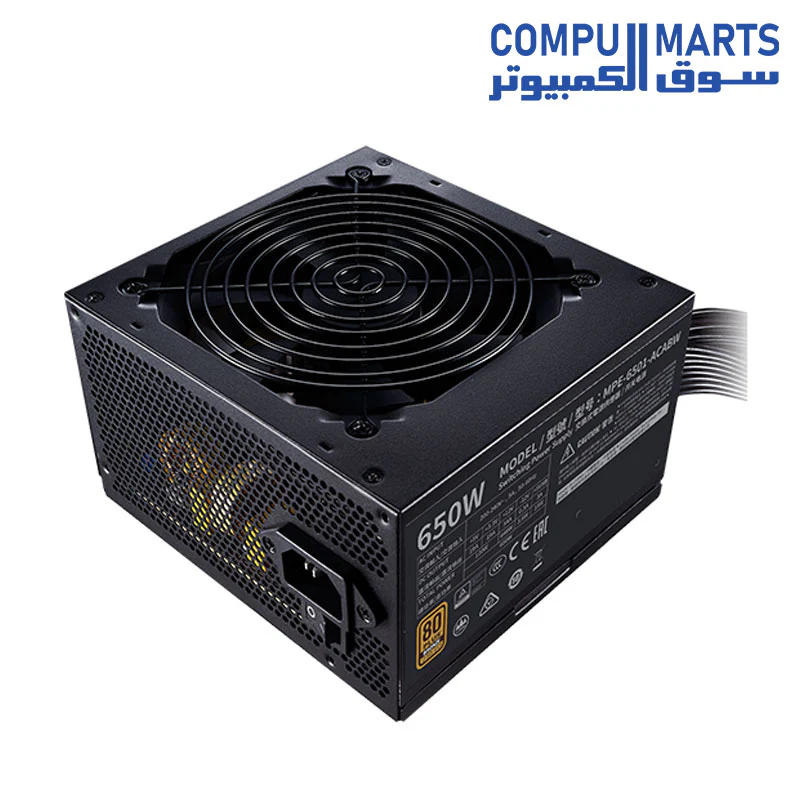

DC-TO-DC CIRCUIT DESIGN
Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your components need requires special components to complete this process quickly, efficiently, and safely. The MWE Bronze's DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS Bronze efficiency, and reduced risk to your connected components.
80 PLUS BRONZE CERTIFIED
It's important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn't need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn't necessarily either of those things. The MWE Bronze V2 guarantees a typical efficiency of 85% while being both safe and reliable.

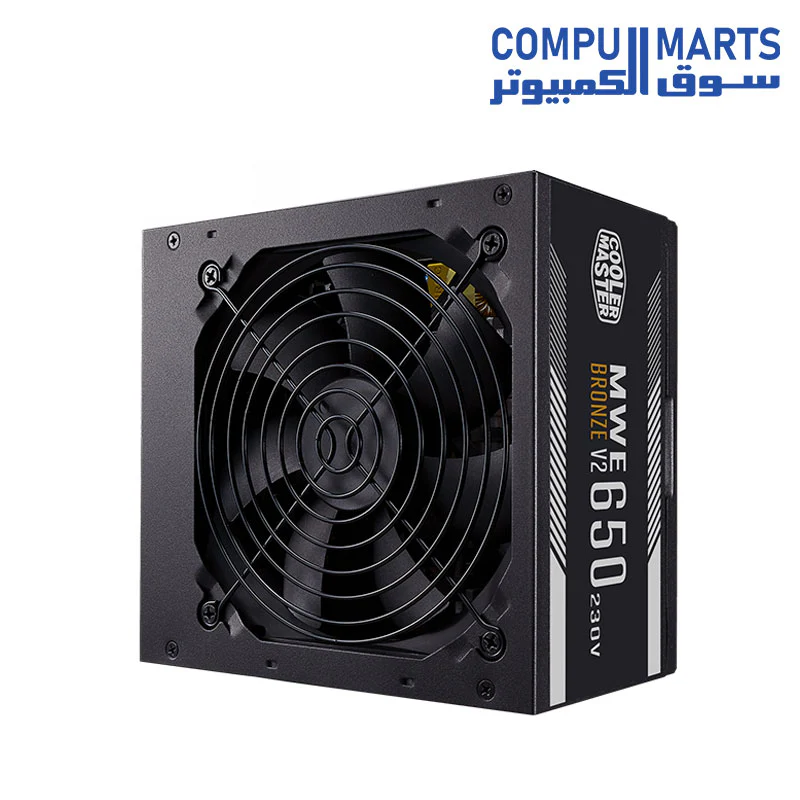

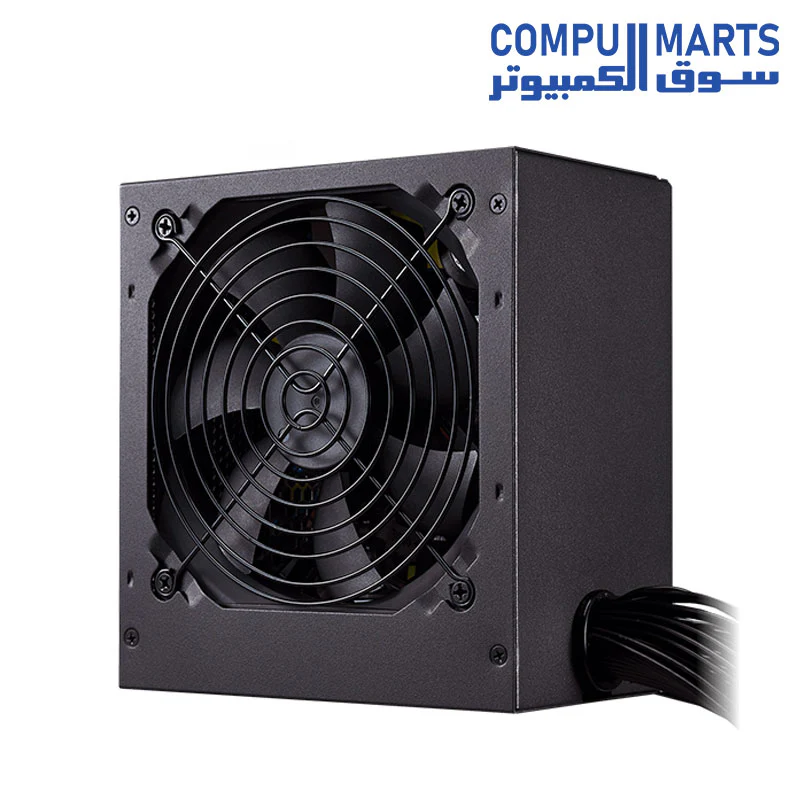

120MM HDB FAN
The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE Bronze's solution to this problem is a thermally sensitive 120mm HDB fan. It spins based on the system's temperature, constantly adjusting to keep your PSU running smoothly and safely with the minimum amount of noise required.
SINGLE +12V RAIL
Getting power from the wall to the PSU and then to your components is a tricky situation. The power comes in one voltage level, but your components need a different one. That power has to first be transferred to/through a converter in order to make it safe for your parts to use without overloading.
The lines/rails used to initially move power from the wall to the converter need to be reliable and consistent to ensure your system's overall performance. That's why the MWE Bronze only uses one +12V rail for this process. This way all the components in your system are constantly fed the same power from the same source in order to guarantee consistency between all connections.
|
|

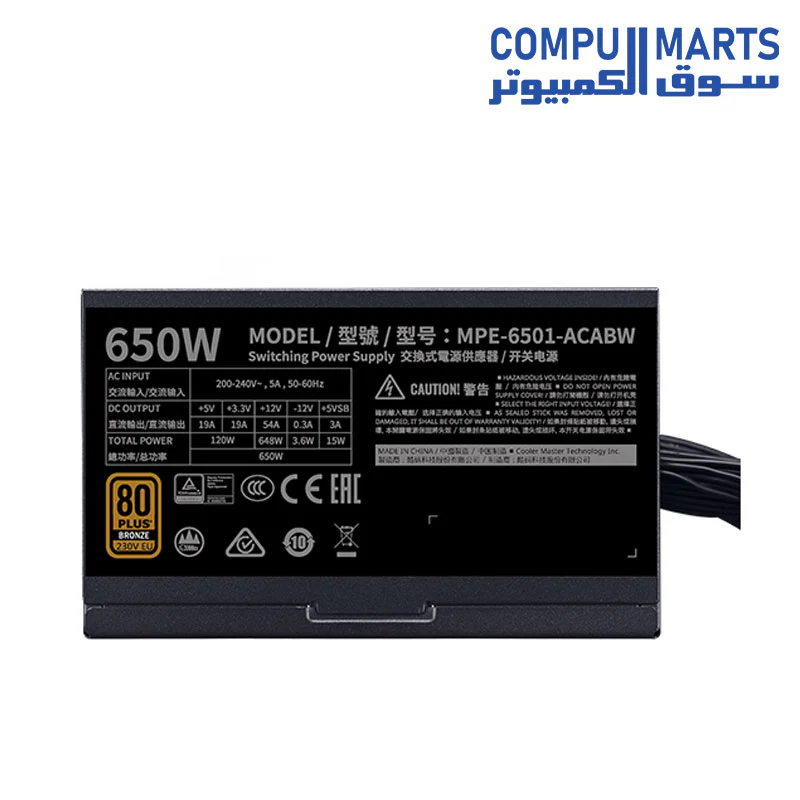

ATX Version
|
ATX 12V V2.52
|
|
|
|
|
|
|
|
|
|
Dimensions (L x W x H)
|
140 x 150 x 86 mm
|
|
|
|
|
|
|
|
Noise Level 20%
|
16.54 dBA
|
|
|
|
Noise Level 100%
|
42.5 dBA
|
|
|
|
80 PLUS Rating
|
80 PLUS Bronze EU 230V
|
|
|
|
Power Good Signal
|
100 - 500 ms
|
|
Hold Up Time
|
>14ms at 100% Full Load 230Vac
|
|
|
|
Protections
|
OVP, OPP, SCP, UVP, OTP
|
|
Regulatory
|
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
|
|
|
|
|
|
|
|
|
|
Peripheral 4 Pin Connectors
|
3
|
|
PCI-e 6+2 Pin Connectors
|
4
|
|
|
|
|
|
|
|
|
|
