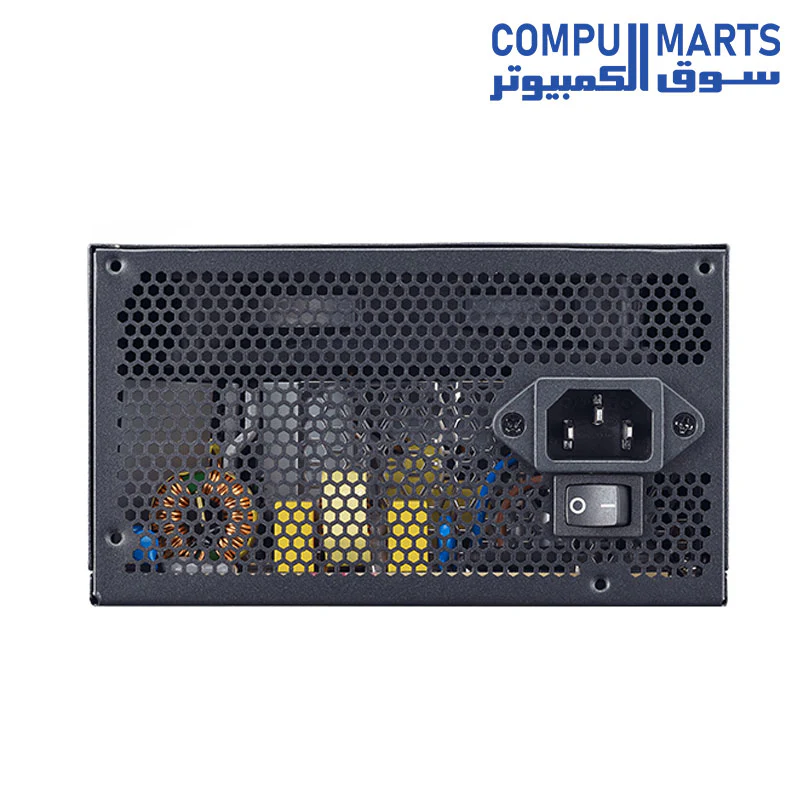

Cooler Master MASTERBOX MB511 ARGB + Cooler Master Power Supply MWE 650 BRONZE - V2
80 PLUS BRONZE EFFICIENCY
The efficiency of your power supply unit is important because it directly affects you system’s performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit’s ability to move power from the wall to your components. The higher a PSU’s efficiency is, the lower the total amount of power it needs to power your system. The MWE Bronze series has an 80 PLUS Bronze efficiency rating, meaning it has a guaranteed typical efficiency of 85%.
DC-TO-DC CIRCUIT DESIGN
Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your parts need requires special components to complete this process quickly, efficiently, and safely. The MWE Bronze’s DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS Bronze efficiency, and reduced risk to your connected hardware.

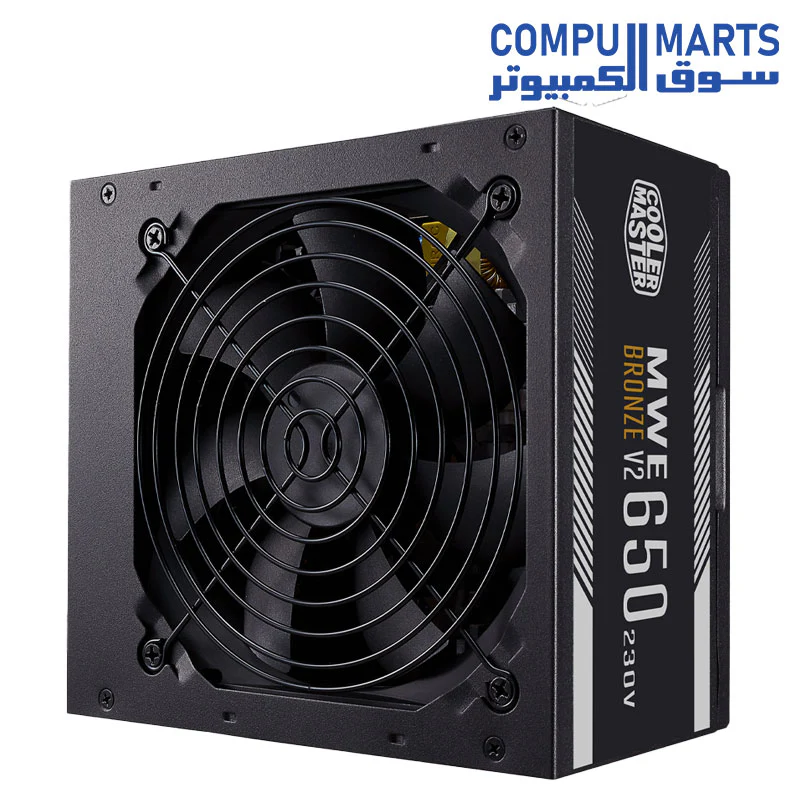

120MM HDB FAN
The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE Bronze tackles this problem with a 120mm HDB fan. The hydro dynamic fan bearing creates less friction, making it great for low RPM operations. This technology keeps the fan running smoothly and efficiently for longer, keeping the noise level down and extending the lifespan of the PSU.
|
|
ATX Version
|
ATX 12V V2.52
|
|
|
|
|
|
|
|
|
|
Dimensions (L x W x H)
|
140 x 150 x 86 mm
|
|
|
|
|
|
|
|
Noise Level 20%
|
11.06 dBA
|
|
|
|
Noise Level 100%
|
41.3 dBA
|
|
|
|
80 PLUS Rating
|
80 PLUS Bronze
|
|
|
|
Operating Temperature
|
40°C
|
|
Power Good Signal
|
100 - 500 ms
|
|
Hold Up Time
|
>18ms at 100% Full Load 230Vac
|
|
|
|
Protections
|
OVP, OPP, SCP, UVP, OTP
|
|
Regulatory
|
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
|
|
|
|
|
|
|
|
|
|
Peripheral 4 Pin Connectors
|
4
|
|
PCI-e 6+2 Pin Connectors
|
4
|
|
|
|
|
|
|
|
|
|

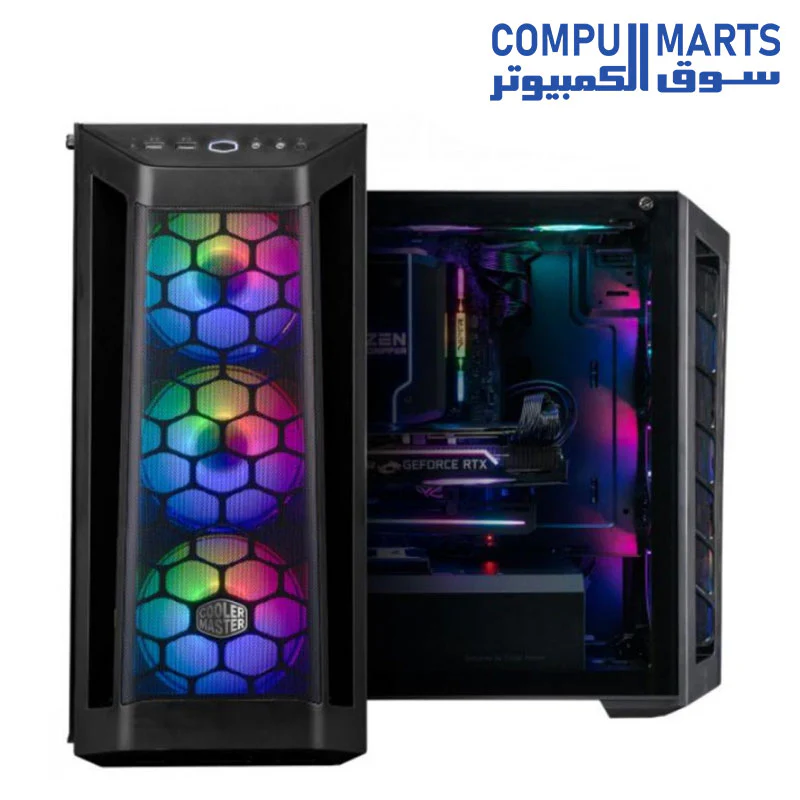

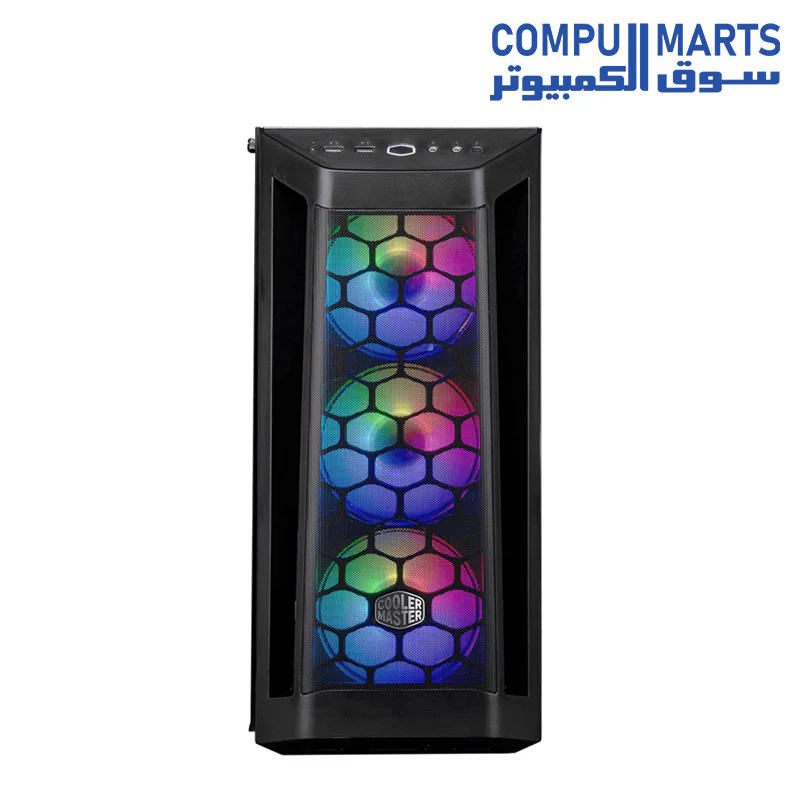

FINE MESH FRONT PANEL
The Fine Mesh design on the front panel is proven, by reviewers and critics alike, to provide considerable airflow while simultaneously filtering out dust. Light also refracts and behaves uniquely to the Fine Mesh, creating a halo effect against the included ARGB fans.
ARGB LIGHTING SYSTEM
Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

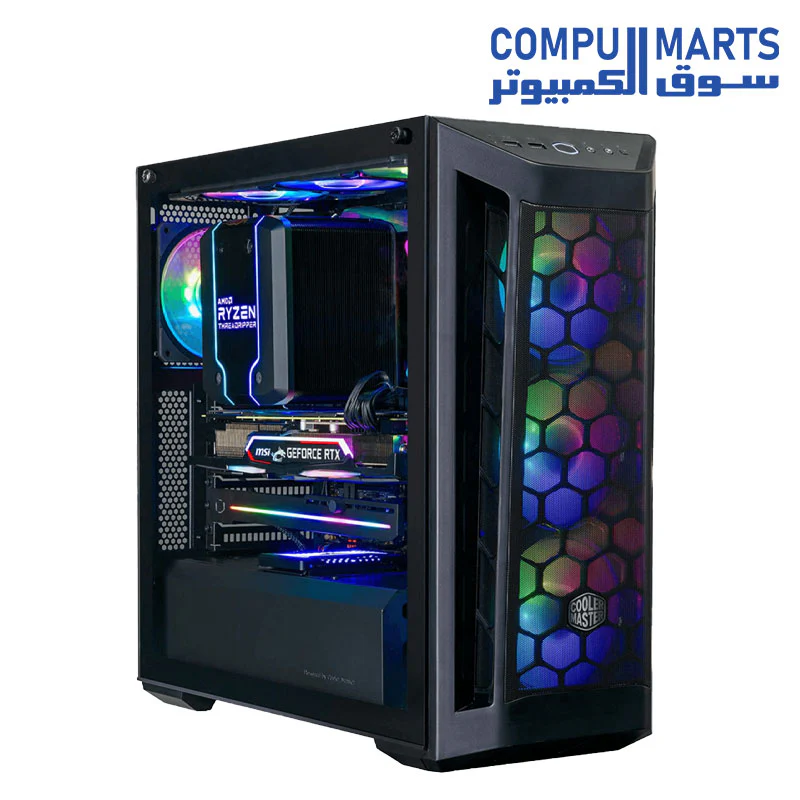

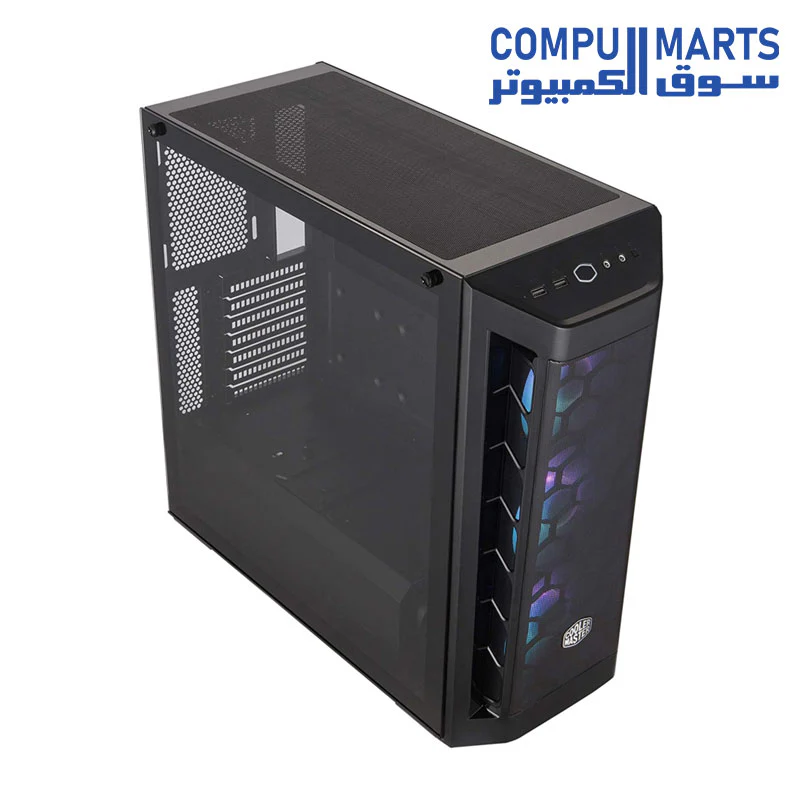

TEMPERED GLASS SIDE PANEL
Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.
SICKLEFLOW PWM FANS INCLUDED
Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.
Model Number
|
MCB-B511D-KGNN-RGA
|
|
|
|
Materials
|
Steel, Plastic, Tempered Glass
|
|
Dimensions (L x W x H)
|
496 x 217 x 469 mm
|
|
|
|
Motherboard Support
|
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX, (support for up to 12" x 10.7", will limit cable management features)
|
|
|
|
|
|
2.5" / 3.5" Drive Bays (Combo)
|
2 (Max.2)
|
|
2.5" Drive Bays
|
5 (Max.6)
|
|
I/O Panel
|
2 x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB/PWM Hub (may depend on region and model)
|
|
Pre-installed Fans - Front
|
3x 120mm 650~1800RPM SickleFlow PWM ARGB
|
|
Fan Support - Top
|
3x 120mm, 2x 140mm
|
|
Fan Support - Front
|
3x 120mm, 2x 140mm
|
|

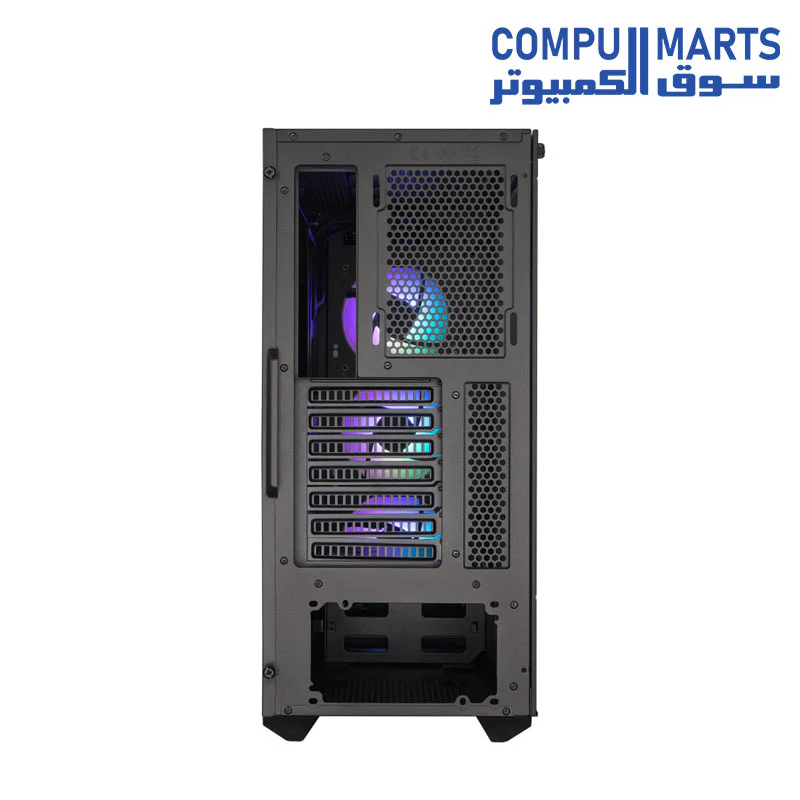

Fan Support - Rear
|
1x 120mm
|
|
Radiator Support - Top
|
120mm, 240mm, 360mm, (44mm max motherboard component height)
|
|
Radiator Support - Front
|
120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance)
|
|
Radiator Support - Rear
|
120mm
|
|
Clearance - CPU Cooler
|
165mm / 6.49"
|
|
Clearance - PSU
|
180mm/7.08"
|
|
Clearance - GFX
|
410mm/16.1"
|
|
Dust Filters
|
Front, Top, Bottom
|
|
Power Supply Support
|
Bottom Mount, ATX
|
|
|
|
|
|
|
|
|
|
|
