$458.04

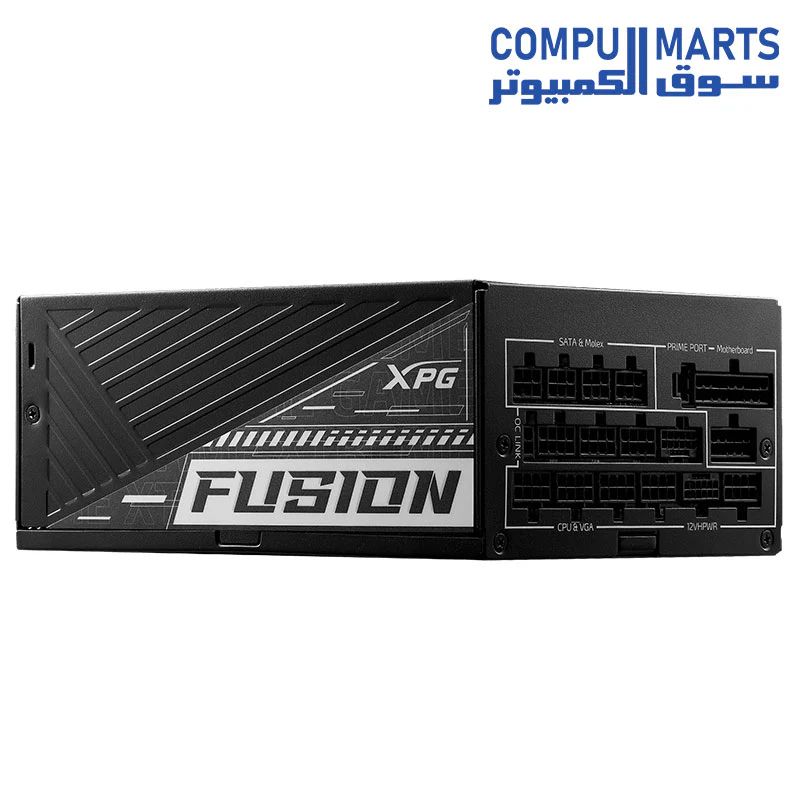

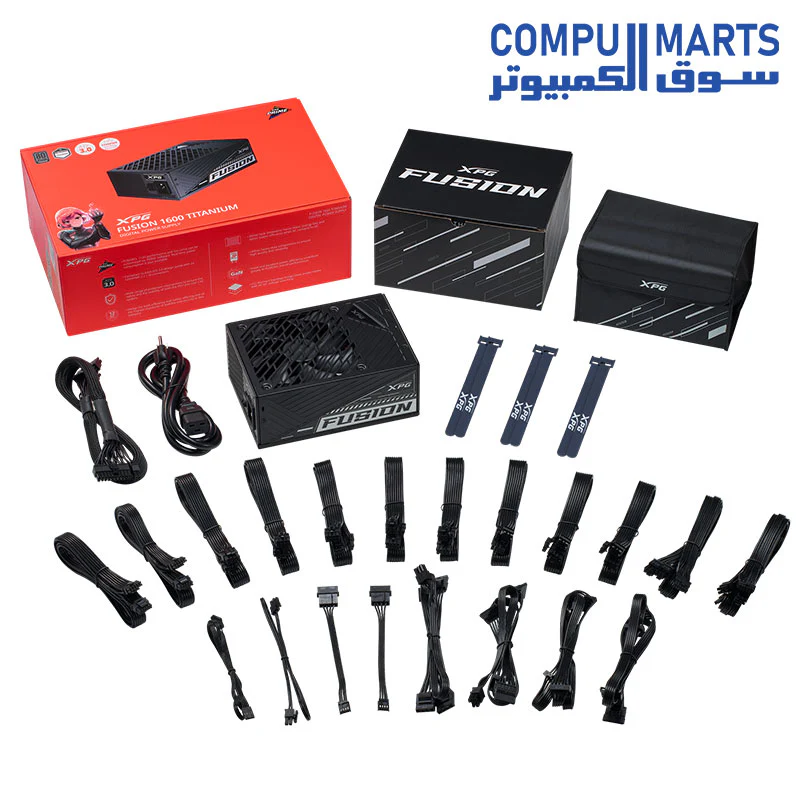

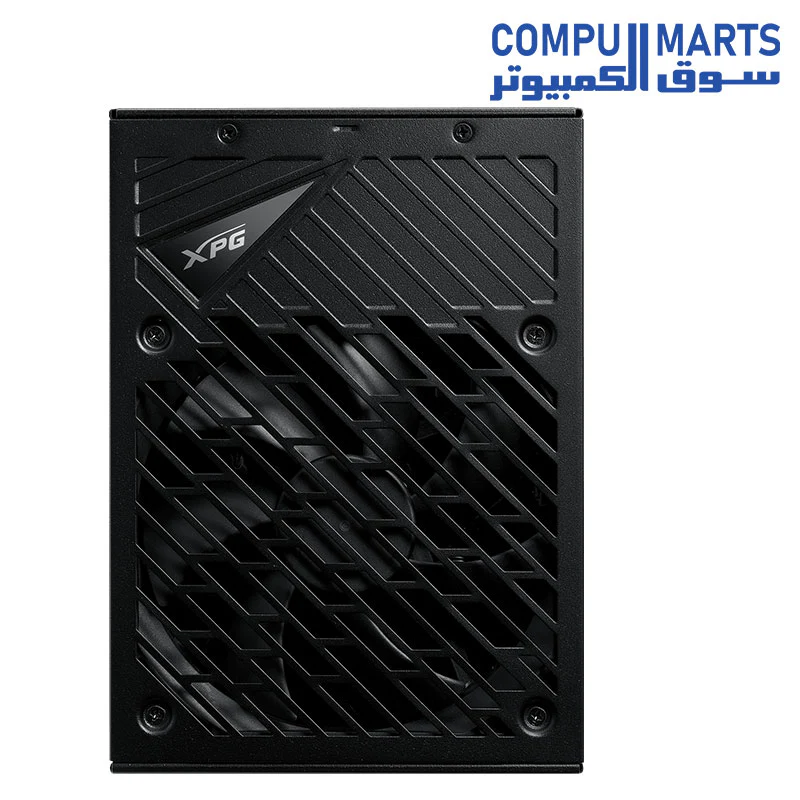

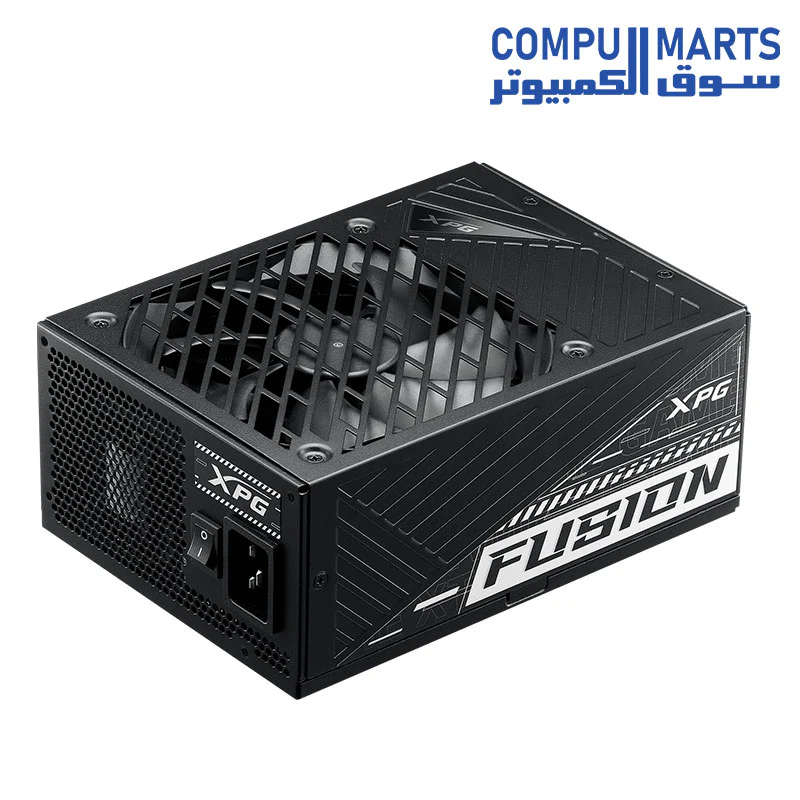

XPG FUSION 1600 TITANIUM Power Supply—
$458.04
The Story
| Category | Specification Details |
|---|---|
| Product Name | XPG FUSION 1600 TITANIUM Power Supply |
| Dimensions (L x W x H) | 210 x 150 x 86mm |
| Efficiency Ratings | 80 Plus TITANIUM | Cybenetics TITANIUM |
| ATX Version | ATX 3.0 & ATX 3.1 Compatible |
| Total Output | 1600W (at 200-240V) | 1300W (at 100-115V) |
| Power Excursion | 3760W (Up to 235% of rated power for 100μs) |
| Protections | OCP, OVP, OPP, OTP, UVP, SCP, NLO, SIP |
| Cooling Fan | 135mm Double Ball Bearing | 2700 ± 10% RPM |
| 12V-2x6 / 12VHPWR Connectors | 2 x (12+4) Pin (600W support each) |
| Cabling Connectors | 1x ATX 24-Pin, 2x EPS 8-Pin, 10x PCI-E 6+2 Pin, 12x SATA, 4x Molex, 1x Floppy |
| Reliability (MTBF) | 125,000 hours @ 25°C |
| Weight | Total: ~4.34kg (PSU + Cables) |
| Warranty | 12 Years |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Product Name | XPG FUSION 1600 TITANIUM Power Supply |
| Dimensions (L x W x H) | 210 x 150 x 86mm |
| Efficiency Ratings | 80 Plus TITANIUM | Cybenetics TITANIUM |
| ATX Version | ATX 3.0 & ATX 3.1 Compatible |
| Total Output | 1600W (at 200-240V) | 1300W (at 100-115V) |
| Power Excursion | 3760W (Up to 235% of rated power for 100μs) |
| Protections | OCP, OVP, OPP, OTP, UVP, SCP, NLO, SIP |
| Cooling Fan | 135mm Double Ball Bearing | 2700 ± 10% RPM |
| 12V-2x6 / 12VHPWR Connectors | 2 x (12+4) Pin (600W support each) |
| Cabling Connectors | 1x ATX 24-Pin, 2x EPS 8-Pin, 10x PCI-E 6+2 Pin, 12x SATA, 4x Molex, 1x Floppy |
| Reliability (MTBF) | 125,000 hours @ 25°C |
| Weight | Total: ~4.34kg (PSU + Cables) |
| Warranty | 12 Years |
