Select Watt
From $0.02
XPG Cybercore II 1000W / 1300W 80 Plus Platinum Fully Modular ATX 3.1 Power Supply – 10 Years Warranty—
$0.02
The Story
| Category | Specification Details |
|---|---|
| Model | XPG Cybercore II (1000W / 1300W Variants) |
| Efficiency Rating | 80 Plus Platinum | Cybenetics Platinum |
| Standard | ATX 3.1 (Latest PCIe 5.1 / 12V-2x6 Support) |
| Dimensions | 160 x 150 x 86mm (Compact high-wattage design) |

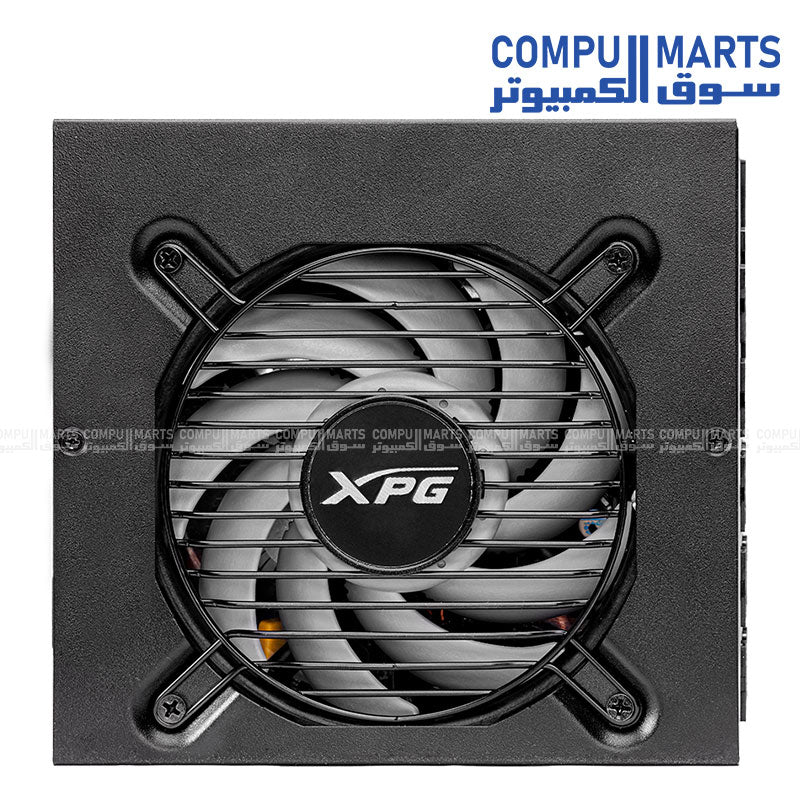

| Fan Type | 120mm Nidec Vento Pro (Double Ball Bearing) | 2,150 RPM |
| Power Excursion | Up to 235% of rated power for 100μs |
| 12V-2x6 Connector | 1x Native (600W support) |
| Protections | OCP, OVP, OPP, OTP, UVP, SCP, NLO, SIP |
| PCI-E 6+2 Pin | 1300W: 10 Connectors | 1000W: 6 Connectors |
| SATA / Molex | 1300W: 12 SATA / 8 Molex | 1000W: 8 SATA / 4 Molex |
| Reliability (MTBF) | 125,000 Hours @ 25°C |
| Warranty | 10 Years Limited Warranty |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | XPG Cybercore II (1000W / 1300W Variants) |
| Efficiency Rating | 80 Plus Platinum | Cybenetics Platinum |
| Standard | ATX 3.1 (Latest PCIe 5.1 / 12V-2x6 Support) |
| Dimensions | 160 x 150 x 86mm (Compact high-wattage design) |
| Fan Type | 120mm Nidec Vento Pro (Double Ball Bearing) | 2,150 RPM |
| Power Excursion | Up to 235% of rated power for 100μs |
| 12V-2x6 Connector | 1x Native (600W support) |
| Protections | OCP, OVP, OPP, OTP, UVP, SCP, NLO, SIP |
| PCI-E 6+2 Pin | 1300W: 10 Connectors | 1000W: 6 Connectors |
| SATA / Molex | 1300W: 12 SATA / 8 Molex | 1000W: 8 SATA / 4 Molex |
| Reliability (MTBF) | 125,000 Hours @ 25°C |
| Warranty | 10 Years Limited Warranty |
