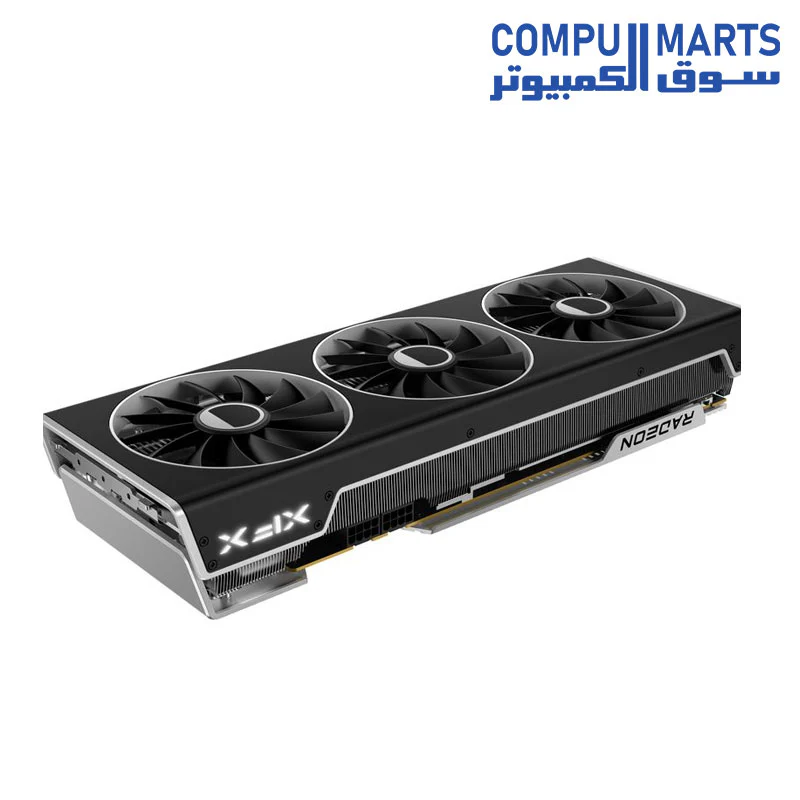

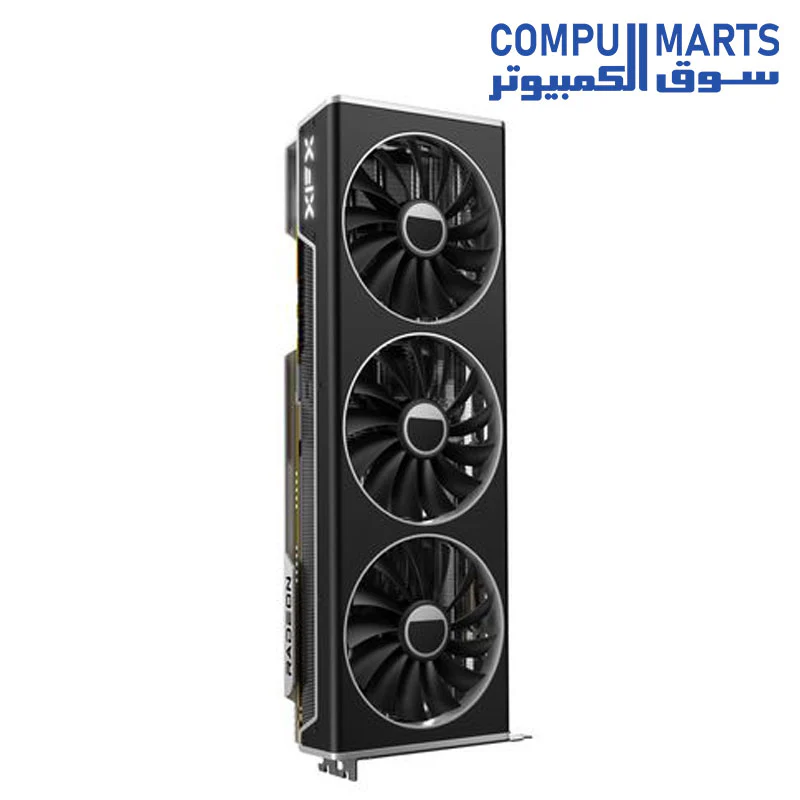

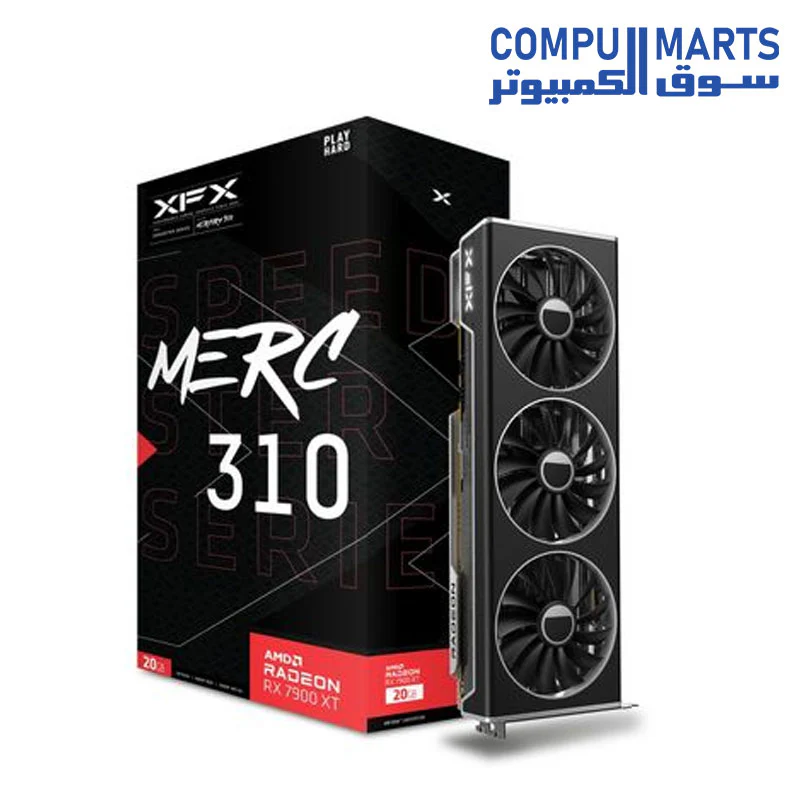

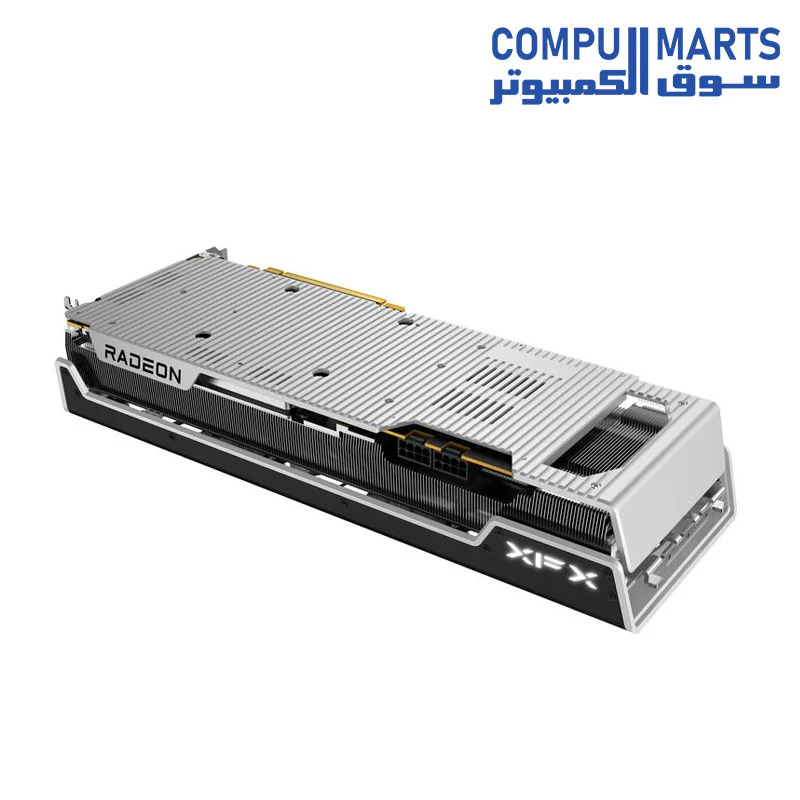

XFX SPEEDSTER MERC 310 AMD Radeon RX 7900 XT Black Edition 20GB

XFX SPEEDSTER MERC 310 AMD Radeon RX 7900 XT Black Edition 20GB

Built on the groundbreaking AMD RDNA 3 architecture with chiplet technology, AMD Radeon RX 7900 XT graphics deliver next-generation performance, visuals, and efficiency at 4K and beyond.

GAME CLOCK, UP TO : 2220 MHz

BOOST CLOCK, UP TO : 2560 MHz : GDDR6

MEMORY SIZE : 20GB

MEMORY CLOCK SPEED : 20 GBPS

Manufacturer: XFX

Model Number:RX-79TMERCB9

Product Name: AMD Radeon RX 7900 XT

Product Description: XFX SPEEDSTER MERC310 AMD Radeon RX  7900 XT Black

Edition Gaming Graphics Card with 20GB GDDR6, AMD RDNA 3

Short Description : XFX SPEEDSTER MERC310 AMD Radeon RX  7900 XT Black Edition

UPC Number: 840191500633

Specifications : BUS TYPE : PCI-E 4.0

Primary Clock Speeds:

Base clock Up to: 1810 MHz

Game Clock Up To: 2220 MHz

Boost clock Up to: 2560 MHz

Stream Processors:  5376

Compute Units: 84

Memory Bus: 320bit

Memory Clock: 20 Gbps

Memory Size: 20 GB

Memory Bandwidth: Up to 800 GB/s

Effective Memory Bandwidth: Up to 2900 GB/s

Memory Type: GDDR6

Card Profile:  2.7 slot
Thermal Solution: 3 Fan

"Game Clock" is the expected GPU clock when running in typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. "Boost Clock" is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

Outputs

DisplayPort 2.1: 2x

DisplayPort 1.4: 1x

HDMI 2.1: 1x

Requirements

External Power: 2x PCI-E 8 pin connections

Minimum Power Supply Requirement: 750 watt

Certifications

RoHS : PACKAGE CONTENTS

Warranty card - QR Code Insert: 1x

Z Support Bar: 1x

Estimated Dimensions & Weights

Card Dimension (cm) 34.4 x 12.8 x 5.5

Card Dimension (inch) 13.5 x 5.04 x 2.17

Master Carton Dimensions (cm) 46 x 39.5 x 47.5

Master Carton Dimensions (inch) 18.11 x 15.55 x 18.7

Master Carton Weight (Kg) ~15.3

Master Carton Weight (lb) ~33.73

Package Dimensions (cm) 44.5x 23.5 x 12.5

Package Dimensions (inch) 17.51 x 9.25 x 4.92

Package Weight (Kg) ~2.3

Package Weight (lb) ~5.07

Units/Carton 6

Technologies

84 AMD RDNA 3 Compute Units(with RT+AI Accelerators)

80MB AMD Infinity Cache technology

DisplayPort 2.1

AMD Radiance Display Engine

AMD Radeon Boost technology*

AMD Radeon Anti-Lag* technology*

20GB GDDR6 on 320-Bit Memory Bus
PCI Express 4.0 ready

AMD FidelityFX technologies*

AMD FidelityFX Super Resolution technology*

Microsoft DirectX 12 Ultimate

Microsoft DirectStorage

Vulkan Optimized

AMD smart technologies*

AMD Software: Adrenalin Edition application

AMD Noise Suppression*

AMD Privacy View*

AMD Radeon Super Resolution technology*

AMD Link*

AMD Freesync technology*

Key Features

HDMI 4K Support

4K H264 Decode

4K H264 Encode

H265/HEVC Decode

H265/HEVC Encode

AV1 Decode

AV1 Encode
