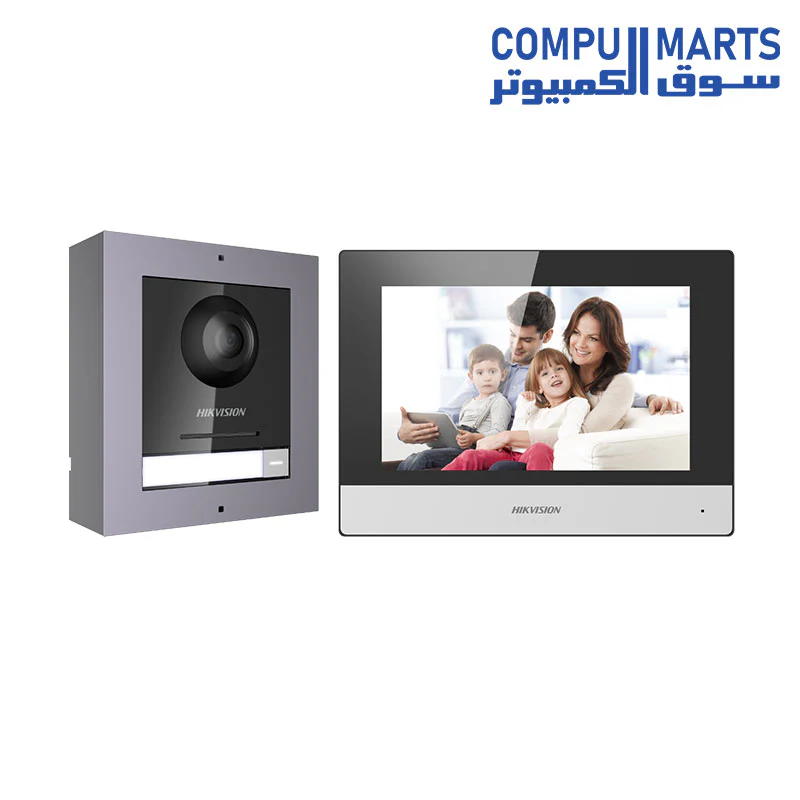

IP Video Intercom Kit Hikvision DS-KIS602 Modular Kit

 IP Video Intercom Kit Hikvision DS-KIS602 Modular Kit

• IP video intercom kit for villa or house, only one call button

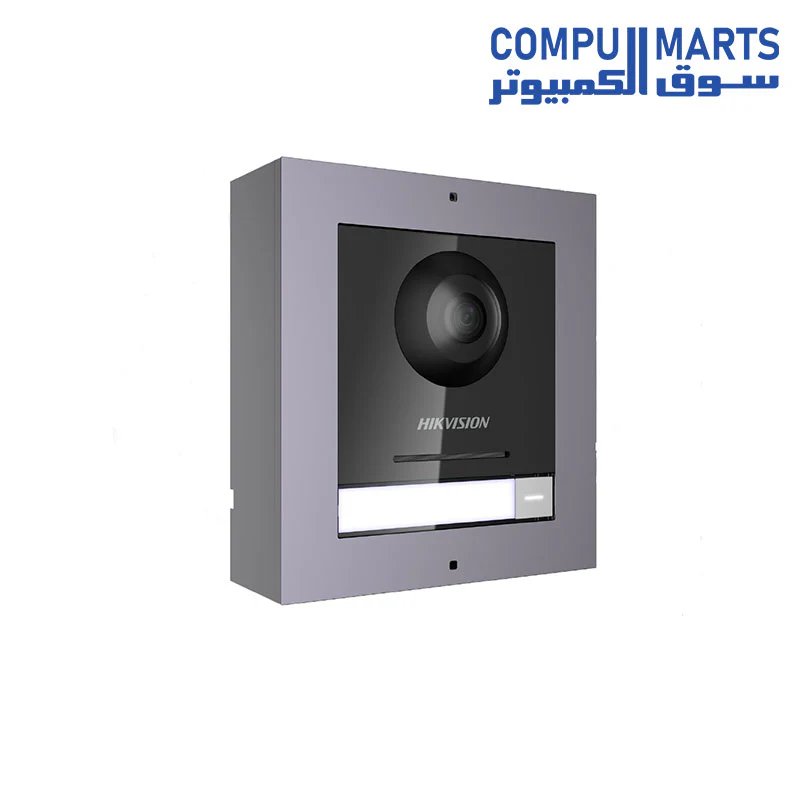

• DS-KD8003-IME1/Surface x1

• DS-KH6320-WTE1 x1

• 4 port standard PoE switch x1

• 16GB TF card x1

• European power supply adaptor included (please mark for other standards when you order)

 System Parameters

• Pocessor Embedded MCU Processor

• Operation System Embedded Linux Operation System

• Display Parameters

• Display Resolution1024 × 600

• Display Screen7-inch colorful IPS LCD

• Audio Parameters

• Audio Compression Rate64 Kbps

• Audio Compression StandardG.711 U

• Audio Input Built-in omnidirectional microphone

• Audio Output Built-in loudspeaker

• Audio Quality Noise suppression and echo cancellation

• Network Parameters

• Ethernet10/100 Mbps Self-Adaptive Ethernet

• Network Protocol TCP/IP, RTSP

• Device Interfaces

• I/O Input4

• I/O Output2

• General

• Power Supply12 VDC/PoE ( IEEE 802.3af)

• Power Consumption≤10 W

• Working Temperature-40° C to +60° C (-40° F to 140° F)

• Working Humidity10% to 95%

• Dimension (L X W X D)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")

• 683 g (with packaging)

  355 g (without packaging)

• IP Protection LevelIP65

• Memory128 MBDimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
