TP-Link TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE - TL-SF1008P
HomeStore

TP-Link TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE - TL-SF1008P

TP-Link TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE - TL-SF1008P

$14.31

Original: $47.71

-70%
TP-Link TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE - TL-SF1008P—

$47.71

$14.31

The Story

TP-Link TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE - TL-SF1008P

  • 8× 10/100 Mbps RJ45 ports

  • 4× PoE+ ports transfer data and power on individual cables

  • Works with IEEE 802.3af/at compliant PDs

  • Supports PoE Power up to 30 W for each PoE port

  • Supports PoE Power up to 66 W for all PoE ports*

  • Up to 250m data and power transmitting range under Extend Mode

  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

  • Fanless Design reduces power consumption and works silently in its location

  • Plug and play with no configuration required

HARDWARE FEATURES

Interface

8 10/100Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

Power Consumption

Maximum (PoE on): 60.2W (220V/50Hz)

Maximum (PoE off): 3.2W (220V/50Hz)

External Power Supply

External Power Adapter(Output: 48VDC / 1.25A)

Packet Forwarding Rate

1.1904 Mpps

PoE Ports (RJ45)

Standard: 802.3 af compliant

PoE Ports: Port1- Port4

Power Supply: 57W

Backbound Bandwidth

1.6Gbps

Mac Address Table

2K

Jumbo Frame

2 KB

Switching Capacity

1.6 Gbps

Dimensions ( W x D x H )

6.7*3.9*1.1 in. (171*98*27 mm)

Max Power Consumption

2.27 W (220 V/ 50 Hz. no PD connected)

75.33 W (220 V/ 50 Hz. with 66 W PD connected)

Max Heat Dissipation

7.74 BTU/h(no PD connected)

256.88 BTU/h(with 66 W PD connected)

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

Compatible With IEEE 802.3af Compliant PDs

Priority Function

Mac Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SF1008P, Power Adapter, User Guide

Consumption

2.3 watts (max. no PD connected)

59.3 watts (max. with 57w PD connected)

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

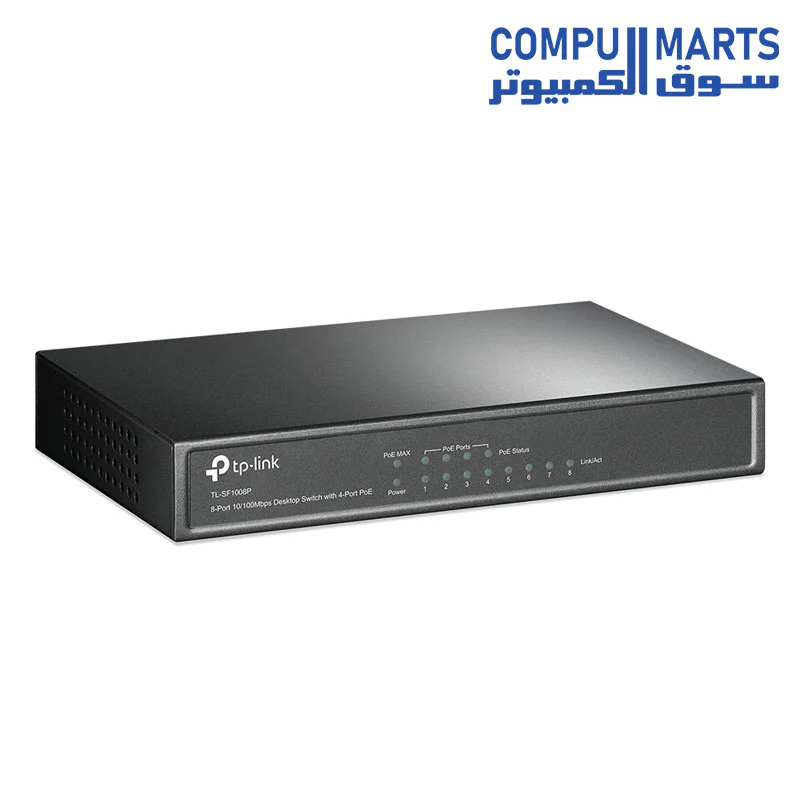

TP-Link TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE - TL-SF1008P - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

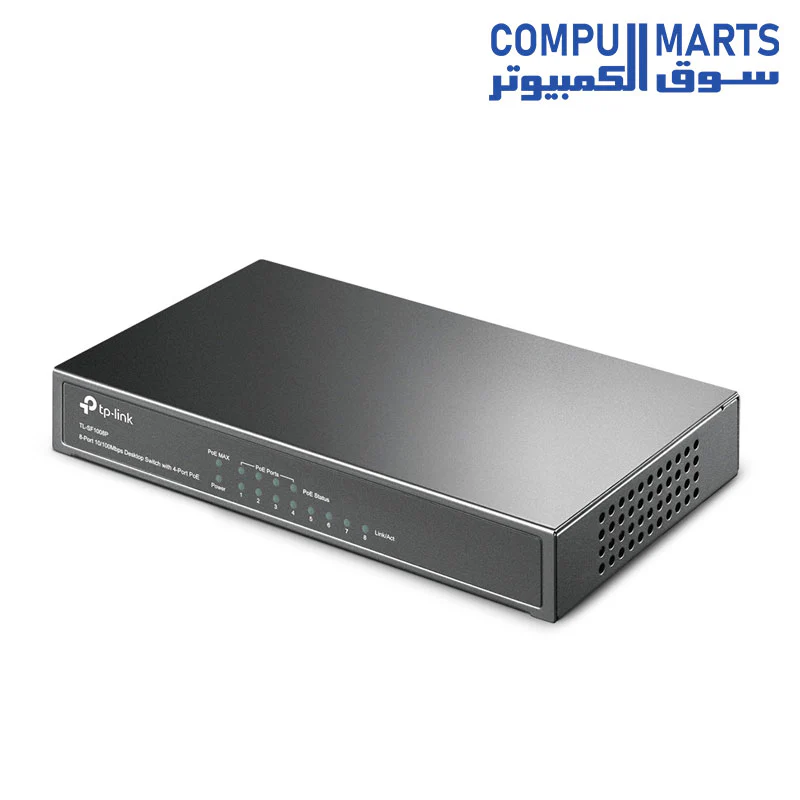

TP-Link TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE - TL-SF1008P - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

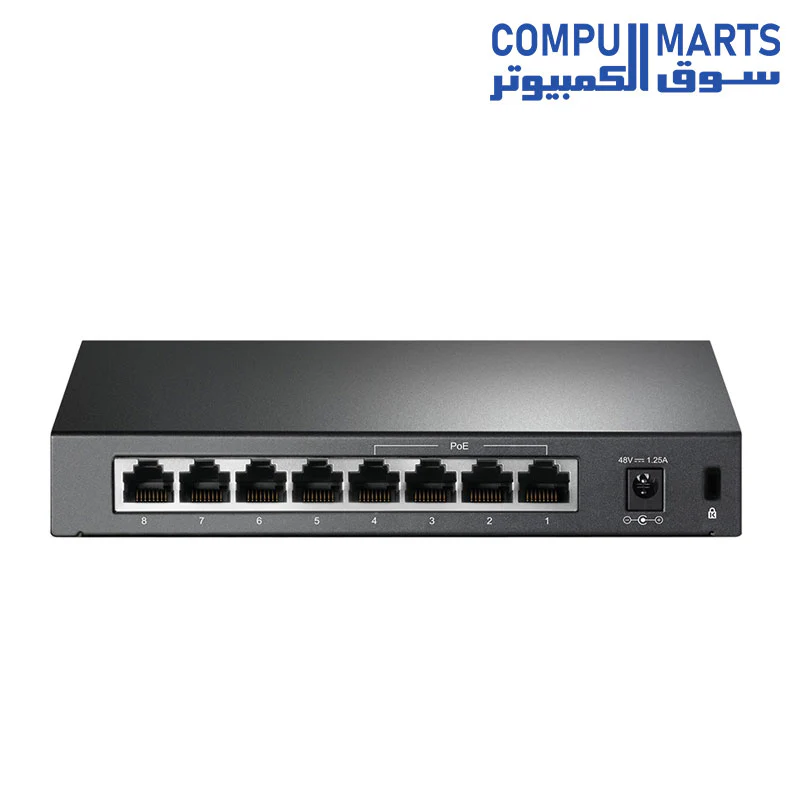

TP-Link TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE - TL-SF1008P - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

TP-Link TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE - TL-SF1008P

  • 8× 10/100 Mbps RJ45 ports

  • 4× PoE+ ports transfer data and power on individual cables

  • Works with IEEE 802.3af/at compliant PDs

  • Supports PoE Power up to 30 W for each PoE port

  • Supports PoE Power up to 66 W for all PoE ports*

  • Up to 250m data and power transmitting range under Extend Mode

  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

  • Fanless Design reduces power consumption and works silently in its location

  • Plug and play with no configuration required

HARDWARE FEATURES

Interface

8 10/100Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

Power Consumption

Maximum (PoE on): 60.2W (220V/50Hz)

Maximum (PoE off): 3.2W (220V/50Hz)

External Power Supply

External Power Adapter(Output: 48VDC / 1.25A)

Packet Forwarding Rate

1.1904 Mpps

PoE Ports (RJ45)

Standard: 802.3 af compliant

PoE Ports: Port1- Port4

Power Supply: 57W

Backbound Bandwidth

1.6Gbps

Mac Address Table

2K

Jumbo Frame

2 KB

Switching Capacity

1.6 Gbps

Dimensions ( W x D x H )

6.7*3.9*1.1 in. (171*98*27 mm)

Max Power Consumption

2.27 W (220 V/ 50 Hz. no PD connected)

75.33 W (220 V/ 50 Hz. with 66 W PD connected)

Max Heat Dissipation

7.74 BTU/h(no PD connected)

256.88 BTU/h(with 66 W PD connected)

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

Compatible With IEEE 802.3af Compliant PDs

Priority Function

Mac Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SF1008P, Power Adapter, User Guide

Consumption

2.3 watts (max. no PD connected)

59.3 watts (max. with 57w PD connected)

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
