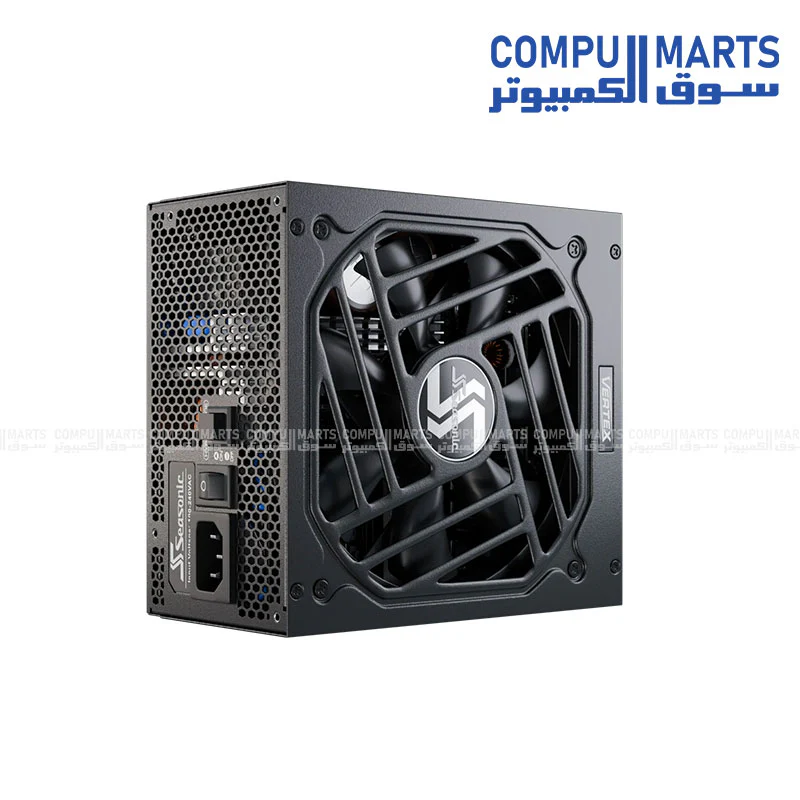

Seasonic Vertex GX-1000 1000W ATX 3.1 80+ Gold Fully Modular Power Supply with Hybrid Digital Fan, Cybenetics Platinum Efficiency, 600W PCIe 5.0, Full Protections
Seasonic Vertex GX-1000 1000W ATX 3.1 80+ Gold Fully Modular Power Supply with Hybrid Digital Fan, Cybenetics Platinum Efficiency, 600W PCIe 5.0, Full Protections
$60.12
Original: $200.40
-70%Seasonic Vertex GX-1000 1000W ATX 3.1 80+ Gold Fully Modular Power Supply with Hybrid Digital Fan, Cybenetics Platinum Efficiency, 600W PCIe 5.0, Full Protections—
$200.40
$60.12The Story
| Category | Specification Details |
|---|---|
| 80PLUS Certification | Gold |
| Cybenetics Efficiency Level | Platinum |
| Cybenetics Noise Level | A |
| Form Factor | ATX / EPS |
| Dimensions | 160 × 150 × 86 mm |
| Fan Size | 135 mm |
| Fan Control | Digital Fan Control |
| Fan Bearing | Fluid Dynamic Bearing |
| Fan Life Expectancy | 50,000 hours 40°C, 15–65% RH |
| Modularity | Fully Modular |
| Cable Type | Braided Pattern Cables |
| Operating Temperature | 0 – 50°C |
| MTBF | 25°C (excl. fan) 100,000 hours |
| AC Input Range | 100–240 V |
| AC Input Current | 13 – 6.5 A |
| AC Input Frequency | 50–60 Hz |
| Protections | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety / EMC Certifications | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 12 Years |
| DC Output Rails | +3.3V / +5V / +12V / -12V / +5VSB |
| Max Current | 25A / 25A / 83A / 0.3A / 3A |
| Max Power | 125W / 996W / 3.6W / 15W |
| Total Continuous Power | 1000W |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| 80PLUS Certification | Gold |
| Cybenetics Efficiency Level | Platinum |
| Cybenetics Noise Level | A |
| Form Factor | ATX / EPS |
| Dimensions | 160 × 150 × 86 mm |
| Fan Size | 135 mm |
| Fan Control | Digital Fan Control |
| Fan Bearing | Fluid Dynamic Bearing |
| Fan Life Expectancy | 50,000 hours 40°C, 15–65% RH |
| Modularity | Fully Modular |
| Cable Type | Braided Pattern Cables |
| Operating Temperature | 0 – 50°C |
| MTBF | 25°C (excl. fan) 100,000 hours |
| AC Input Range | 100–240 V |
| AC Input Current | 13 – 6.5 A |
| AC Input Frequency | 50–60 Hz |
| Protections | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety / EMC Certifications | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 12 Years |
| DC Output Rails | +3.3V / +5V / +12V / -12V / +5VSB |
| Max Current | 25A / 25A / 83A / 0.3A / 3A |
| Max Power | 125W / 996W / 3.6W / 15W |
| Total Continuous Power | 1000W |
