$125.97
Original: $419.89

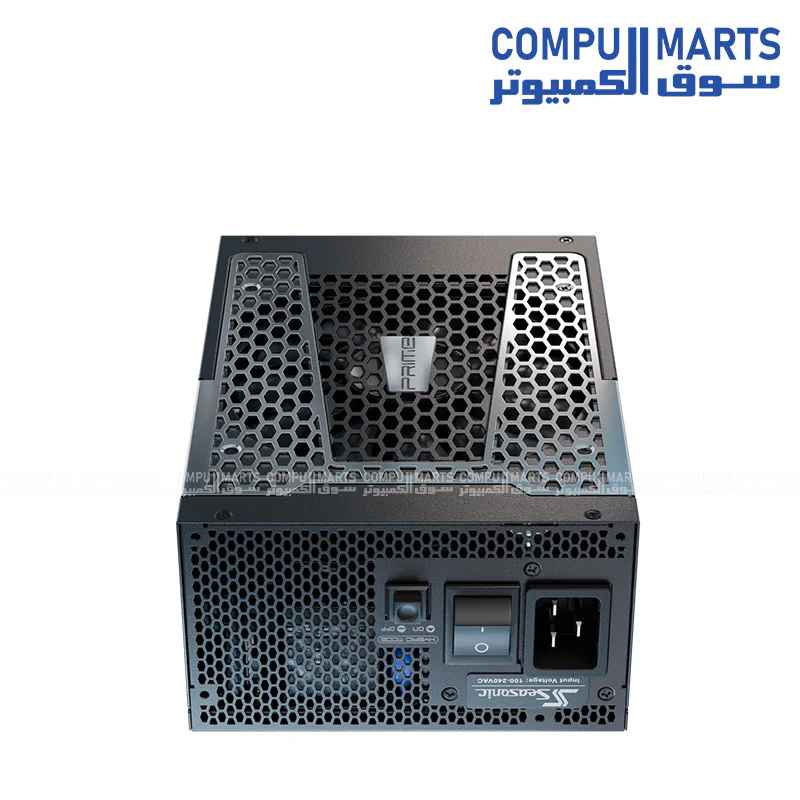

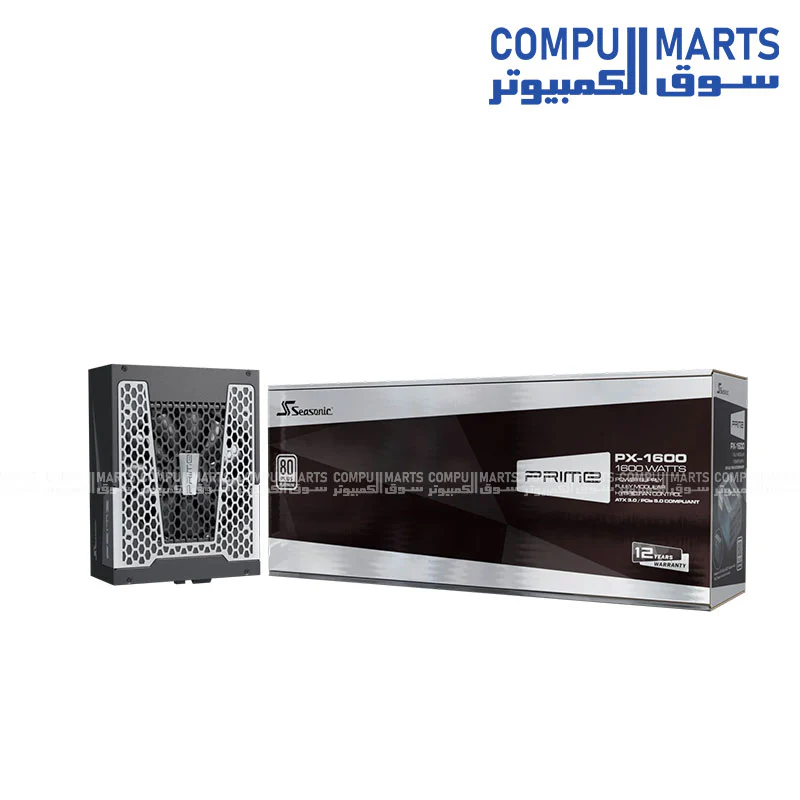

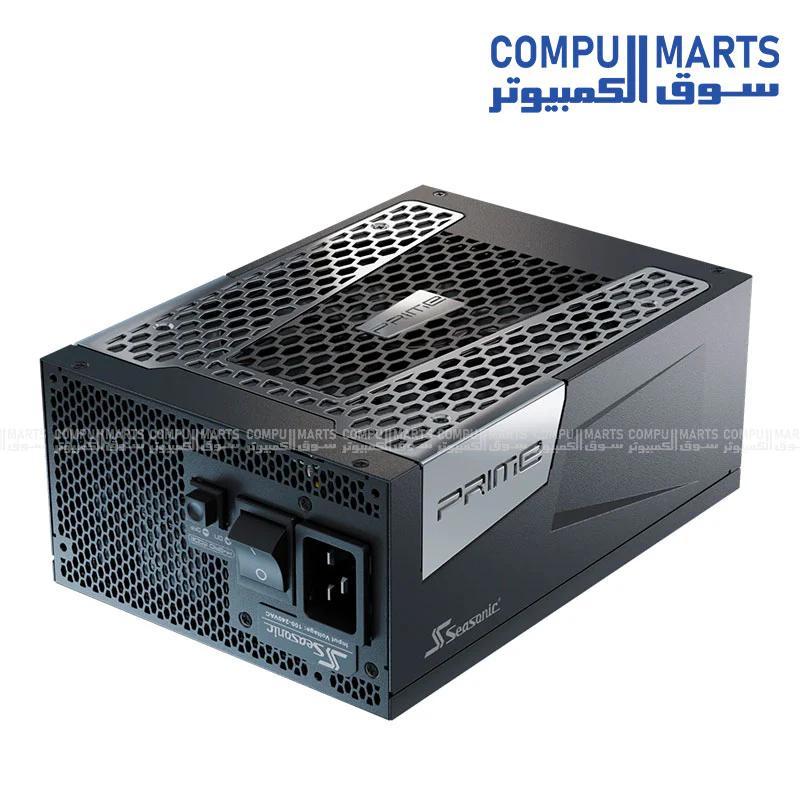

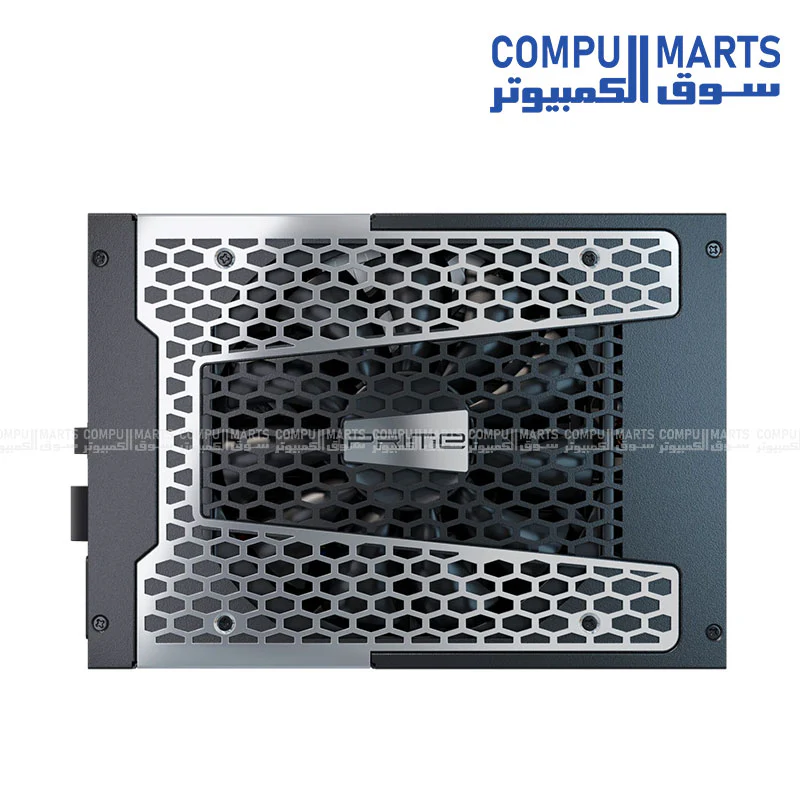

-70%Seasonic PRIME PX-1600 ATX 3.1 1600W Platinum Power Supply—
$419.89
$125.97The Story
| Category | Specification Details |
|---|---|
| Certifications | 80PLUS Platinum / Cybenetics Efficiency: Titanium / Cybenetics Noise: A- |
| Form Factor | ATX/EPS |
| Dimensions | 210 × 150 × 86 mm |
| Fan Size | 135 mm |
| Fan Control | Digital Hybrid |
| Fan Bearing | Fluid Dynamic Bearing |
| Fan Life Expectancy | 50,000 hours @ 40°C |
| Cables | Fully Modular – Individual Black Cables with Braided Pattern |
| Operating Temperature | 0 - 50 °C |
| MTBF | 100,000 hours @ 25°C (excluding fan) |
| AC Input Range | Full Range (100 – 240 V, 15 – 10 A, 50 – 60 Hz) |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety & EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 12 Years |
| DC Output (+3.3V / +5V) | 25A / 25A (125W combined) |
| DC Output (+12V) | 133.3A (1600W) |
| DC Output (-12V / +5VSB) | 0.5A (6W) / 3A (15W) |
| Total Continuous Power | 1600W @ 115–240Vac / 1300W @ 100–240Vac |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Certifications | 80PLUS Platinum / Cybenetics Efficiency: Titanium / Cybenetics Noise: A- |
| Form Factor | ATX/EPS |
| Dimensions | 210 × 150 × 86 mm |
| Fan Size | 135 mm |
| Fan Control | Digital Hybrid |
| Fan Bearing | Fluid Dynamic Bearing |
| Fan Life Expectancy | 50,000 hours @ 40°C |
| Cables | Fully Modular – Individual Black Cables with Braided Pattern |
| Operating Temperature | 0 - 50 °C |
| MTBF | 100,000 hours @ 25°C (excluding fan) |
| AC Input Range | Full Range (100 – 240 V, 15 – 10 A, 50 – 60 Hz) |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety & EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 12 Years |
| DC Output (+3.3V / +5V) | 25A / 25A (125W combined) |
| DC Output (+12V) | 133.3A (1600W) |
| DC Output (-12V / +5VSB) | 0.5A (6W) / 3A (15W) |
| Total Continuous Power | 1600W @ 115–240Vac / 1300W @ 100–240Vac |
