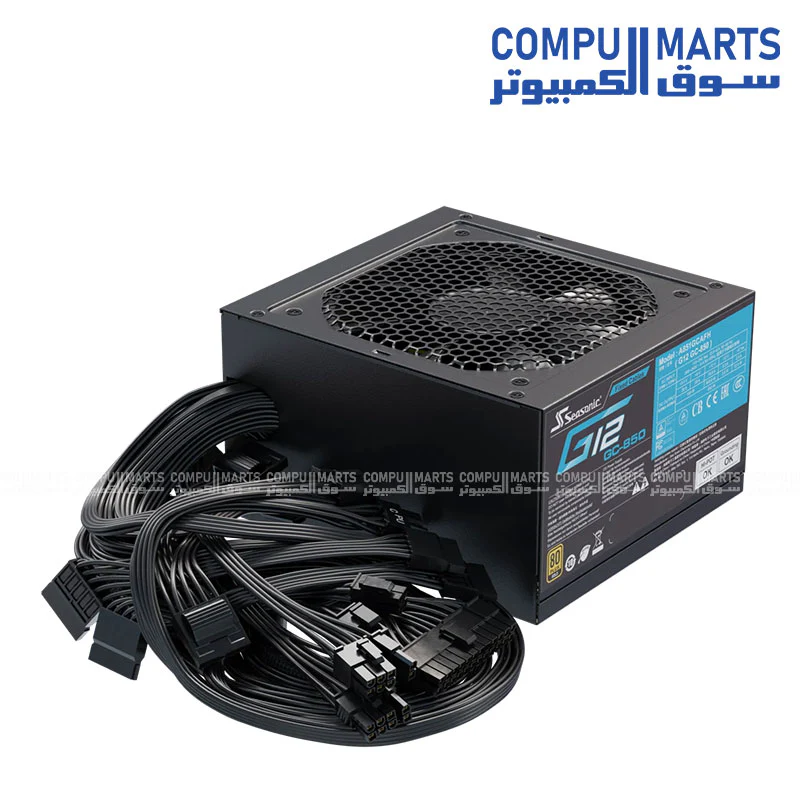

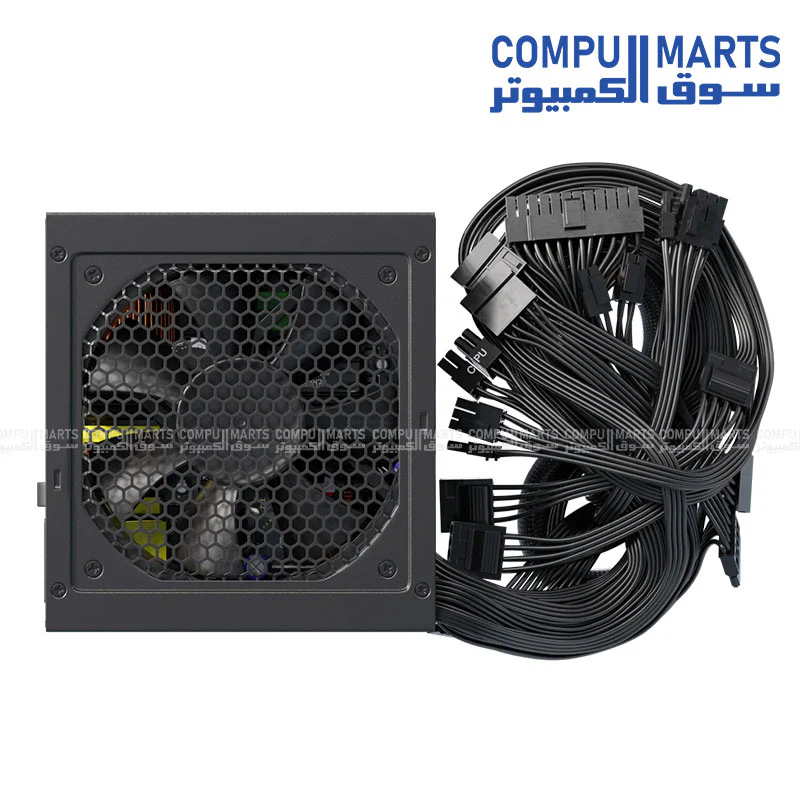

-70%PSU SEASONIC G12 GC-850 80 PLUS GOLD SMART AND SILENT FAN—
$93.52
$28.06The Story
| Category | Specification Details |
|---|---|
| 80PLUS | Gold |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | ATX/EPS |
| Dimensions | 140 × 150 × 86 mm |
| Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control |
| Fan Bearing | Sleeve Bearing |
| Modularity | Fixed Cables |
| Cable type | Flat Black Cables |
| Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 100,000 hours |
| AC Input | Full Range (100 V - 240 V, 10 - 6 A, 50 Hz - 60 Hz) |
| Protection | OPP, OVP, OCP, SCP, OTP, UVP |
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 5 Years |
| DC Output Rail: +3.3 V | 20 A | 100 W |
| DC Output Rail: +5 V | 20 A | 100 W |
| DC Output Rail: +12 V | 70 A | 840 W |
| DC Output Rail: -12 V | 0.3 A | 3.6 W |
| DC Output Rail: +5 VSB | 2.5 A | 12.5 W |
| Total Continuous Power | 850 W |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| 80PLUS | Gold |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | ATX/EPS |
| Dimensions | 140 × 150 × 86 mm |
| Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control |
| Fan Bearing | Sleeve Bearing |
| Modularity | Fixed Cables |
| Cable type | Flat Black Cables |
| Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 100,000 hours |
| AC Input | Full Range (100 V - 240 V, 10 - 6 A, 50 Hz - 60 Hz) |
| Protection | OPP, OVP, OCP, SCP, OTP, UVP |
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 5 Years |
| DC Output Rail: +3.3 V | 20 A | 100 W |
| DC Output Rail: +5 V | 20 A | 100 W |
| DC Output Rail: +12 V | 70 A | 840 W |
| DC Output Rail: -12 V | 0.3 A | 3.6 W |
| DC Output Rail: +5 VSB | 2.5 A | 12.5 W |
| Total Continuous Power | 850 W |
