$101.16

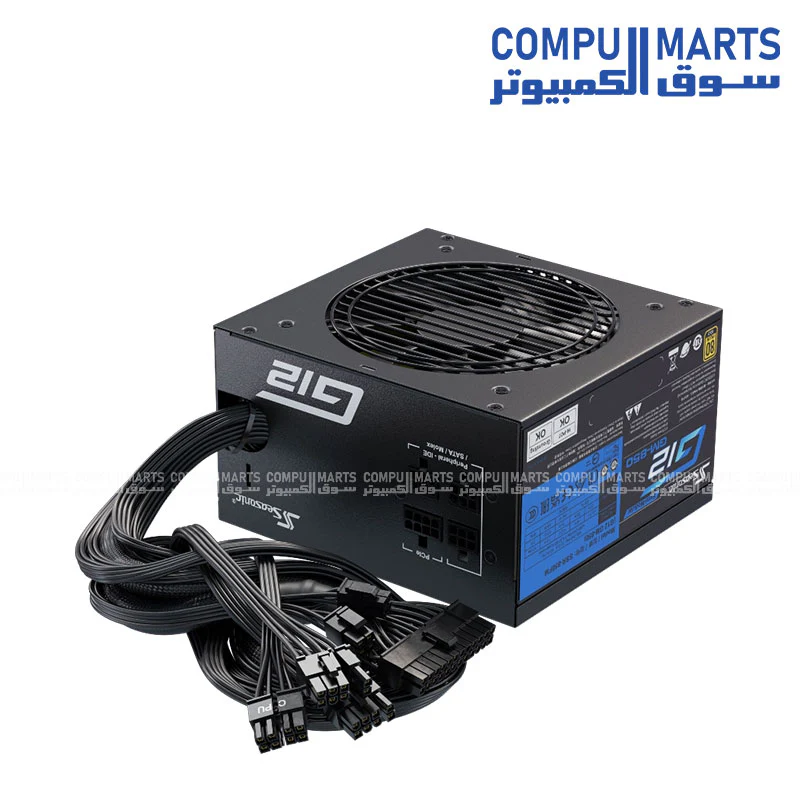

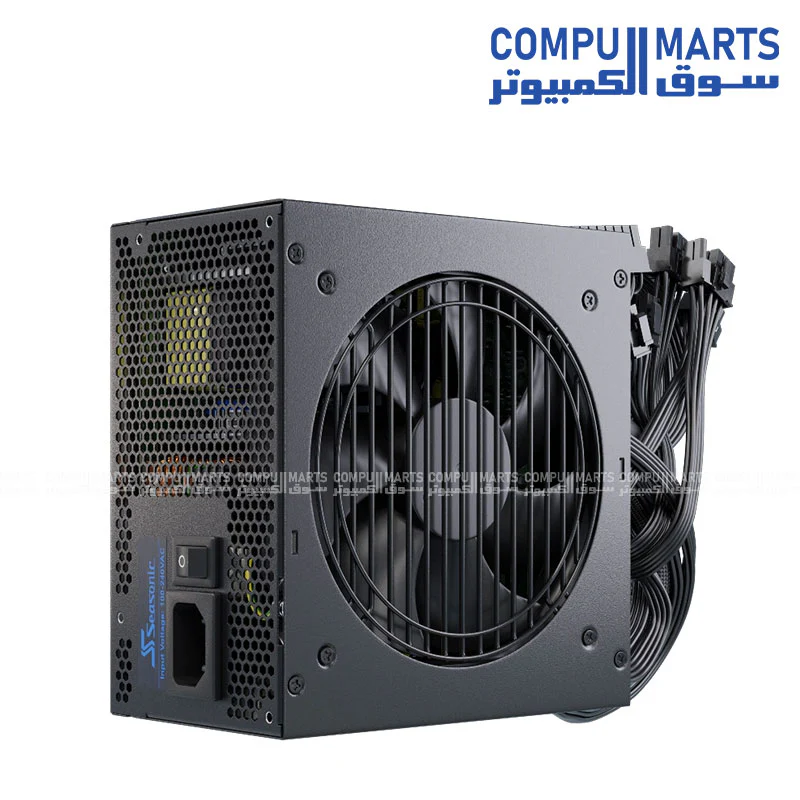

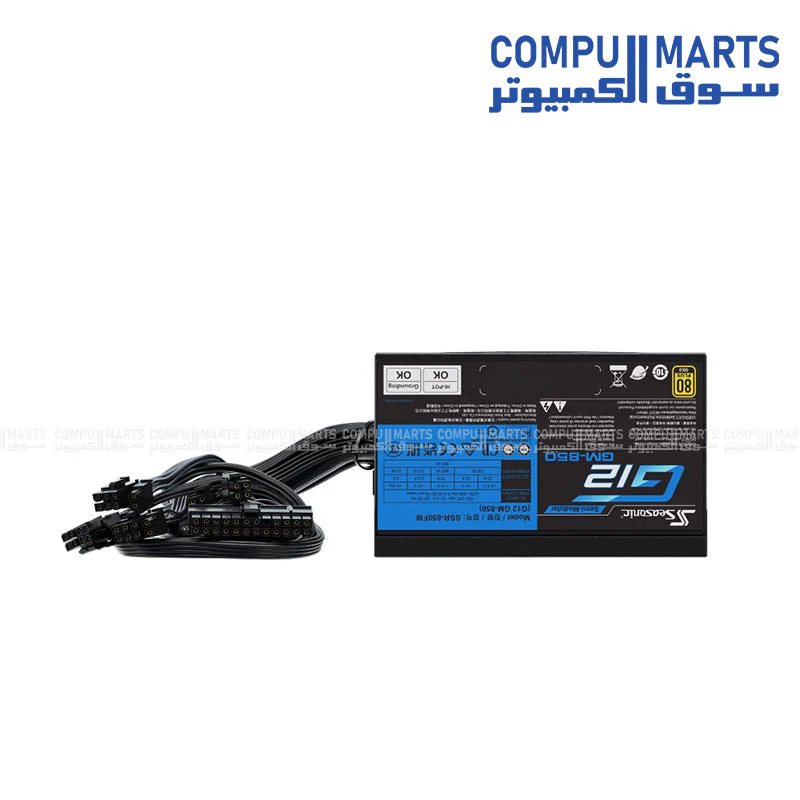

Seasonic G12 GM-850 850W 80 Plus Gold Semi-Modular Power Supply—
$101.16
The Story
| Category | Specification Details |
|---|---|
| 80PLUS | Gold |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | ATX/EPS |
| Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control |
| Fan Bearing | Sleeve Bearing |
| Life Expectancy | 25,000 hours at 40 °C, 15 % — 65 % RH |
| Modularity | Semi-Modular |
| Cable type | Flat Black Cables |
| Operating Temperature | 0 - 40 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours |
| AC Input | Full Range |
| Protection | OPP, OVP, UVP, SCP, OCP, OTP |
| Safety and EMC | CE, UKCA, FCC, RCM, CCC, BSMI, CB, cTUVus, TUV |
| Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE |
| Warranty | 5 Years |
| AC Input Power | 100 V - 240 V, 12 - 6 A, 50 Hz - 60 Hz |
| DC Output Rail: +3.3 V | 20 A / 100 W |
| DC Output Rail: +5 V | 20 A / 100 W |
| DC Output Rail: +12V | 70 A / 840 W |
| DC Output Rail: -12 V | 0.3 A / 3.6 W |
| DC Output Rail: +5 Vsb | 3 A / 15 A |
| Total continuous power | 850W |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| 80PLUS | Gold |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | ATX/EPS |
| Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control |
| Fan Bearing | Sleeve Bearing |
| Life Expectancy | 25,000 hours at 40 °C, 15 % — 65 % RH |
| Modularity | Semi-Modular |
| Cable type | Flat Black Cables |
| Operating Temperature | 0 - 40 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours |
| AC Input | Full Range |
| Protection | OPP, OVP, UVP, SCP, OCP, OTP |
| Safety and EMC | CE, UKCA, FCC, RCM, CCC, BSMI, CB, cTUVus, TUV |
| Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE |
| Warranty | 5 Years |
| AC Input Power | 100 V - 240 V, 12 - 6 A, 50 Hz - 60 Hz |
| DC Output Rail: +3.3 V | 20 A / 100 W |
| DC Output Rail: +5 V | 20 A / 100 W |
| DC Output Rail: +12V | 70 A / 840 W |
| DC Output Rail: -12 V | 0.3 A / 3.6 W |
| DC Output Rail: +5 Vsb | 3 A / 15 A |
| Total continuous power | 850W |
