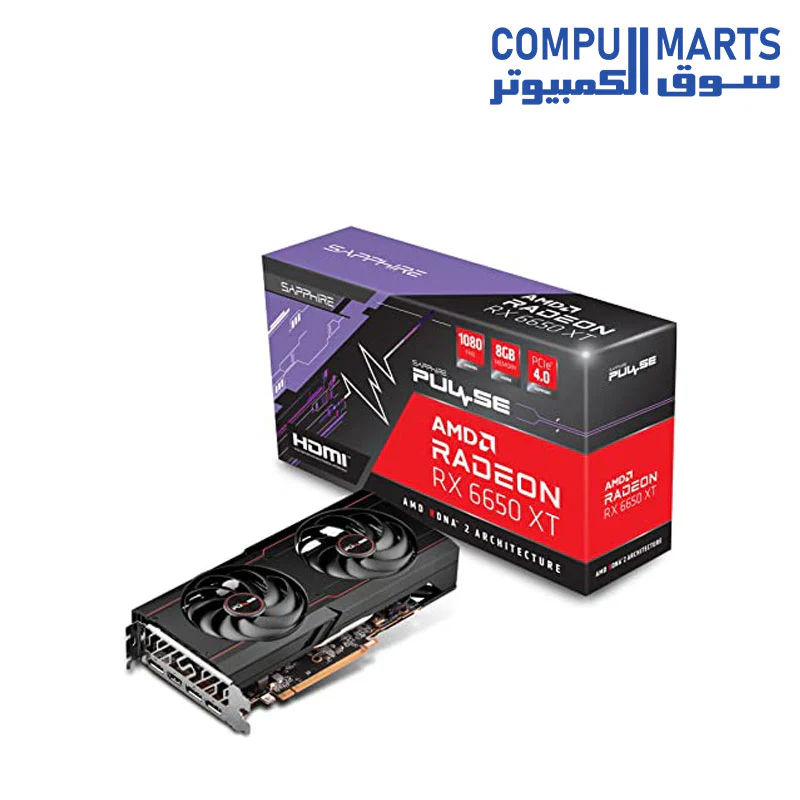

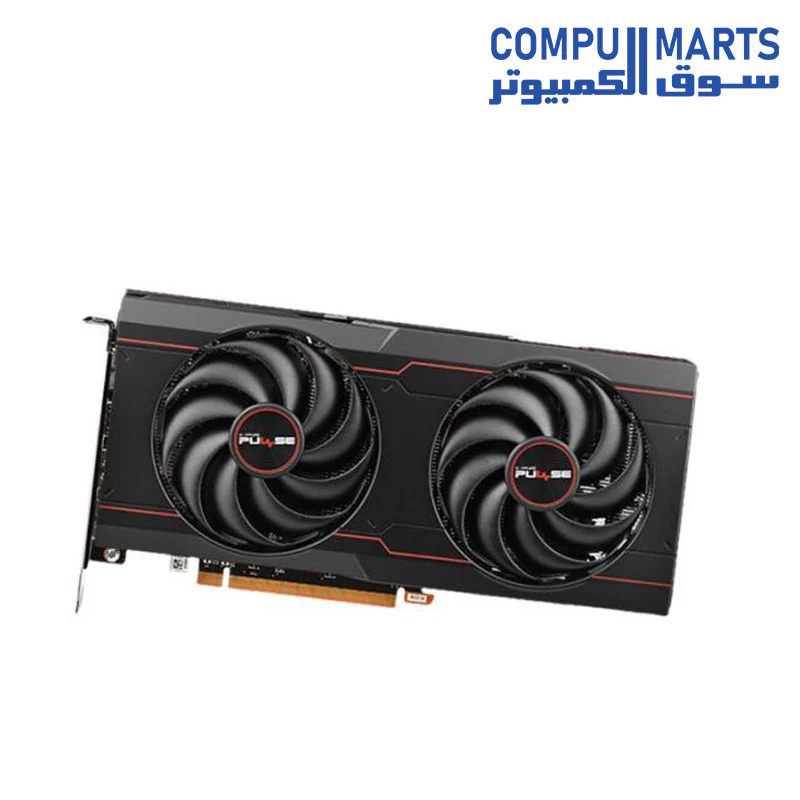

Sapphire Pulse AMD Radeon RX 6650 XT Gaming OC 8GB GDDR6 HDMI/Triple DP

Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

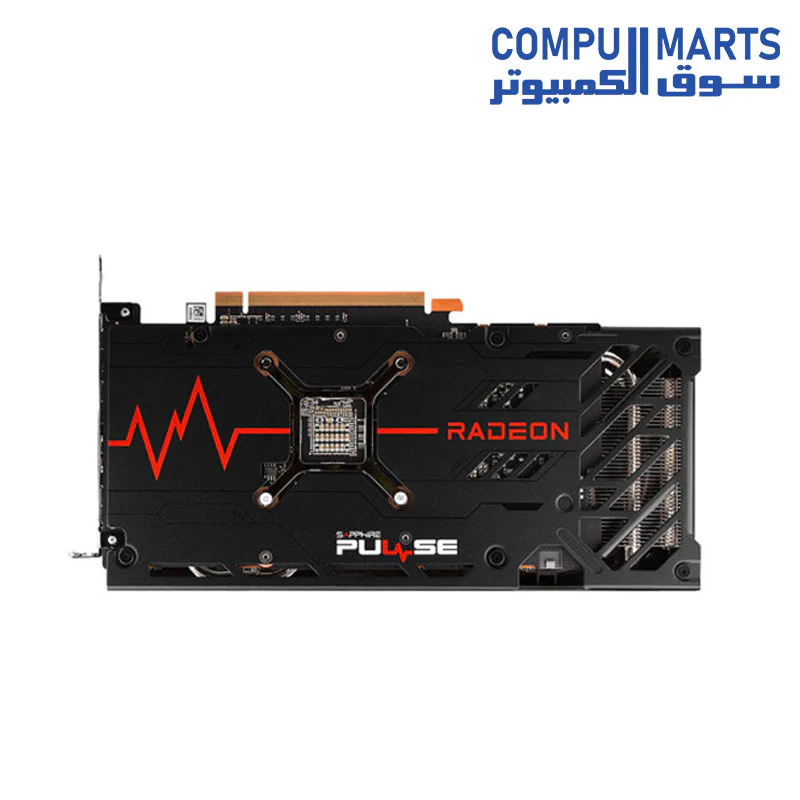

Metal Backplate with Thermal Pad
The high quality aluminum backplate is not just for styling. It also protects the components on the backside of the PCB and helps dissipate the heat from the PCB with a high performance thermal pad in between.

Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

Specifications
Stream Processors : 2048
Infinity Cache : 32MB
Ray Accelerators : 32
Memory Size/Bus : 8GB GDDR6
Memory Clock : 17.5 Gbps Effective
Displays : Maximum 4 Displays
Resolution : HDMI: 7680×4320/DisplayPort1.4: 7680×4320
Interface : PCI-Express 4.0 x8

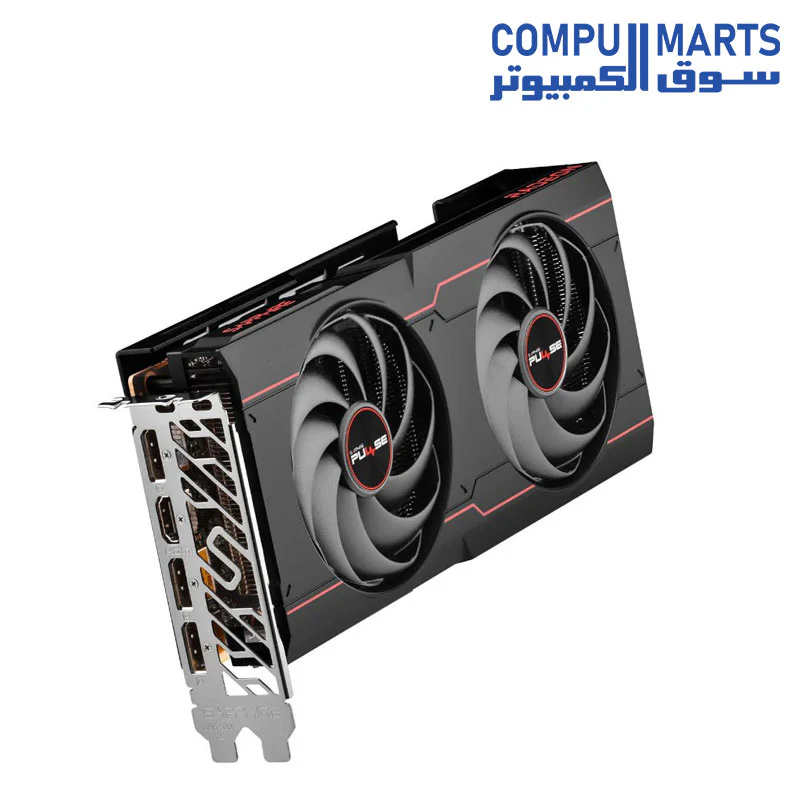

Output : 1x HDMI/3x DisplayPort
BIOS Support : UEFI
Game Index : 1080P
Cooling : Dual Fans
Form Factor : 2 slot, ATX
Dimension: 240(L)X 119.85(W)X 44.75(H)mm
Power Consumption : 176W Total Board Power

GPU
AMD Radeon RX 6650 XT Graphics Card
AMD RDNA 2 Architecture

Engine Clock
Boost Clock: Up to 2635 MHz
Game Clock: Up to 2410 MHz

OS
Linux, Windows7, Windows10, and Windows 8.1. 64-bit  operating system required
Does not support all features including but not limited to Hardware Raytracing

System Requirement
Minimum 500 Watt Power Supply
1 x 8-pin Power Connector.
PCI Expressbased PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.

Sapphire Features
Premium Digital Power Design
Fuse Protection
Optimized Composite Heatpipe
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate with Thermal Pad
Two-Ball Bearing Fans
TriXX Supported
TriXX Boost

AMD Features
AMD RDNA2 Gaming Architecture
DirectX12 Ultimate
GDDR6 Memory
Smart Access Memory
Infinity Cache
7nm GPU
PCI Express 4.0 Support
AMD FreeSyncTechnology
DisplayPort1.4 with DSC
HDMI
Video Streaming up to 8K
Radeon™ VR Ready Premium
AMD FidelityFX
AMD FidelityFXSuper Resolution (FSR)
AMD Radeon Super Resolution
Radeon Image Sharpening
RadeonAnti-Lag
Radeon Software
Game Driver Optimizations
