Select Watt
From $61.06

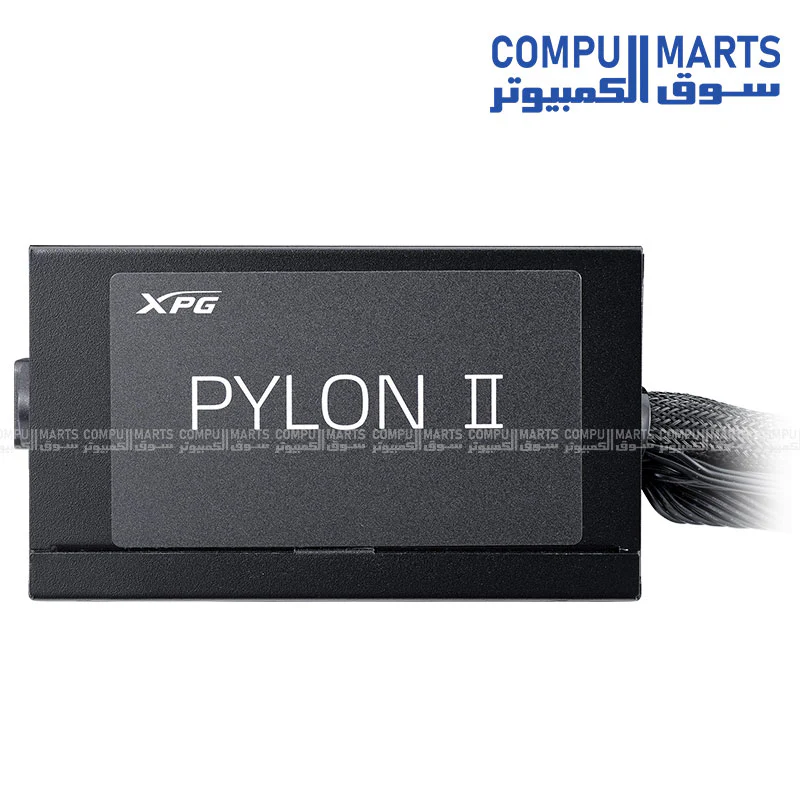

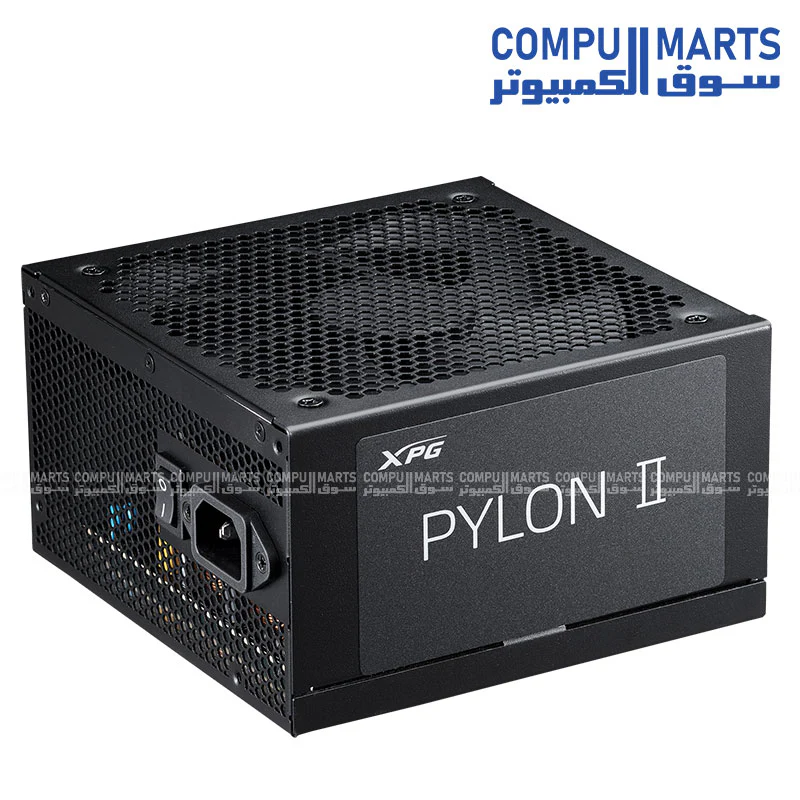

XPG Pylon II 650W / 750W 80 Plus Bronze ATX 3.1 Power Supply – Fully Reliable, Silent Cooling, 5-Year Warranty—
$61.06
The Story
| Category | Specification Details |
|---|---|
| Product Name | XPG Pylon II 650W / 750W Power Supply |
| Dimensions (L x W x H) | 150 x 150 x 86mm |
| 80 Plus Rating | BRONZE |
| ATX Version | Intel ATX v3.1 |
| Protections | OVP, OPP, SCP, OCP, UVP, OTP, NLO, SIP |

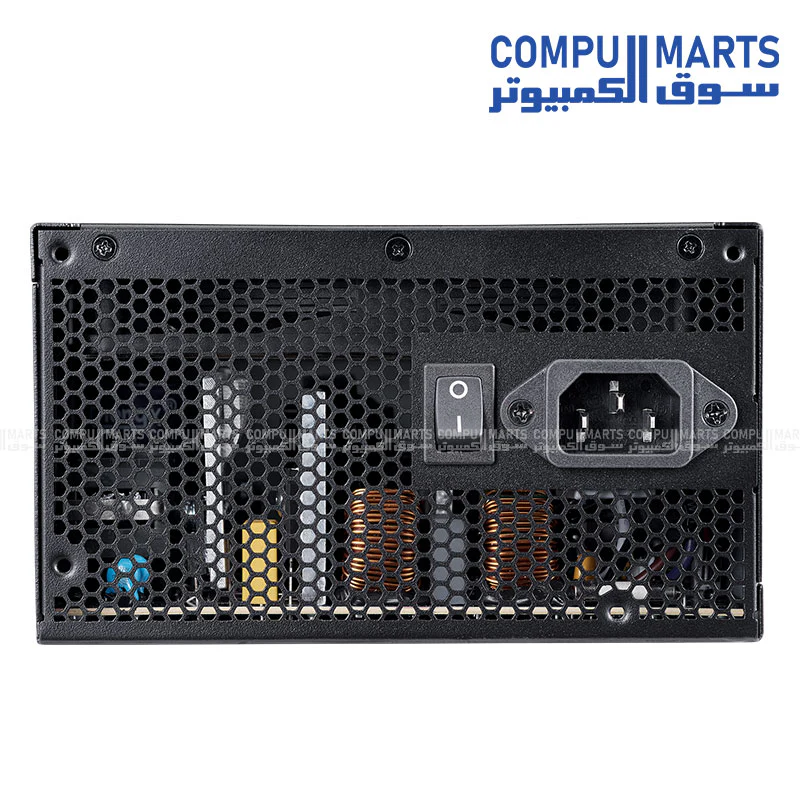

| Input Parameters | 100-240V | 50-60Hz | 10A current |
| 750W DC Output | +5V/+3.3V: 22A | +12V: 62.5A | -12V: 0.3A | +5Vsb: 3A |
| 650W DC Output | +5V/+3.3V: 20A | +12V: 54A | -12V: 0.3A | +5Vsb: 3A |
| Power Excursion | Up to 235% rating (750W: 1762W | 650W: 1527W for 100µs) |

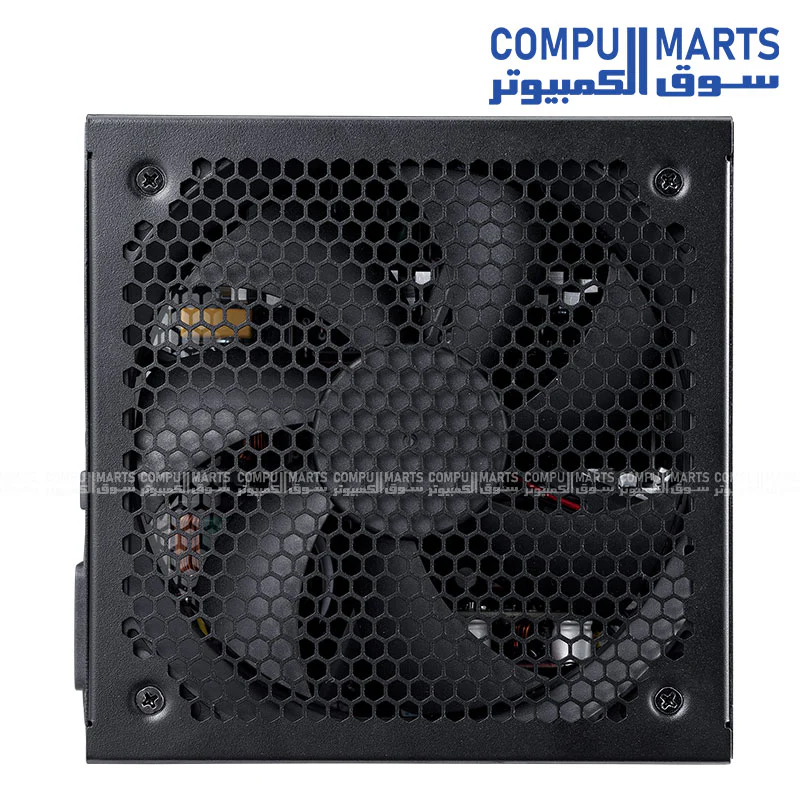

| Cooling Fan | 135mm FDB (Fluid Dynamic Bearing) | 2300±10 RPM |
| Connectors | 1x ATX 24-Pin, 2x EPS 8-Pin, 6x SATA, 2x Molex 4-Pin |
| PCIe 5.0 Support | 1x 12V-2x6 (12+4) Connector (450W) |
| MTBF | 100,000 Hours at 25℃ |
| Weight | 1.8 kg |
| Warranty | 5 Years |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Product Name | XPG Pylon II 650W / 750W Power Supply |
| Dimensions (L x W x H) | 150 x 150 x 86mm |
| 80 Plus Rating | BRONZE |
| ATX Version | Intel ATX v3.1 |
| Protections | OVP, OPP, SCP, OCP, UVP, OTP, NLO, SIP |
| Input Parameters | 100-240V | 50-60Hz | 10A current |
| 750W DC Output | +5V/+3.3V: 22A | +12V: 62.5A | -12V: 0.3A | +5Vsb: 3A |
| 650W DC Output | +5V/+3.3V: 20A | +12V: 54A | -12V: 0.3A | +5Vsb: 3A |
| Power Excursion | Up to 235% rating (750W: 1762W | 650W: 1527W for 100µs) |
| Cooling Fan | 135mm FDB (Fluid Dynamic Bearing) | 2300±10 RPM |
| Connectors | 1x ATX 24-Pin, 2x EPS 8-Pin, 6x SATA, 2x Molex 4-Pin |
| PCIe 5.0 Support | 1x 12V-2x6 (12+4) Connector (450W) |
| MTBF | 100,000 Hours at 25℃ |
| Weight | 1.8 kg |
| Warranty | 5 Years |
