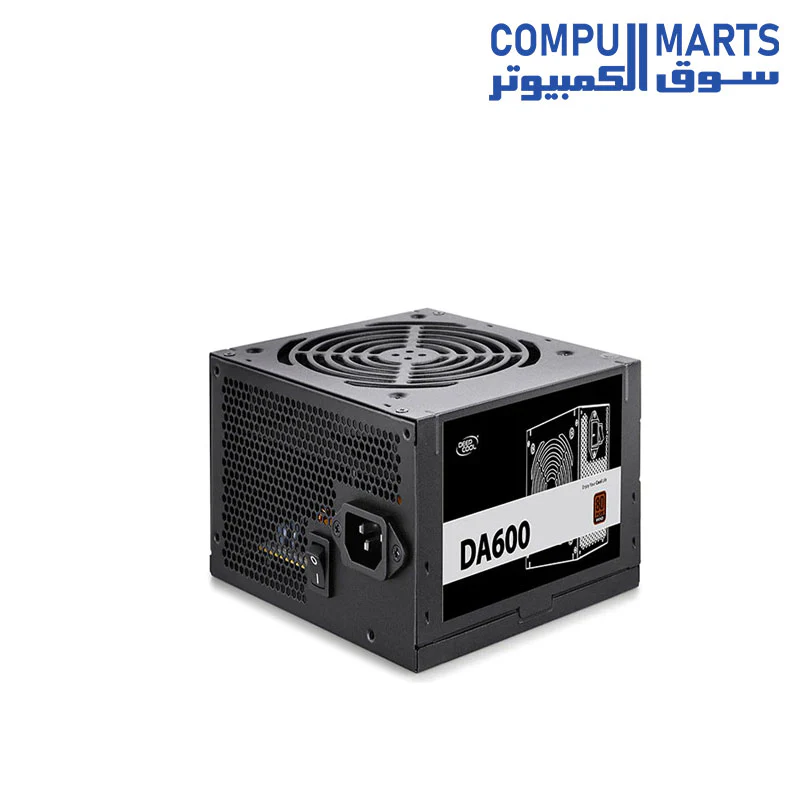

Deepcool DA600 80 Plus Bronze Certified 600W Power Supply | 120mm PWM Silent Fan—
$23.86
The Story
Deepcool DA600 80 Plus Bronze Certified 600W Power Supply | 120mm PWM Silent Fan
80PLUS BRONZE
80PLUS Bronze certified provide high energy efficiency up to 85%.
Silent and High Performance Fan
120mm silent fan to provide incredible performance-noise ratio.
Features
-
Compatible with Intel ATX12V V2.4.
-
Integrated Active PFC + PWM Combo Controller boost the exchange efficiency and achieve a PFC of higher than 99%.
-
80 PLUS? Bronze certified to achieve up to 85% efficiency.
-
120 mm silent fan with temperature control function.
-
Longer cable design for enhancing cable management.
-
Double-Layer EMI Filter for protection against electromagnetic interference (EMI) and for noise control.
-
Smart eco-friendly chipset, consuming only < 0.3W in off-mode. Compliant to ErP standards.
-
CircuitShield? – OVP, UVP, SCP, and OPP.
-
Support Multi-Way SLI / CrossFire + Multi-Core CPUs.
-
High reliability with at least 100,000-hour MTBF.

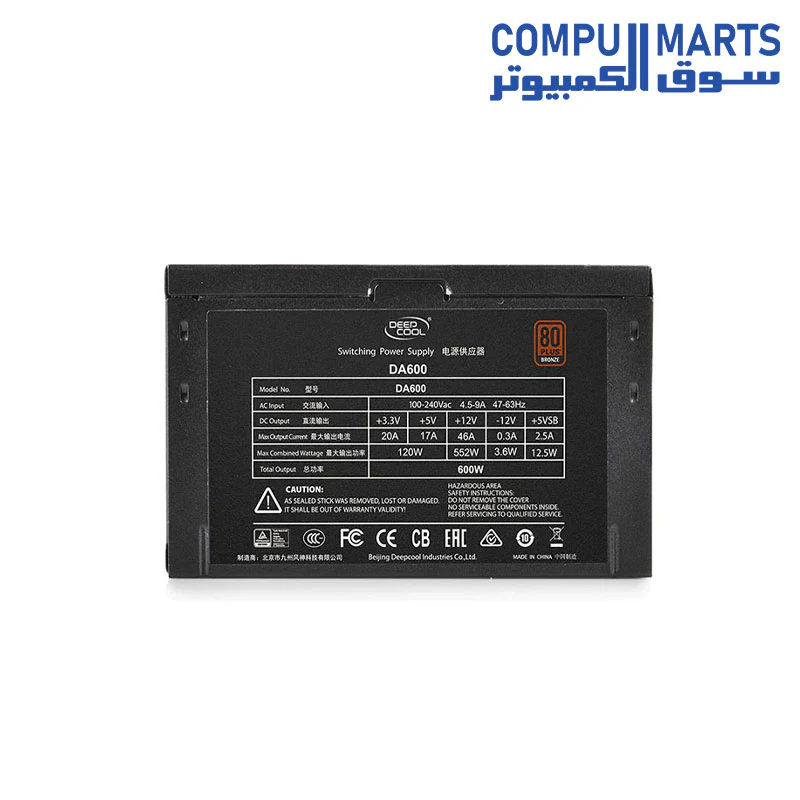

OUTPUTS
AC INPUT |
VOLTAGE |
CURRENT |
FREQUENCY |
||
100-240V |
4.5-9A |
47-63Hz |
|||
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
CURRENT(Max) |
20A |
17A |
46A |
0.3A |
2.5A |
OUTPUT(Max) |
120W |
552W |
3.6W |
12.5W |
|
TOTAL OUTPUT |
600W |
||||
Technical Spec
Model |
DA600 |
Type |
ATX 12V V2.4 |
Certifications |
80PLUS Bronze |
Dimension |
150×140×86mm (W x L x H) |
Output Capacity |
600W |
Input Voltage |
100~240V |
Input Current |
9.0A |
Input Frequency Range |
47~63Hz |
Fan Size |
120mm Silent Fan |
PFC |
Active PFC (>0.9) |
Power Good Signal |
100-500ms |
Hold Up Time |
>16ms |
Efficiency |
>85% Under Typical Load |
Protection |
OVP/ SCP/UVP/OPP |
Operation Temperature |
0~40°C |
Regulatory |
CE / FCC / CCC / CB / EAC / TUV |
MTBF |
100,000 Hours |
EAN |
6933412798705 |
P/N |
DP-BZ-DA600N |
