$18.13
DeepCool DA500 80 Plus Bronze Certified 500W Power Supply, ATX12V, 120mm PWM Silent Fan—
$18.13
The Story
DeepCool DA500 80 Plus Bronze Certified 500W Power Supply, ATX12V, 120mm PWM Silent Fan
Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 1
X1
PCI-E(6+2)Pin x 2
X1
SATA×3+4pin Peripheral×1
X1
4pin Peripheral×2+SATA×2
X1
Technical Spec
Model |
DA500 |
Type |
ATX 12V V2.4 |
Certifications |
80PLUS Bronze |
Dimension |
150×140×86mm (W x L x H) |
Output Capacity |
500W |
Input Voltage |
100~240V |
Input Current |
8A |
Input Frequency Range |
45~60Hz |
Fan Size |
120mm Black Fan |
PFC |
Active PFC (>0.99) |
Power Good Signal |
100-500ms |
Hold Up Time |
>16ms |
Efficiency |
85% Under Typical Load |
Protection |
OVP / UVP / SCP / OPP |
Operation Temperature |
0~40°C |
Regulatory |
CE / FCC / CCC / CB / EAC / TUV |
MTBF |
100,000 Hours |
EAN |
6933412798699 |
P/N |
DP-BZ-DA500N |
DESCRIPTION
DA500 is certified with 80 plus bronze with up to 85% electrical efficiency enabling lower heat generation and lower operation cost. Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage. Double layer EMI filters protect from magnetic interference and restrains noise while operating.
80PLUS BRONZE
80PLUS Bronze certified provide high energy efficiency up to 85%. to view the certification.

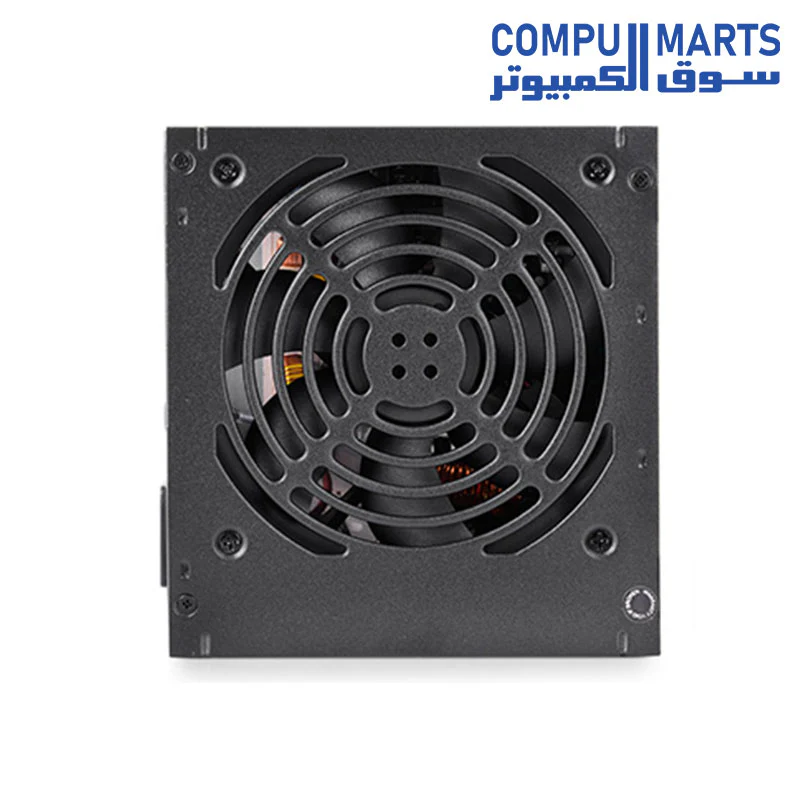

Silent and High Performance Fan
120mm silent fan to provide incredible performance-noise ratio.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
DeepCool DA500 80 Plus Bronze Certified 500W Power Supply, ATX12V, 120mm PWM Silent Fan
Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 1
X1
PCI-E(6+2)Pin x 2
X1
SATA×3+4pin Peripheral×1
X1
4pin Peripheral×2+SATA×2
X1
Technical Spec
Model |
DA500 |
Type |
ATX 12V V2.4 |
Certifications |
80PLUS Bronze |
Dimension |
150×140×86mm (W x L x H) |
Output Capacity |
500W |
Input Voltage |
100~240V |
Input Current |
8A |
Input Frequency Range |
45~60Hz |
Fan Size |
120mm Black Fan |
PFC |
Active PFC (>0.99) |
Power Good Signal |
100-500ms |
Hold Up Time |
>16ms |
Efficiency |
85% Under Typical Load |
Protection |
OVP / UVP / SCP / OPP |
Operation Temperature |
0~40°C |
Regulatory |
CE / FCC / CCC / CB / EAC / TUV |
MTBF |
100,000 Hours |
EAN |
6933412798699 |
P/N |
DP-BZ-DA500N |
