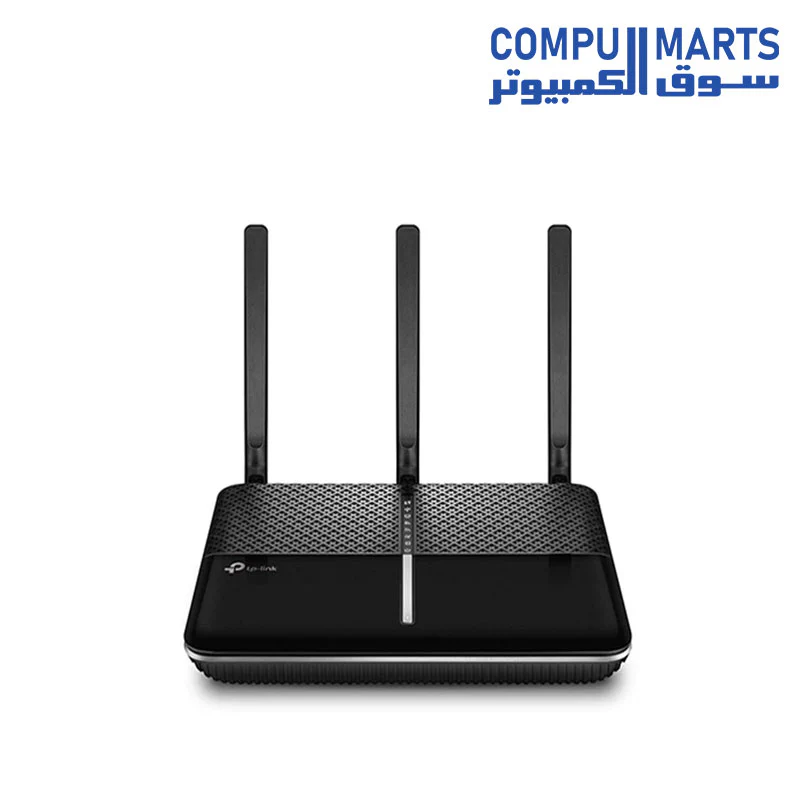

Modem Router TP-Link Archer VR600-AC1600 Wireless Gigabit VDSL/ADSL

Modem Router TP-Link Archer VR600-AC1600 Wireless Gigabit VDSL/ADSL

HARDWARE FEATURES

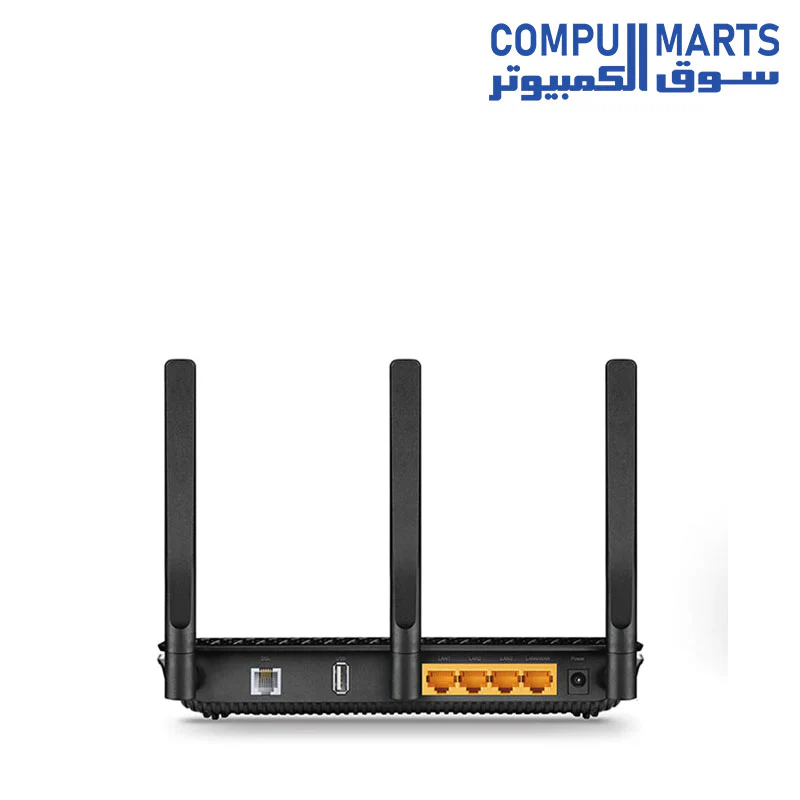

Interface 3 10/100/1000Mbps RJ 45 LAN Ports

1 10/100/1000Mbps RJ 45 LAN/WAN Port

1 RJ11 Port

1 USB 2.0 Port

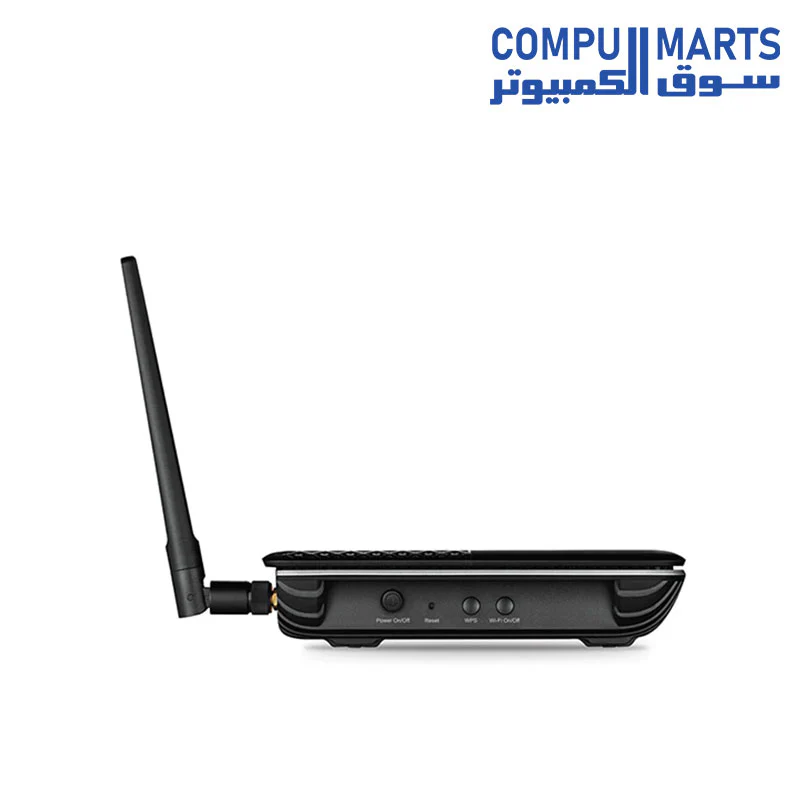

Button WPS Button, LED Button, Wireless On/Off Buttons(2.4GHz & 5GHz),

Power On/Off Button

External Power Supply 12V/2A

IEEE Standards IEEE 802.3, IEEE 802.3u, 802.3ab

VDSL2 Standards ITU-T G.993.2, Up to 17a profile (POTS)

ITU-T G.993.5 (G.vector)

ITU-T G.998.4 (G.INP）

ADSL Standards Full-rate ANSI T1.413 Issue 2,

ITU-T G.992.1(G.DMT),

ITU-T G.992.2(G.Lite),

ITU-T G.994.1 (G.hs),

ITU-T G.995.1

ADSL2 Standards ITU-T G.992.3 (G.DMT.bis),

ITU-T G.992.4 (G.lite.bis)

ADSL2+ Standards ITU-T G.992.5

Dimensions ( W x D x H ) 216 x 164 x 36.8mm

Antenna Type 3 External detachable dual band antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11a/n/ac 5GHz,

IEEE 802.11b/g/n 2.4GHz

Frequency 2.4GHz and 5GHz

Signal Rate 1300Mbps at 5GHz, 300Mbps at 2.4GHz

Transmit Power 2.4GHz <20dBm(EIRP)

5GHz <23dBm(EIRP)

Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics

Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering

SOFTWARE FEATURES

Quality of Service ATM QoS

Security NAT Firewall, Access Control,

IP and MAC Address Binding

Operating Modes VDSL/ADSL Modem Router, Wireless Router, 3G/4G

Router

Management Web Based Configuration (HTTP), Remote management,
command Line Interface, SSL for TR-069, SNMP v1/2c,

Web Based Firmware Upgrade, Diagnostic Tools

DHCP Server, Client, DHCP Client List, Address Reservation,

DHCP Relay

Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP

Dynamic DNS DynDns, NO-IP

VPN Pass-Through PPTP, L2TP, IPSec Passthrough

Protocols Supports IPv4 and IPv6

ATM/PPP Protocols ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),

PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483

Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs

Advanced Functions Parental Control, Network Address

Translation(NAT),

Port Mapping(Grouping), Static Routing, RIP

v1/v2(optional), DNS Relay,

DDNS, IGMP V1/V2/V3

USB Sharing Support Samba(Storage)/FTP Server/Media

Server/Printer

Server, 3G/4G Modem

Guest Network 2.4GHz Guest Network, 5GHz Guest Network

IPSec VPN Supports up to 10 IPSec VPN tunnels

Beamforming 5GHz Band

APP Tether App

OTHERS

Certification CE, RoHS

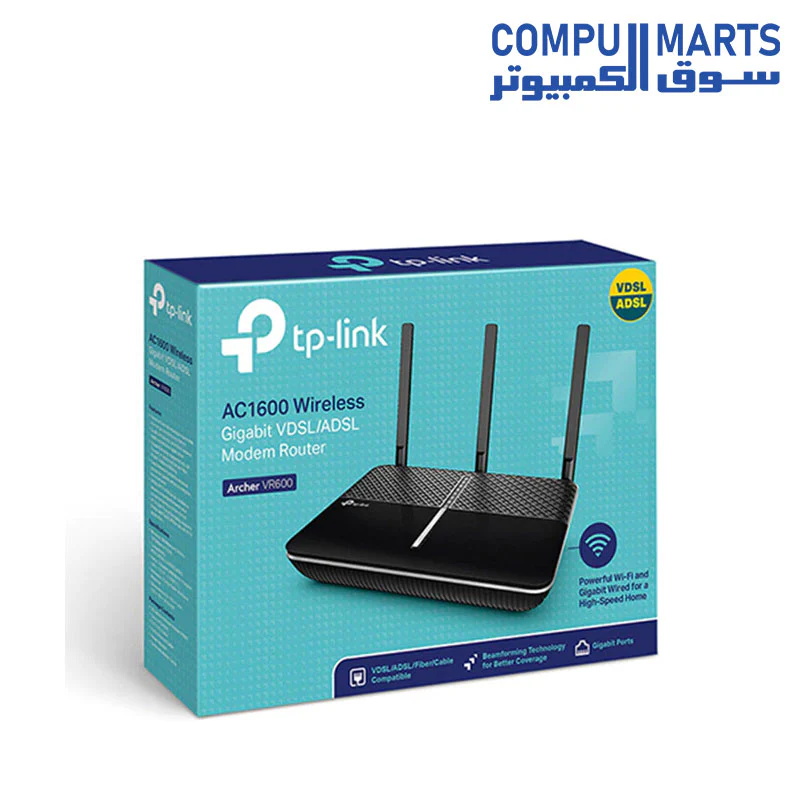

Package Contents AC1600 Wireless Gigabit VDSL/ADSL Modem Router

Archer VR600

External Splitter

RJ11 DSL Cable

RJ45 Ethernet Cable

Power Adapter

Quick Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or
Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0,

Safari 4.0, or other Java-enabled browser

Cable or DSL Modem Subscription with an Internet

Service Provider (for Internet access)

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
