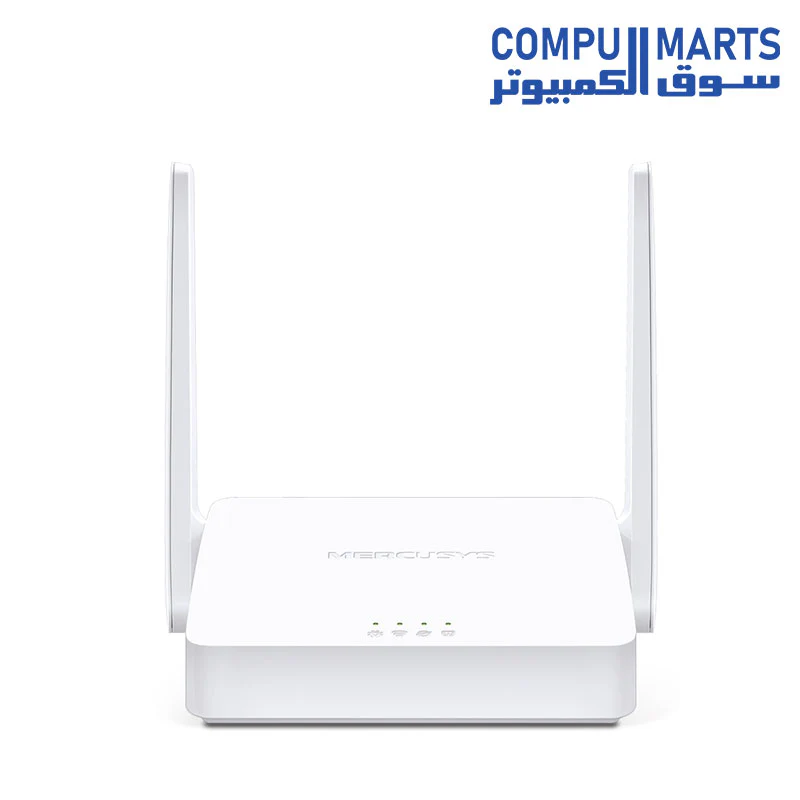

MERCUSYS, MW302R, 300Mbps Multi-Mode Wireless N Router

MERCUSYS, MW302R, 300Mbps Multi-Mode Wireless N Router

• Wireless

• Wireless Standards

  IEEE 802.11b/g/n

•  Frequency

  2.4-2.4835GHz

•  WiFi Speeds

  • 11n: Up to 300Mbps (Dynamic)

  • 11g: Up to 54Mbps (Dynamic)

  • 11b: Up to 11Mbps (Dynamic)

•  Reception Sensitivity

  • 270M: -73dBm@10% PER

  • 130M: -75dBm@10% PER

  • 54M: -77dBm@10% PER

  • 11M: -90dBm@10% PER

  • 6 M: -94dBm@10% PER

  • 1 M: -96dBm@10% PER

•  Transmission Power

  <20dBm (EIRP)

•  Wireless Security

  WPA-PSK / WPA2-PSK

•  Wireless Functions

  Enable/Disable Wireless Radio, WDS Bridging

• Hardware

• Dimensions

  114 mm × 94 mm × 26 mm



•  Button

  Reset Button



•  External Power Supply

  5V/0.6A

•  Antenna Type

  2 * 5dBi

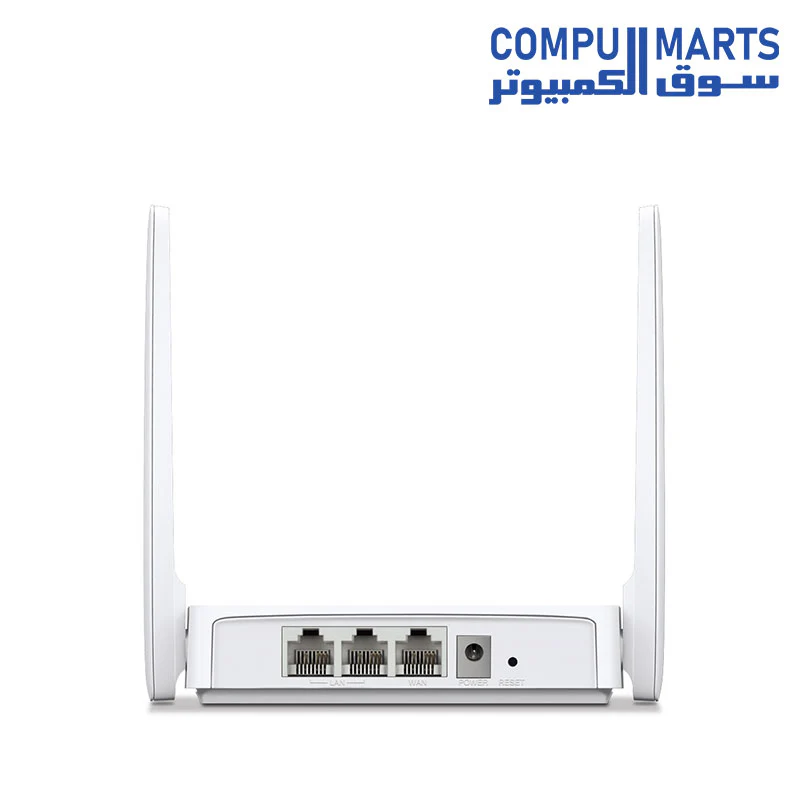

•  Ethernet Ports

  2*10/100Mbps LAN Ports &

  1*10/100Mbps WAN Port

• Software

• WAN Type

  Dynamic IP/Static IP/PPPoE/PPTP/L2TP

•  Management

  Access Control, Local Management, Remote Management

•  DHCP

  Server

•  Port Forwarding

  Virtual Server, UPnP, DMZ

•  Firewall Security

  IP and MAC Address Binding

•  Protocols

  IPv4, IPv6

•  Guest Network

  2.4GHz Guest Network

• Others

• Package Contents

  300Mbps Wireless N Router ( MW302R )

  Power Adapter

  Quick Installation Guide

  Ethernet Cable

•  Environment

  • Operating Temperature: 0°C~40°C (32°F~104°F)

  • Storage Temperature: -40°C~70°C (-40°F~158°F)

  • Operating Humidity: 10%~90% Non-Condensing

  • Storage Humidity: 5%~90% Non-Condensing

•
