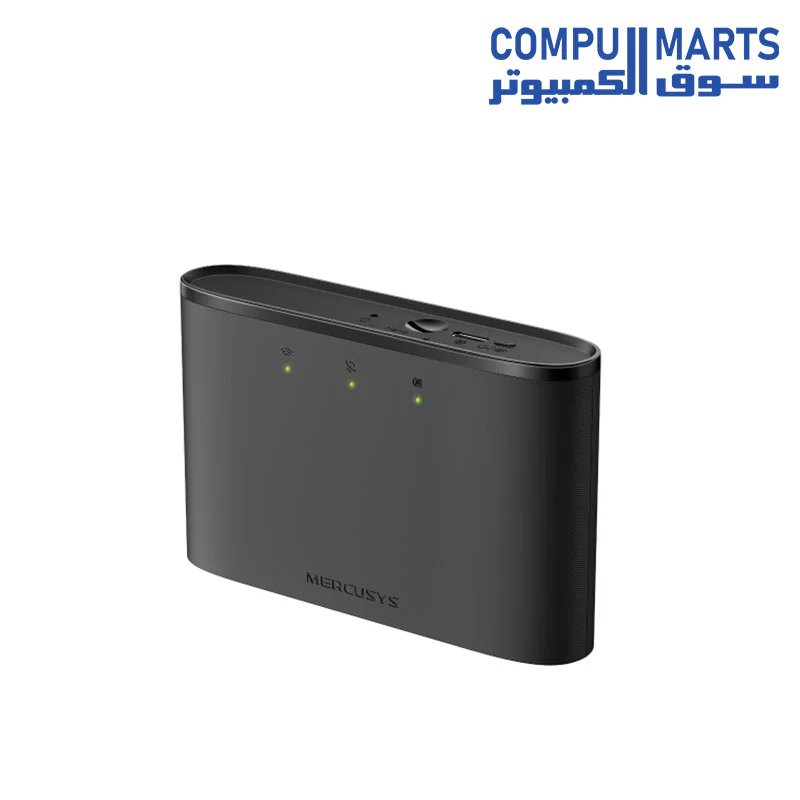

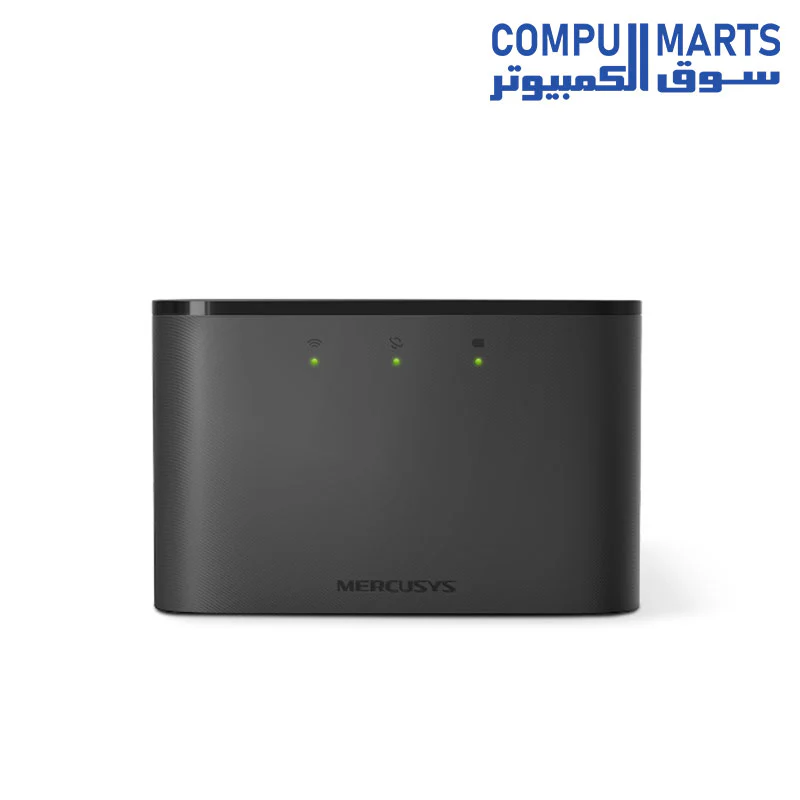

MERCUSYS,MT110,4G LTE 150 Mbps Mobile Wi-Fi Plug & play

MERCUSYS,MT110,4G LTE 150 Mbps Mobile Wi-Fi Plug & play

• Wireless

• Wireless Standards

  IEEE 802.11a/b/g/n 2.4 GHz

•  Frequency

  2.4 GHz

•  Reception Sensitivity

  11b 11Mbps: -87.5dBm

  11g 54Mbps: -74dBm

  11n HT20 MCS7: -71dBm

  11n HT40 MCS7: -69dBm

•  Transmission Power

  <20dBm

•  Wireless Security

  Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast

• HardwareDimensions

  111*70*23.8 mm

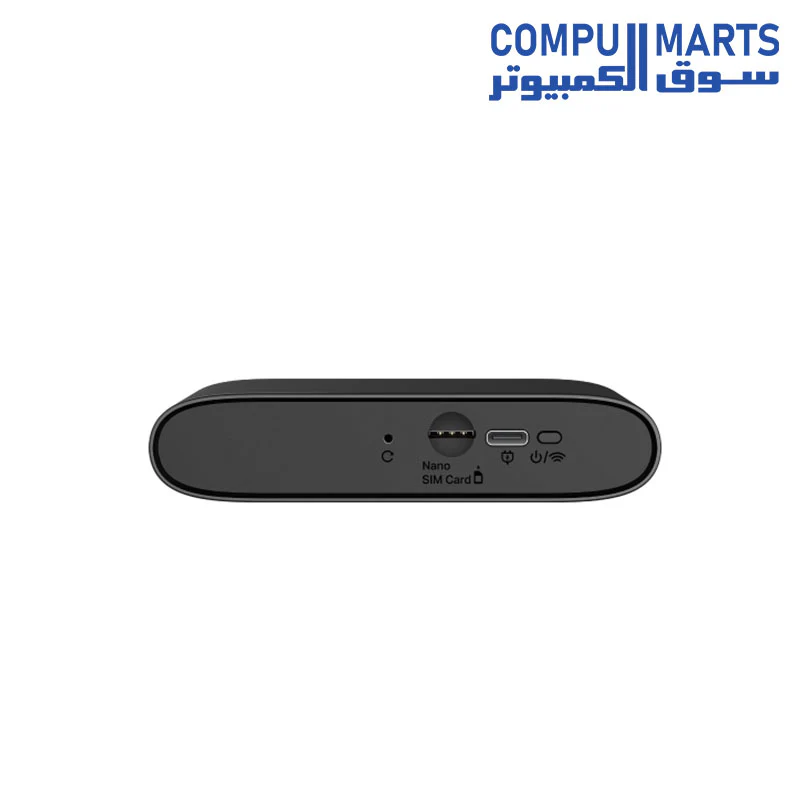

•  Interfaces

  1 micro USB port for power supply

  1 Nano SIM card slot

•  Button

  Power Button, Reset Button

•  External Power Supply

  5V/1A

•  Antenna Type

  Internal Antennas

•  Data Rates

  4G LTE Speed: DL: 150 Mbps, UL: 50 Mbps

• WiFi Speed: 150 Mbps on 2.4 GHz

•  LED

  Wi-Fi LED, Internet LED, Battery LED

•  Network Type (Invalid)

  Support4G/3G network

• FDD-LTE: B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700 MHz)

• TDD-LTE: B38/B40 (2600/2300 ΜHz)

• HSPA+/UMTS: B1/B5/B8 (2100/850/900 ΜHz)

• SoftwareDHCP

  Server, Client, DHCP Client List

• OthersPackage Contents

  Mobile Wi-Fi MT110

  Micro USB Cable

  Quick Installation Guide

•  Environment

  Operating Temperature: 0°C~35°C (32°F ~95°F)

  Storage Temperature: -10°C~40°C (14°F ~104°F)

  Operating Humidity: 0%~75% non-condensing

  Storage Humidity: 0%~65% non-condensing

•  System Requirements

  Windows 11/10/8/7, Mac OS, Android, iOS, Windows Phone
