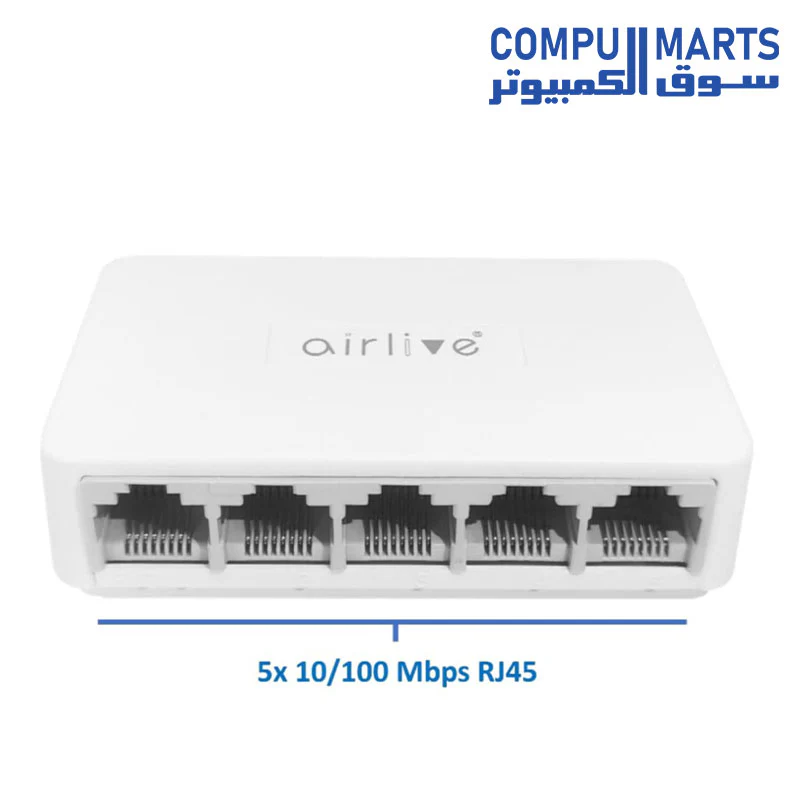

Airlive Live-5E 5-port SOHO Fast Ethernet Switch, Plug and Play
Hardware
• Device Interface:
5 x 10/100Mbps RJ45, Auto MDI/MDIX
• Standard
IEEE802.3 Base-T
IEEE802.3u 100Base-TX
IEEE802.3x
• Industry standard compliant
CE, RoHS
• LED Indicators:
PWR (power supply), Link (Network Link)
• Lighting Surge Protection:
IEC61000-4-2 (ESD), IEC61000-4-5(Surge)
Power:CM± 4kV/DM± 2kV; Port: ± 4kV , ESD: ± 8kV
Contact discharge, ± 15kV Air discharge
• Mechanical
Plastic
Switch Architecture | Performance
• Switching architecture: Store and Forward
Switch Capacity: 1Gbps
Throughput; 0.744Mpps
MAC Address: 1K
Packet Buffer: 768K
Transfer mode: Store and forward
Power Supply
• Power Supply: DC5V1A External power adapter
• Power Consumption: Standby State: 0.7W. Max
power consumption ＜ 2W
Environment
• Operating Temperature: -20°C~+55°C
• Storage Temperature: -40°C~+75°C
• Operating Humidity: 5%~90%, non-condensing
• Storage Humidity: 5%~95%, non-condensing
Standard package of switch
• Product size:
8.3 x 5.2 x 2.2 cm
• Package size:
8.5 x 7.9 x 5.6 cm
• Product Weight/Package Weight
G.W: 0.14kgs
• Package content:
1 x Switch, 1 x Power Adapter
Standard carton package
• Quantity: 100 pcs / 1 carton
• Dimensions
• 46 x 32 x 31 cm
• Carton Weight
14Kgs
Ordering Information
• Model:
Live-5E: 5 x 10/100Mbps RJ45 Switch
• Name:
5-port Fast Ethernet Switch, Plug and Play
