Select Wattage
Select Color
From $87.78

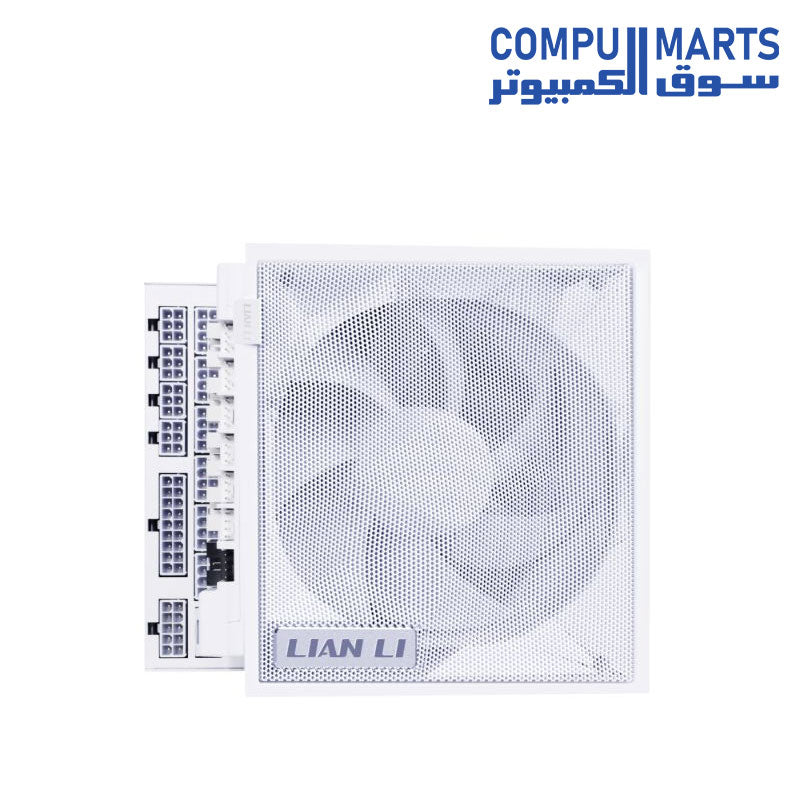

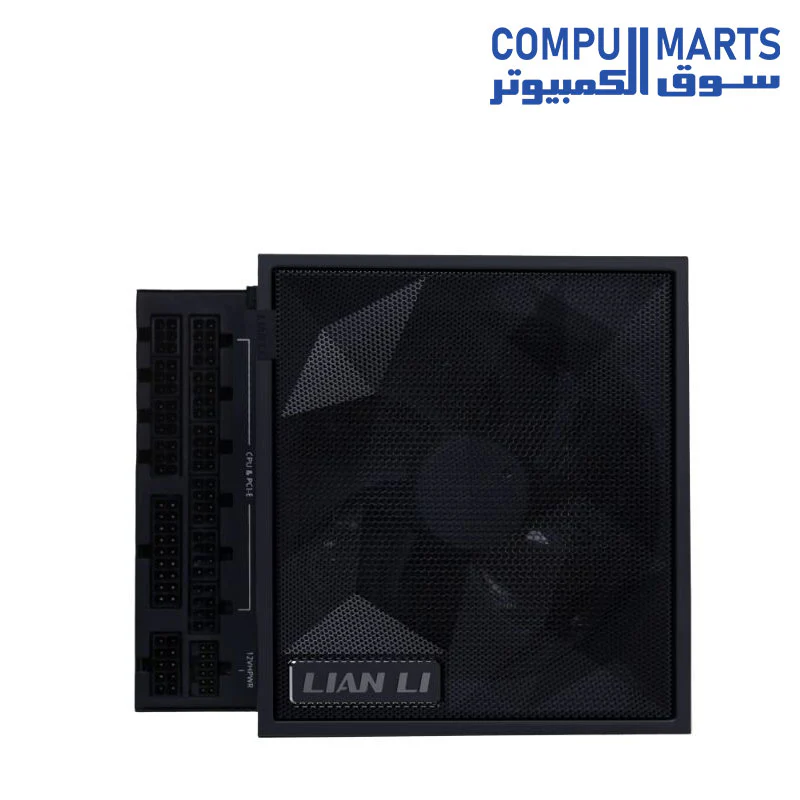

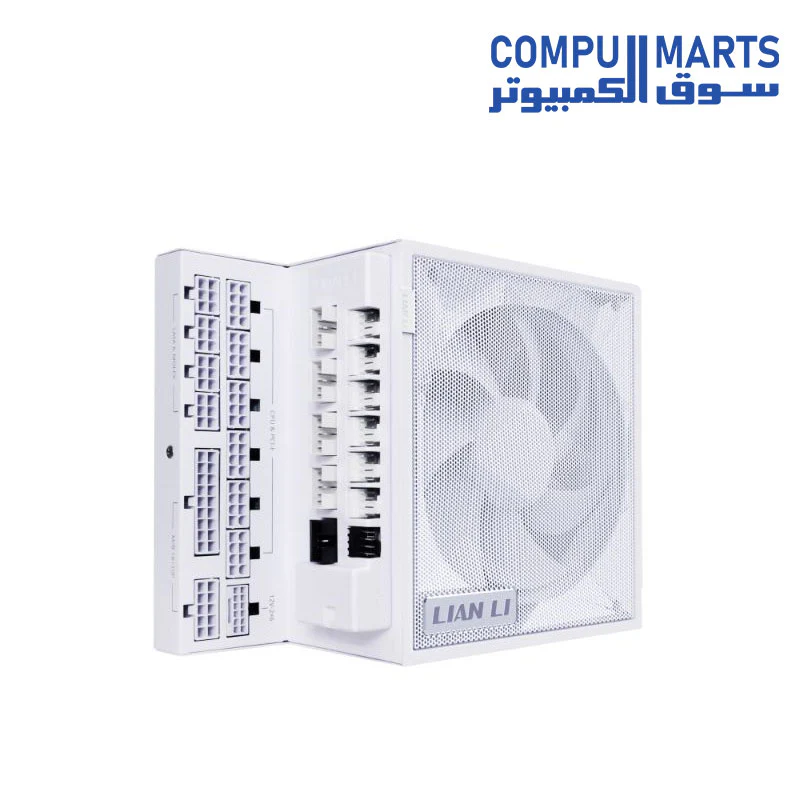

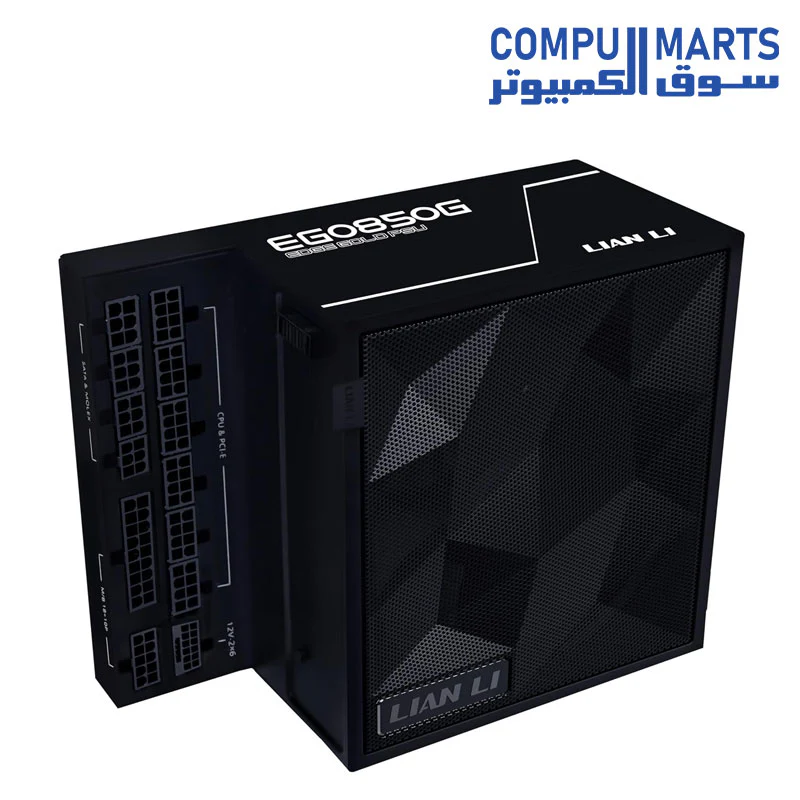

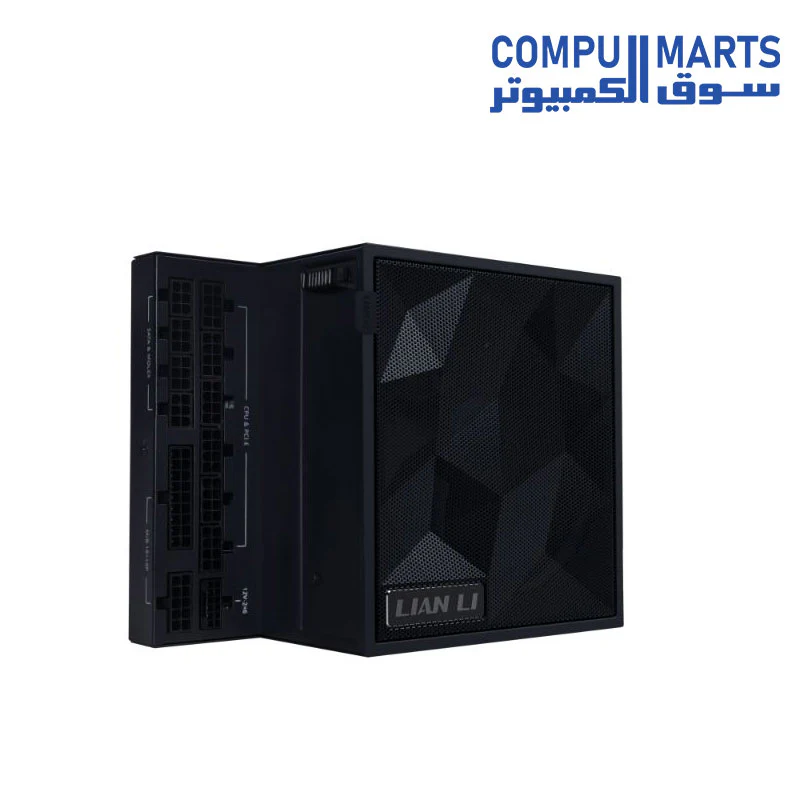

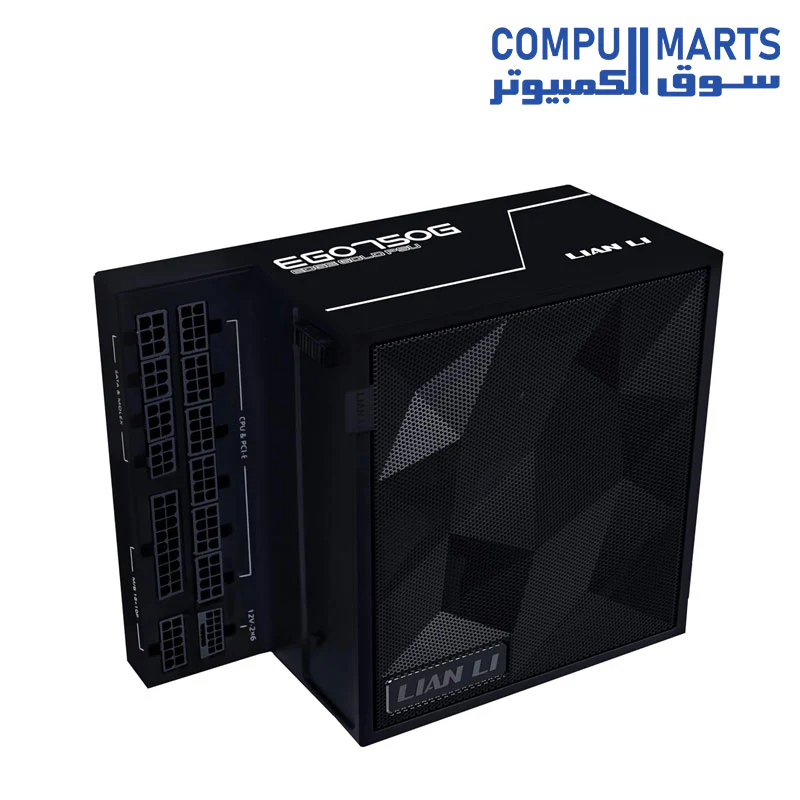

Lian Li Edge Gold - 80 Plus Gold ATX 3.1 Full Modular Power Supply—
$87.78
The Story
| Category | Specification Details |
|---|---|
| PRODUCT NAME | EDGE GOLD 750 / EDGE GOLD 850 |
| MODEL | EG0750G / EG0850G |
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm |
| POWER SUPPLY DESIGN | Fully modular |
| COLOR | Black / Black/ White |
| MATERIAL | Steel |
| FORM FACTOR | ATX 3.1 |
| CERTIFICATION | 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD |
| MAX. DC OUTPUT | 750W / 850W |
| COMBINED +3.3V & +5V | 120W / 120W |
| COMBINED +12V | 744W / 849W |
| INPUT VOLTAGE | 100-240Vac / 100-240Vac |
| INPUT FREQUENCY RANGE | 9-4.5A 50-60Hz / 10-5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| EFFICIENCY | 90.52%MAX / 90.71%MAX |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP |
| CONNECTORS | 1 x 24/20-Pin motherboard connector (620mm) x1pcs, 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs, 1 x 4+4 Pin CPU connector (750mm) x1pcs, 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs, 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs, 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs, 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs, 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs, 1 x 12V – 2X6 450W connector (650mm) x1pcs, 2 x 6+2 Pin GPU connector (650mm) x2pcs |
| FAN TYPE | 120mm FDB Fan |
| FAN SPEED | 2000RPM |
| FAN NOISE LEVEL | 30.9dBA |
| WARRANTY | 10 Years ( Hub 2 Years ) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| PRODUCT NAME | EDGE GOLD 750 / EDGE GOLD 850 |
| MODEL | EG0750G / EG0850G |
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm |
| POWER SUPPLY DESIGN | Fully modular |
| COLOR | Black / Black/ White |
| MATERIAL | Steel |
| FORM FACTOR | ATX 3.1 |
| CERTIFICATION | 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD |
| MAX. DC OUTPUT | 750W / 850W |
| COMBINED +3.3V & +5V | 120W / 120W |
| COMBINED +12V | 744W / 849W |
| INPUT VOLTAGE | 100-240Vac / 100-240Vac |
| INPUT FREQUENCY RANGE | 9-4.5A 50-60Hz / 10-5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| EFFICIENCY | 90.52%MAX / 90.71%MAX |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP |
| CONNECTORS | 1 x 24/20-Pin motherboard connector (620mm) x1pcs, 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs, 1 x 4+4 Pin CPU connector (750mm) x1pcs, 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs, 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs, 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs, 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs, 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs, 1 x 12V – 2X6 450W connector (650mm) x1pcs, 2 x 6+2 Pin GPU connector (650mm) x2pcs |
| FAN TYPE | 120mm FDB Fan |
| FAN SPEED | 2000RPM |
| FAN NOISE LEVEL | 30.9dBA |
| WARRANTY | 10 Years ( Hub 2 Years ) |
