Intel Core i5-9600KF Processor 9M Cache, up to 4.60 GHz—
$0.02
The Story

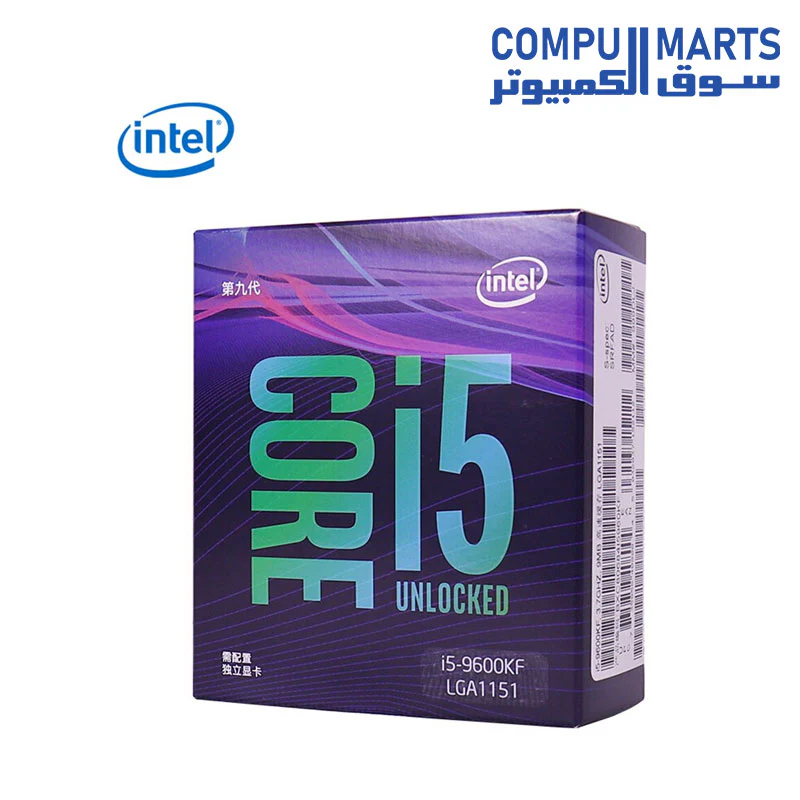

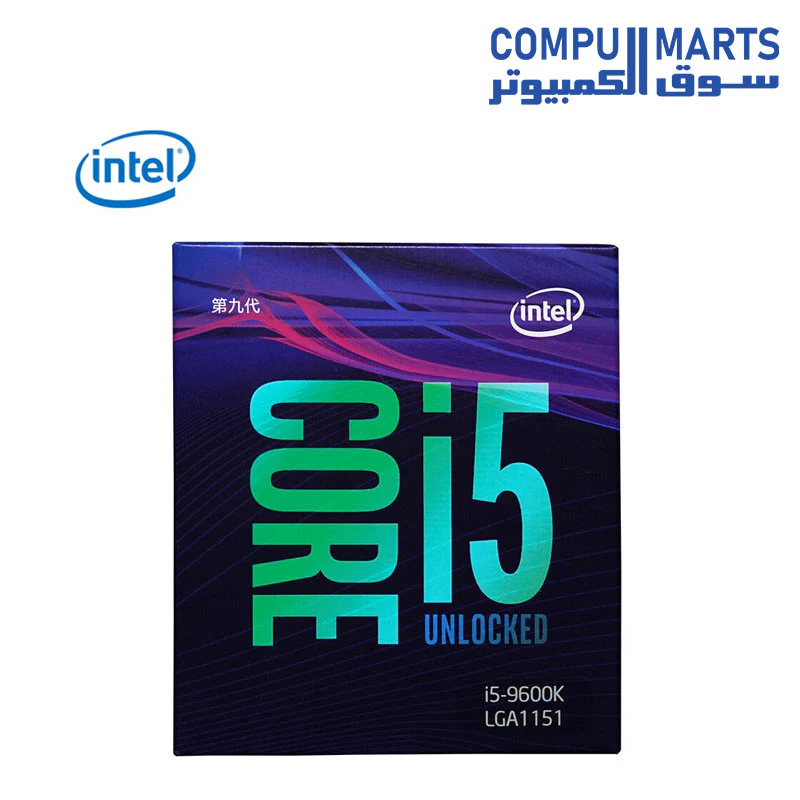

Intel Core i5-9600KF Processor 9M Cache, up to 4.60 GHz
Product Collection : 9TH GENERATION INTEL CORE I5 PROCESSORS
Vertical Segment
Desktop
Processor Number : i5-9600KF
Lithography : 14 nm
Use Conditions : PC/Client/Tablet
*CPU Specifications
Total Cores : 6
Total Threads : 6
Max Turbo Frequency : 4.60 GHz
Intel Turbo Boost Technology 2.0 Frequency : 4.60 GHz
Processor Base Frequency : 3.70 GHz
Cache : 9 MB Intel Smart Cache
Bus Speed : 8 GT/s
TDP : 95 W
*Supplemental Information
Marketing Status : Discontinued
Launch Date : Q1'19
Embedded Options Available : No
*Memory Specifications
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : DDR4-2666
Max # of Memory Channels : 2
Max Memory Bandwidth : 41.6 GB/s
ECC Memory Supported : No
*Expansion Options
Scalability : 1S Only
PCI Express Revision : 3.0
PCI Express Configurations : Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes : 16
*Package Specifications
Sockets Supported : FCLGA1151
Max CPU Configuration: 1
Thermal Solution Specification : PCG 2015D (130W)
TJUNCTION : 100°C
Package Size : 37.5mm x 37.5mm
*Advanced Technologies
Intel Optane Memory Supported : Yes
Intel Turbo Boost Technology : 2.0
Intel Hyper-Threading Technology : No
Intel Transactional Synchronization Extensions : Yes
Intel 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States : Yes
Enhanced Intel SpeedStep Technology : Yes
Thermal Monitoring Technologies : Yes
Intel Identity Protection Technology : Yes
*Security & Reliability
Intel AES New Instructions : Yes
Secure Key : Yes
Intel Software Guard Extensions (Intel SGX) : Yes with Intel ME
Intel Memory Protection Extensions (Intel MPX) : Yes
Intel OS Guard : Yes
Intel Trusted Execution Technology : No
Execute Disable Bit : Yes
Intel Boot Guard : Yes
Intel Stable IT Platform Program (SIPP) : No
Intel Virtualization Technology (VT-x) : Yes
Intel Virtualization Technology for Directed I/O (VT-d) : Yes
Intel VT-x with Extended Page Tables (EPT) : Yes
