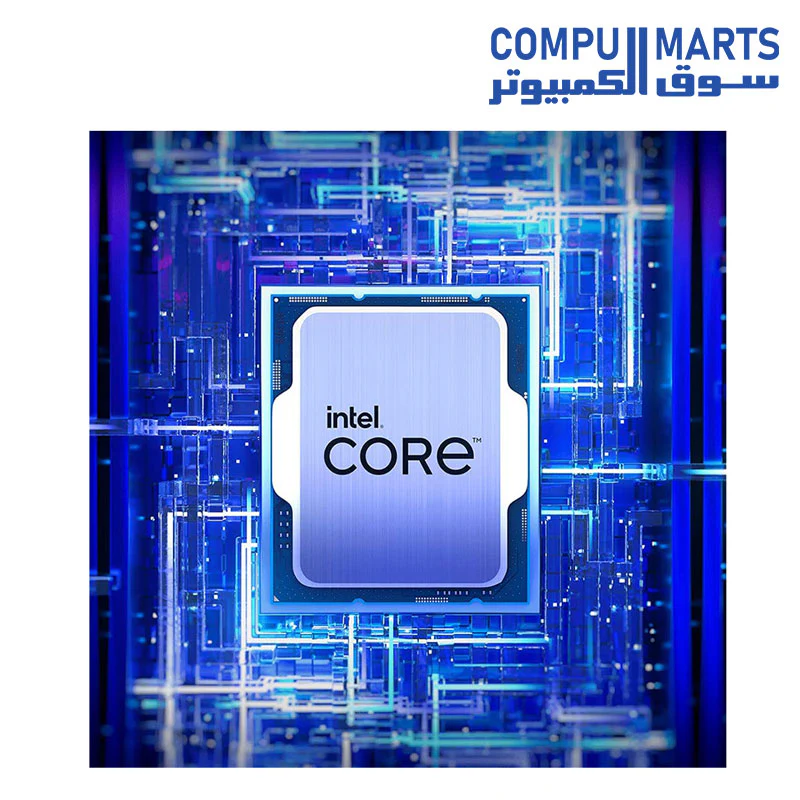

Intel Core i9-13900 Processor 36M Cache, up to 5.60 GHz

Intel Core i9-13900 Processor 36M Cache, up to 5.60 GHz



• Essentials

Product Collection 13th Generation Intel Core i9 Processors

Code Name Products formerly Reptor Lake

Vertical Segment Desktop

Processor Number

i9-13900

Lithography

Intel 7

Use Conditions  PC/Client/Tablet, Workstation

• CPU Specifications

Total Cores  24

of Performance-cores 8

 of Efficient-cores 16

Total Threads  32

Max Turbo Frequency  5.60 GHz

Intel Thermal Velocity Boost Frequency  5.60 GHz

Intel Turbo Boost Max Technology 3.0 Frequency  5.50 GHz

Performance-core Max Turbo Frequency   5.20 GHz

Efficient-core Max Turbo Frequency  4.20 GHz

Performance-core Base Frequency 2.00 GHz

Efficient-core Base Frequency 1.50 GHz

Cache  36 MB Intel Smart Cache

Total L2 Cache 32 MB

Processor Base Power  65 W

Maximum Turbo Power   219 W

• Supplemental Information

Marketing Status Launched

Launch Date  Q1'23

Embedded Options Available  Yes

• Memory Specifications

Max Memory Size (dependent on memory type)  128 GB

Memory Types

Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels  2

Max Memory Bandwidth  89.6 GB/s

ECC Memory Supported  Yes

• Processor Graphics

Processor Graphics

Intel UHD Graphics 770

Graphics Base Frequency  300 MHz

Graphics Max Dynamic Frequency  1.65 GHz

Graphics Output

eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units   32

Max Resolution (HDMI)  4096 x 2160  60Hz

Max Resolution (DP)  7680 x 4320  60Hz

Max Resolution (eDP - Integrated Flat Panel)  5120 x 3200  120Hz

DirectX Support  12

OpenGL Support  4.5

OpenCL Support  3.0

Multi-Format Codec Engines  2

Intel Quick Sync Video Yes

Intel Clear Video HD Technology  Yes

 of Displays Supported  4

Device ID  0xA780

• Expansion Options

Direct Media Interface (DMI) Revision 4.0

Max  of DMI Lanes 8

Scalability

1S Only

PCI Express Revision   5.0 and 4.0

PCI Express Configurations

Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes    20

• Package Specifications

Sockets Supported  FCLGA1700

Max CPU Configuration  1

Thermal Solution Specification   PCG 2020C

T_JUNCTION

100°C

Package Size

45.0 mm x 37.5 mm

• Advanced Technologies

Intel Gaussian & Neural Accelerator  3.0

Intel Thread Director  Yes

Intel Deep Learning Boost (Intel DL Boost)   Yes

Intel Speed Shift Technology   Yes

Intel Thermal Velocity Boost  Yes

Intel Turbo Boost Max Technology 3.0   Yes

Intel Turbo Boost Technology   2.0

Intel Hyper-Threading Technology   Yes

Intel 64  Yes

Instruction Set  64-bit

Instruction Set Extensions

Intel SSE4.1, Intel SSE4.2, Intel AVX2

Idle States  Yes

Enhanced Intel Speed Step Technology  Yes

Thermal Monitoring Technologies  Yes

Intel Volume Management Device (VMD)  Yes

• Security & Reliability

Intel Standard Manageability (ISM)   Yes

Intel Control-Flow Enforcement Technology  Yes

Intel AES New Instructions  Yes

Secure Key  Yes

Intel OS Guard Yes

Intel Trusted Execution Technology   Yes

Execute Disable Bit   Yes

Intel Boot Guard  Yes

Mode-based Execute Control (MBEC)  Yes

Intel Virtualization Technology (VT-x)  Yes

Intel Virtualization Technology for Directed I/O (VT-d)   Yes
