$171.75

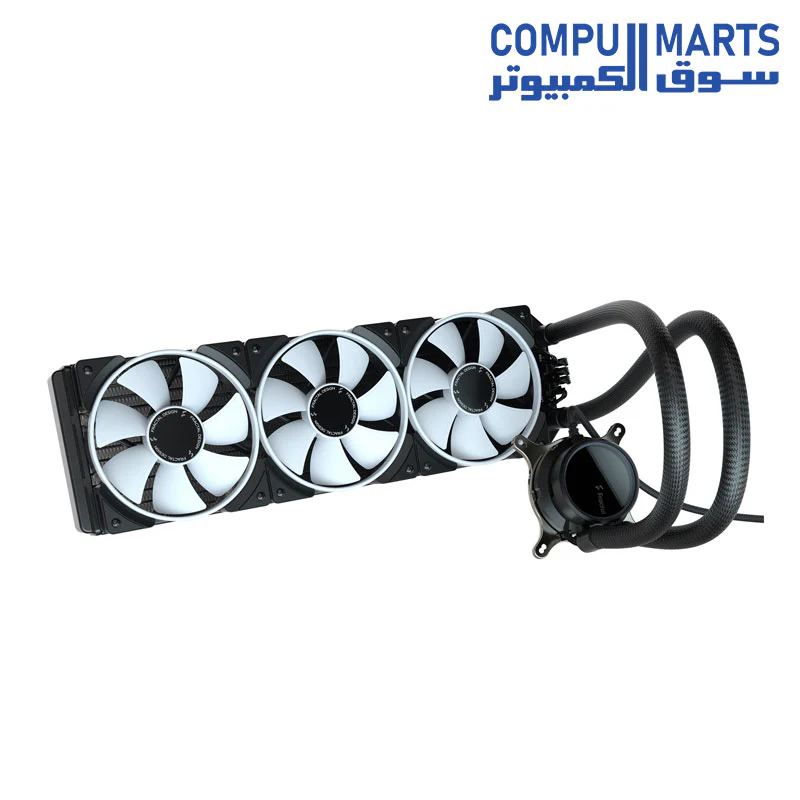

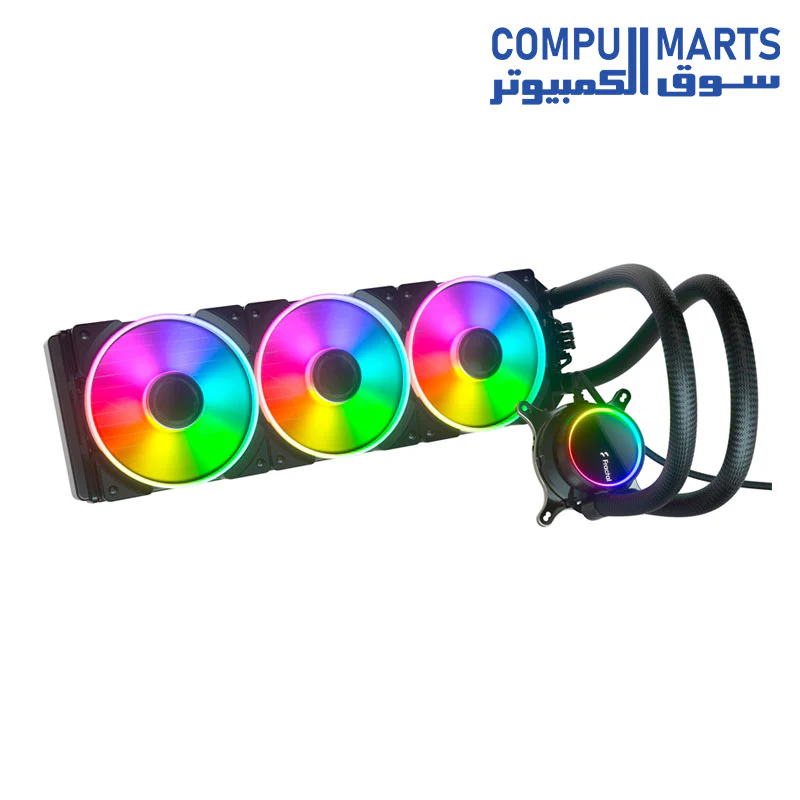

Fractal Design Celsius+ S36 Prisma PWM ARGB 360mm Silent Performance Slim Radiator AIO CPU Liquid/Water Cooler—
$171.75
The Story
| Category | Specification Details |
|---|---|
| Sockets supported (Intel) | 1700*, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 |
| Sockets supported (AMD) | AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+ |
| Socket Note | * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version |
| Coldplate material | Copper |
| Thermal paste | Pre-applied |
| Tube length | 400 mm |
| Tube material | Low-permeability rubber with braided nylon sleeve |
| Fittings, block side | Articulating 90-degree elbow |
| Fittings, radiator side | Straight rotary |
| Fan control | Dual mode (Auto/PWM) |
| Compatibility Note | The Celsius+ is NOT compatible with the Adjust R1 |
| Fan type | Prisma AL-12 PWM ARGB |
| Fan rotational speed | 500 – 2000 RPM |
| Fan bearing | LLS |
| Fan PWM control | Yes |
| Fan acoustical noise (full speed) | 32.7 dBA |
| Maximum air flow | 85.71 CFM |
| Maximum static pressure | 2.78 mm H2O |
| Fan input voltage | 12V DC |
| Maximum fan input current | 0.18A |
| Fan MTBF | 100,000 hours |
| Pump rotational speed | 800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C |
| Pump bearing type | Ceramic bearing and shaft |
| Pump PWM control | Yes |
| Pump acoustical noise (full speed) | 20 dBA |
| Pump maximum pressure | 14.4 kPa / 1.46 mm H2O /2.0 PSI |
| Pump input voltage | 12V DC |
| Pump input current (without fans) | 0.36A |
| Pump MTTF | 50,000 hours |
| Block height | 45 mm |
| Block measurements (with fittings) | 86 x 75 mm |
| Block diameter (main block body) | 62 mm |
| Radiator dimensions | 123 x 30 x 403 mm |
| Radiator housing material | Aluminum |
| Radiator fin material | Aluminum |
| Fan screw threads | 6-32 |
| Package contents | Celsius+ S36 unit, 3 x 120 mm fans, User manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws |
| Package Dimensions | 470 x 180 x 145 mm |
| EAN | 7340172702122 |
| UPC | 843276102128 |
| JAN | 4537694275569 |
| Product code | FD-W-2-S3602 |
| Warranty | 5 years |
| Features | Prisma ARGB PWM fans deliver outstanding airflow with brilliant lighting effects. Specially designed fan blades and outer ring produce a uniform glow. Optimized fan geometry balances airflow with extra emphasis on static pressure. Trip Wire technology reduces blade turbulence. LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan. |
