$7.73
Original: $25.77
-70%Eaton UPS Protection Box 6 USB DIN—
$25.77
$7.73The Story

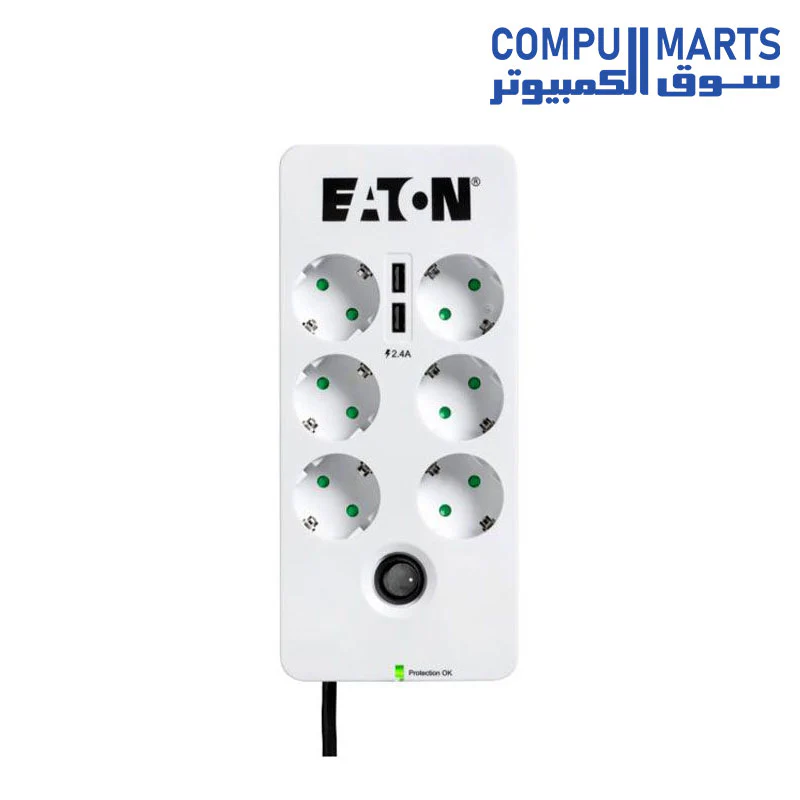

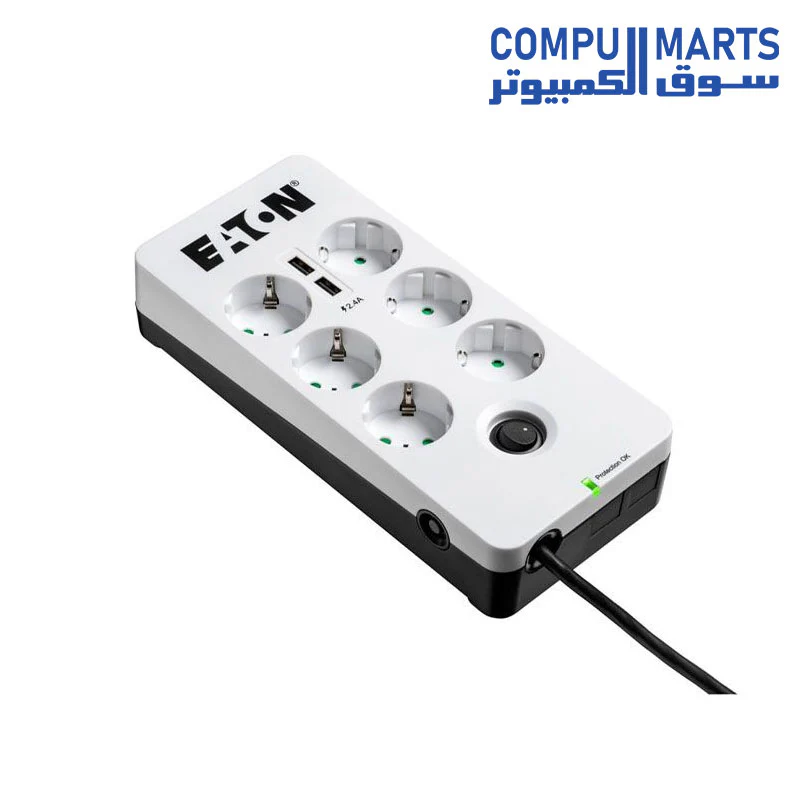

Eaton UPS Protection Box 6 USB DIN
Eaton Surge Protection Box 6 DIN, 10A
High-end multi outlets surge protection device implementing 6 Schuko (DIN) sockets, IEC 61643-11 compliant, 2 USB Charging ports
PRODUCT NAME |
Eaton Protection Box |
CATALOG NUMBER |
PB6UD |
EAN |
3553340667213 |
PRODUCT LENGTH/DEPTH |
245 mm |
PRODUCT HEIGHT |
110 mm |
PRODUCT WIDTH |
47.5 mm |
PRODUCT WEIGHT |
0.612 kg |
COMPLIANCES |
EACCE Marked |
CERTIFICATIONS |
IEC/EN 60884-1IEC/EN 61643-11 |
MODEL CODE |
Eaton Protection Box 6 USB DIN |
INTERRUPT RATING |
10 AIC |
PHASE |
Single-phase |
NUMBER OF NEMA-OUTLETS |
0 |
OPERATING TEMPERATURE - MIN |
0 °C |
NUMBER OF OUTLETS |
6 |
RAL-NUMBER |
9003 |
HOUSING SHAPE |
Rectangular |
SWITCHABLE |
Yes |
SURFACE FINISH |
Matt/Matte |
MOUNTING METHOD |
Portable35 mm DIN rail |
AMPERAGE RATING |
10A |
INPUT CONNECTION |
Protective contact (SCHUKO) |
PACKAGE CONTENTS |
Surge suppressor deviceQuickstart guide |
MATERIAL QUALITY |
Other |
POWER CORD LENGTH |
1.5 m |
NEMA DESIGNATION |
None |
SURGE RATING |
1500 V |
FITTED WITH: |
LED indicationOver voltage protectionFuseOn/Off switch |
OPERATING TEMPERATURE - MAX |
40 °C |
DEGREE OF PROTECTION |
IP20 |
CIRCUIT BREAKER |
Yes |
CORE CROSS SECTION |
0 mm² |
SPECIAL FEATURES |
High end multi outlets surge protection device implementing 6 Schuko (DIN) sockets, IEC 61643-11 compliant, 2 USB ports, including connected equipment warranty |
NUMBER OF USB CONNECTIONS |
2 |
COLOR |
Black/white |
RESIDUAL CURRENT CIRCUIT BREAKER |
No |
MATERIAL |
Plastic |
SURGE CURRENT |
3000A |
ANGLE OF ROTATED CENTRAL INSERT |
Other |
TYPE |
Surge Suppressor |
HALOGEN FREE |
No |
INDICATOR TYPE |
Color LED |
OPERATING VOLTAGE |
220-250 V |
TRANSPARENT |
No |
SURFACE PROTECTION |
Other |
NUMBER OF SOCKET OUTLETS WITH PROTECTIVE CONTACT |
6 |
NOMINAL FREQUENCY |
50-60 Hz |
INTERNET/TEL LINE PROTECTION |
No |
