$162.23

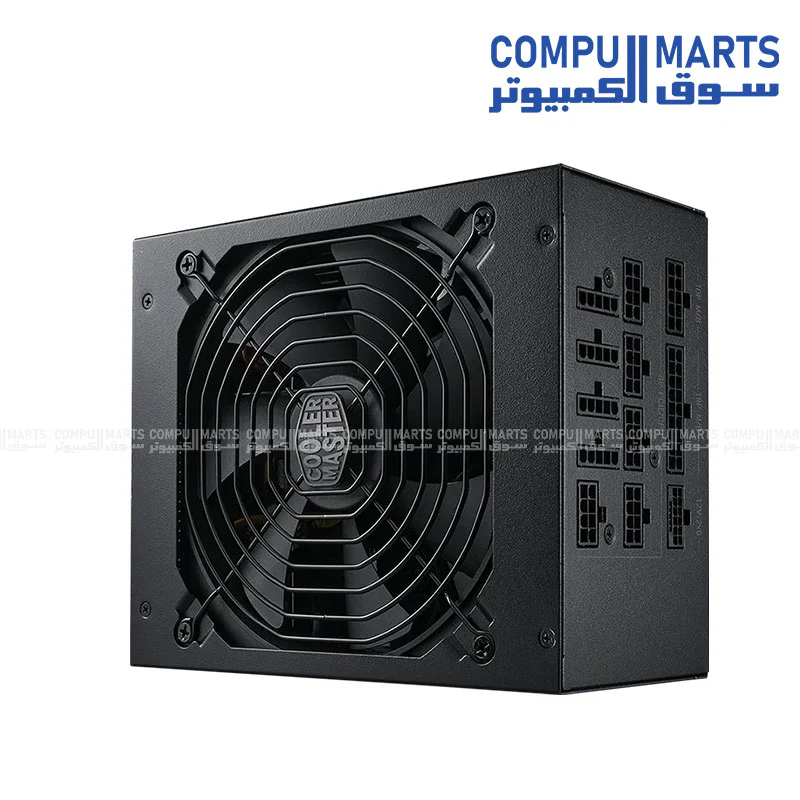

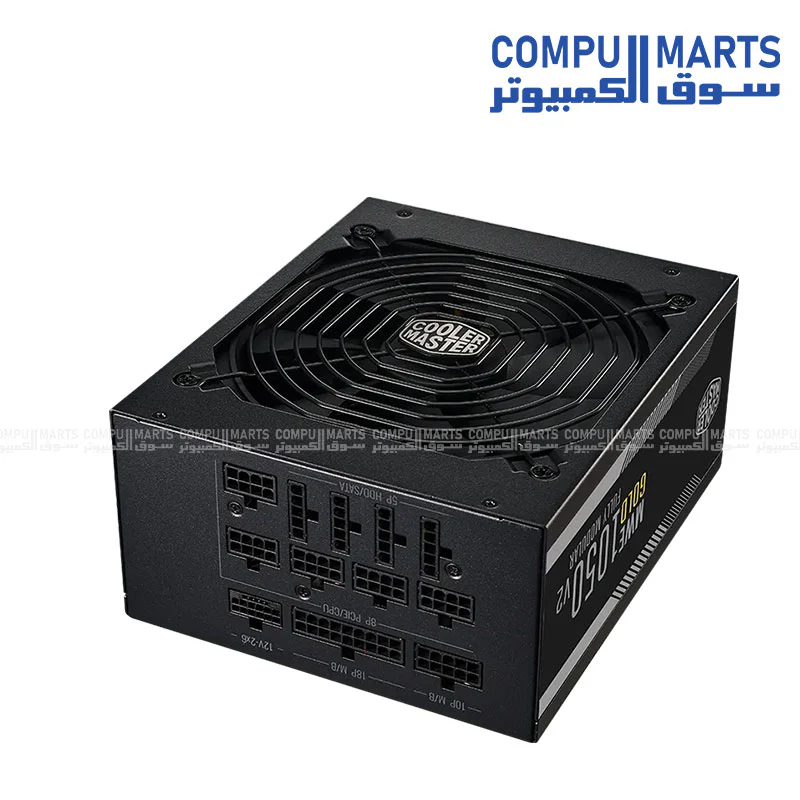

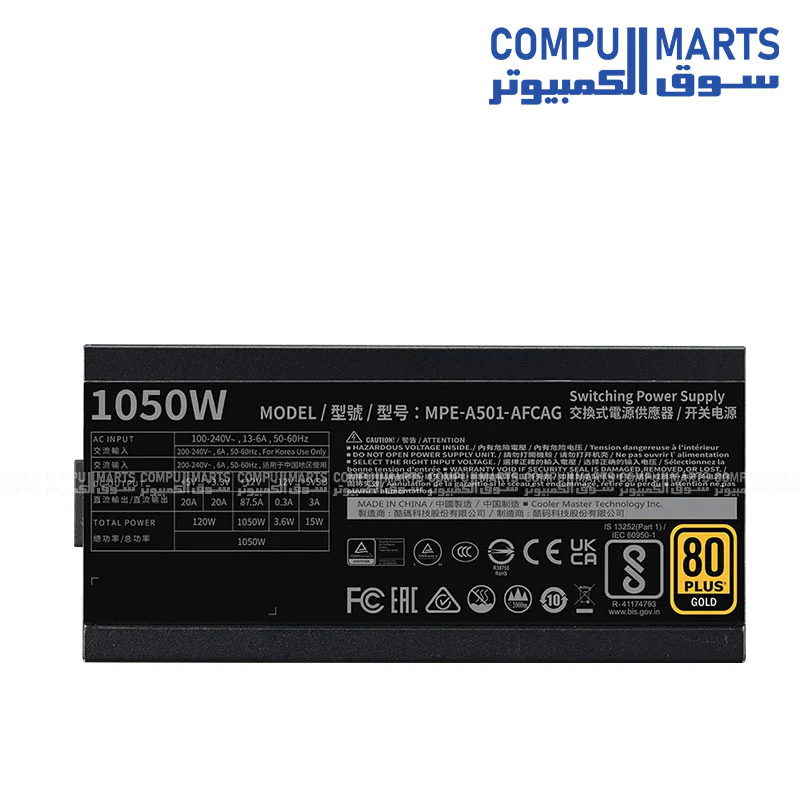

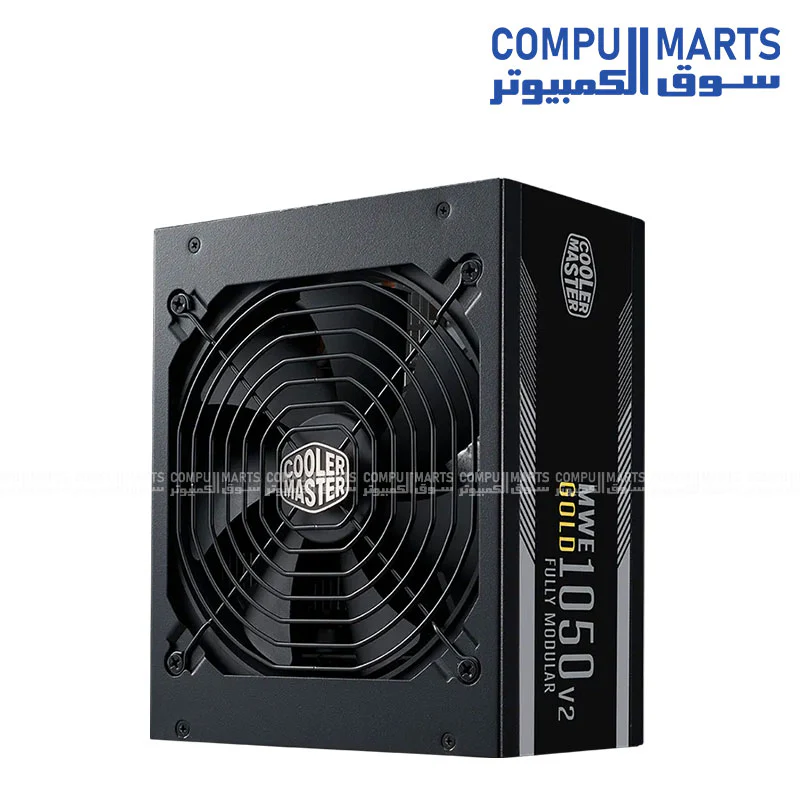

Cooler Master MWE Gold 1050 V2 ATX 3.1 Fully Modular 80+ Gold Power Supply – 1050W—
$162.23
The Story
| Category | Specification Details |
|---|---|
| Model | MWE Gold 1050 V2 ATX 3.1 (MPE-A501-AFCAG-3E) |
| Maximum Power | 1050W |
| Efficiency Rating | 80 PLUS Gold (≥90% @ Typical Load) |
| ATX Version | ATX Rev. 3.1 |
| Modular | Fully Modular |
| Fan Details | 140mm FDB (Fluid Dynamic Bearing) Fan |
| Input Specifications | 100-240V | 13-6A | 50-60Hz |
| Protections | OVP, OPP, SCP, OCP, UVP, OTP, Inrush Protection |
| Hold Up Time | ≥16ms at 100% Load |
| MTBF | >100,000 Hours |
| ATX 24 Pin Connectors | 1 |
| EPS Connectors | 1 x 4+4 Pin, 1 x 8 Pin |
| 12V-2x6 Connectors | 1 (PCIe 5.1 Ready) |
| PCI-e 6+2 Pin Connectors | 3 |
| SATA Connectors | 12 |
| Peripheral 4 Pin | 4 |
| Dimensions (L x W x H) | 180 x 150 x 86 mm |
| Regulatory | TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | MWE Gold 1050 V2 ATX 3.1 (MPE-A501-AFCAG-3E) |
| Maximum Power | 1050W |
| Efficiency Rating | 80 PLUS Gold (≥90% @ Typical Load) |
| ATX Version | ATX Rev. 3.1 |
| Modular | Fully Modular |
| Fan Details | 140mm FDB (Fluid Dynamic Bearing) Fan |
| Input Specifications | 100-240V | 13-6A | 50-60Hz |
| Protections | OVP, OPP, SCP, OCP, UVP, OTP, Inrush Protection |
| Hold Up Time | ≥16ms at 100% Load |
| MTBF | >100,000 Hours |
| ATX 24 Pin Connectors | 1 |
| EPS Connectors | 1 x 4+4 Pin, 1 x 8 Pin |
| 12V-2x6 Connectors | 1 (PCIe 5.1 Ready) |
| PCI-e 6+2 Pin Connectors | 3 |
| SATA Connectors | 12 |
| Peripheral 4 Pin | 4 |
| Dimensions (L x W x H) | 180 x 150 x 86 mm |
| Regulatory | TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS |
