$171.75

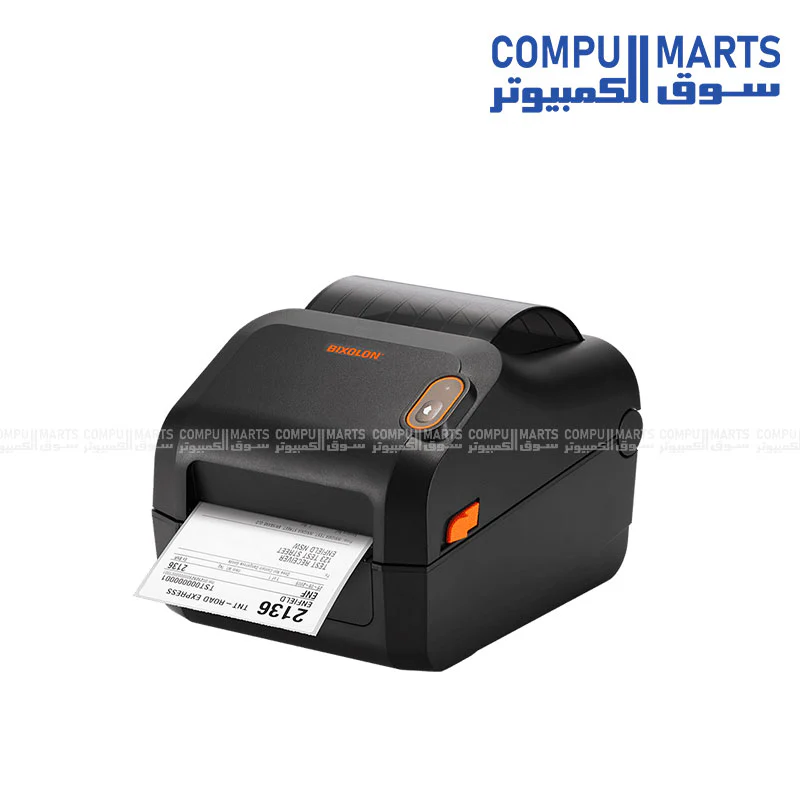

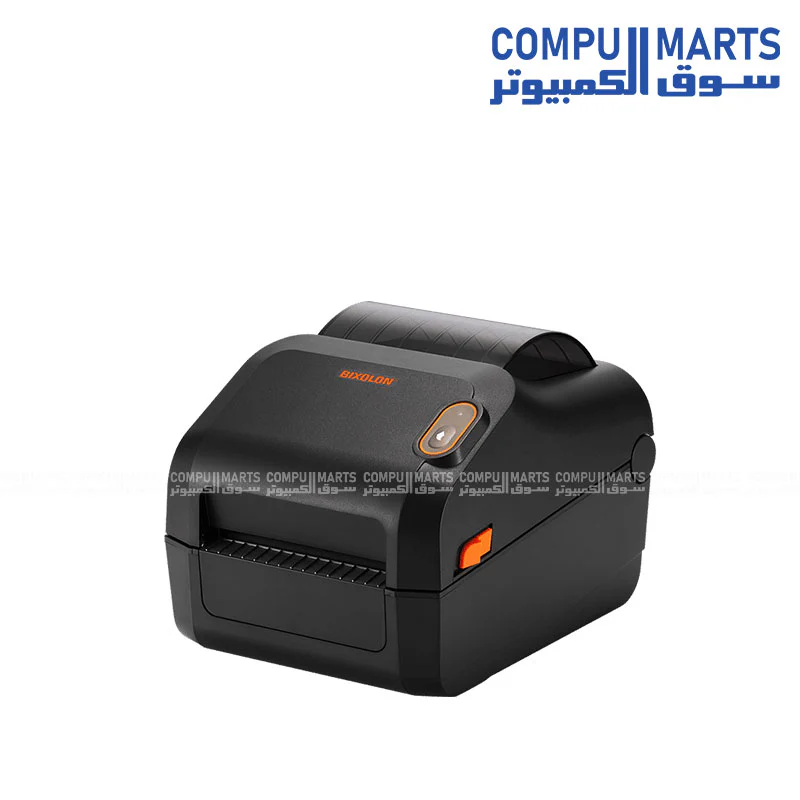

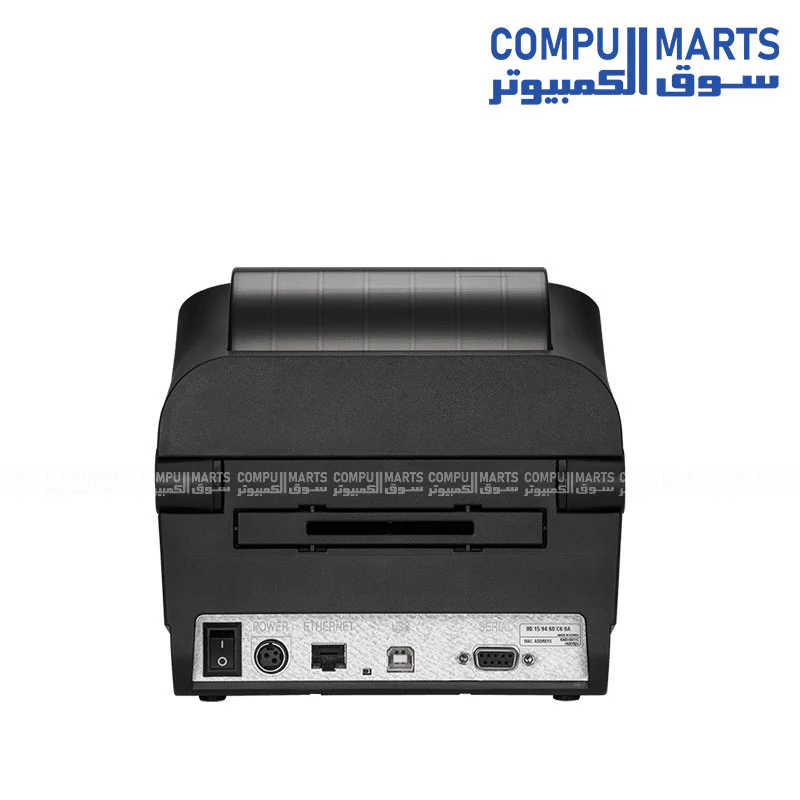

Bixolon XD3-dK 4" Direct Thermal Label Printer – USB – 5IPS – 203dpi – Black—
$171.75
The Story
Bixolon XD3-dK 4" Direct Thermal Label Printer – USB – 5IPS – 203dpi – Black
Specifications
Print Characteristics |
|
Print Method |
Thermal Transfer or Direct Thermal |
Print Speed |
Up to 5 ips (127 mm/sec) |
Print Resolution |
203 dpi |
Print Width |
Up to 104 mm |
Print Length |
Up to 1,000 mm |
Sensor |
Transmissive(Fixed), Reflective(Adjustable), Head Open, Ribbon-End (XD3-40t only) |
Media Characteristics |
|
Media Type |
Gap, Black Mark, Notch, Continuous, Fan-Fold |
Media Width |
15~118mm |
Media Roll Diameter |
Up to 127mm |
Media Thickness |
0.06 ~ 0.20 mm |
Supply Method |
Easy Paper Loading |
Inner Core |
25.4 ~ 38.1mm |
Ribbon Characteristics |
|
Ribbon Type |
Wax, Wax/Resin, Resin, Outside |
Ribbon Width |
33~ 110mm |
Ribbon Length |
Up to 300m |
Core Inner Diameter |
25.4 mm, 12.7 mm |
Physical Characteristics |
|
Dimensions (WxDxH) |
"XD3-40d: 181 x 222 x 168 mm (7.13 x 8.74 x 6.62 inch)XD3-40t: 210 x 284 x 186 mm (8.3 x 11.2 x 7.3 inch)" |
Weight |
"XD3-40d: 1.7kg (3.75 lbs.)XD3-40t: 2.6kg (5.73 Ibs.)" |
Electrical |
EnergyStar Certified,External Power Adaptor 100-240V AC, 50/60Hz |
Performance Characteristics |
|
Memory |
64 MB SDRAM, 128 MB Flash |
Interface |
"Standard: USBOptional: USB + Serial + Ethernet" |
Real Time Clock |
Not Supported |
Environment Characteristics |
|
Temperature |
"Operating:XD3-40d: 0 ~ 40℃ (32 ~ 104℉)XD3-40t: 5 ~ 40℃ (41 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉)" |
Humidity |
"Operating: 10 ~ 80% RHStorage 10 ~ 90% RH" |
Reliability |
|
Thermal Print Head (TPH) |
|
Auto Cutter |
|
Platen Roller |
|
Software |
|
Emulation |
SLCS, BPL-Z (ZPLII), BPL-E (EPL) |
Driver/Utility |
"Windows Driver (Europlus/Seagull)Linux/Mac CUPS DriverVirtual COM USB/Ethernet DriverUtility ProgramOPOS DriverBartender Ultralite for BIXOLONLabel Artist-II" |
SDK/Plugin |
"Windows SDKLinux SDK" |
Application |
|
MDM(Optional) |
|
Fonts/Graphics/Symbologies |
|
Fonts |
Bitmap Fonts (SLCS , BPL-Z, BPL-E) / Scalable Fonts (SLCS, BPL-Z) / Unicode supported (UTF-8, UTF-16LE, UTF-16BE) |
Graphics |
Supporting user-defined fonts, graphics, formats and logos |
Barcode Symbologies |
"1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39 " |
Accessories |
|
Standard |
USB cable |
Optional |
Peeler,External Paper Supply, Serial cable |
Supplies |
