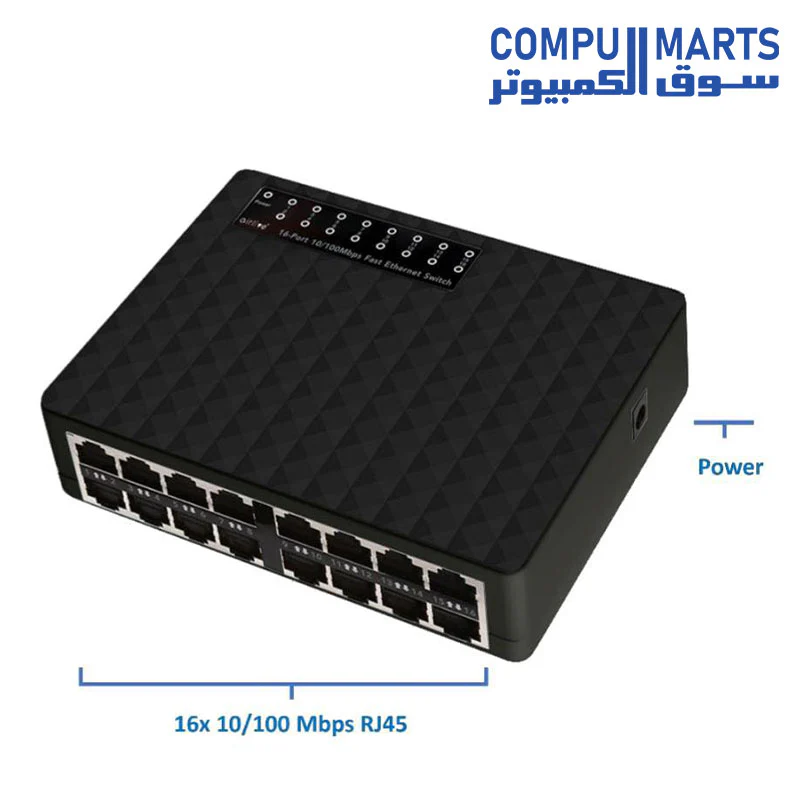

Airlive live-16E 16-port SOHO Fast Ethernet switch, Plug and Play
Hardware
• Device Interface:
16 x 10/100Mbps RJ45, Auto MDI/MDI-X
• Standard
IEEE802.3 Base-T
IEEE802.3u 100Base-TX
IEEE802.3x
• Industry standard compliant
CE, RoHS
• LED Indicators:
PWR (power supply), Link (Network Link)
• Lighting Surge Protection:
IEC61000-4-2 (ESD), IEC61000-4-5(Surge)
Power:CM± 4kV/DM± 2kV; Port: ± 4kV , ESD: ± 8kV
Contact discharge, ± 15kV Air discharge
• Mechanical
Plastic
Switch Architecture | Performance
• Switching architecture: Store and Forward
Switch Capacity: 3.2Gbps
Throughput; 148,800pps for 100M
MAC Address: 8K
Transfer mode: Store and forward
Power Supply
• Power Supply: DC12V1A External power adapter
• Power Consumption: Max power consumption ＜
15W
Environment
• Operating Temperature: 0°C~+40°C
• Storage Temperature: -40°C~+70°C
• Operating Humidity: 10%~90%, non-condensing
• Storage Humidity: 5%~95%, non-condensing
Standard package of switch
• Product size:
14 x 10.5 x 3.5 cm
• Package size:
16 x 11 x 7 cm
• Product Weight/Package Weight
G.W: 0.36kgs
• Package content:
1 x Switch, 1 x Power Adapter
Standard carton package
• Quantity: 50 pcs / 1 carton
• Dimensions
• 67.5 x 33.5 x 36 cm
• Carton Weight
19.2Kgs
Ordering Information
• Model:
Live-16E: 16 x 10/100Mbps RJ45 Switch
• Name:
16-port Fast Ethernet Switch, Plug and Play
