-70%Airlive live-16 GTM 16-port SOHO Gigabit switch, VLAN, Plug and Play—
$41.03
$12.31The Story

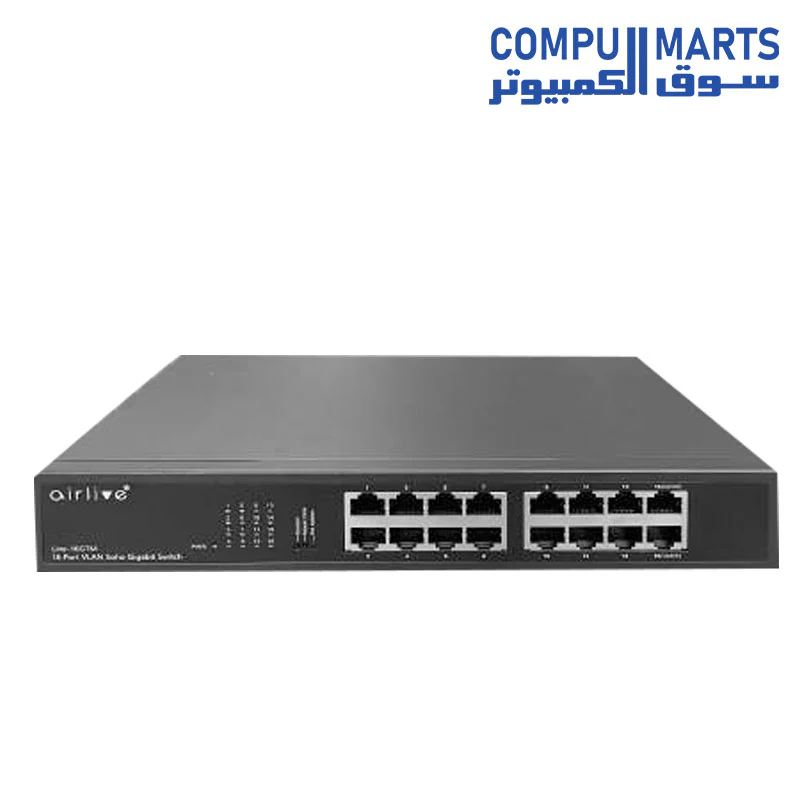

Airlive live-16 GTM 16-port SOHO Gigabit switch, VLAN, Plug and Play
Hardware
• Device Interface:
16 x 10/100/1000Mbps RJ45, Auto MDI/MDI-X
• Standard
IEEE802.3u 100Base-TX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3x
• LED Indicators:
PWR (power supply), Link (Network Link)
• Lighting Surge Protection:
IEC61000-4-2 (ESD), IEC61000-4-5(Surge)
Power:CM± 4kV/DM± 2kV; Port: ± 4kV , ESD: ± 8kV
Contact discharge, ± 15kV Air discharge
• Mechanical
Metal
Switch Architecture | Performance
• Switching architecture: Store and Forward
Switch Capacity: Back-plan up to 32Gbps
Pack forward rate; 23.88Mpps
MAC Address: 8K
Jumbo Frame: 10K
Transfer mode: Store and forward

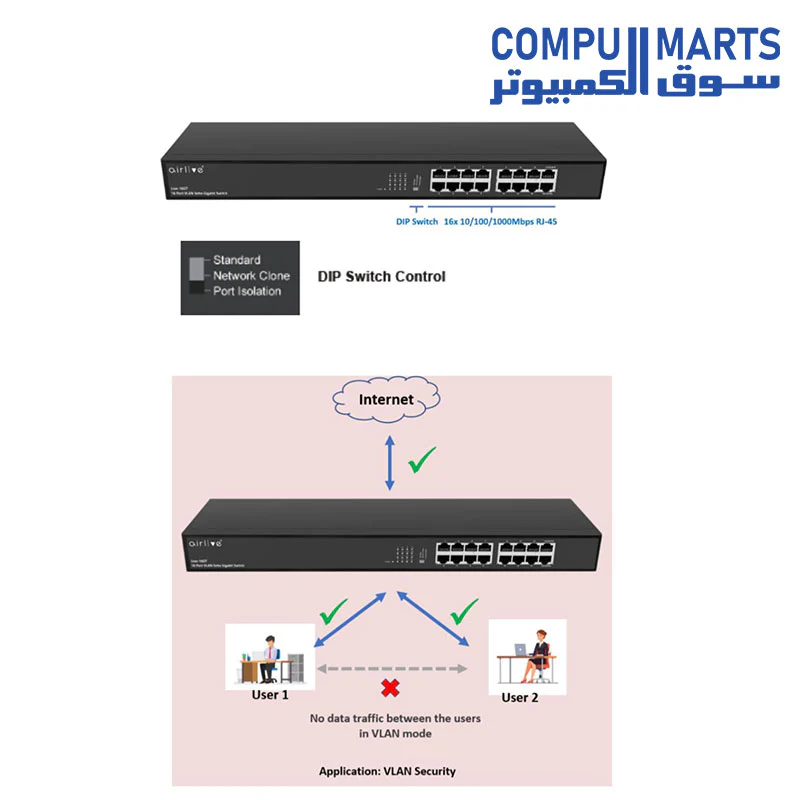

DIP Switch Control
• Standard: Normal mode, all port can
communicate with each other, the transmission
distance is within 100m, the transmission rate is
10M/100/1000M adaptive.
• Port Isolation/VLAN: Port isolation mode. In this
mode ports (1~14) cannot communicate with each
other and can only communicate with the UP-Link
port 15/16.
• Flow Control: This is a Flow Control switch. It is
only used when network congestion occurs, and
after the blocking occurs, the peer device sends a
packet, and the other device will reduce the
transmission rate.
• Note: Port Isolation and Network Flow Control
mode cannot be used at the same time
Power Supply
• Power Supply: AC 100~240V
• Power Consumption: Max power consumption
<9.26W
Environment
• Operating Temperature: 0°C~+40°C
• Storage Temperature: -40°C~+70°C
• Operating Humidity: 10%~90%, non-condensing
• Storage Humidity: 5%~90%, non-condensing
Standard package of switch
• Product size:
27 x 18.1x 4.4 cm(L*W*H)
• Package size:
28.6 x 23.2 x 5.1 cm(L*W*H)
• Product Weight/Package Weight
G.W:1.42kg
• Package content:
1 x Switch, 1 x Power Cable
Standard carton package
• Quantity: 12 pcs / 1 carton
• Dimensions
• 57 x 29.7 x 31 cm
• Carton Weight
18.5Kgs
Ordering Information
• Model:
Live-16GTM: 16 x 10/100/1000Mbps RJ-45 Switch
• Name:
16-port Gigabit Switch, VLAN, Plug and Play
