$4.09
Original: $13.65
-70%Airlive 2.4Ghz N300 Wireless Extender (Repeater) external antenna—
$13.65
$4.09The Story

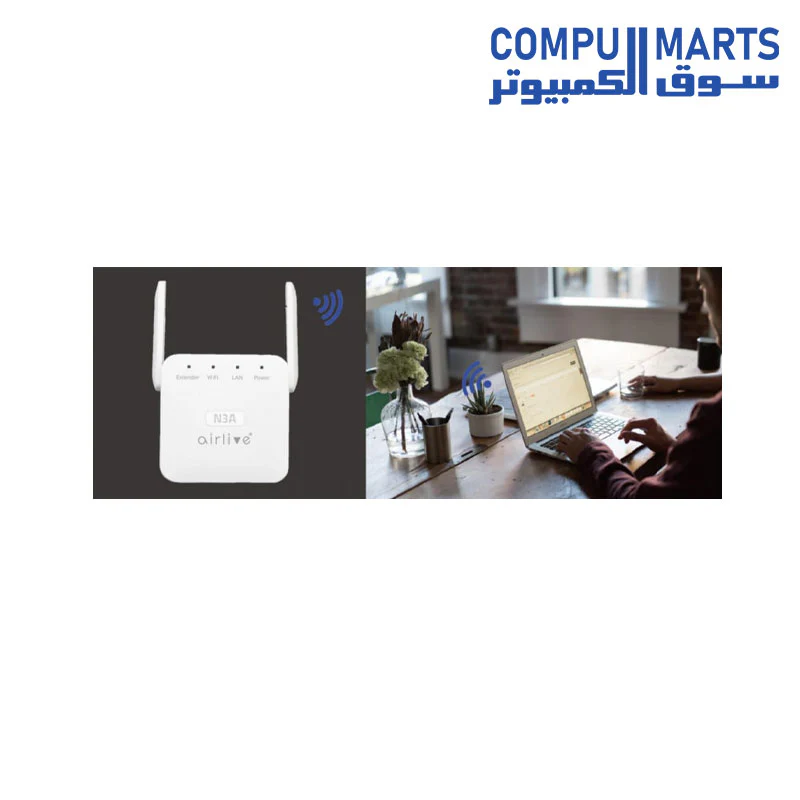

Airlive 2.4Ghz N300 Wireless Extender (Repeater) external antenna
-
Interface
-
• Chipset: Realtek RTL8196E
-
• Interface:
-
1x10/100 Mbps
-
• Wireless Mode : AP/ Repeater
-
• Antenna: 2x 2dbi fixed antenna
-
• Wireless Signal Rates With Automatic Fallback:
-
11n: Up to 300Mbps (Dynamic)
-
11g: Up to 54Mbps (Dynamic)
-
11b: Up to 11Mbps (Dynamic)
-
• Standard: 802.11n, IEEE 802.11g, IEEE 802.11b
-
• Frequency Range :2.4-2.4835GHz
-
• Wireless Transmit Power: <20dBm(EIRP)
-
• Modulation Type : OFDM/CCK/16-QAM/64-QAM
-
• Receiver Sensitivity :
-
2.4GHz 802.11b:
-
- 1Mbps, -97dBm, ± 2dB
-
- 11Mbps, -90dBm, ± 2dB
-
2.4GHz 802.11g:
-
- 6Mbps, -92dBm, ± 2dB
-
- 54Mbps, -76dBm, ± 2dB
-
2.4GHz 802.11n: 20MHz MCS0, -92dBm, ± 2dB
-
- MCS7, -75dBm, ± 2dB
-
- MCS8, -71dBm, ± 2dB
-
2.4GHz 802.11n: 40MHz MCS0, -89dBm, ± 2dB
-
- MCS9, -67dBm,, ± 2dB
-
• Wireless Security: 64/128 bits WEP, WPA/WPA2,
-
WPA-PSK/WPA2-PSK (TKIP/AES)
-
• Operating Temperature: -20°C~70°C
-
• Storage Temperature: -40°C~90°C
-
• Relative Humidity: 5% ~ 95%, non-condensation
-
• Storage Humidity: 5%~90% non-condensing
-
Standard package of switch
-
• Product size:
-
8.2 x 7.2 x 5.5cm (L*W*H)
-
Weight: ≤TBD
-
Package size:
-
TBD cm(L*W*H)
-
• Package content
-
Extender N3A/QIG
-
Ordering information
-
• AirLive Extender N3A
-
2.4Ghz N300 Wireless Extender (Repeater),
-
external antenna
